BACHMANN CNT204/H Counter Module

Product Details

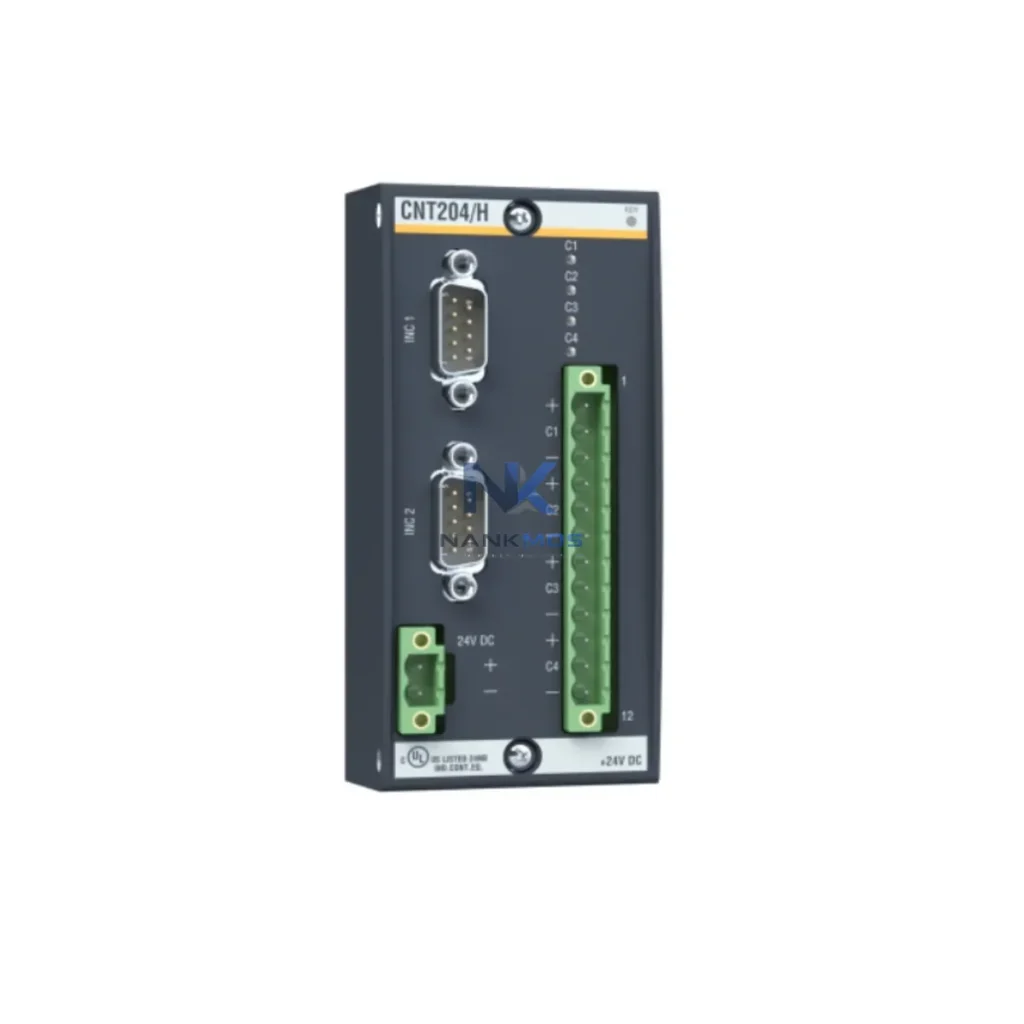

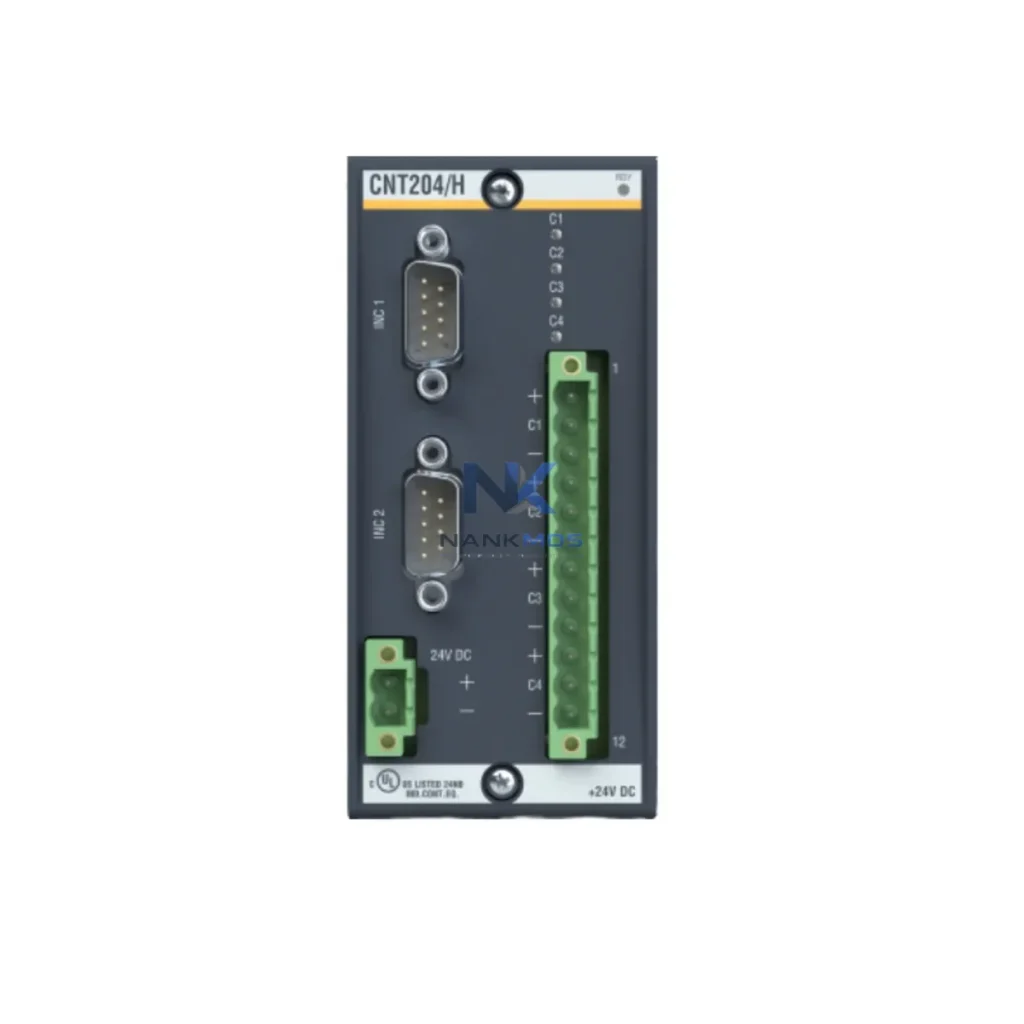

CNT204/H Product Description

The Bachmann CNT204/H is a high-speed counter module engineered for the Bachmann E Series PLC platform, delivering precise pulse counting, frequency measurement, and position detection across demanding industrial automation environments. Designed to operate within the Bachmann M1 controller ecosystem, the CNT204/H serves as a critical data acquisition node in smart factory architectures — capturing high-frequency signals from encoders, proximity sensors, flow meters, and rotary transducers, then transmitting structured process data upstream through the E Series backplane bus to the M1 CPU for real-time control and SCADA-level visibility.

In modern connected factories, the integrity of the data chain from field device to supervisory system determines the responsiveness of the entire production line. The CNT204/H anchors this chain at the signal acquisition layer, ensuring that every pulse, edge, and frequency event is captured with microsecond-level accuracy and forwarded without latency to the controller. Whether integrated into a high-speed packaging line, a precision CNC machining cell, or a wind turbine pitch control system, the CNT204/H provides the measurement fidelity that smart automation demands.

The CNT204/H operates at the front end of the smart factory data pipeline. Field-level devices — including incremental encoders on servo axes, inductive proximity sensors on conveyor indexing stations, and turbine flow meters on process lines — feed raw pulse signals directly into the CNT204/H's four independent input channels. The module processes these signals in real time, applying configurable counting modes (up/down, quadrature, gating) before presenting structured process values to the Bachmann M1 CPU via the high-speed E Series backplane bus.

Within the M1 rack, the CNT204/H works in close coordination with complementary E Series I/O modules. Digital output modules such as the Bachmann DIO216 respond to counter threshold events — triggering solenoid valves, conveyor stops, or alarm relays based on count-based logic executed in the M1 CPU. Analog input modules like the Bachmann AIO288 run in parallel, capturing temperature, pressure, and flow analog signals that provide process context alongside the counter data, enabling multi-variable correlation in the SCADA historian.

The M1 CPU — for example the Bachmann MPC240 or MPC265 — aggregates all module data and exposes it to the plant network through integrated communication interfaces. Using the Bachmann MX213 PROFIBUS master module or the Bachmann CIF50-PB gateway, counter data from the CNT204/H can be forwarded to third-party SCADA platforms such as Wonderware, Ignition, or Siemens WinCC over PROFIBUS DP or Modbus TCP. For IIoT-ready deployments, the M1 platform's OPC UA server publishes CNT204/H process values directly to MES and cloud analytics layers, enabling real-time production KPI dashboards and predictive maintenance triggers.

At the HMI layer, operators interact with CNT204/H data through panel PCs or web-based visualization tools connected to the M1 network. Count totals, frequency trends, and alarm states are displayed in real time, with historical trending stored in the SCADA historian for shift reporting and OEE analysis. In multi-rack or distributed control architectures, the Bachmann NT255 network time synchronization module ensures that counter timestamps across all E Series racks are aligned to a common time base — critical for event sequencing and fault root-cause analysis across production zones.

For remote sites or unmanned substations, the M1 platform's built-in remote access capability — combined with industrial-grade managed switches such as those in the Hirschmann MICE or Moxa EDS series — enables secure VPN-based access to CNT204/H live data and diagnostic registers. Maintenance engineers can interrogate counter overflow flags, input signal quality indicators, and module health status from any location, reducing unplanned downtime and eliminating the need for on-site intervention for routine diagnostics.

Protocol Fragmentation: Many legacy automation sites run a mix of PROFIBUS, Modbus RTU, and proprietary backplane protocols. The CNT204/H, operating within the Bachmann M1 ecosystem, resolves this by centralizing counter data acquisition at the controller level. The M1 CPU's multi-protocol communication modules then translate and forward this data to any supervisory protocol required — eliminating the need for standalone protocol converters between the counter layer and the SCADA network.

Data Silos and Production Transparency: In facilities where counter data from packaging lines, press machines, and conveyor systems is trapped in isolated PLCs, the CNT204/H integrated into a networked M1 system breaks down these silos. All four counter channels report simultaneously to the M1 CPU, which aggregates data from across the rack and publishes it to a unified SCADA namespace — giving production managers a single-pane view of throughput, cycle counts, and equipment utilization across the entire plant floor.

Remote Monitoring and Alarm Traceability: Without reliable remote diagnostics, counter overflow events or encoder signal loss faults go undetected until a line stoppage occurs. The CNT204/H's diagnostic registers, accessible via the M1 SolutionCenter engineering tool or through OPC UA, provide real-time fault flags and signal quality metrics. Alarm events are timestamped and logged in the SCADA historian, enabling maintenance teams to trace the exact sequence of events leading to a fault — even when reviewing data days after the incident.

System Scalability: As production capacity grows, additional CNT204/H modules can be added to the E Series rack without reconfiguring the network architecture. The M1 platform's modular design supports rack expansion up to the maximum I/O density of the CPU, and the backplane bus automatically recognizes new modules at startup — making capacity scaling a configuration task rather than a rewiring project.

Q1: What communication protocols does the Bachmann CNT204/H support for SCADA integration? The CNT204/H communicates with the Bachmann M1 CPU via the E Series internal backplane bus. The M1 CPU then exposes counter data to external SCADA and MES systems through its communication modules, supporting PROFIBUS DP, Modbus TCP, EtherCAT, and OPC UA. This architecture means the CNT204/H is compatible with virtually any industrial SCADA platform without requiring additional protocol converters.

Q2: Can the CNT204/H be used in remote or unmanned automation sites with limited on-site support? Yes. The M1 platform's remote access and diagnostic capabilities allow maintenance engineers to monitor CNT204/H counter values, signal quality, and fault flags over a secure network connection. Combined with industrial managed switches and VPN infrastructure, the CNT204/H supports fully remote diagnostic workflows — reducing site visit frequency and enabling faster fault response.

Q3: How is network stability and data integrity ensured during high-speed counting operations? The CNT204/H uses the deterministic E Series backplane bus, which operates on a fixed scan cycle synchronized with the M1 CPU task. This eliminates the network jitter and packet loss risks associated with Ethernet-based field buses, ensuring that every counter value update is delivered to the CPU within a guaranteed time window — critical for high-speed applications such as press stroke counting or encoder-based position control.

Q4: What warranty and pre-shipment testing does the CNT204/H include? Every Bachmann CNT204/H unit supplied by NANKMOS is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify counter channel operation, input signal response, and backplane communication integrity before dispatch. In-stock units are available for immediate shipment, supporting urgent maintenance and project commissioning timelines.
