BACHMANN DO232 Digital Output Module

Product Details

DO232 Product Description

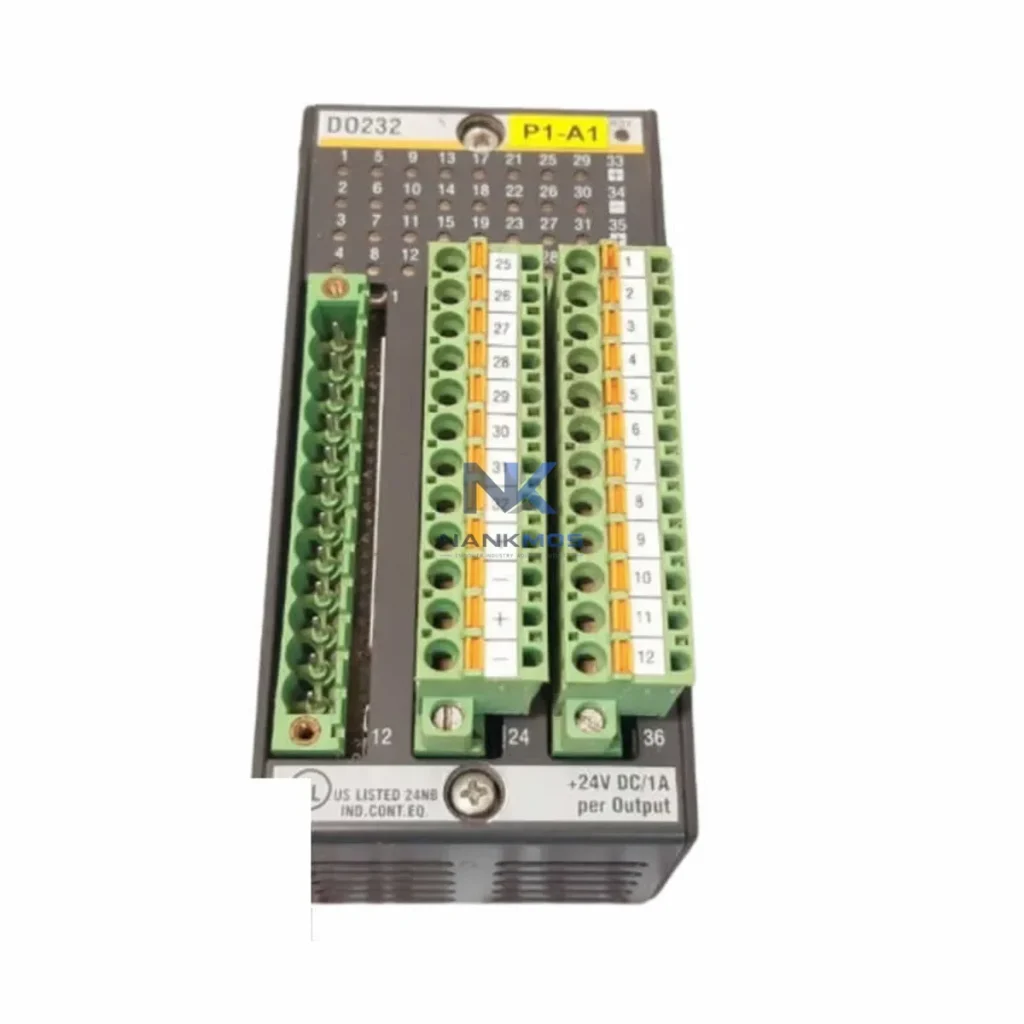

In modern smart factory environments, reliable digital output control is the backbone of every automated production line. The BACHMANN DO232 is a 32-channel digital output module engineered for the BACHMANN Electronic Series PLC platform, delivering deterministic signal switching, high-density I/O expansion, and seamless integration into industrial data networks. Whether deployed in discrete manufacturing, process automation, or energy management systems, the DO232 serves as a critical node in the factory data chain — bridging field-level actuators with supervisory control layers through standardized industrial communication protocols.

From the moment a sensor detects a process condition, data flows upward through the automation hierarchy. Field signals are captured by distributed I/O modules, processed by the BACHMANN M1 CPU or MPC240 controller, and routed via PROFIBUS-DP or PROFINET to the DO232 output stage. The module then drives actuators, solenoid valves, motor starters, and indicator panels with precision timing — completing the closed-loop control cycle that defines Industry 4.0 connectivity. This end-to-end data path, from signal acquisition to output execution, is where the DO232 delivers its core value.

The BACHMANN DO232 operates at the output execution layer of a multi-tier industrial network. In a typical smart factory deployment, the data flow begins at the sensor and transducer level — temperature probes, pressure transmitters, and proximity switches feed analog and digital signals into input modules such as the BACHMANN DI232 (32-channel digital input) or AI202 (analog input module). These signals are processed by the central controller — typically a BACHMANN MPC240 or MPC265 CPU module — which executes IEC 61131-3 control logic and determines the required output states.

The DO232 receives these output commands via the high-speed Electronic Series backplane bus, which supports deterministic data exchange between all rack-mounted modules. Output signals are then dispatched to field devices: pneumatic valve banks, conveyor motor starters, warning light towers, and relay-driven actuators. In parallel, the controller communicates upstream via PROFIBUS-DP or PROFINET to a SCADA server or DCS platform, where operators monitor real-time output states through HMI dashboards built on platforms such as BACHMANN's own visualization tools or third-party SCADA systems.

For distributed architectures, the DO232 can be deployed in remote I/O racks connected to the main controller via a BACHMANN FM211 PROFIBUS master module or FM212 PROFINET coupler, extending the output network across large plant floors without signal degradation. Edge gateway devices aggregate module-level diagnostics — output channel status, load current, short-circuit detection — and forward structured data packets to cloud-based MES or ERP platforms for production analytics and OEE calculation.

In variable-speed drive applications, the DO232 provides enable/disable and direction control signals to frequency inverters and servo drives, coordinating motion sequences under PLC supervision. When integrated with industrial Ethernet switches supporting PROFINET IRT (Isochronous Real-Time), the entire output network achieves sub-millisecond cycle times — essential for high-speed packaging lines, robotic cells, and precision assembly stations. The DO232's role in this architecture is not merely as an output card; it is a network-aware I/O node that participates in the factory's digital twin by reporting its operational state back to the supervisory layer in real time.

Many industrial sites face persistent challenges: legacy PLCs that speak only serial Modbus RTU cannot communicate directly with modern PROFINET-based controllers; output modules from different vendors introduce protocol mismatches that create data islands; and remote production cells lack the visibility needed for proactive maintenance. The BACHMANN DO232 addresses these challenges within the Electronic Series ecosystem through a combination of standardized backplane communication, rich diagnostic data, and compatibility with BACHMANN's protocol gateway modules.

Protocol unification: By pairing the DO232 with a BACHMANN CM202 communication module or a dedicated protocol converter, sites running mixed Modbus RTU, CANopen, and PROFIBUS networks can unify their output control under a single PLC platform. The DO232's output states become accessible to any SCADA system via OPC-UA or PROFINET, eliminating the need for parallel wiring or manual data reconciliation.

Remote monitoring and alarm tracking: Each output channel on the DO232 supports diagnostic feedback — short-circuit detection, open-load monitoring, and overtemperature alerts — that are surfaced as process variables in the BACHMANN controller and forwarded to the SCADA alarm management system. Maintenance teams receive real-time notifications via HMI pop-ups or email alerts, enabling rapid fault isolation without dispatching technicians to the field.

Production line transparency: By mapping DO232 output states to historian tags in the SCADA database, production managers gain a time-stamped record of every actuator command — valve open/close cycles, motor start/stop events, and conveyor direction changes. This data feeds directly into OEE dashboards, shift reports, and predictive maintenance algorithms, transforming raw output signals into actionable factory intelligence.

System scalability: The Electronic Series rack architecture allows additional DO232 modules to be added without controller reconfiguration, supporting production line expansions and new machine integrations with minimal engineering effort. Combined with BACHMANN's modular power supply units and rack extenders, the DO232 scales from small 4-slot racks to large 16-slot configurations serving hundreds of output channels across a single automation cell.

Q1: What communication protocols does the BACHMANN DO232 support for SCADA integration? The DO232 communicates via the BACHMANN Electronic Series backplane bus, which interfaces with the M1/MPC controller. The controller then exposes output data to SCADA systems via PROFIBUS-DP, PROFINET, Modbus TCP, or OPC-UA — depending on the communication modules installed (e.g., FM211, FM212, CM202). This makes the DO232 compatible with virtually all major industrial SCADA and DCS platforms.

Q2: How does the DO232 maintain network stability in high-cycle-rate applications? The Electronic Series backplane bus uses a deterministic, time-slotted communication protocol that guarantees consistent cycle times regardless of the number of modules installed. For PROFINET IRT applications, the BACHMANN controller synchronizes output updates to the network cycle, ensuring sub-millisecond output latency. Short-circuit protection and watchdog timers on each channel prevent cascading faults from disrupting the broader network.

Q3: Can the DO232 be used for remote diagnostics and predictive maintenance? Yes. Each DO232 channel reports diagnostic data — including output state, load current status, and fault codes — back to the BACHMANN controller as process variables. These variables can be logged by the SCADA historian, visualized on HMI trend screens, and forwarded to edge gateway devices for cloud-based analytics. Remote maintenance teams can access live diagnostic data via secure VPN connections to the plant network, enabling fault diagnosis without on-site visits.

Q4: What warranty and pre-shipment testing does the DO232 include? All BACHMANN DO232 modules supplied by NANKMOS include a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment — verifying all 32 output channels, backplane communication integrity, and diagnostic reporting — to ensure reliable performance from day one of installation. In-stock units are available for immediate dispatch to support urgent project timelines.
