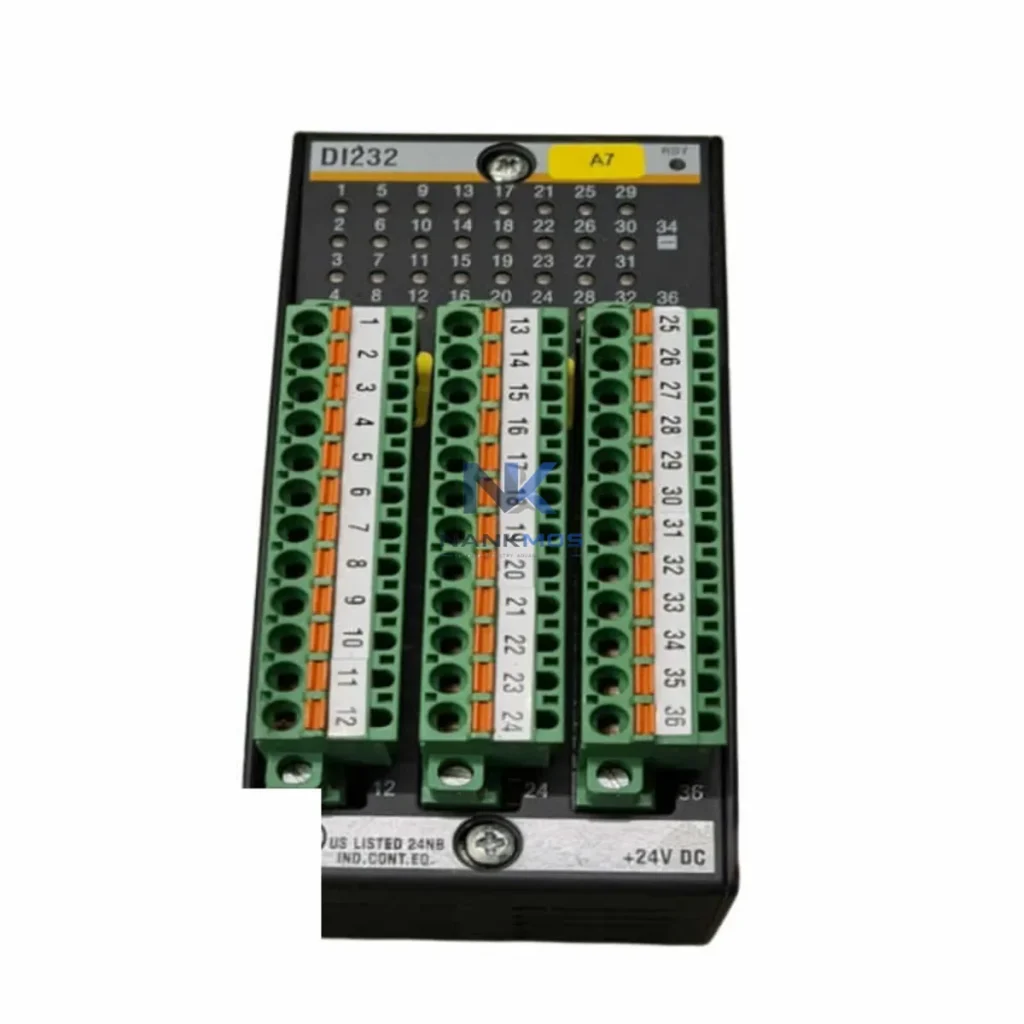

Bachmann DI232 Digital Input Module

Product Details

DI232 Product Description

The Bachmann DI232 is a 32-channel digital input module engineered for the Bachmann DI200 modular I/O system, delivering high-density signal acquisition and seamless integration into industrial Ethernet networks. Designed for demanding automation environments, the DI232 serves as a critical data entry point in the smart factory data chain — capturing discrete field signals from sensors, limit switches, proximity detectors, and safety interlocks, then transmitting structured digital data upstream to PLC controllers, SCADA platforms, and HMI visualization systems with deterministic, low-latency performance.

In modern industrial connectivity architectures, the DI232 operates as the first link in a multi-layer data flow: field-level signals are acquired at the module level, aggregated through the Bachmann DI200 backplane, and forwarded via industrial Ethernet to the Bachmann MPC240 or MC200 series PLC CPU for real-time logic processing. This tightly integrated data path eliminates signal conversion bottlenecks and supports high-speed scan cycles essential for process-critical applications in manufacturing, energy management, and infrastructure automation.

The DI232 anchors the signal acquisition layer of a connected factory architecture. In a typical smart factory deployment, field devices — including inductive proximity sensors, photoelectric barriers, and emergency stop circuits — feed 24 VDC discrete signals directly into the DI232's 32 input channels. These signals are processed through the Bachmann DI200 backplane and forwarded to the Bachmann MPC240 PLC CPU, which executes IEC 61131-3 control logic and routes process data to the plant-level SCADA system via industrial Ethernet.

For facilities requiring protocol bridging, the DI232 data stream can be routed through an industrial Ethernet gateway — such as the Bachmann CM202 communication module or a third-party PROFINET-to-Modbus TCP converter — enabling integration with legacy PLCs, distributed control systems (DCS), and cloud-based MES platforms. This gateway layer is essential in brownfield environments where mixed-protocol architectures are common, allowing the DI232 to serve as a universal digital input source regardless of the upstream control platform.

At the visualization layer, real-time DI232 channel states are mapped to HMI panels — including Bachmann-compatible touch panels and SCADA clients running on Wonderware, Ignition, or Siemens WinCC — providing operators with live signal status, alarm annunciation, and trend logging. The DI232's high channel density (32 inputs per module) reduces cabinet footprint and wiring complexity compared to distributed single-channel I/O solutions, making it a preferred choice for machine builders and system integrators managing large-scale discrete I/O counts.

In remote monitoring and diagnostics scenarios, the DI232 integrates with edge gateway devices — such as the Bachmann SolutionCenter edge controller or third-party IIoT gateways — to publish digital input states via MQTT or OPC-UA to cloud analytics platforms. This enables predictive maintenance workflows where abnormal input patterns (e.g., unexpected sensor activations, contact bounce anomalies) trigger automated alerts in the SCADA alarm management system, reducing unplanned downtime and accelerating fault diagnosis without requiring on-site technician intervention.

For power-sensitive installations, the DI232 is typically paired with Bachmann PS204 or PS208 power supply modules within the DI200 rack, ensuring stable 24 VDC bus voltage across all input channels. System integrators also commonly deploy the Bachmann AI204 analog input module alongside the DI232 to create mixed I/O racks that handle both discrete and analog signal types within a single DI200 chassis — simplifying cabinet design and reducing inter-module wiring.

Industrial automation sites frequently encounter data fragmentation challenges: legacy field devices communicate over incompatible protocols, digital input signals are isolated in standalone PLCs without network visibility, and remote production lines lack real-time monitoring capability. The Bachmann DI232 directly addresses these pain points by providing a standardized, network-transparent digital input interface that integrates into both new and existing Bachmann DI200 system architectures.

Protocol heterogeneity is resolved through the DI200 system's gateway-ready architecture: the DI232 module's data can be exposed to PROFINET, Modbus TCP, or EtherNet/IP networks via the appropriate Bachmann communication module, eliminating the need for external protocol converters and reducing network latency. Data silos are broken down by connecting DI232 channel states directly to SCADA historians and MES databases, enabling production line transparency and KPI tracking at the enterprise level.

Remote diagnostics are supported through the Bachmann SolutionCenter software environment, which provides module-level diagnostics, channel-by-channel status monitoring, and firmware management over the industrial Ethernet network. Alarm tracking is enhanced by mapping DI232 input events to SCADA alarm lists with timestamped event logs, supporting root cause analysis and regulatory compliance reporting. System expansion is straightforward: additional DI232 modules can be added to the DI200 rack without rewiring the backplane, supporting incremental capacity growth as production requirements evolve.

Q1: What communication protocols does the Bachmann DI232 support for SCADA and HMI integration?The DI232 integrates into the Bachmann DI200 system, which supports industrial Ethernet communication via the Bachmann SolutionCenter platform. For broader protocol compatibility — including PROFINET, Modbus TCP, and EtherNet/IP — the DI200 system uses Bachmann communication modules (e.g., CM202) as protocol gateways, enabling seamless SCADA and HMI connectivity across mixed-protocol environments.

Q2: How does the DI232 perform in high-speed or time-critical automation applications?The DI232 is designed for deterministic digital input acquisition with fast scan cycle support through the DI200 backplane bus. In conjunction with the Bachmann MPC240 or MC200 PLC CPU, the system achieves low-latency I/O response times suitable for machine control, safety interlock monitoring, and high-frequency event detection applications.

Q3: Can the DI232 be integrated into remote monitoring and IIoT architectures?Yes. The DI232's digital input data can be published to IIoT platforms via edge gateways supporting OPC-UA or MQTT protocols. When paired with the Bachmann SolutionCenter edge controller, remote diagnostics, channel status monitoring, and alarm notifications are accessible from cloud-based SCADA or MES dashboards without requiring direct on-site access.
