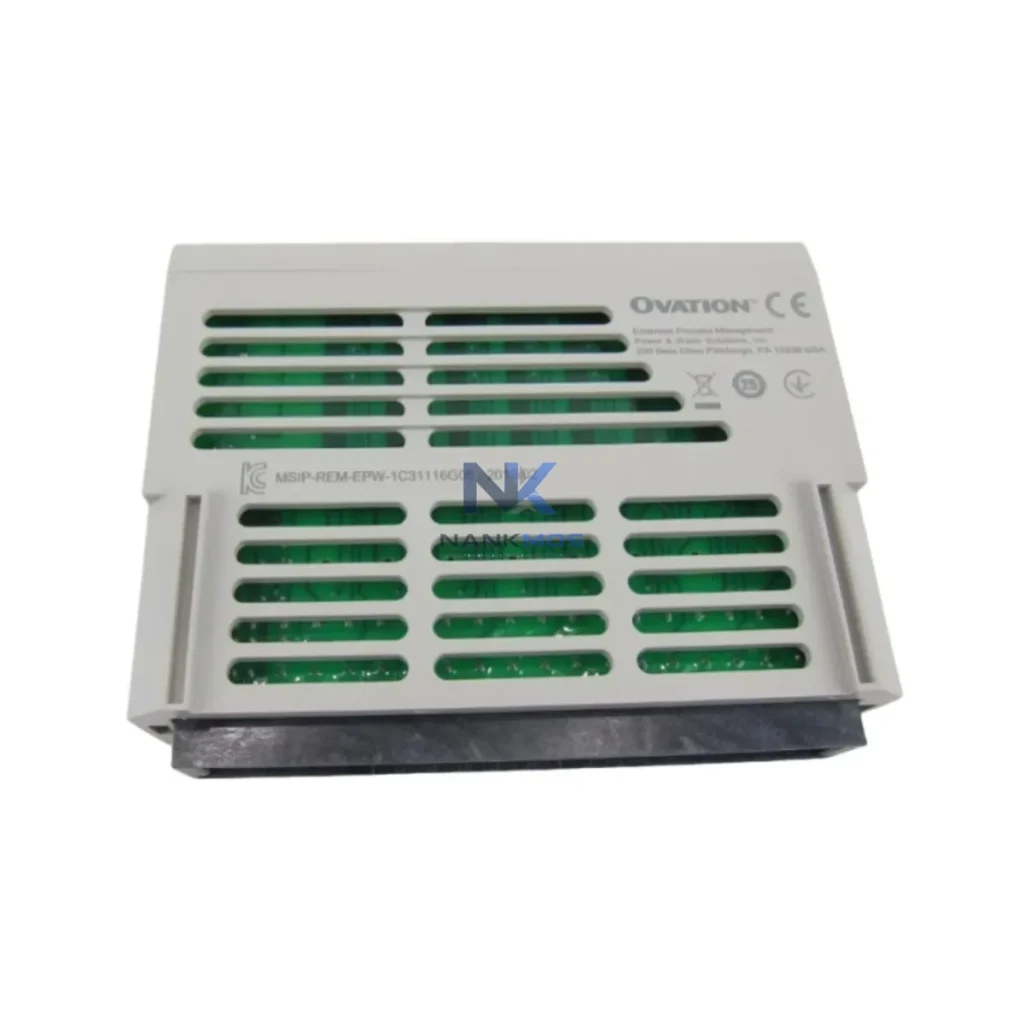

Emerson 1C31116G05 DCS Digital Input Module

Product Details

1C31116G05 Product Description

The Emerson 1C31116G05 is a system-matched Digital Input Module engineered for deployment within the Ovation Distributed Control System (DCS) platform. Designed to serve as a critical node in the I/O layer of a multi-tier industrial control architecture, this module delivers reliable discrete signal acquisition from field devices including limit switches, valve position feedback sensors, motor run/stop contacts, and protective relay outputs. Its role extends beyond simple signal collection — the 1C31116G05 functions as a structured interface between the physical process layer and the control logic layer, ensuring that digital state changes are captured with deterministic timing, transmitted with signal integrity, and made available to the Ovation controller for real-time decision-making and supervisory logic execution.

In a fully integrated Ovation control architecture, the 1C31116G05 operates alongside complementary I/O modules such as the Emerson 1C31122G01 Digital Output Module, which handles discrete command outputs to actuators and solenoid valves, and the Emerson 1C31113G01 Analog Input Module, which processes 4–20 mA and thermocouple signals from transmitters and temperature sensors. Together, these modules populate the Ovation I/O cabinet in a structured slot-based arrangement governed by the Ovation controller backplane, ensuring synchronized scan cycles and consistent data latency across all I/O channels. The backplane architecture supports hot-standby redundancy configurations, allowing the 1C31116G05 to participate in redundant I/O schemes where field signal continuity is maintained even during module replacement or controller failover events.

At the control layer, the 1C31116G05 interfaces directly with the Ovation OCR400 or OCR1100 controller modules, which execute the DCS control strategy and manage communication with the plant-wide SCADA network. The controller communicates with I/O modules over the Ovation I/O bus, a deterministic, high-speed internal communication fabric that ensures low-latency signal delivery to the control algorithm. This architecture supports advanced process control functions including cascade control, feedforward compensation, and interlock logic, all of which depend on the accurate and timely delivery of digital input states from modules like the 1C31116G05.

For communication integration at the supervisory level, the Ovation platform supports OPC-DA and OPC-UA server interfaces, enabling the 1C31116G05's acquired digital states to be published to historian systems such as the Emerson Ovation Historian or third-party OSIsoft PI servers. This contextual integration capability allows plant operators and process engineers to correlate discrete event data — such as valve open/close transitions or motor start/stop sequences — with continuous process variables, enabling root cause analysis, performance benchmarking, and predictive maintenance workflows. The 1C31116G05 thus contributes not only to real-time control but also to the long-term data infrastructure of the plant.

Power distribution within the Ovation I/O cabinet is managed by dedicated power supply modules such as the Emerson 1C31234G01 Power Supply, which provides regulated 24 VDC to the I/O bus and individual module slots. Proper power architecture ensures that the 1C31116G05 operates within its specified input voltage range, maintaining signal threshold accuracy for high and low discrete state detection. In safety-critical applications, the power supply architecture may include redundant feeds with automatic switchover, ensuring that digital input monitoring continues uninterrupted during power supply maintenance or fault conditions.

The 1C31116G05 is also compatible with Ovation's system diagnostics framework, which allows the Ovation Operator Station (OWS) to monitor module health, channel-level fault status, and communication integrity in real time. Maintenance engineers can use the Ovation Developer Studio to configure channel assignments, define alarm thresholds for unexpected state changes, and map digital input points to process graphics on the HMI layer. This tight integration between the I/O module, the controller, and the HMI platform reduces commissioning time and simplifies long-term maintenance by providing a unified engineering environment for all configuration tasks.

In layered industrial control applications, the 1C31116G05 is deployed across a wide range of industries. In power generation facilities, it monitors turbine protection relay outputs, generator breaker status, and auxiliary equipment run/stop feedback, feeding critical interlock logic in the turbine control system. In petrochemical and refinery applications, it captures valve position feedback and emergency shutdown (ESD) system contact states, supporting both normal process control and safety instrumented system (SIS) integration. In water treatment plants, it monitors pump run status, level switch outputs, and filter backwash cycle contacts, enabling automated sequencing logic within the Ovation DCS. In mining and mineral processing operations, it interfaces with conveyor belt protection switches, crusher overload contacts, and dust suppression system status signals, providing the digital input infrastructure for complex multi-equipment control strategies.

Each 1C31116G05 unit supplied by NANKMOS is sourced from verified inventory channels, subjected to pre-shipment functional testing to confirm channel integrity and communication handshake with the Ovation controller, and covered by a 12-Month Warranty against manufacturing defects and operational failures. In-stock availability ensures rapid deployment for both planned capital projects and unplanned maintenance replacements, minimizing plant downtime and supporting the operational continuity requirements of critical infrastructure facilities.

The 1C31116G05 achieves its full operational value when deployed as part of a cohesive Ovation automation platform. At the controller level, the Emerson OCR400 Controller Module serves as the primary execution engine, processing digital input states from the 1C31116G05 and executing the DCS control strategy with deterministic scan cycle timing. For redundant controller configurations, a secondary OCR400 operates in hot-standby mode, ensuring seamless failover without process disruption. The Emerson 1C31122G01 Digital Output Module complements the 1C31116G05 by providing the command output capability needed to close control loops — for example, receiving a valve-closed confirmation from the 1C31116G05 and issuing a valve-open command via the 1C31122G01 in response to process logic conditions.

Analog process variables are handled by the Emerson 1C31113G01 Analog Input Module, which processes 4–20 mA signals from pressure transmitters, flow meters, and level sensors, providing the continuous process data that contextualizes the discrete state information from the 1C31116G05. Power integrity across the I/O cabinet is maintained by the Emerson 1C31234G01 Power Supply Module, which delivers regulated 24 VDC to all installed I/O modules including the 1C31116G05. For network communication, the Ovation platform integrates with plant Ethernet infrastructure through managed industrial switches supporting IEEE 802.3 Ethernet, enabling OPC-UA data exchange between the Ovation controller and SCADA or MES systems. HMI visualization is provided by the Ovation Operator Workstation (OWS), where process graphics display the real-time digital input states acquired by the 1C31116G05, enabling operators to monitor equipment status and respond to alarm conditions. Terminal modules and marshalling cabinets provide the field wiring interface, connecting field device cables to the 1C31116G05 input channels through structured wiring schemes that support loop isolation and signal verification during commissioning.

In power generation facilities, the 1C31116G05 is deployed to monitor turbine protection relay contacts, generator circuit breaker position feedback, and auxiliary cooling system run/stop status, providing the digital input infrastructure for turbine control and protection interlock logic within the Ovation DCS. In petrochemical and refinery operations, the module captures valve position feedback from on/off valves in process piping, emergency shutdown (ESD) system contact states, and fire and gas detection system outputs, supporting both normal process control and safety-critical interlock functions. In water and wastewater treatment plants, the 1C31116G05 monitors pump run/fail status, high-level float switch outputs, UV disinfection system status contacts, and filter backwash cycle completion signals, enabling fully automated sequencing and alarm management within the Ovation control strategy. In mining and mineral processing facilities, the module interfaces with conveyor belt protection switches, crusher motor overload relay contacts, and dust suppression system status signals, providing the discrete input foundation for complex multi-equipment control architectures. In marine propulsion and offshore platform applications, the 1C31116G05 monitors engine room auxiliary equipment status, bilge pump run contacts, and fire damper position feedback, supporting the integrated automation systems required for vessel safety and operational efficiency.

Q1: Is the Emerson 1C31116G05 compatible with both OCR400 and OCR1100 Ovation controllers, and does it support hot-standby I/O redundancy?The 1C31116G05 is designed for the Ovation DCS I/O architecture and is compatible with Ovation controller platforms including the OCR400 and OCR1100. It supports hot-standby I/O redundancy configurations where the Ovation architecture provides automatic switchover of I/O module communication in the event of a module fault, ensuring continuous digital input monitoring without process interruption. Redundancy configuration is managed through the Ovation Developer Studio engineering environment.

Q2: How does the 1C31116G05 integrate with OPC-UA supervisory systems and plant historians for contextual data integration?The 1C31116G05 acquires discrete digital states that are processed by the Ovation controller and published to the plant network via the Ovation OPC-DA/OPC-UA server interface. This enables contextual integration with plant historians such as the Emerson Ovation Historian or OSIsoft PI, where digital event data from the 1C31116G05 is correlated with analog process variables for performance analysis, alarm rationalization, and predictive maintenance. Configuration of OPC tag mapping is performed within the Ovation Developer Studio.

Q3: What pre-shipment testing and warranty coverage does NANKMOS provide for the 1C31116G05, and what is the typical lead time for in-stock units?Each 1C31116G05 supplied by NANKMOS undergoes pre-shipment functional testing to verify channel integrity, backplane communication handshake, and input threshold performance prior to dispatch. All units are covered by a 12-Month Warranty against manufacturing defects and operational failures from the date of shipment. In-stock units are available for rapid global dispatch, supporting both planned project procurement and emergency maintenance replacement requirements. Contact NANKMOS at [email protected] or +86 18359268345 for current stock confirmation and lead time.
