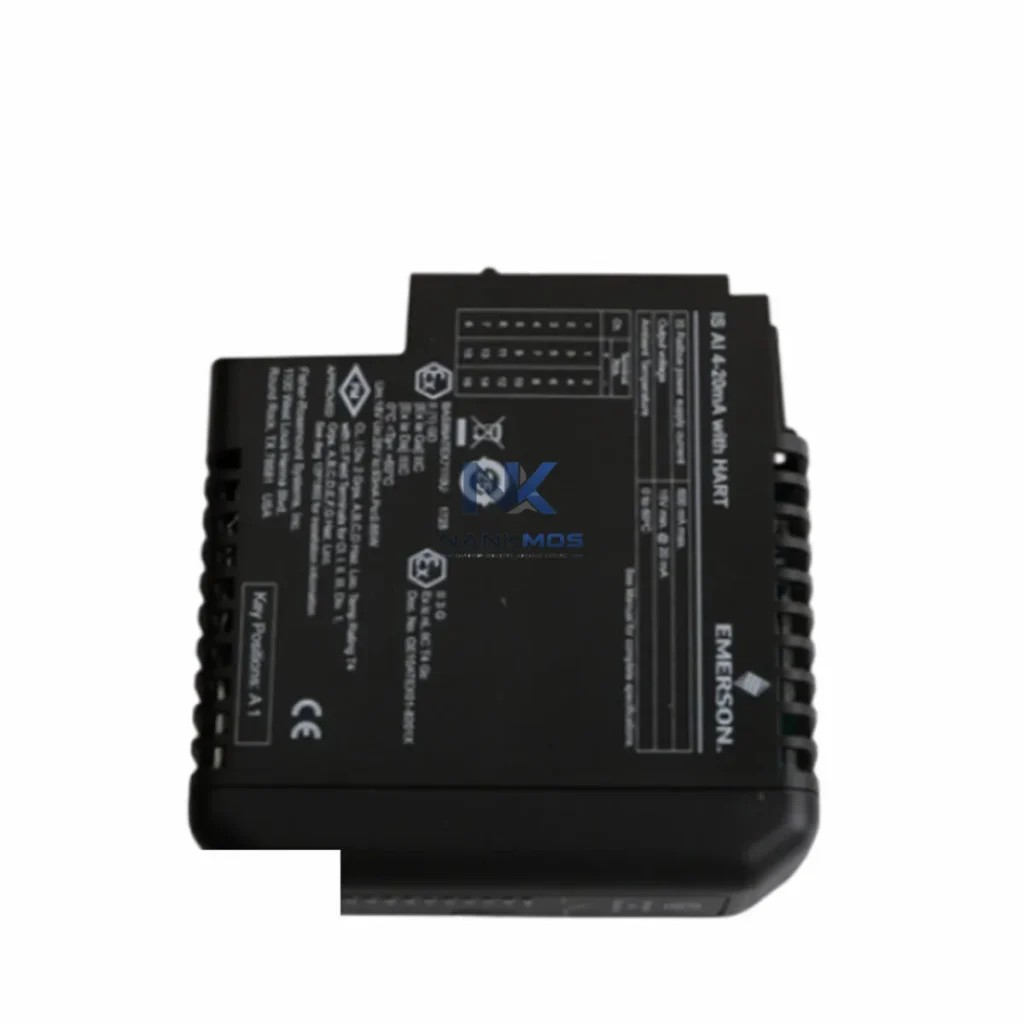

Emerson KJ3102X1-BA1 12P1863X032 Analog Input Module

Product Details

KJ3102X1-BA1 12P1863X032 Product Description

The Emerson KJ3102X1-BA1 12P1863X032 is a high-precision HART-enabled analog input module engineered for the DeltaV distributed control system (DCS) platform. Designed to serve as a critical data acquisition node in smart manufacturing environments, this module bridges field-level instrumentation — including pressure transmitters, flow meters, temperature sensors, and level gauges — with the DeltaV controller backbone, enabling real-time process data to flow seamlessly from the plant floor to SCADA, HMI, and MES layers. With native HART protocol support over a 4-20mA signal loop, the KJ3102X1-BA1 delivers both primary process values and rich secondary diagnostic data, forming the foundation of a transparent, connected automation architecture.

In modern smart factory deployments, the integrity of the analog signal chain is paramount. The KJ3102X1-BA1 accepts up to 8 channels of 4-20mA HART input, converting field signals with high-resolution A/D conversion and transmitting structured process data to the DeltaV MD or MD Plus controller via the DeltaV I/O bus. This tight integration eliminates signal degradation risks associated with legacy marshalling panels and supports the DeltaV Electronic Marshalling (CHARM) architecture when paired with CIOC carriers, enabling flexible, software-defined I/O assignment without physical rewiring.

The KJ3102X1-BA1 sits at the heart of a layered industrial data architecture. At the field level, HART-compatible instruments — such as Rosemount 3051 pressure transmitters, Micro Motion Coriolis flow meters, and Rosemount 644 temperature transmitters — connect directly to the module's analog input channels. The HART protocol allows the KJ3102X1-BA1 to simultaneously carry the 4-20mA primary variable and poll secondary variables (device status, loop current, sensor temperature) without interrupting the control loop, a capability that is essential for predictive maintenance and remote diagnostics in IIoT-enabled plants.

Upstream, the module communicates with the DeltaV MD Controller or DeltaV MD Plus Controller via the high-speed DeltaV I/O bus. The controller aggregates data from multiple I/O modules — including the KJ3102X1-BA1 alongside KJ3221X1-BA1 analog output modules, KJ2201X1-HA1 discrete input modules, and KJ3242X1-BA1 HART analog output modules — and executes control strategies in real time. The DeltaV controller then forwards process data upstream to the DeltaV Operate HMI workstation, where operators monitor live trends, configure alarm setpoints, and acknowledge process deviations.

For enterprise-level integration, the DeltaV OPC Server acts as a protocol gateway, translating DeltaV native data into OPC DA or OPC UA format for consumption by third-party SCADA platforms, historian databases (such as OSIsoft PI or AspenTech IP.21), and MES systems. In facilities where legacy Modbus RTU or Modbus TCP devices coexist with DeltaV infrastructure, the Emerson Smart Wireless Gateway or a dedicated Modbus-to-DeltaV protocol converter bridges the communication gap, ensuring that data from variable frequency drives (VFDs), motor control centers, and legacy PLCs is incorporated into the unified data fabric.

At the edge, DeltaV Edge Environment or third-party edge gateways aggregate time-series data from the DeltaV historian and push it to cloud analytics platforms or on-premise data lakes, enabling advanced analytics, digital twin modeling, and AI-driven process optimization. The KJ3102X1-BA1's HART pass-through capability also supports AMS Device Manager integration, allowing maintenance engineers to remotely configure, calibrate, and diagnose HART field devices from the control room — eliminating the need for physical field visits and reducing mean time to repair (MTTR).

Many industrial facilities face persistent challenges with protocol fragmentation, data silos, and limited remote visibility. The Emerson KJ3102X1-BA1 12P1863X032 directly addresses these pain points within the DeltaV ecosystem:

Protocol Unification: By supporting HART over 4-20mA, the module enables a single wiring infrastructure to carry both analog control signals and digital diagnostic data. This eliminates the need for separate HART multiplexers or handheld communicators for routine device health checks, consolidating protocol diversity at the I/O layer.

Eliminating Data Silos: The module's native integration with DeltaV's continuous historian ensures that every process variable — including secondary HART variables — is automatically archived with millisecond-level timestamps. This creates a unified process data record accessible to operations, engineering, and maintenance teams without manual data extraction or CSV exports.

Remote Monitoring and Diagnostics: Through AMS Device Manager and DeltaV Remote Client, engineers can remotely access HART device diagnostics, review loop current readings, and perform online calibration — all without interrupting production. This capability is particularly valuable for geographically distributed plants or facilities operating with reduced on-site staffing.

Production Line Transparency: Real-time data from the KJ3102X1-BA1 feeds DeltaV Operate dashboards and third-party SCADA visualization tools, providing operators with live process trends, alarm histories, and KPI dashboards that support informed decision-making and rapid response to process deviations.

Alarm Management and Traceability: The module's integration with DeltaV's alarm management framework ensures that out-of-range analog signals trigger structured alarm notifications with full audit trails — supporting ISA-18.2 alarm management compliance and regulatory reporting requirements.

System Scalability: The DeltaV I/O subsystem supports hot-swap module replacement without process shutdown, and the KJ3102X1-BA1 is fully compatible with DeltaV's redundancy architecture, enabling N+1 controller and I/O redundancy for high-availability applications in critical process industries.

Q1: Does the KJ3102X1-BA1 support HART pass-through to AMS Device Manager?Yes. The KJ3102X1-BA1 supports full HART pass-through, allowing AMS Device Manager to communicate directly with connected HART field devices for remote configuration, calibration, and predictive diagnostics without removing the device from service.

Q2: Is the KJ3102X1-BA1 compatible with DeltaV Electronic Marshalling (CHARM) architecture?The KJ3102X1-BA1 is a traditional DeltaV I/O module designed for standard I/O subsystem carriers. For CHARM-based deployments, Emerson's CIOC and CHARM I/O cards provide equivalent analog input functionality with software-defined marshalling. Both architectures are supported within the DeltaV DCS platform.

Q3: What is the communication latency for analog data acquisition on this module?The KJ3102X1-BA1 scans all 8 analog input channels at the DeltaV controller's configured module execution rate (MER), typically 100ms to 1 second depending on the control strategy. HART secondary variable polling occurs asynchronously and does not impact the primary 4-20mA control loop performance.

Q4: What warranty and pre-shipment testing does this module include?Every KJ3102X1-BA1 12P1863X032 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes functional pre-shipment testing to verify analog input accuracy, HART communication integrity, and I/O bus communication before dispatch. In-stock units are available for immediate shipment to support urgent project timelines.
