Emerson KJ3002X1-BC1 12P0681X082 Analog Input Module

Product Details

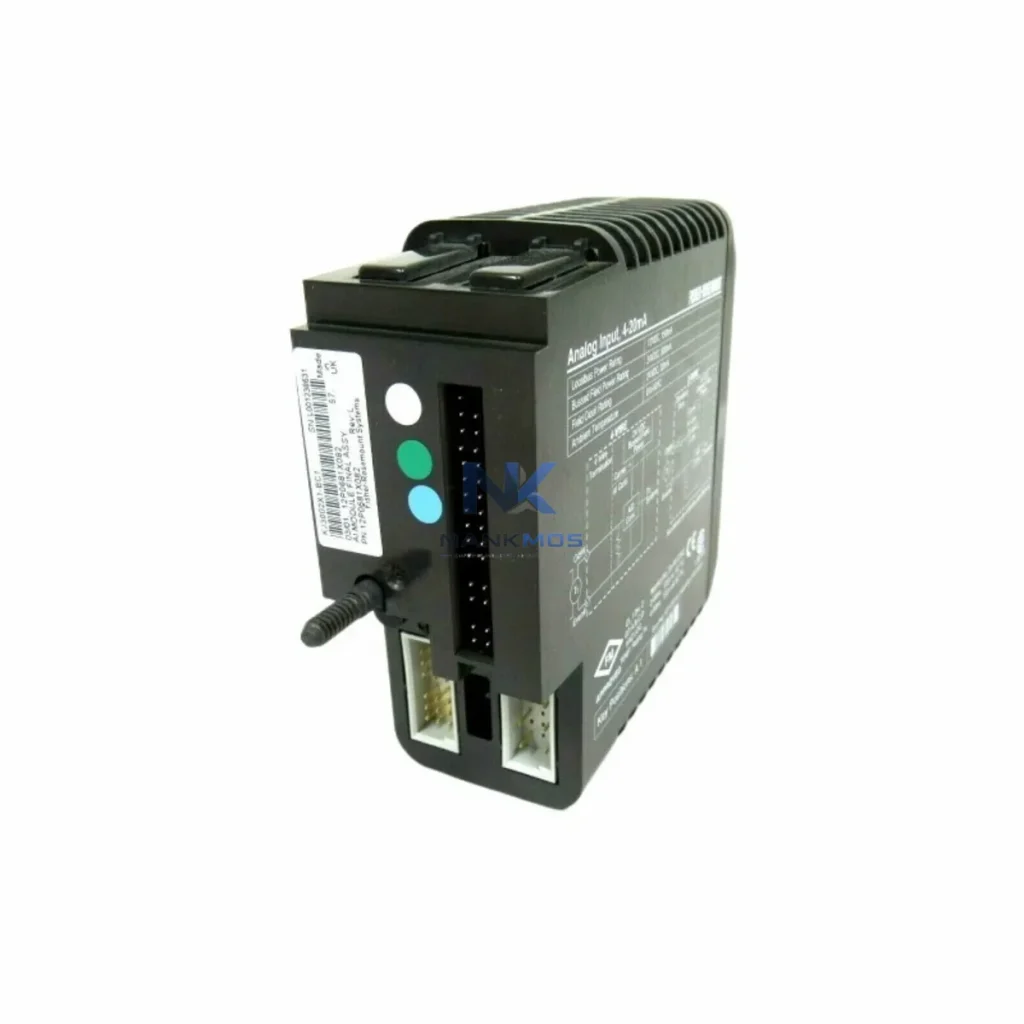

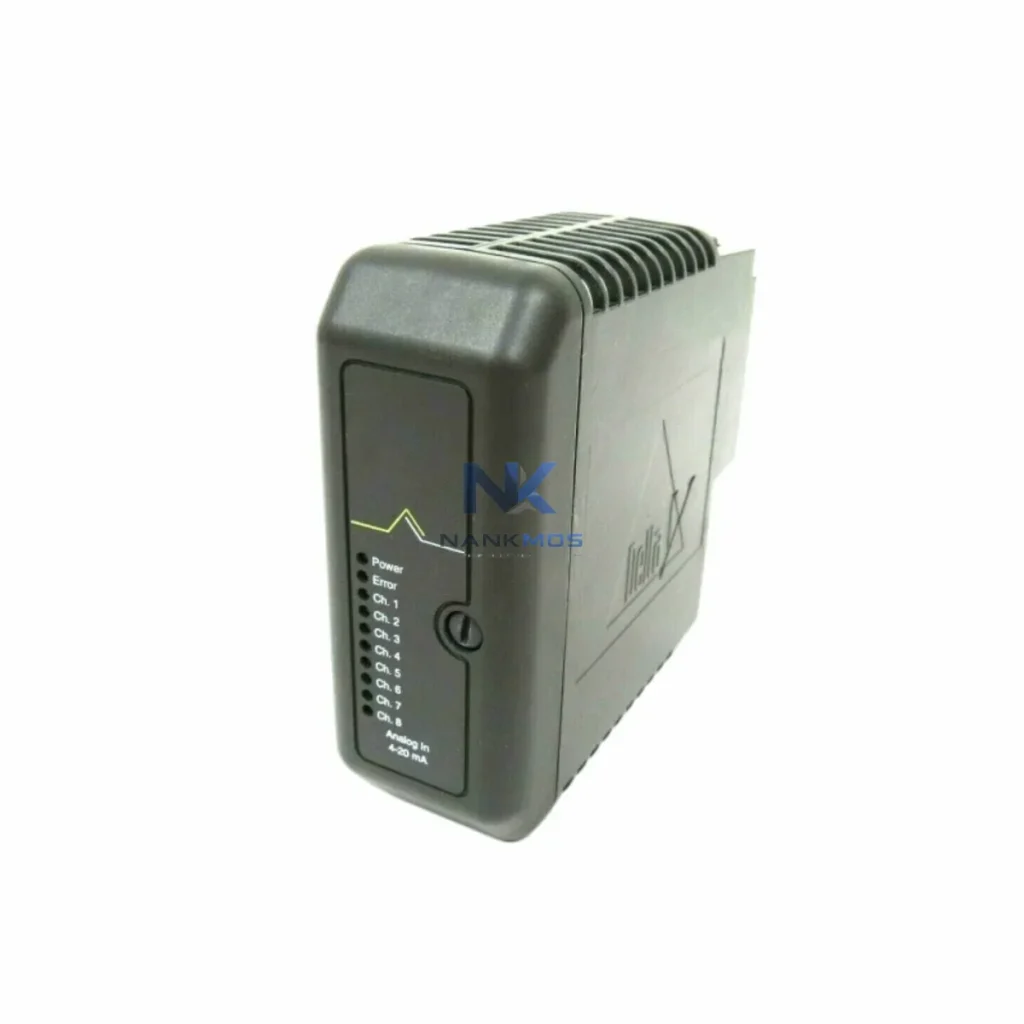

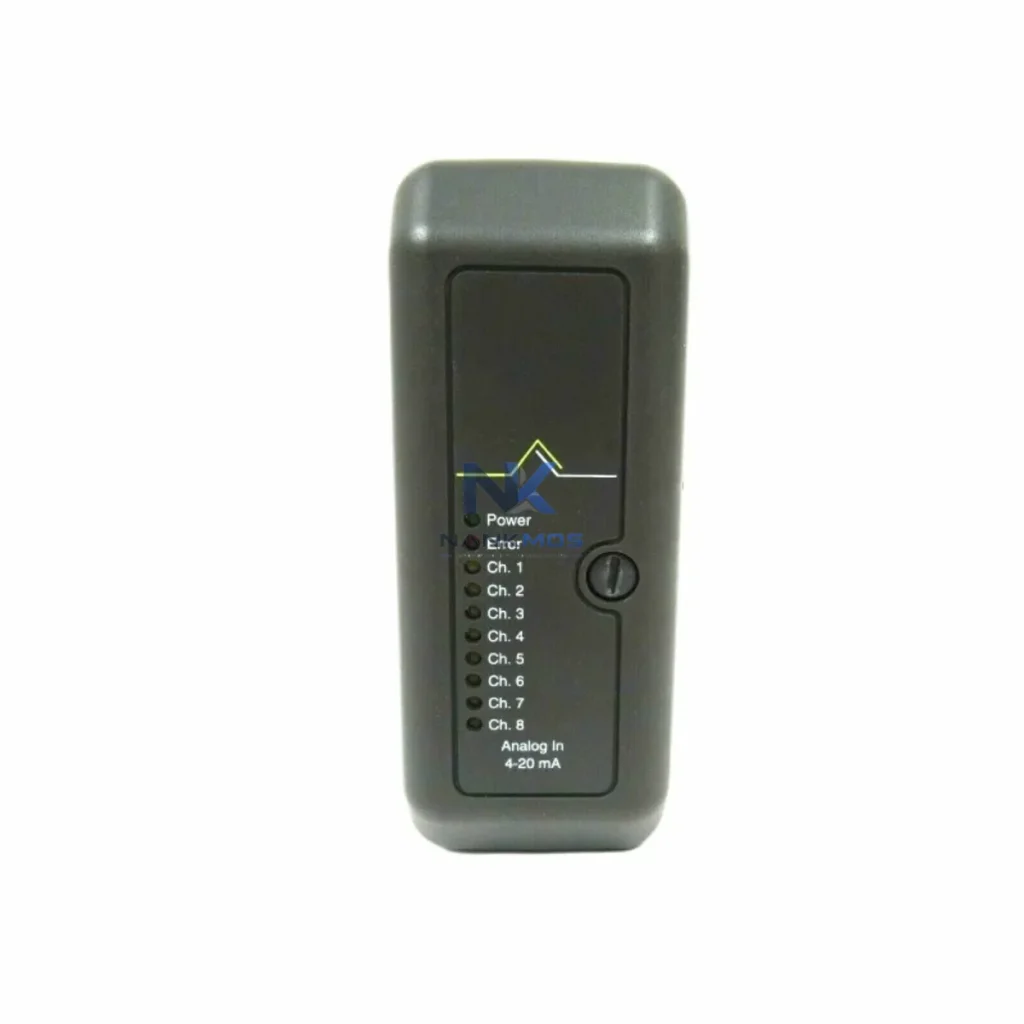

KJ3002X1-BC1 12P0681X082 Product Description

The Emerson KJ3002X1-BC1 12P0681X082 is a precision analog input module engineered for seamless integration within the DeltaV distributed control system (DCS) architecture. Designed to operate as a core signal acquisition node across multi-layer industrial control environments, this module delivers consistent, high-fidelity analog signal processing that underpins reliable process measurement, closed-loop control, and system-wide data integrity. Whether deployed in greenfield automation projects or as a validated replacement in existing DeltaV installations, the KJ3002X1-BC1 12P0681X082 ensures architectural continuity, signal stability, and long-term maintainability across demanding industrial applications.

Within a complete DeltaV control architecture, the KJ3002X1-BC1 12P0681X082 occupies the I/O layer — the critical interface between field instrumentation and the controller logic layer. Its role is to accurately digitize analog process signals (4–20 mA, 1–5 V, and thermocouple/RTD inputs depending on configuration) and transmit conditioned data to the DeltaV MD or MQ series controllers via the DeltaV I/O bus. This tight hardware-software integration eliminates signal conversion latency, reduces noise susceptibility, and supports the deterministic scan cycles required by advanced process control (APC) and safety instrumented system (SIS) co-architectures.

System coherence is further reinforced by the module's native compatibility with the DeltaV Electronic Marshalling infrastructure, including the CHARM I/O card ecosystem. When paired with components such as the KJ1501X1-BA2 CHARM Baseplate, the KJ3221X1-BA1 DeltaV Power Supply, and the MD Plus Controller (KJ2003X1-BA1), the KJ3002X1-BC1 12P0681X082 participates in a fully characterized, vendor-validated I/O subsystem. This eliminates the integration risk associated with third-party signal conditioning and ensures that firmware revisions, diagnostic polling, and configuration downloads remain synchronized across the entire control node.

The KJ3002X1-BC1 12P0681X082 achieves its full performance potential when deployed as part of a cohesive DeltaV automation platform. At the controller layer, the DeltaV MD Plus Controller (KJ2003X1-BA1) or MQ Controller manages execution of control modules and communicates with I/O subsystems via the DeltaV I/O bus. The KJ3002X1-BC1 12P0681X082 feeds digitized analog process values directly into these controllers, enabling real-time PID regulation, cascade control, and model predictive control (MPC) strategies without intermediate signal conversion.

Power integrity across the I/O subsystem is maintained by the KJ3221X1-BA1 DeltaV Power Supply, which provides regulated DC power to the I/O carrier and all installed modules. For installations requiring high-availability architectures, the DeltaV Redundant Power Supply configuration ensures that a single power supply failure does not interrupt I/O scanning or controller communication. The KJ1501X1-BA2 CHARM Baseplate and associated CHARM I/O cards extend the marshalling flexibility of the KJ3002X1-BC1 12P0681X082, allowing field wiring to be terminated independently of module assignment — a critical advantage during commissioning and module replacement activities.

At the communication layer, the DeltaV system integrates with plant-wide FOUNDATION Fieldbus, HART, and Profibus networks through dedicated interface modules such as the KJ3001X1-BA1 HART Analog Input CHARM and the DeltaV Fieldbus Interface Module (FIM). These communication gateways allow the KJ3002X1-BC1 12P0681X082 to coexist with intelligent field devices — including Rosemount 3051 pressure transmitters, Fisher FIELDVUE DVC6200 digital valve controllers, and Micro Motion Coriolis flow meters — within a unified DeltaV asset management framework.

For operator interface and process visualization, the DeltaV Operate HMI platform provides real-time display of analog input values acquired by the KJ3002X1-BC1 12P0681X082, including trend displays, alarm management, and diagnostic status overlays. The DeltaV Event Chronicle and Continuous Historian modules archive all analog input data for regulatory compliance, process optimization, and root cause analysis. At the network layer, the DeltaV Control Network switch infrastructure — typically comprising managed industrial Ethernet switches — ensures deterministic communication between workstations, controllers, and I/O subsystems, preserving the scan cycle integrity that the KJ3002X1-BC1 12P0681X082 depends on for accurate data delivery.

Oil & Gas and Petrochemical Processing: In upstream and downstream hydrocarbon processing facilities, the KJ3002X1-BC1 12P0681X082 is deployed to acquire analog signals from pressure, temperature, flow, and level transmitters across distillation columns, heat exchangers, compressor trains, and storage tank farms. Its compatibility with HART-enabled field devices allows simultaneous process variable acquisition and device diagnostics, reducing unplanned shutdowns and supporting predictive maintenance programs. The module's 12-Month Warranty and tested condition provide procurement teams with the confidence required for critical process unit replacements.

Power Generation and Utilities: In combined-cycle power plants, cogeneration facilities, and utility substations, the KJ3002X1-BC1 12P0681X082 supports analog input acquisition for turbine control, boiler management, and emissions monitoring systems. Its integration within the DeltaV SIS architecture — alongside the DeltaV SZ Controller and SIS Logic Solver modules — enables a unified safety and basic process control system (BPCS) platform, reducing engineering overhead and simplifying functional safety validation under IEC 61511.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities utilize the KJ3002X1-BC1 12P0681X082 for analog signal acquisition from pH analyzers, dissolved oxygen sensors, turbidity meters, and flow transmitters across filtration, aeration, and chemical dosing systems. The module's online diagnostic capability allows maintenance teams to identify signal degradation or sensor drift without process interruption, extending the operational intervals between scheduled maintenance shutdowns.

Mining, Metals, and Minerals Processing: In ore processing, flotation, and smelting operations, the KJ3002X1-BC1 12P0681X082 acquires analog signals from load cells, belt weighers, density meters, and temperature sensors across crushing, grinding, and separation circuits. Its robust operating temperature range and DeltaV backplane integration ensure reliable performance in the electrically noisy, high-vibration environments characteristic of mineral processing facilities.

Pharmaceutical and Fine Chemical Manufacturing: In GMP-regulated batch and continuous manufacturing environments, the KJ3002X1-BC1 12P0681X082 supports analog input acquisition for reactor temperature, pressure, and flow control loops. Its compatibility with DeltaV Batch and DeltaV Recipe Management modules enables full electronic batch record integration, supporting 21 CFR Part 11 compliance and process analytical technology (PAT) initiatives.

Q1: Is the KJ3002X1-BC1 12P0681X082 compatible with both legacy DeltaV S-series and current DeltaV S-Plus controller architectures? The KJ3002X1-BC1 12P0681X082 is designed for the DeltaV I/O subsystem and is compatible with DeltaV controller generations that support the standard DeltaV I/O bus protocol, including MD, MD Plus, and MQ series controllers. For installations involving DeltaV Electronic Marshalling (CHARM) infrastructure, compatibility should be verified against the specific DeltaV system version and I/O carrier revision. Our technical team can assist with compatibility verification prior to shipment to ensure seamless architectural integration.

Q2: Can the KJ3002X1-BC1 12P0681X082 be installed in a redundant I/O configuration, and what companion modules are required? Yes. The DeltaV architecture supports redundant I/O configurations for critical analog input loops. Implementing redundancy for the KJ3002X1-BC1 12P0681X082 typically requires a redundant I/O carrier and a paired analog input module operating in hot-standby mode. The DeltaV system automatically manages switchover upon detection of a module fault, ensuring continuous signal acquisition without controller intervention. Redundant power supply modules (KJ3221X1-BA1 or equivalent) are recommended to complete the high-availability I/O subsystem design.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for shipment? All KJ3002X1-BC1 12P0681X082 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes functional testing and visual inspection prior to dispatch to verify signal channel integrity, backplane connector condition, and firmware revision. Typical lead time is 3–7 business days for in-stock units, with expedited shipping options available for urgent maintenance requirements. For volume procurement or long-term supply agreements, please contact our technical sales team to discuss inventory reservation and scheduled delivery programs.
