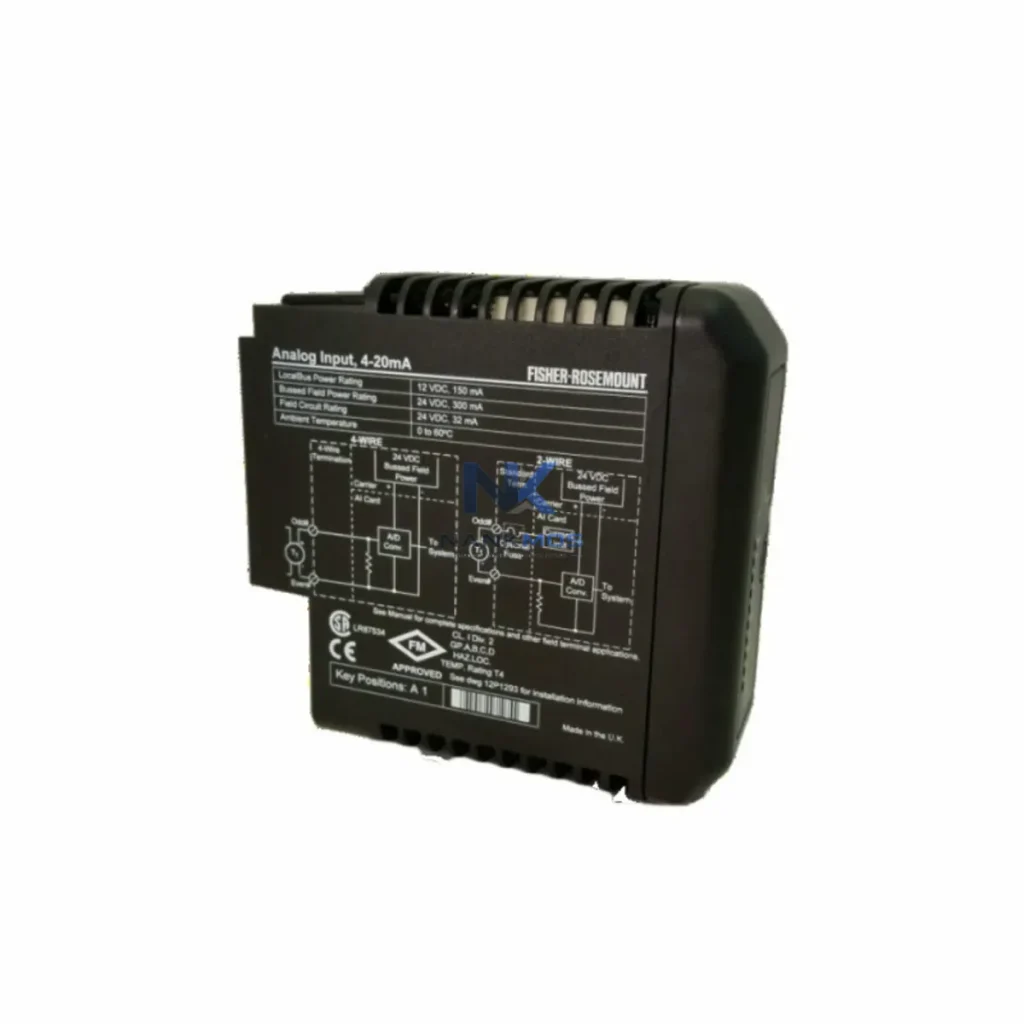

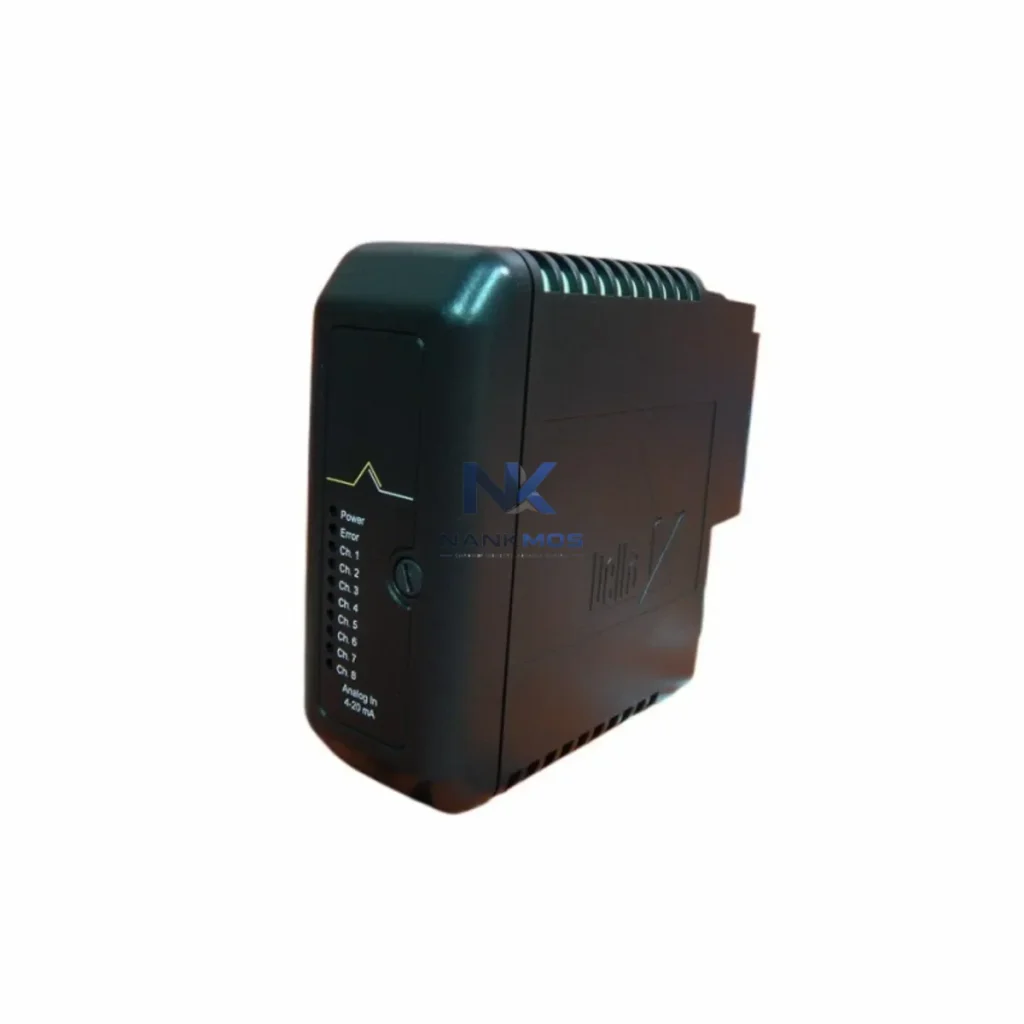

Emerson KJ3002X1-BC1 12P0681X072 Analog Input Module

Product Details

KJ3002X1-BC1 12P0681X072 Product Description

The Emerson KJ3002X1-BC1 12P0681X072 is a precision-engineered analog input module purpose-built for the DeltaV distributed control system (DCS) platform. Designed to operate within Emerson's modular I/O subsystem, this unit delivers reliable signal acquisition across multi-loop process environments where measurement accuracy, channel density, and system-level interoperability are non-negotiable engineering requirements. Its role within the DeltaV architecture extends beyond simple signal conversion — it functions as a foundational node in the control layer, enabling the controller to receive, condition, and act upon real-time process variables from field instrumentation including pressure transmitters, temperature sensors, flow meters, and analytical instruments.

In a fully integrated DeltaV automation platform, the KJ3002X1-BC1 12P0681X072 operates in close coordination with the DeltaV MD Plus Controller (MD-PLUS), which manages scan cycle execution and loop control logic. The module interfaces directly with the DeltaV I/O subsystem backplane, sharing a common power rail and communication bus with adjacent modules such as the KJ3001X1-BA1 Analog Output Module and the KJ2201X1-BA1 Digital Input Module. This tight physical and electrical integration reduces wiring complexity, minimizes signal latency, and supports deterministic control loop performance across the entire process unit.

Signal integrity is maintained through hardware-level channel isolation, which prevents ground loops and cross-channel interference in electrically noisy industrial environments such as refineries, chemical plants, and power generation facilities. Each channel supports HART pass-through communication, enabling field device diagnostics, calibration verification, and device health monitoring without interrupting the primary 4–20 mA signal path. This capability is particularly valuable in predictive maintenance programs where continuous device health data is required to support condition-based maintenance strategies.

The module's compatibility with the DeltaV Electronic Marshalling architecture — specifically the CHARM (Characterization Module) I/O system — allows engineering teams to assign field signals to control logic without rewiring the marshalling cabinet. When deployed alongside the CHARMS I/O Carrier and the DeltaV CIOC (Cabinet I/O Controller), the KJ3002X1-BC1 12P0681X072 supports flexible signal routing that dramatically reduces commissioning time on large-scale projects. This integration also supports hot-swap module replacement, enabling maintenance teams to replace a failed module during live plant operation without requiring a process shutdown.

From a power architecture perspective, the module draws regulated DC power from the DeltaV Power Supply (PS2 or PS6 series), which provides redundant power input capability. In high-availability process units, dual power supplies operating in parallel ensure that a single power supply failure does not interrupt I/O module operation. The KJ3002X1-BC1 12P0681X072 is fully compatible with this redundant power topology, making it suitable for Safety Instrumented System (SIS) adjacent applications where continuous availability is a design requirement.

System diagnostics are handled through the DeltaV Diagnostics application, which provides real-time module health status, channel-level fault detection, and communication error logging. When a channel fault is detected — such as an open-circuit transmitter or an out-of-range signal — the module generates a diagnostic alert that propagates through the DeltaV network to the operator workstation, enabling rapid fault isolation without requiring physical inspection of the field wiring. This diagnostic transparency reduces mean time to repair (MTTR) and supports the operational continuity requirements of continuous process industries.

In terms of system scalability, the KJ3002X1-BC1 12P0681X072 is designed to operate within DeltaV's modular node architecture, where I/O nodes can be added or reconfigured without modifying the controller database structure. This modularity supports phased plant expansions, where additional process units are brought online incrementally. The module's compatibility with DeltaV's Virtual I/O Module (VIM) technology also enables simulation-based commissioning, where control logic can be tested against simulated I/O signals before field instrumentation is connected.

For projects requiring network-level redundancy, the module integrates with the DeltaV redundant controller pair (MD-PLUS Redundant) and the redundant I/O network, ensuring that a single network segment failure does not result in loss of process visibility or control. The redundant I/O network uses a dual-ring Ethernet topology that provides automatic failover within milliseconds, maintaining control loop integrity during network fault conditions.

All units supplied by NANKMOS undergo pre-shipment functional testing, including channel accuracy verification, HART communication validation, and power consumption measurement. Each module is shipped with full traceability documentation and is covered by a 12-Month Warranty against manufacturing defects and functional failures. Contextual Integration support is available for customers requiring assistance with DeltaV database configuration, I/O assignment, and module commissioning.

The KJ3002X1-BC1 12P0681X072 achieves its full engineering value when deployed as part of a complete DeltaV automation platform. At the controller layer, the DeltaV MD Plus Controller (MD-PLUS) executes the PID and advanced control algorithms that consume the analog input signals provided by this module. In redundant controller configurations, the MD-PLUS Redundant pair ensures bumpless transfer of control in the event of a primary controller failure, with the analog input data stream maintained continuously through the redundant I/O network.

At the output layer, the KJ3001X1-BA1 Analog Output Module translates controller commands into 4–20 mA signals that drive control valves, variable frequency drives, and other final control elements. The pairing of the KJ3002X1-BC1 (input) and KJ3001X1-BA1 (output) within the same I/O node creates a balanced signal architecture that minimizes loop latency and supports tight process control performance. For discrete signal handling, the KJ2201X1-BA1 Digital Input Module and KJ2211X1-BA1 Digital Output Module extend the I/O node's capability to cover motor starters, solenoid valves, and limit switches within the same control cabinet.

Communication between the I/O subsystem and the plant-wide network is managed through the DeltaV CIOC (Cabinet I/O Controller), which aggregates data from multiple I/O modules and transmits it to the DeltaV controller over the redundant Ethernet I/O network. For plants requiring integration with third-party systems, the DeltaV Serial Interface Module (SIM) and the DeltaV OPC Server provide standardized data exchange pathways to historian systems, MES platforms, and SCADA applications.

At the field device level, HART-enabled transmitters from Emerson's Rosemount product line — including the Rosemount 3051 Pressure Transmitter and the Rosemount 644 Temperature Transmitter — communicate device health and calibration data through the HART pass-through capability of the KJ3002X1-BC1 12P0681X072. This end-to-end HART integration, from field device through I/O module to the DeltaV AMS Device Manager, creates a unified asset management environment that supports predictive maintenance and regulatory compliance documentation.

For HMI and operator interface requirements, the DeltaV Operate workstation provides real-time process graphics, alarm management, and trend displays that are directly fed by the analog input data acquired through the KJ3002X1-BC1 12P0681X072. The integration between the I/O module, the controller, and the operator workstation forms the core data flow of the DeltaV control architecture, ensuring that operators have accurate, low-latency process information at all times.

In oil refinery and petrochemical applications, the KJ3002X1-BC1 12P0681X072 is deployed in distillation column control, reactor temperature monitoring, and compressor surge control systems. The module's HART pass-through capability supports continuous monitoring of Rosemount pressure and temperature transmitters installed in hazardous area locations, with intrinsic safety barriers or galvanic isolators providing the required protection level at the field wiring interface.

In power generation facilities — including combined cycle gas turbine (CCGT) plants and coal-fired boiler systems — the module handles analog inputs from steam flow transmitters, feedwater level sensors, and combustion air flow meters. The DeltaV platform's deterministic scan cycle ensures that these critical process variables are updated at the required control frequency, supporting the tight loop performance required for boiler drum level control and turbine speed regulation.

Water and wastewater treatment plants use the KJ3002X1-BC1 12P0681X072 in chemical dosing control, filtration pressure monitoring, and effluent quality measurement applications. The module's channel isolation prevents interference between the low-level signals from analytical instruments — such as pH sensors and dissolved oxygen analyzers — and the higher-level signals from flow transmitters installed on the same I/O node.

In mining and mineral processing operations, the module supports conveyor belt load monitoring, flotation cell level control, and crusher motor current measurement. The DeltaV system's modular architecture allows mining operations to expand their control system incrementally as new processing circuits are commissioned, with additional KJ3002X1-BC1 12P0681X072 modules added to existing I/O nodes without requiring controller reconfiguration.

Pharmaceutical and food processing facilities deploy the module in batch process control applications where FDA 21 CFR Part 11 compliance requires complete audit trails of process variable data. The DeltaV Batch application, combined with the analog input data from the KJ3002X1-BC1 12P0681X072, provides the electronic batch record functionality required for regulatory compliance in these industries.

Q1: Is the KJ3002X1-BC1 12P0681X072 compatible with both legacy DeltaV S-Series and current DeltaV Electronic Marshalling (CHARM) architectures?A: The KJ3002X1-BC1 12P0681X072 is designed for the DeltaV S-Series I/O subsystem and operates within the traditional marshalled I/O architecture. For projects transitioning to DeltaV Electronic Marshalling, the CHARM I/O system uses a different physical form factor (CHARMS modules and CIOC controllers). However, both architectures can coexist within the same DeltaV system, allowing plants to maintain existing S-Series I/O nodes while deploying CHARM I/O for new process units. NANKMOS can advise on mixed-architecture configurations as part of our Contextual Integration support service.

Q2: What is the recommended maintenance interval for the KJ3002X1-BC1 12P0681X072, and does the module support online replacement without process interruption?A: The DeltaV I/O module platform is designed for hot-swap replacement, meaning a failed KJ3002X1-BC1 12P0681X072 can be removed and replaced while the I/O node remains powered and the adjacent modules continue to operate normally. The DeltaV system automatically detects the new module and restores its configuration from the controller database without operator intervention. Recommended preventive maintenance includes annual channel accuracy verification using a calibrated current source and review of HART device health data through the DeltaV AMS Device Manager. All modules supplied by NANKMOS are covered by a 12-Month Warranty, with replacement units available from stock for rapid deployment.

Q3: What inventory availability and lead time should be expected for the KJ3002X1-BC1 12P0681X072, and what documentation is provided with each shipment?A: NANKMOS maintains stock inventory of the KJ3002X1-BC1 12P0681X072 to support urgent plant maintenance requirements and scheduled turnaround projects. Each unit undergoes pre-shipment functional testing including channel accuracy verification, HART communication validation, and visual inspection. Shipments include a test report, traceability documentation, and the 12-Month Warranty certificate. For large-quantity orders or long-term supply agreements, NANKMOS offers dedicated inventory reservation to ensure availability for planned maintenance outages. Contact our technical team at [email protected] or +86 18359268345 for current stock status and lead time confirmation.
