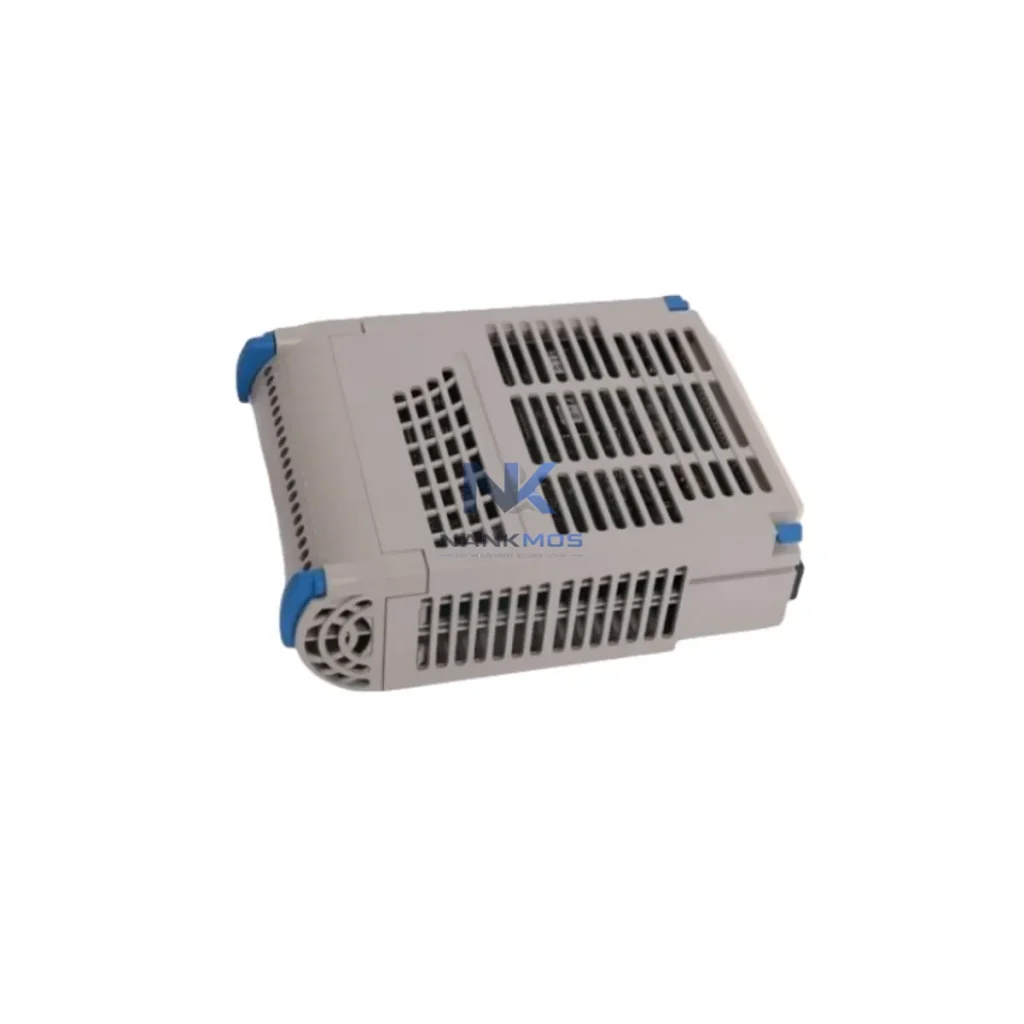

Emerson 1C31181G01 Remote I/O Master Module

Product Details

1C31181G01 Product Description

The Emerson 1C31181G01 Remote I/O Master is a foundational node in the Ovation Distributed Control System architecture, designed to extend the reach of the central controller across geographically distributed field cabinets without sacrificing signal integrity or scan cycle determinism. In a fully realized Ovation control platform, the 1C31181G01 operates in close coordination with the Emerson OCR400 or OCR1100 Ovation Controller at the control layer, receiving scan commands and returning consolidated I/O data across the dedicated remote I/O bus. This master-slave topology ensures that field signals — whether analog process variables, discrete status inputs, or valve command outputs — are aggregated and transmitted with minimal latency to the controller for real-time decision-making.

At the I/O layer, the 1C31181G01 interfaces directly with Ovation I/O modules such as the 1C31116G01 Analog Input Module, 1C31122G01 Analog Output Module, and 1C31110G01 Digital Input Module, all mounted within the same remote I/O rack. The master module manages the internal rack bus, arbitrating data flow between individual I/O cards and the upstream controller link. This architecture eliminates the need for individual point-to-point wiring back to the main control room, dramatically reducing cable runs, installation labor, and long-term maintenance overhead in large-scale plant environments.

From a power layer perspective, the 1C31181G01 is supplied through the Ovation rack's integrated power distribution, typically sourced from a redundant Emerson Ovation Power Supply Module pair configured for 1+1 redundancy. This ensures that a single power supply failure does not interrupt I/O scanning or controller communication — a critical requirement in continuous process industries such as power generation and refining. The power architecture supports hot-swap capability on compatible Ovation rack configurations, enabling maintenance without process shutdown.

At the communication layer, the remote I/O bus managed by the 1C31181G01 is engineered for deterministic, high-speed data exchange. When integrated with the broader plant network, the Ovation controller connects upstream to the Ovation Operator Workstation (OWS) and Ovation Engineering Workstation (EWS) via the Ovation Network — a dedicated, high-availability Ethernet backbone. This layered communication design isolates field-level I/O traffic from supervisory SCADA and historian traffic, preserving bandwidth and reducing the risk of network-induced scan jitter. For plants requiring integration with third-party systems, the Emerson Ovation Open Connect Gateway or compatible Modbus TCP / OPC DA interface modules can be deployed alongside the 1C31181G01 architecture to bridge legacy protocols.

In redundant control architectures — common in nuclear, combined-cycle power, and critical chemical process applications — the 1C31181G01 supports deployment in mirrored I/O configurations where a secondary controller can assume control of the remote I/O bus in the event of a primary controller fault. This redundancy model, combined with the Ovation Redundancy Manager function within the OCR1100 platform, provides bumpless transfer and continuous process visibility during controller switchover events. Engineers commissioning redundant Ovation systems should verify the remote I/O master firmware revision compatibility with the active controller software version to ensure seamless failover behavior.

For HMI integration, the 1C31181G01's data is surfaced through the Ovation OWS displays, where process graphics, alarm management, and trend historians consume the real-time I/O values delivered by the remote master. The Emerson Ovation Historian captures high-resolution process data for post-event analysis, regulatory compliance reporting, and long-term performance trending — all dependent on the reliable, continuous data stream that the 1C31181G01 sustains across the remote I/O network.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the 1C31181G01 is deployed in boiler control, turbine protection, and balance-of-plant automation cabinets. Its ability to consolidate hundreds of field I/O points into a single remote rack reduces control room footprint and simplifies the migration from legacy relay-based panels to fully digital DCS control. The 12-Month Warranty and pre-shipment functional testing make it a reliable choice for planned outage replacements and capacity expansion projects.

Oil & Gas and Petrochemical: Upstream and downstream process facilities rely on the Ovation platform for wellhead monitoring, compressor control, and refinery unit operations. The 1C31181G01 enables remote I/O expansion in hazardous-area-adjacent control rooms, where minimizing field wiring penetrations through fire walls and blast barriers is a safety and engineering priority. Its compatibility with Ovation's integrated safety instrumented system (SIS) architecture supports unified control and safety layer management under IEC 61511 frameworks.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use Ovation-based DCS for pump station control, chemical dosing, and filtration process management. The 1C31181G01 supports distributed I/O across geographically spread pump stations and treatment cells, enabling centralized SCADA visibility without the cost of individual PLCs at each remote location. Long-term availability of spare modules — backed by NANKMOS's in-stock inventory and 12-Month Warranty — reduces the risk of extended downtime due to obsolete part shortages.

Mining and Metals: Ore processing, smelting, and materials handling operations demand robust I/O infrastructure capable of withstanding vibration, dust, and wide temperature swings. The 1C31181G01, housed within a sealed Ovation rack enclosure, provides the signal conditioning and data aggregation needed to monitor conveyor systems, crusher drives, and furnace controls from a centralized DCS. Integration with Emerson AMS Device Manager enables predictive maintenance workflows that reduce unplanned downtime in high-throughput production environments.

Q1: Is the Emerson 1C31181G01 compatible with both OCR400 and OCR1100 Ovation controllers? Yes. The 1C31181G01 Remote I/O Master is designed for use within the Ovation DCS ecosystem and is compatible with both the OCR400 and OCR1100 controller platforms. However, firmware revision alignment between the remote I/O master and the active controller software version is essential for stable operation. NANKMOS recommends confirming the controller software version in your system before ordering, and our technical team can assist with compatibility verification prior to shipment.

Q2: What is included in the 12-Month Warranty, and how does NANKMOS handle warranty claims? Every 1C31181G01 unit shipped by NANKMOS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each module undergoes functional testing to verify communication bus integrity, backplane interface operation, and I/O scan performance. In the event of a warranty claim, NANKMOS provides advance replacement or repair service with documented test reports. Contact [email protected] or call +86 18359268345 to initiate a warranty request.

Q3: Can the 1C31181G01 be installed in an existing Ovation rack alongside other I/O modules without system reconfiguration? In most cases, yes — the 1C31181G01 is a slot-specific module within the Ovation remote I/O rack and follows the standard Ovation rack addressing scheme. Adding or replacing the remote I/O master typically requires a controller database update to recognize the new module address, but does not require full system reconfiguration. For plants running live processes, NANKMOS recommends staging the replacement during a scheduled maintenance window and verifying the module address assignment in the Ovation Engineering Workstation before returning the rack to service.
