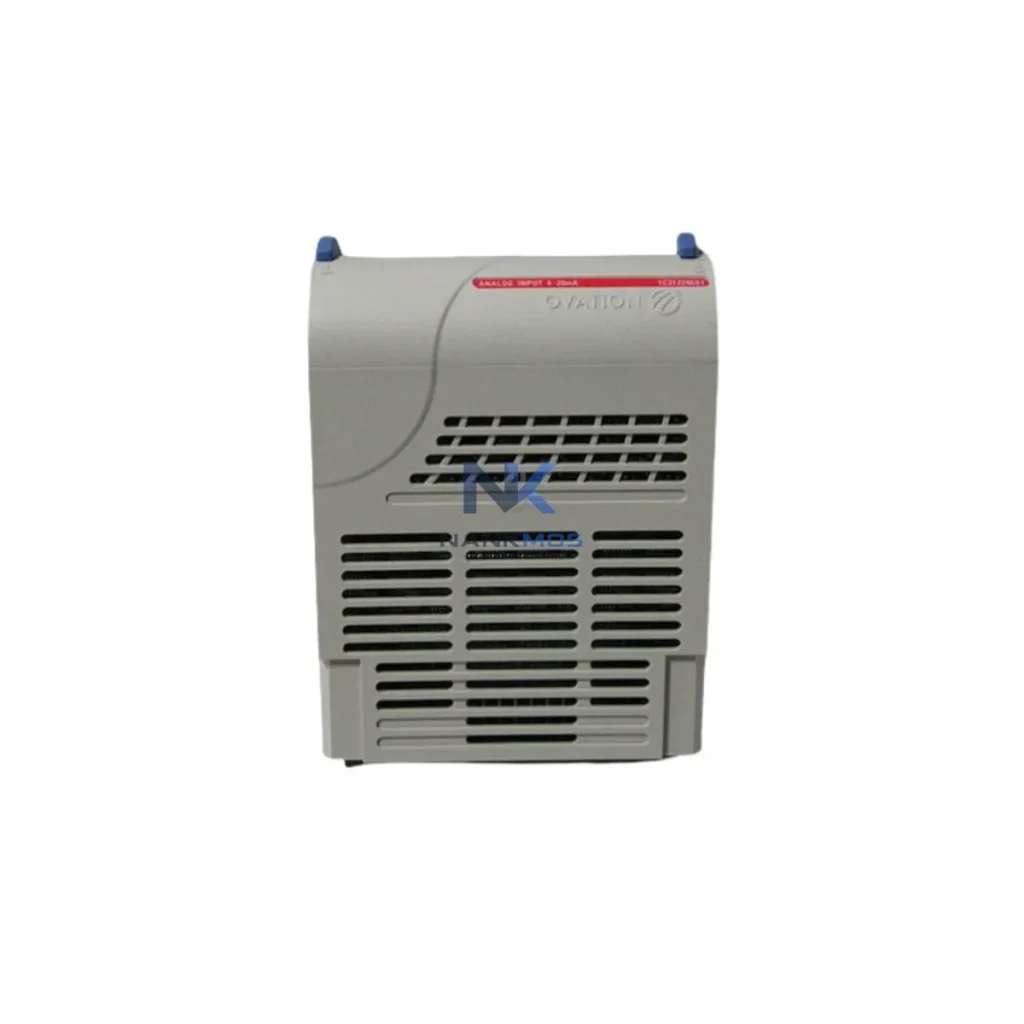

Emerson 1C31227G01 DCS Analog Input Module

Product Details

1C31227G01 Product Description

The Emerson 1C31227G01 is a precision analog input module engineered for seamless integration within the Emerson Ovation Distributed Control System (DCS) architecture. Designed to meet the rigorous demands of continuous process industries — including power generation, petrochemical refining, water treatment, and advanced manufacturing — this module delivers reliable signal acquisition, high-resolution conversion, and deterministic data throughput across multi-tier control hierarchies. Its system-matched design ensures plug-and-play compatibility within the Ovation I/O subsystem, eliminating signal conditioning mismatches and reducing commissioning time on complex automation projects.

As a core component of the Ovation I/O layer, the 1C31227G01 interfaces directly with the Ovation controller backplane, transmitting conditioned analog signals to the process control layer with minimal latency. Its architecture supports multi-channel simultaneous sampling, enabling synchronized data acquisition across distributed field instruments — a critical requirement for turbine control, boiler management, and reactor monitoring applications where signal timing directly impacts process stability and safety interlock performance.

The 1C31227G01 achieves its full performance potential when deployed within a complete Ovation DCS architecture. At the controller layer, the Emerson Ovation OCR400 Controller or OCR1100 Controller serves as the primary processing unit, executing control logic and managing I/O scan cycles. The 1C31227G01 feeds conditioned analog data directly into the controller's process image, enabling closed-loop PID regulation, cascade control, and advanced process optimization algorithms without additional signal conversion hardware.

Power integrity across the I/O subsystem is maintained by the Emerson Ovation Power Supply Module (1C31234G01 / 1C31234G02), which delivers regulated 24 VDC to the backplane bus. Redundant power supply configurations — using dual power modules in parallel — eliminate single points of failure in critical applications such as nuclear auxiliary systems and combined-cycle power plant control. The Ovation I/O Backplane / Rack Assembly provides the physical and electrical interconnect between the 1C31227G01 and adjacent modules, supporting hot-swap capability for maintenance without process interruption.

For digital field signals, the Emerson Ovation Digital Input Module (1C31116G01) and Digital Output Module (1C31122G01) complement the 1C31227G01 within the same rack, creating a unified I/O subsystem that handles both analog process variables and discrete control signals from field devices such as limit switches, solenoid valves, and motor starters. Analog output control — for valve positioners, variable speed drives, and current-to-pneumatic converters — is handled by the Emerson Ovation Analog Output Module (1C31232G01), completing the signal loop from sensor to actuator within a single coherent platform.

At the communication layer, the Emerson Ovation Communication Controller manages peer-to-peer data exchange between Ovation nodes via the Ovation Network (ONet), a deterministic Ethernet-based control network. Integration with third-party systems — including FOUNDATION Fieldbus, PROFIBUS DP, and HART field devices — is achieved through dedicated Ovation Fieldbus Interface Modules, allowing the 1C31227G01's analog inputs to coexist with intelligent field instruments in hybrid I/O architectures. For HMI and operator interface, the Emerson Ovation Operator Station (OWS) provides real-time process visualization, trend displays, and alarm management, presenting the analog data acquired by the 1C31227G01 in engineering units with configurable scaling and alarm thresholds.

In redundant control architectures, the 1C31227G01 can be paired with a redundant I/O module configuration supported by the Ovation Redundant I/O option, ensuring continuous signal acquisition even during module failure or planned maintenance. This redundancy model is particularly critical in power plant boiler control, where loss of analog input data can trigger turbine trips and unplanned outages with significant operational and financial consequences.

Power Generation & Turbine Control: In coal-fired, gas turbine, and combined-cycle power plants, the 1C31227G01 acquires critical process variables including steam pressure, turbine inlet temperature, exhaust gas temperature, and generator output current. Its high-resolution 16-bit conversion ensures precise measurement of narrow-range process variables, supporting tight PID control loops that maintain turbine efficiency within optimal operating bands. The module's online diagnostics enable predictive maintenance scheduling, reducing forced outage rates and improving plant availability factors.

Petrochemical & Refinery Process Control: Refinery distillation columns, catalytic crackers, and hydroprocessing units rely on accurate analog signal acquisition for temperature profiling, pressure differential measurement, and flow rate monitoring. The 1C31227G01's channel isolation prevents ground loop interference — a common challenge in large refinery control cabinets where multiple field instruments share common grounding infrastructure. Its compatibility with HART-enabled transmitters (via the Ovation HART Interface) allows simultaneous analog signal acquisition and digital device diagnostics without additional wiring.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent systems use the 1C31227G01 to monitor pH, dissolved oxygen, turbidity, and flow rate across distributed pump stations and treatment stages. The module's wide operating temperature range and robust isolation design ensure reliable operation in humid, chemically aggressive environments typical of water treatment infrastructure.

Mining & Metallurgical Processing: Ore processing plants, smelters, and mineral separation facilities deploy the 1C31227G01 for continuous monitoring of conveyor load cells, furnace temperature zones, and flotation cell level sensors. Its deterministic scan cycle — synchronized with the Ovation controller's execution rate — ensures that process upsets are detected and responded to within the control system's defined response time, preventing equipment damage and product quality deviations.

Semiconductor & Advanced Manufacturing: Cleanroom process equipment, chemical vapor deposition (CVD) systems, and precision temperature control applications benefit from the 1C31227G01's low-noise analog front end and high-resolution conversion, enabling sub-degree temperature control and precise gas flow regulation critical to semiconductor yield optimization.

Q1: Is the Emerson 1C31227G01 compatible with both legacy and current-generation Ovation DCS controllers? A: Yes. The 1C31227G01 is designed for the Ovation I/O backplane architecture and maintains backward compatibility with Ovation controller generations including the OCR400 and OCR1100 series. It integrates directly into existing Ovation I/O racks without requiring firmware upgrades or additional interface hardware, making it an ideal replacement module for installed base maintenance and system life extension projects. For mixed-generation Ovation architectures, verify the backplane revision and I/O bus protocol version with your Emerson system documentation before installation.

Q2: Can the 1C31227G01 be installed or replaced while the Ovation DCS is online (hot-swap)? A: The Ovation I/O architecture supports hot-swap capability for I/O modules when the system is configured with redundant I/O or when the specific I/O point is placed in manual mode prior to module removal. For non-redundant configurations, coordinate module replacement with your operations team to place affected control loops in manual before extraction. NANKMOS supplies all modules pre-tested and verified against Ovation I/O specifications, with full functional test documentation available upon request, minimizing commissioning time during planned maintenance windows.

Q3: What warranty and post-delivery support does NANKMOS provide for the Emerson 1C31227G01? A: Every Emerson 1C31227G01 supplied by NANKMOS is covered by a 12-Month Warranty from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes a comprehensive outgoing quality inspection including power-on functional testing, analog channel verification, and communication bus integrity checks. NANKMOS maintains inventory of the 1C31227G01 and related Ovation I/O modules to support urgent replacement requirements, with expedited global shipping available for critical plant maintenance situations. For technical support, system compatibility questions, or bulk procurement inquiries, contact our engineering team directly.
