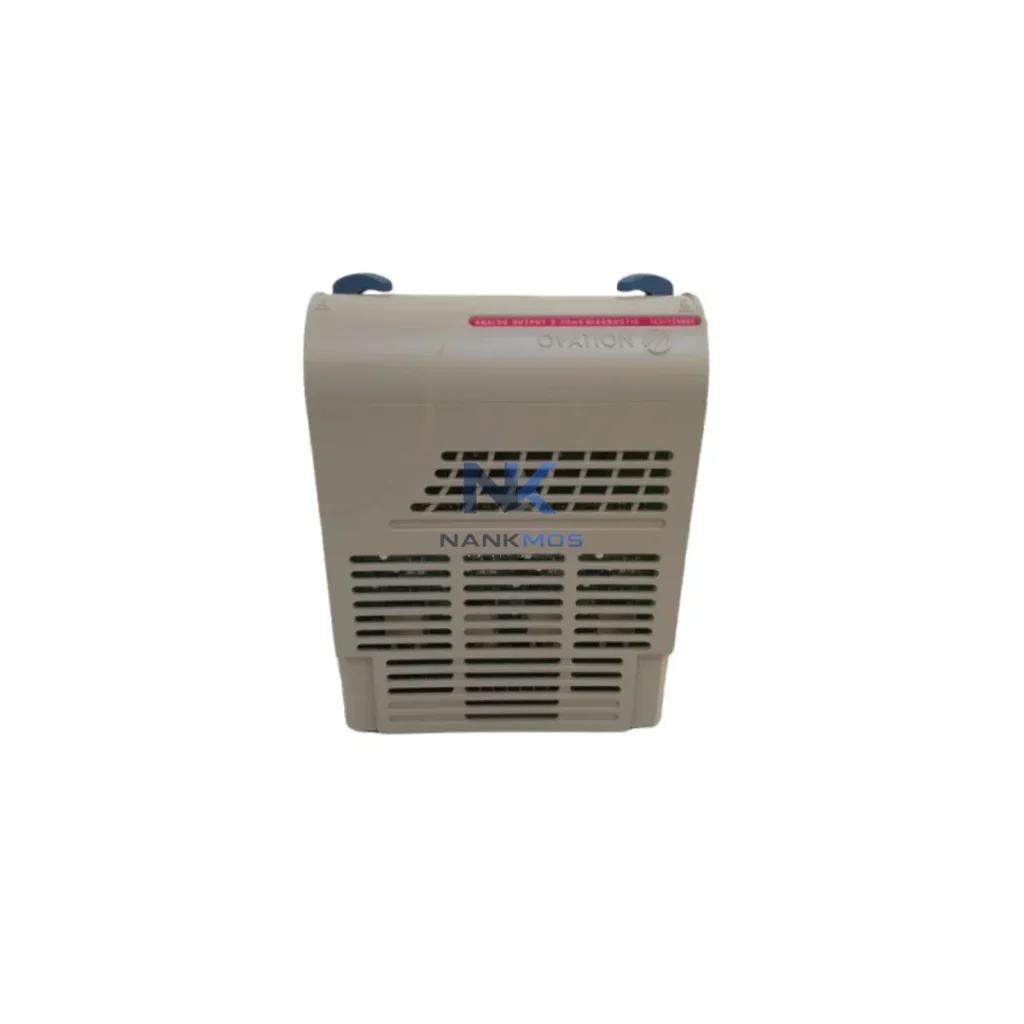

Emerson 5X00063G01 Digital Output Module

Product Details

5X00063G01 Product Description

The Emerson 5X00063G01 is a system-matched digital output module engineered for deployment within the Ovation Distributed Control System (DCS) platform. Designed to operate as a precision output interface at the I/O layer of a multi-tier industrial control architecture, this module delivers deterministic signal switching, high-density channel management, and seamless integration with Ovation controller backplanes. Its role extends beyond simple signal conversion — the 5X00063G01 functions as a structural node within a layered automation hierarchy, enabling coordinated control across the process, power, and safety domains of modern industrial facilities.

In a complete Ovation control architecture, the 5X00063G01 occupies the I/O layer, receiving discrete command signals from the Ovation controller (such as the Ovation OCR1100 or OCR400 controller modules) and translating them into field-level switching actions. This output module works in concert with digital input modules, analog I/O cards, and communication gateway modules to form a coherent, redundancy-capable I/O subsystem. The result is a tightly integrated signal chain from the HMI operator station through the controller, across the I/O bus, and out to field actuators, solenoid valves, motor starters, and relay-driven loads.

The 5X00063G01 achieves its full operational value when deployed as part of a coordinated Ovation automation platform. At the controller layer, the Ovation OCR1100 controller module or the OCR400 redundant controller pair provides the processing backbone, executing control logic and issuing discrete output commands to the 5X00063G01 via the Ovation I/O bus. The controller communicates with the I/O subsystem through a deterministic, high-speed backplane protocol that ensures output state changes are applied within the scan cycle window required by the process.

Power integrity for the I/O rack is maintained by the Ovation Power Supply module (such as the 5X00070G01 or equivalent rack power unit), which provides regulated 24 VDC to the I/O backplane and all installed modules. Stable power delivery is critical for the 5X00063G01, as output state transitions must be free from voltage transients that could cause false actuator triggering or relay chatter in field devices.

On the input side, the 5X00063G01 is typically paired with Ovation digital input modules (DI modules) and analog input/output cards to form a balanced I/O complement within the same rack. This pairing allows the control loop to close locally — reading field sensor states via DI modules, processing logic in the controller, and issuing corrective output commands through the 5X00063G01 — all within a single Ovation drop cabinet.

For facilities requiring network-level integration, the Ovation communication gateway modules (including PROFIBUS DP gateway cards and Modbus TCP interface modules) extend the reach of the Ovation controller to third-party field devices, variable frequency drives (VFDs), and intelligent motor control centers (MCCs). The 5X00063G01 output signals can be used to command these downstream devices in coordination with the gateway's protocol translation layer, enabling unified control across heterogeneous field bus environments.

At the HMI layer, Ovation Operator Stations running Ovation Developer Studio provide real-time visualization of the 5X00063G01 output channel states, alarm annunciation for output faults, and historical trending of switching events. Maintenance engineers can use the Developer Studio diagnostic interface to perform online module health checks, verify output channel continuity, and initiate forced output tests during commissioning — all without interrupting live process control.

For redundancy-critical applications, the 5X00063G01 can be deployed in an Ovation redundant I/O configuration alongside a redundant controller pair and redundant power supplies. In this architecture, a secondary 5X00063G01 module mirrors the primary's output state in real time, enabling bumpless switchover in the event of a primary module failure. This redundancy model is particularly important in power generation, nuclear auxiliary systems, and continuous process industries where unplanned output interruptions carry significant operational and safety consequences.

Signal isolation between the 5X00063G01 and field wiring is maintained through the Ovation I/O termination assembly, which provides galvanic isolation, surge protection, and field-side terminal access. This termination layer protects the module's internal circuitry from field-side voltage spikes and ground loops, extending the operational lifespan of the module in electrically noisy industrial environments.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants running Ovation DCS, the 5X00063G01 is used to control boiler auxiliary equipment, burner management system (BMS) outputs, turbine trip relays, and auxiliary motor starters. Its deterministic output response ensures that safety-critical switching commands — such as fuel shutoff valve actuation — are executed within the required response time window defined by the BMS logic.

Nuclear Auxiliary Systems: In nuclear power plant balance-of-plant (BOP) applications, the 5X00063G01 provides discrete output control for cooling water pump starters, ventilation damper actuators, and auxiliary system isolation valves. Emerson's Ovation platform is widely qualified for nuclear BOP applications, and the 5X00063G01's compatibility with redundant I/O architecture supports the defense-in-depth design philosophy required in these environments.

Petrochemical and Refinery Process Control: In refinery distillation units, hydrocracker control systems, and compressor train automation, the 5X00063G01 drives solenoid valve outputs, motor control relay outputs, and process interlock switching. Its integration with Ovation's advanced process control (APC) layer allows output commands to be generated by model-predictive control (MPC) algorithms, enabling optimized process transitions with minimal operator intervention.

Water and Wastewater Treatment: Municipal water treatment facilities and industrial wastewater systems use the 5X00063G01 to control pump station outputs, chemical dosing system relays, and UV disinfection system enable signals. The module's diagnostic capability allows remote monitoring of output channel health from a central SCADA station, reducing the need for on-site maintenance visits at distributed pump stations.

Mining and Mineral Processing: In conveyor control systems, crusher automation, and flotation cell management, the 5X00063G01 provides the discrete output interface for motor starter commands, belt alignment interlock outputs, and emergency stop relay circuits. Its robust operating temperature range supports deployment in mine site control rooms subject to wide ambient temperature variation.

Q1: Is the Emerson 5X00063G01 compatible with both the OCR1100 and OCR400 Ovation controller platforms, and can it be used in a mixed-controller architecture? A: Yes. The 5X00063G01 is designed for the Ovation I/O bus architecture and is compatible with all current Ovation controller generations, including the OCR1100 and OCR400 platforms. In a mixed-controller architecture — where different Ovation drops may be managed by different controller versions — the 5X00063G01 operates transparently within its assigned drop, communicating with its local controller via the standard Ovation I/O bus protocol. System-wide consistency is maintained through the Ovation network layer, which synchronizes controller states across the plant network. No hardware modification is required for cross-platform deployment; configuration is managed entirely within Ovation Developer Studio.

Q2: What redundancy options are available for the 5X00063G01, and how does bumpless switchover work in a redundant I/O configuration? A: The 5X00063G01 supports Ovation's redundant I/O architecture, in which a primary and secondary module are installed in adjacent rack slots and continuously synchronized by the Ovation controller. The primary module actively drives field outputs while the secondary module maintains a mirrored output state in standby. In the event of a primary module fault — detected via the Ovation diagnostic subsystem — the controller initiates a bumpless switchover to the secondary module within the system's configured fault detection and response window. Field output states are preserved during the transition, ensuring that actuators, relays, and motor starters connected to the module do not experience unintended state changes. Redundant power supply modules and redundant controller pairs are recommended to complete the full redundancy architecture.

Q3: What does the 12-Month Warranty cover for the 5X00063G01, and what is the typical lead time and availability for this module? A: The 5X00063G01 is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects, component failures, and functional non-conformance under normal operating conditions. The warranty does not cover damage resulting from improper installation, field wiring errors, or operation outside the module's specified environmental and electrical limits. NANKMOS maintains in-stock inventory of the 5X00063G01 to support urgent replacement requirements, with standard lead times of 3–7 business days for international shipments. Expedited shipping options are available for critical plant maintenance scenarios. Pre-shipment functional testing is performed on all units to verify output channel integrity before dispatch. For volume procurement, long-term supply agreements, or technical pre-sales consultation, contact [email protected] or call +86 18359268345.
