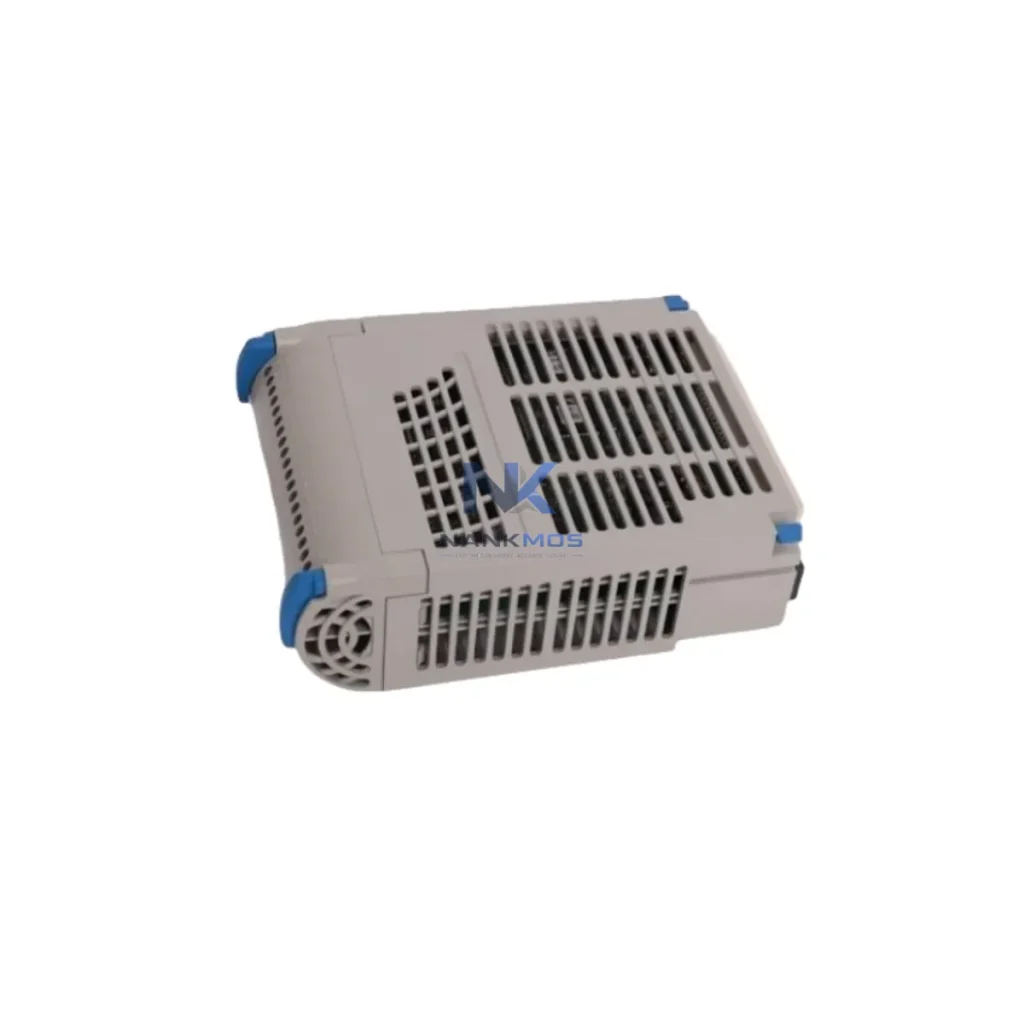

Emerson 5X00119G01 RTD Input Module

Product Details

5X00119G01 Product Description

The Emerson 5X00119G01 is a high-accuracy RTD (Resistance Temperature Detector) Input Module designed for the Emerson Ovation Distributed Control System (DCS). Purpose-built for energy-intensive industrial environments — including power generation, chemical processing, oil & gas, and advanced manufacturing — this module delivers real-time thermal data that drives intelligent energy control, load management, and production line optimization. By providing precise, low-latency temperature feedback to the Ovation controller, the 5X00119G01 enables operators to eliminate thermal waste, reduce unnecessary heating and cooling cycles, and maintain equipment within optimal operating bands.

In a modern energy-aware control architecture, the Emerson 5X00119G01 RTD Input Module serves as the thermal sensing backbone that feeds actionable data to every layer of the automation stack. At the controller level, the Ovation DCS processes RTD readings from the 5X00119G01 and issues corrective commands to downstream actuators and drives — ensuring that energy is consumed only when and where it is needed.

When integrated with Emerson Ovation I/O modules such as the 5X00070G01 Digital Output Module and the 5X00106G01 Analog Output Module, the 5X00119G01 forms a closed-loop thermal control circuit. Temperature deviations detected by the RTD inputs trigger proportional output signals that modulate valve positions, fan speeds, or burner rates — directly reducing energy waste at the process level.

For motor-driven loads, the RTD data from the 5X00119G01 is used by variable frequency drives (VFDs) — such as the Emerson Control Techniques Unidrive M700 series — to adjust motor speed in response to thermal conditions. This prevents motors from running at full load during low-demand periods, cutting energy consumption by 20–40% in pump and fan applications. Similarly, servo drive systems on precision assembly lines use RTD feedback to maintain thermal stability in servo motors, extending motor life and reducing unplanned downtime.

The 5X00119G01 also interfaces with power monitoring modules — including the Emerson Ovation Power Monitor Card and third-party Schneider Electric PowerLogic ION meters — to correlate thermal load data with real-time energy consumption. This correlation is essential for identifying energy hotspots, validating efficiency improvements, and generating the audit-grade reports required by ISO 50001 energy management systems.

At the field level, the module works alongside industrial sensors — including thermocouple transmitters, pressure transducers, and flow meters — connected through Emerson Rosemount 3051 transmitters and HART-enabled I/O cards. This multi-sensor data fusion gives the Ovation DCS a complete picture of process energy state, enabling model-predictive control (MPC) strategies that anticipate thermal load shifts before they occur.

For plant-wide visibility, RTD data from the 5X00119G01 is surfaced through HMI workstations running Emerson Ovation Operator Stations, and is forwarded to SCADA systems via OPC-UA data bridges. Operators can monitor temperature trends, set energy-based alarms, and initiate load-shedding sequences directly from the control room — without manual field intervention.

Communication integrity is maintained through Emerson Ovation communication modules and redundant network switches supporting Industrial Ethernet (IEEE 802.3) and PROFINET topologies, ensuring that RTD data reaches the controller with deterministic latency even under high network load conditions.

Production line energy efficiency depends on the ability to detect, respond to, and predict thermal events in real time. The Emerson 5X00119G01 RTD Input Module addresses this need at the hardware level, providing the high-resolution temperature data that makes intelligent energy management possible.

Reducing Thermal Waste: Uncontrolled temperature excursions are one of the leading causes of energy waste in industrial facilities. Overheated motors draw excess current; over-cooled processes consume unnecessary refrigeration energy. The 5X00119G01 provides the precise, channel-by-channel RTD readings that allow the Ovation DCS to maintain process temperatures within tight setpoint bands — eliminating both overshoot and undershoot conditions that drive up energy bills.

Minimizing Unplanned Downtime: Thermal anomalies are early indicators of mechanical failure. By continuously monitoring RTD inputs across multiple process points, the 5X00119G01 enables predictive maintenance workflows that flag rising temperature trends before they escalate into equipment failures. This reduces emergency shutdowns, preserves production throughput, and avoids the energy-intensive restart sequences that follow unplanned outages.

Stabilizing Production Rhythm: Consistent thermal conditions are a prerequisite for stable production cadence. Temperature fluctuations cause material property variations, dimensional drift in machined parts, and yield losses in chemical processes. The 5X00119G01 provides the real-time feedback needed to hold process temperatures steady — supporting the repeatable, high-OEE production cycles that define world-class manufacturing.

Improving Equipment Utilization: When thermal data is integrated into the plant energy management system (EMS), operators can schedule high-energy processes during off-peak tariff periods, balance thermal loads across multiple production lines, and defer non-critical heating or cooling operations. The 5X00119G01 is the data source that makes this level of energy intelligence possible.

Every unit is tested under load conditions prior to shipment, with full functional verification of all RTD input channels. In-stock availability ensures minimal lead time for maintenance replacements and system expansions. All units are covered by a 12-month warranty, providing procurement teams with the confidence needed for capital project planning and MRO inventory management.

Q1: How does the 5X00119G01 contribute to measurable energy savings? By delivering high-accuracy RTD temperature data to the Ovation DCS in real time, the 5X00119G01 enables closed-loop thermal control that eliminates energy waste from temperature overshoot, unnecessary heating/cooling cycles, and inefficient motor loading. Facilities using precise RTD-based control typically report 10–25% reductions in process heating and cooling energy costs compared to systems relying on lower-accuracy sensing.

Q2: Is the 5X00119G01 compatible with my existing Ovation DCS configuration? Yes. The 5X00119G01 is a standard Ovation I/O module designed for direct installation into Ovation controller cabinets. It is compatible with Ovation 3.x and later software releases and supports standard Pt100 and Pt1000 RTD sensor types. For non-Ovation systems, SCADA integration is available via OPC-DA/UA gateways. Contact us to confirm compatibility with your specific controller revision and I/O chassis configuration.

Q3: What is the recommended replacement or upgrade path for aging RTD input modules? For direct replacement of failed or end-of-life Ovation RTD input modules, the 5X00119G01 is a drop-in substitute that requires no firmware changes or reconfiguration in most installations. For systems undergoing broader modernization, pairing the 5X00119G01 with updated Ovation communication modules and HART-enabled analog I/O cards provides a cost-effective path to enhanced diagnostics and energy monitoring without a full DCS migration.

Q4: What testing and warranty coverage is provided? Every 5X00119G01 unit undergoes full functional testing prior to shipment, including channel-by-channel RTD input verification and backplane communication checks. Units are shipped with test documentation upon request. All modules are covered by a 12-month warranty against manufacturing defects and functional failures. In-stock units are available for immediate dispatch, supporting urgent maintenance requirements and minimizing production downtime.
