Emerson A6312-CD-022-000 Vibration Monitor

Product Details

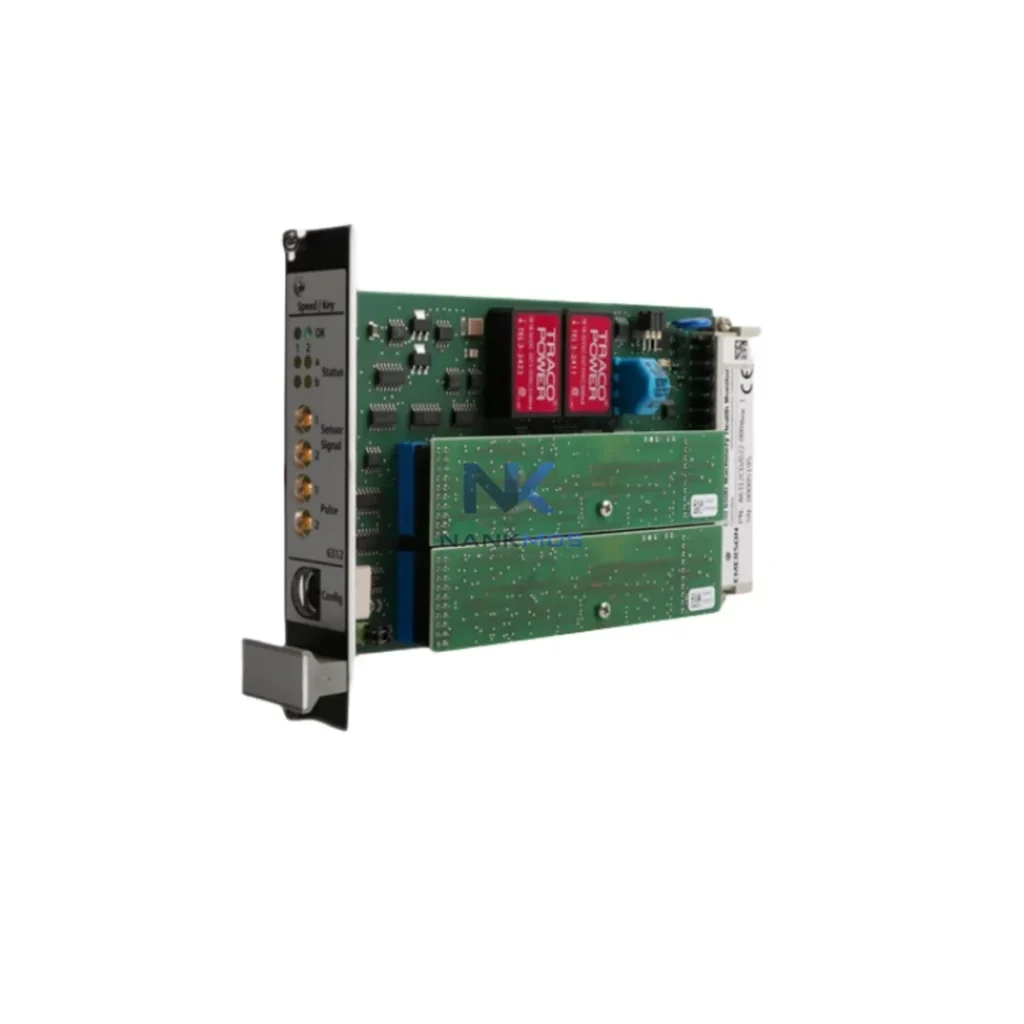

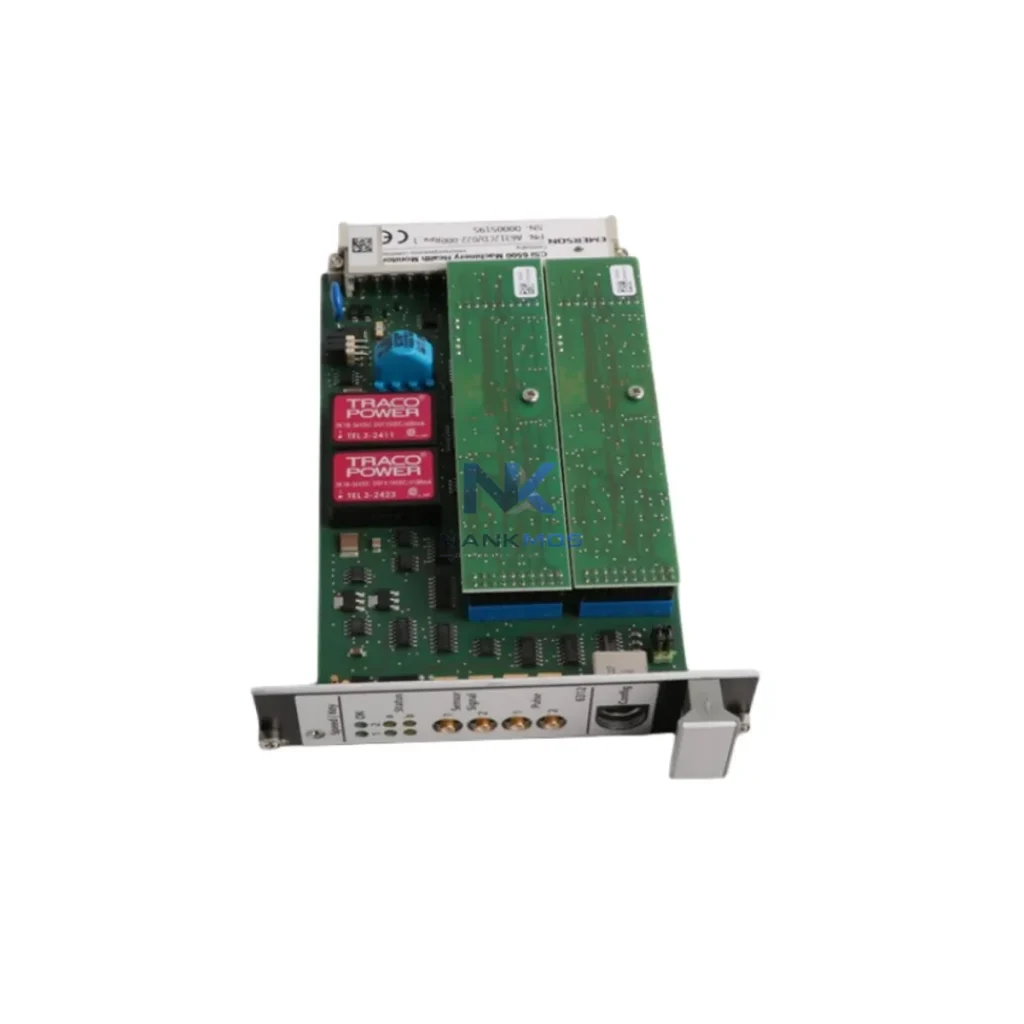

A6312-CD-022-000 Product Description

The Emerson A6312-CD-022-000 is a precision vibration monitoring module engineered for seamless integration within the CSI 6300 / AMS 6300 machinery health monitoring architecture. Designed to deliver continuous, high-fidelity vibration signal acquisition across rotating equipment, this module serves as a critical node in the condition monitoring layer of industrial control systems — enabling real-time diagnostics, predictive maintenance scheduling, and long-term asset protection across manufacturing, power generation, petrochemical, and process industries.

Within a fully deployed CSI 6300 system, the A6312-CD-022-000 operates as a dedicated channel input card, capturing dynamic vibration data from accelerometers, velocity transducers, and proximity probes mounted on turbines, compressors, pumps, fans, and gearboxes. Its signal conditioning circuitry ensures low-noise, high-resolution waveform capture, feeding structured data upstream to the CSI 6300 rack controller and onward to AMS Device Manager or AMS Machinery Manager for centralized analysis and alarm management.

The A6312-CD-022-000 achieves its full diagnostic potential when deployed as part of a cohesive, layered automation architecture. At the rack level, it slots into the CSI 6300 chassis alongside the CSI 6310 rack controller, which aggregates channel data and manages communication to the plant historian and DCS. Power integrity is maintained by the CSI 6300 power supply module, which provides regulated, isolated DC rails to all monitoring cards — ensuring that vibration signal baselines remain stable even during plant-wide load transients.

For facilities running Emerson DeltaV distributed control systems, the CSI 6300 rack integrates via OPC-DA or OPC-UA gateways, allowing vibration alarm states from the A6312-CD-022-000 to propagate directly into DeltaV operator workstations and interlock logic. This contextual integration eliminates the need for manual data transfer between condition monitoring and process control layers, reducing diagnostic latency and enabling automated protective responses.

In multi-machine monitoring deployments, the A6312-CD-022-000 operates alongside CSI 6320 temperature monitoring cards and CSI 6330 speed/phase reference modules within the same rack, enabling synchronized, multi-parameter health assessment of a single machine train. The AMS 6300 SIS module can be added to the architecture to provide safety-rated trip outputs based on vibration thresholds, bridging the condition monitoring layer with the safety instrumented system layer in compliance with IEC 61511.

At the field level, the A6312-CD-022-000 accepts inputs from Emerson CSI 2130 portable analyzers during commissioning and route-based data collection, allowing engineers to cross-validate online monitoring data against offline spectrum measurements. For facilities requiring wireless condition monitoring at remote assets, the Emerson AMS Wireless Vibration Transmitter WirelessHART can supplement the wired CSI 6300 network, extending coverage without additional cabling infrastructure.

HMI integration is achieved through Emerson AMS Machinery Manager workstations, which provide trend plots, spectrum waterfalls, orbit displays, and alarm dashboards sourced directly from the A6312-CD-022-000 channel data. For plants standardized on Emerson Ovation DCS, the CSI 6300 system communicates via Modbus TCP or OPC, enabling vibration data to appear natively within Ovation operator displays alongside process variables such as flow, pressure, and temperature — delivering true cross-layer contextual integration.

Power Generation: In gas turbine and steam turbine trains, the A6312-CD-022-000 monitors shaft vibration, bearing housing acceleration, and casing velocity simultaneously across multiple measurement planes. Alarm setpoints are configured in AMS Machinery Manager and linked to DeltaV or Ovation DCS interlock logic, enabling automated turbine runback or trip before vibration levels reach destructive thresholds. This architecture is standard practice in combined-cycle power plants operating under NERC reliability standards.

Petrochemical and Refining: Centrifugal compressors in ethylene crackers, hydrogen reformers, and LNG liquefaction trains require continuous, API 670-compliant vibration monitoring. The CSI 6300 system with A6312-CD-022-000 input cards satisfies API 670 channel requirements for radial vibration, axial position, and phase reference, providing the signal fidelity and redundancy architecture demanded by process safety management programs.

Water and Wastewater Treatment: Large vertical turbine pumps and centrifugal blowers in municipal water treatment facilities benefit from continuous vibration monitoring to detect impeller imbalance, cavitation, and bearing wear before catastrophic failure. The A6312-CD-022-000 provides the signal conditioning necessary to distinguish low-frequency hydraulic excitation from mechanical fault signatures, reducing false alarms and improving maintenance scheduling accuracy.

Mining and Minerals Processing: SAG mills, ball mills, and conveyor drive gearboxes in mining operations generate complex, high-amplitude vibration signatures that demand robust, high-dynamic-range monitoring hardware. The A6312-CD-022-000 is suited to these environments, providing reliable signal acquisition in the presence of high electromagnetic interference and structural vibration cross-talk common in mineral processing facilities.

Marine and Offshore: Propulsion machinery, diesel generators, and auxiliary pumps aboard vessels and offshore platforms require vibration monitoring systems that meet DNV, ABS, or Lloyd's Register class requirements. The CSI 6300 architecture, anchored by modules such as the A6312-CD-022-000, provides the continuous monitoring capability required for class-approved condition-based maintenance programs, reducing dry-dock inspection intervals and extending machinery service life.

Q1: Is the A6312-CD-022-000 compatible with existing CSI 6300 racks, and can it be added to an operational system without shutdown? The A6312-CD-022-000 is designed as a hot-swappable input card within the CSI 6300 rack architecture. Provided the rack controller firmware is at a compatible revision level, the module can be inserted into an available card slot while the rack remains powered and operational. AMS Machinery Manager will automatically detect the new channel and prompt the engineer to configure transducer type, measurement range, and alarm setpoints. No full system shutdown is required for card insertion, minimizing production impact during system expansion or module replacement.

Q2: How does the A6312-CD-022-000 support redundant monitoring architectures in critical machinery protection applications? For API 670-compliant machinery protection systems, redundancy is achieved by deploying dual CSI 6300 racks with mirrored A6312-CD-022-000 channel assignments, each connected to independent transducer circuits on the same measurement plane. The CSI 6310 rack controllers in each chassis communicate via a dedicated redundancy link, with the secondary rack assuming monitoring and trip output responsibility within milliseconds of a primary rack fault. This architecture ensures continuous protection coverage during planned maintenance, firmware updates, or unexpected hardware failures — a requirement for unspared critical machinery in API 670 Category I and II applications.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for in-stock units? Every A6312-CD-022-000 supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing to confirm signal conditioning performance, channel isolation integrity, and backplane communication compatibility. In-stock units are available for immediate dispatch, with standard lead times of 3–7 business days for international destinations. For urgent project requirements, expedited shipping options are available upon request. Contact [email protected] or +86 18359268345 to confirm current stock levels and delivery schedules.
