Emerson KC4011X1-BD1 12P6758X072 Terminal Block Module

Product Details

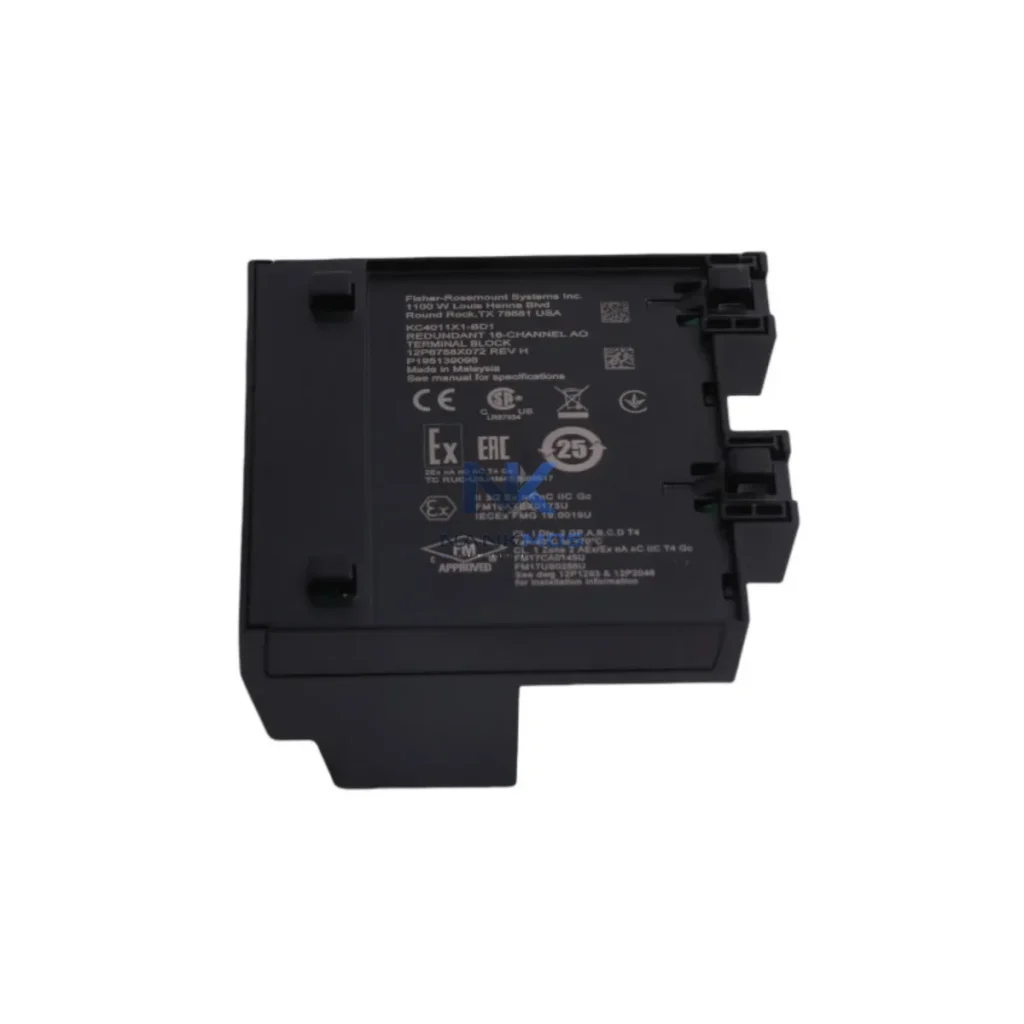

KC4011X1-BD1 12P6758X072 Product Description

The Emerson KC4011X1-BD1 12P6758X072 is a system-matched terminal block module engineered for seamless integration within the Emerson DeltaV distributed control system (DCS) architecture. Designed to serve as the critical field-wiring interface between I/O subsystems and field instrumentation, this terminal block ensures signal integrity, wiring consistency, and long-term maintainability across the full control hierarchy. Whether deployed in a greenfield automation project or as a replacement component in an existing DeltaV installation, the KC4011X1-BD1 12P6758X072 delivers the mechanical precision and electrical reliability that process industries demand.

In modern industrial control architectures, the terminal block layer is far more than a passive wiring point. It is the structural foundation that connects field devices — transmitters, actuators, solenoids, and sensors — to the I/O cards that feed real-time data into the DeltaV controller. The KC4011X1-BD1 12P6758X072 is engineered to maintain signal fidelity across this boundary, supporting stable analog and discrete signal transmission while minimizing noise susceptibility and ground loop risk. Its design aligns with Emerson's system-level philosophy of modular, scalable, and maintainable control infrastructure.

From a control architecture perspective, the KC4011X1-BD1 12P6758X072 occupies the I/O layer, interfacing directly with DeltaV I/O cards such as the MD Plus Controller, S-series I/O subsystems, and CHARM I/O modules. Its terminal layout is optimized for DeltaV marshalling cabinet configurations, enabling structured field wiring that supports both conventional and CHARMS-based I/O strategies. When paired with DeltaV Electronic Marshalling (CHARM) technology, this terminal block contributes to a flexible, software-defined I/O architecture that dramatically reduces engineering time and cabinet footprint.

System coherence across the control hierarchy depends on the reliability of every interconnection point. The KC4011X1-BD1 12P6758X072 supports this coherence by providing consistent termination quality across all field signal types. In a typical DeltaV installation, this module works in concert with components such as the DeltaV MD Plus Controller, DeltaV Power Supplies (PS2 and PS6), DeltaV 8-channel AI HART I/O cards, DeltaV 8-channel AO HART I/O cards, DeltaV DI/DO discrete I/O modules, CHARM I/O cards (CIOC), and DeltaV SIS Logic Solvers for safety-instrumented systems. Each of these components depends on a reliable, low-impedance field wiring interface — precisely what the KC4011X1-BD1 12P6758X072 provides.

In redundant control architectures, terminal block quality directly affects system availability. The KC4011X1-BD1 12P6758X072 supports hot-standby and redundant I/O configurations by maintaining consistent termination resistance and mechanical stability under continuous operation. This is critical in applications where DeltaV redundant controllers and redundant I/O subsystems are deployed to achieve high-availability process control. The terminal block's robust construction ensures that field wiring connections remain secure during vibration, thermal cycling, and maintenance activities — all without introducing signal drift or intermittent faults that could trigger spurious alarms or process upsets.

Communication stability across the DeltaV network is also supported by proper field wiring termination. The KC4011X1-BD1 12P6758X072 minimizes common-mode noise and ground potential differences that can corrupt HART, FOUNDATION Fieldbus, or PROFIBUS PA signals at the field device interface. When integrated with DeltaV FOUNDATION Fieldbus H1 cards or DeltaV HART multiplexers, clean termination at the terminal block level ensures that diagnostic data from smart field instruments reaches the DeltaV workstation without corruption — enabling full asset management capability through AMS Device Manager.

Engineering and commissioning efficiency is another key benefit of using system-matched terminal blocks. The KC4011X1-BD1 12P6758X072 is designed to align with DeltaV's structured wiring standards, reducing the time required for loop checking, signal verification, and I/O card commissioning. Maintenance technicians can identify, isolate, and re-terminate individual field loops without disturbing adjacent circuits, supporting safe and efficient maintenance operations in live process environments. This modular maintainability is essential in industries where unplanned downtime carries significant operational and safety consequences.

The KC4011X1-BD1 12P6758X072 terminal block is most effective when deployed as part of a fully integrated DeltaV automation platform. In a complete DeltaV architecture, this module interfaces with the DeltaV MD Plus Controller as the primary process controller, DeltaV PS2 and PS6 Power Supplies providing stable 24VDC bus power, DeltaV 8-channel AI HART I/O cards for analog input signal acquisition, DeltaV 8-channel AO HART I/O cards for analog output control, DeltaV DI and DO discrete I/O modules for on/off field device control, CHARM I/O Cards (CIOC) for electronic marshalling configurations, DeltaV SIS Logic Solvers for IEC 61511-compliant safety loops, DeltaV Wireless I/O Gateway for WirelessHART field device integration, and DeltaV Operator Workstations running DeltaV Operate for HMI visualization.

Each of these components depends on the terminal block layer to maintain signal continuity from the field device to the controller. The KC4011X1-BD1 12P6758X072 ensures that this continuity is preserved across the full signal chain — from the 4–20 mA transmitter in the field, through the marshalling cabinet, into the I/O card, and ultimately to the DeltaV controller's process database. This end-to-end signal integrity is the foundation of reliable process control, accurate alarming, and effective asset management.

In CHARMS-based architectures, the terminal block's role evolves to support software-defined I/O assignment. Rather than hard-wiring field signals to specific I/O card channels, CHARM technology allows any field signal terminated at the KC4011X1-BD1 12P6758X072 to be assigned to any available CHARM channel via DeltaV configuration software. This flexibility dramatically reduces the cost and time associated with late-stage engineering changes, instrument relocations, and system expansions — making the KC4011X1-BD1 12P6758X072 a future-ready component in any DeltaV installation.

The Emerson KC4011X1-BD1 12P6758X072 terminal block is deployed across a wide range of process industries where DeltaV DCS platforms are the control system of choice. In oil and gas processing facilities, this module supports the termination of pressure, temperature, flow, and level transmitters across upstream separation, compression, and metering systems. In petrochemical and refinery applications, it provides reliable field wiring interfaces for reactor control, distillation column instrumentation, and heat exchanger monitoring loops.

In power generation — including thermal, combined-cycle, and renewable energy plants — the KC4011X1-BD1 12P6758X072 supports boiler control, turbine instrumentation, and emissions monitoring systems where signal reliability is directly linked to plant safety and regulatory compliance. In water and wastewater treatment facilities, it enables precise control of dosing pumps, aeration blowers, and filtration systems through stable analog signal termination. In pharmaceutical and biotech manufacturing, where FDA 21 CFR Part 11 compliance and batch record integrity are paramount, this terminal block supports the clean, traceable field wiring infrastructure required for validated DeltaV batch control systems.

Mining and minerals processing operations rely on DeltaV systems for crusher control, conveyor management, and flotation cell optimization — all of which depend on reliable field wiring termination at the I/O layer. In pulp and paper mills, the KC4011X1-BD1 12P6758X072 supports continuous process control across digester, bleaching, and paper machine sections. Across all these applications, the terminal block's consistent performance under industrial environmental conditions — including temperature variation, humidity, and vibration — ensures that the DeltaV control system maintains its designed level of process visibility and control authority.

Q1: Is the KC4011X1-BD1 12P6758X072 compatible with both conventional DeltaV I/O and CHARM Electronic Marshalling architectures? Yes. The KC4011X1-BD1 12P6758X072 is designed for use within the Emerson DeltaV I/O subsystem infrastructure, which supports both conventional marshalled I/O and CHARM-based Electronic Marshalling configurations. In conventional architectures, it provides fixed field wiring termination aligned to specific I/O card channels. In CHARM-based installations, it serves as the field wiring interface within the marshalling cabinet, with signal routing to CHARM channels managed through DeltaV configuration software. Compatibility with your specific DeltaV revision and I/O card type should be confirmed against Emerson's system compatibility documentation prior to installation.

Q2: What pre-shipment testing and quality assurance processes apply to this terminal block? Every KC4011X1-BD1 12P6758X072 unit supplied by NANKMOS undergoes pre-shipment functional verification to confirm mechanical integrity, terminal continuity, and absence of physical damage. Units are inspected against original Emerson manufacturing specifications and are supplied with a 12-Month Warranty covering defects in materials and workmanship. Our inventory is sourced from authorized distribution channels and maintained in controlled storage conditions to preserve component integrity. Detailed test records and traceability documentation are available upon request for quality-critical procurement processes.

Q3: How does NANKMOS support long-term inventory availability and emergency supply for DeltaV spare parts? NANKMOS maintains a dedicated inventory of Emerson DeltaV components — including terminal blocks, I/O cards, power supplies, and controller modules — to support both planned maintenance programs and emergency replacement requirements. Our global logistics network enables fast dispatch to manufacturing sites, power plants, and process facilities worldwide. For critical spare parts programs, we offer reserved stock arrangements and priority fulfillment agreements. Contact our technical sales team at [email protected] or +86 18359268345 to discuss your DeltaV spare parts strategy and long-term supply requirements.
