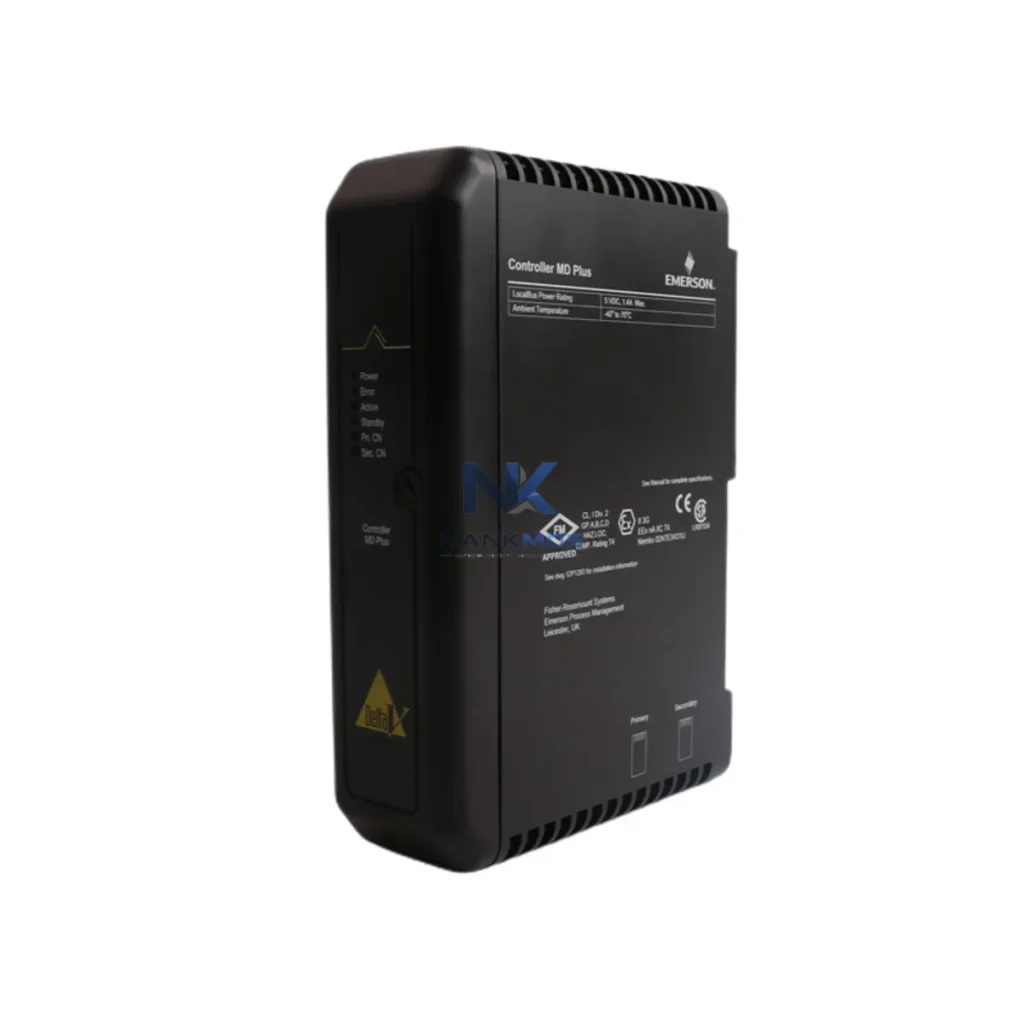

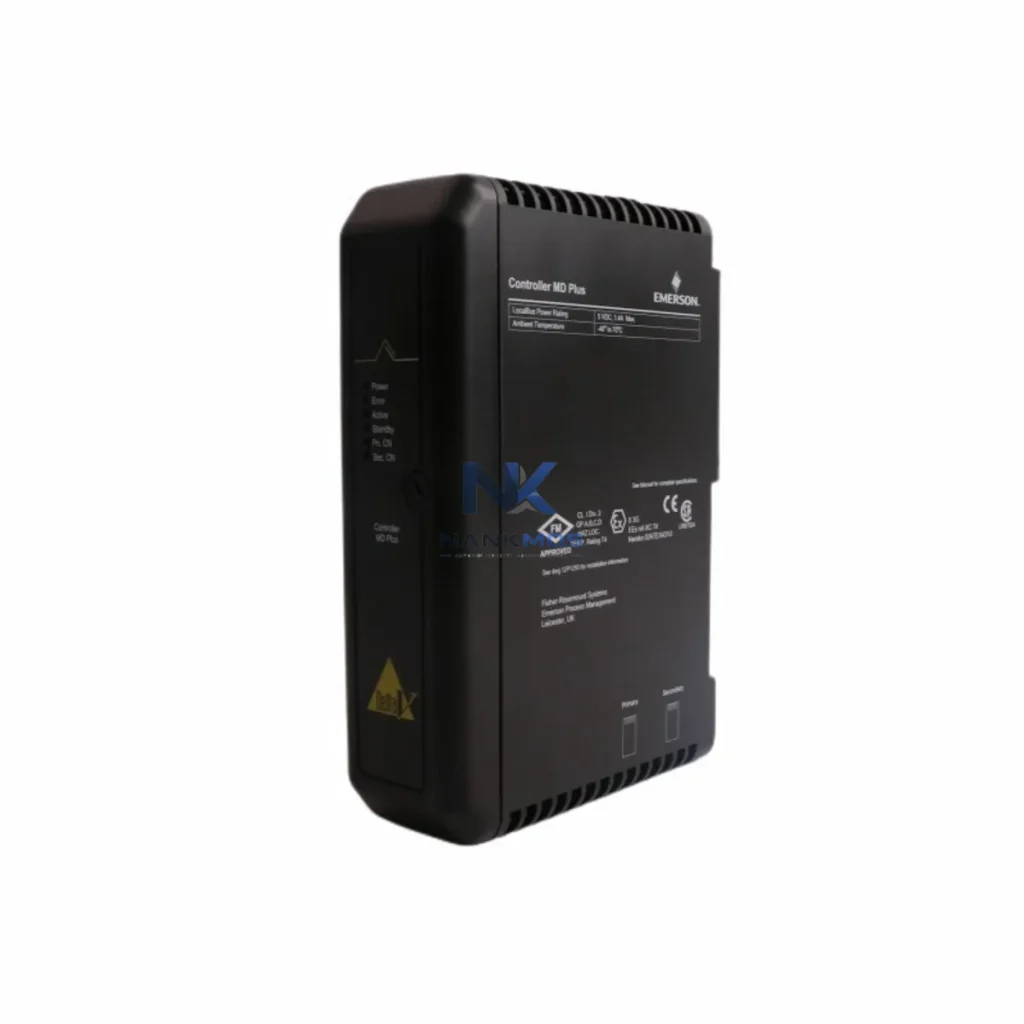

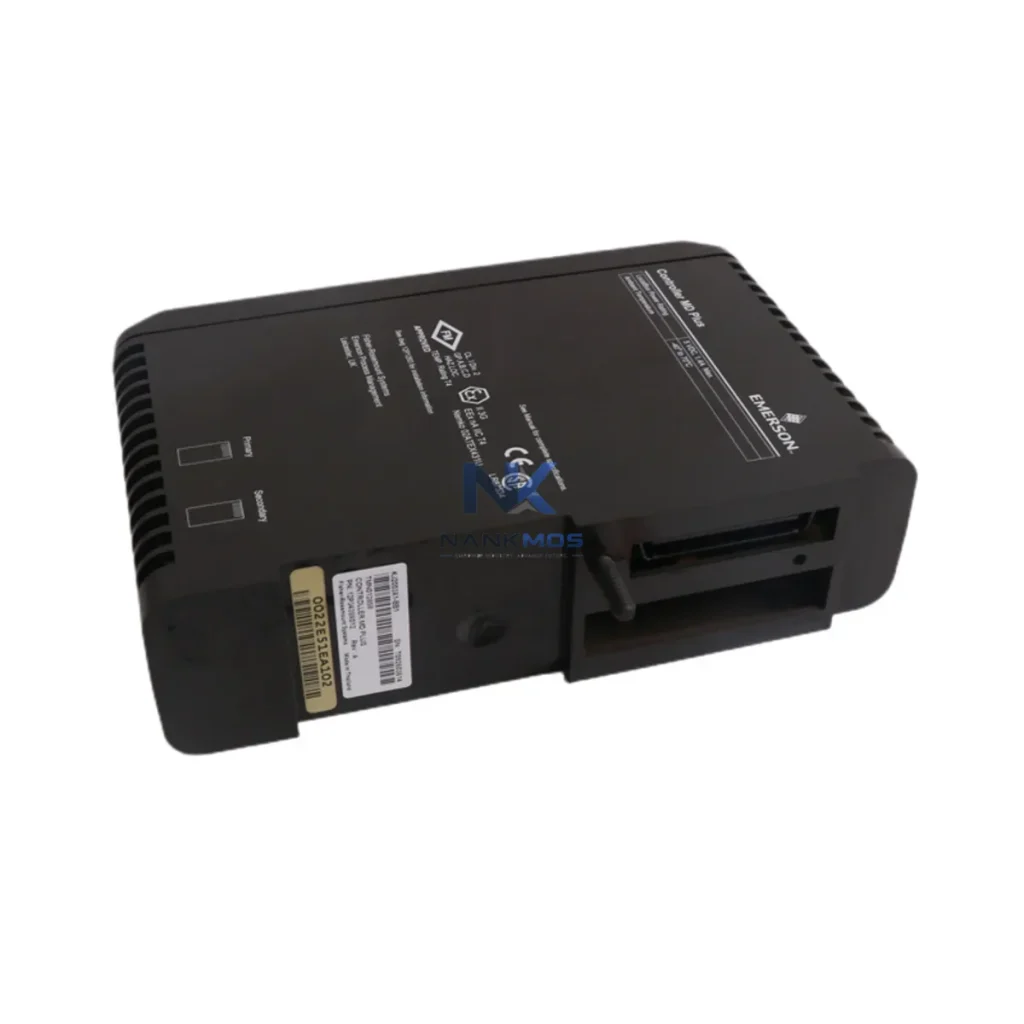

Emerson KJ2003X1-BB1 12P3439X012 DCS Controller Module

Product Details

KJ2003X1-BB1 12P3439X012 Product Description

The Emerson KJ2003X1-BB1 12P3439X012 is a PLUS Controller module engineered for deployment within the DeltaV distributed control system (DCS) architecture. Designed to serve as the primary execution engine at the control layer, this module coordinates real-time process logic, manages I/O subsystem communication, and maintains deterministic scan cycles across multi-loop process environments. Its role within the DeltaV platform extends beyond standalone control — it functions as the architectural anchor that binds the control layer, I/O layer, communication layer, and power layer into a coherent, scalable automation system.

In modern industrial automation, the controller is not an isolated component. It is the convergence point for signal flow from field instruments, the arbitration node for redundancy switching, and the execution host for advanced regulatory and sequential control strategies. The KJ2003X1-BB1 12P3439X012 fulfills this role with the reliability and integration depth that DeltaV-based facilities demand across continuous, batch, and hybrid process environments.

The KJ2003X1-BB1 12P3439X012 PLUS Controller achieves its full operational value when deployed within a complete DeltaV automation platform. At the control layer, it operates in conjunction with a redundant PLUS Controller pair — the second unit, such as another KJ2003X1-BB1 variant, mirrors execution state continuously, enabling bumpless transfer in the event of a primary controller fault. This redundancy architecture is fundamental to high-availability process environments in refining, power generation, and pharmaceutical manufacturing.

At the I/O layer, the PLUS Controller interfaces with DeltaV I/O subsystems mounted on S-series or M-series carriers. Modules such as the KJ3002X1-BA1 analog input card and KJ3221X1-BA1 discrete output card connect to the controller via the DeltaV I/O bus, delivering field signal data with deterministic latency. For facilities adopting Electronic Marshalling, CHARM I/O modules — including the CIOC (Characterization Input/Output Card) — extend the I/O layer without requiring traditional marshalling cabinets, reducing wiring complexity and commissioning time.

At the communication layer, the PLUS Controller connects to the DeltaV control network via its integrated Ethernet port, communicating with the DeltaV workstation infrastructure — including DeltaV Pro Plus workstations and DeltaV Operate runtime environments. For facilities requiring integration with third-party systems, the DeltaV OPC DA/UA server or Modbus TCP gateway modules provide protocol bridging without disrupting the native DeltaV control network topology.

Power integrity is maintained through DeltaV power supply modules — typically the KJ4001X1-BA1 or equivalent — mounted on the same controller carrier. These modules provide regulated DC power to the controller and I/O subsystems, with redundant power supply configurations available for critical process areas. The power layer's stability directly influences controller scan cycle consistency and I/O communication reliability.

At the HMI layer, DeltaV Operate provides the operator interface, with alarm management, trend displays, and faceplates driven by the control strategies executing on the KJ2003X1-BB1 12P3439X012. For remote monitoring, DeltaV Remote Client or thin-client configurations extend operator visibility without additional controller licensing overhead.

Execution layer devices — including variable frequency drives, smart positioners, and motor control centers — receive setpoint and command signals from the PLUS Controller via analog output or fieldbus I/O modules. HART-enabled field devices communicate diagnostic data back through the I/O subsystem, enabling the controller to support asset management functions through AMS Device Manager integration.

At the protection layer, safety instrumented systems (SIS) — such as those built on the DeltaV SIS platform with SIS Logic Solvers — operate independently but share the same engineering environment, reducing configuration overhead and enabling coordinated cause-and-effect management between the basic process control system (BPCS) and the SIS layer.

For long-term maintenance efficiency, the DeltaV Diagnostics environment provides controller health monitoring, network performance metrics, and I/O subsystem status — all accessible from the engineering workstation without interrupting live process control. This diagnostic capability reduces mean time to repair (MTTR) and supports predictive maintenance strategies across the full automation platform.

Oil Refining and Petrochemical Processing: The KJ2003X1-BB1 12P3439X012 is well-suited for crude distillation unit (CDU) control, where multi-loop regulatory strategies — including cascade, ratio, and feedforward control — must execute with high determinism. Redundant controller pairs ensure continuous operation during planned maintenance windows, while HART pass-through enables online valve diagnostics without process interruption.

Power Generation and Utilities: In combined-cycle power plants and cogeneration facilities, the PLUS Controller manages boiler drum level, turbine bypass control, and auxiliary system sequencing. Its integration with DeltaV SIS logic solvers supports coordinated turbine trip and burner management system (BMS) logic within a unified engineering environment.

Pharmaceutical and Biotech Manufacturing: Batch process control in API synthesis and fermentation requires precise recipe execution and audit trail integrity. The DeltaV platform's ISA-88 batch engine, hosted on the PLUS Controller infrastructure, delivers validated batch control with electronic batch records compliant with FDA 21 CFR Part 11 requirements.

Water and Wastewater Treatment: Municipal water treatment facilities deploy DeltaV PLUS Controllers for dosing control, filtration sequencing, and SCADA integration. The controller's Modbus TCP gateway capability enables communication with legacy RTUs and third-party instrumentation without replacing existing field infrastructure.

Mining and Mineral Processing: Flotation cell control, thickener underflow management, and conveyor sequencing in mineral processing plants benefit from the PLUS Controller's high I/O density support and robust communication architecture. Remote I/O extensions via DeltaV wireless I/O modules reduce cabling costs in geographically distributed process areas.

Metals and Metallurgy: Electric arc furnace (EAF) electrode regulation and continuous casting mold level control demand fast scan cycles and reliable I/O response. The KJ2003X1-BB1 12P3439X012 supports these applications through its deterministic execution engine and tight integration with analog output modules driving electrode positioning drives.

Q1: Is the KJ2003X1-BB1 12P3439X012 compatible with both redundant and simplex DeltaV controller configurations? Yes. The PLUS Controller supports both simplex and redundant deployment. In redundant mode, a second KJ2003X1-BB1 module is paired on an adjacent carrier slot, with the DeltaV system managing automatic state synchronization and failover. In simplex mode, the controller operates independently, suitable for non-critical process areas or development environments. Switching between configurations requires carrier hardware changes and DeltaV system configuration updates.

Q2: What I/O subsystems and communication modules are architecturally compatible with this controller? The KJ2003X1-BB1 12P3439X012 is compatible with the full range of DeltaV S-series and M-series I/O modules, including analog input/output, discrete input/output, and HART-enabled variants. Electronic Marshalling CHARM I/O is also supported when the appropriate CIOC is installed. For communication, the DeltaV OPC server, Modbus TCP gateway, and PROFIBUS DP interface modules extend connectivity to third-party systems and field devices without modifying the core control network architecture.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed? Every KJ2003X1-BB1 12P3439X012 unit supplied by NANKMOS is covered by a 12-Month Warranty against hardware defects and functional failure under normal operating conditions. Prior to shipment, each unit undergoes full functional verification — including power-on testing, communication interface validation, and burn-in cycling — to confirm operational integrity. Units that do not pass pre-shipment testing are not dispatched. For warranty claims or technical support, contact [email protected] or +86 18359268345.
