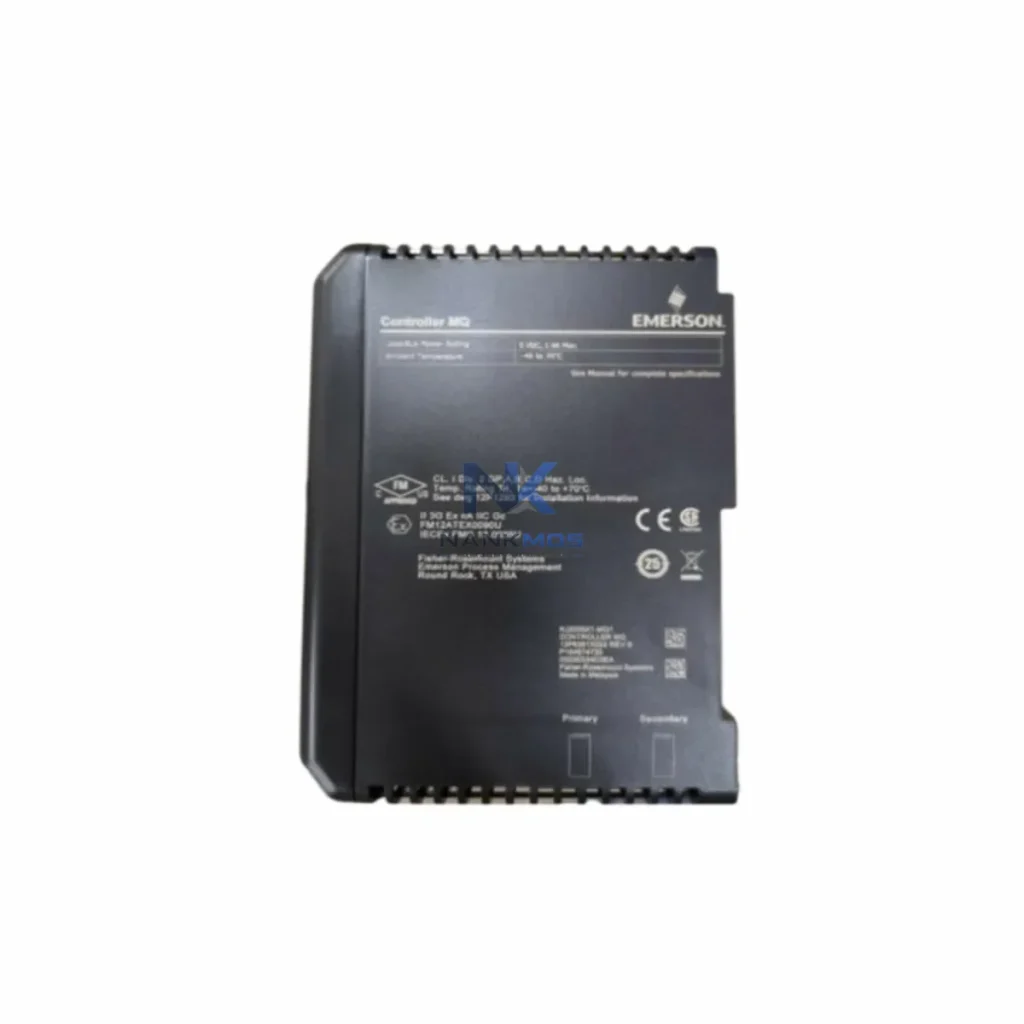

Emerson KJ2005X1-MQ1 12P6381X022 DCS Controller Module

Product Details

KJ2005X1-MQ1 12P6381X022 Product Description

The Emerson KJ2005X1-MQ1 12P6381X022 is engineered as a core process controller within the DeltaV distributed control system, designed to operate as a cohesive node across a multi-layer automation architecture rather than as a standalone module. Its value is fully realized when deployed alongside the broader DeltaV ecosystem, where system-level coherence, signal integrity, and long-term maintainability are the primary engineering objectives.

At the control layer, the KJ2005X1-MQ1 pairs directly with redundant controller modules — a second KJ2005X1-MQ1 unit or compatible DeltaV controller — to establish hot-standby redundancy. This configuration ensures bumpless transfer during controller failover, a critical requirement in continuous process industries such as refining, chemical processing, and power generation. The controller communicates with field I/O subsystems via the DeltaV Control Network (DCN), maintaining deterministic scan cycles and real-time process variable updates across all connected I/O cards.

At the I/O layer, the KJ2005X1-MQ1 interfaces with DeltaV I/O modules including the KJ3001X1 AI module for analog input acquisition, the KJ3221X1 AO module for analog output control, and the KJ3002X1 DI module for discrete input monitoring. These modules mount on the same S-Series carrier backplane, enabling a compact, high-density I/O architecture with minimal wiring overhead. Signal conditioning, HART pass-through, and channel-level diagnostics are managed at the I/O card level, offloading processing overhead from the controller and improving overall system responsiveness.

At the communication layer, the DeltaV controller integrates with the plant-wide FOUNDATION Fieldbus H1 segments via the KJ3243X1 Fieldbus Interface Module, enabling direct digital communication with smart field instruments including flow transmitters, pressure sensors, and control valves. For OPC-DA and OPC-UA connectivity to historian platforms and MES systems, the DeltaV Application Station (AS) provides the integration bridge, ensuring that process data flows seamlessly from the field to enterprise-level analytics and reporting environments.

At the power layer, the DeltaV PS-series power supply modules provide regulated 24 VDC to the controller carrier, with redundant power supply configurations available for high-availability installations. Power monitoring and supply health diagnostics are accessible through the DeltaV Diagnostics Explorer, enabling proactive identification of power anomalies before they impact process continuity.

At the HMI layer, the DeltaV Operate workstation provides the operator interface, rendering real-time process graphics, alarm management, and trend displays sourced directly from the KJ2005X1-MQ1 controller's process database. For remote monitoring and mobile access, the DeltaV Mobile application extends operator visibility to handheld devices, supporting round-the-clock process oversight without requiring physical presence at the control room.

At the maintenance and diagnostics layer, the DeltaV Diagnostics Explorer provides a unified view of controller health, I/O card status, network communication quality, and module-level fault codes. This integrated diagnostic capability reduces mean time to repair (MTTR) by enabling maintenance engineers to isolate faults to the module level without requiring physical inspection of the control cabinet. Combined with the 12-Month Warranty coverage on the KJ2005X1-MQ1 12P6381X022, this diagnostic architecture supports a low total cost of ownership across the full system lifecycle.

The KJ2005X1-MQ1 12P6381X022 is deployed across a wide range of process-intensive industries where control system reliability, signal fidelity, and long-term maintainability are non-negotiable engineering requirements.

In oil and gas refining, the controller manages distillation column temperature profiles, pressure control loops, and feed-forward compensation strategies across multi-unit process trains. Its redundancy architecture ensures continuous operation during planned maintenance windows and unplanned equipment events, supporting the high-availability requirements of continuous refining operations.

In chemical and petrochemical processing, the KJ2005X1-MQ1 coordinates batch sequencing, reactor temperature control, and safety interlock logic across multi-phase production campaigns. Integration with the DeltaV Safety Instrumented System (SIS) platform enables a unified engineering environment for both basic process control and safety-critical functions, reducing configuration complexity and improving audit traceability.

In power generation and utilities, the controller supports boiler combustion management, turbine governor control, and auxiliary system coordination. Its deterministic scan cycle and high-speed I/O update rates ensure that control response times meet the stringent requirements of power plant operations, where millisecond-level deviations in control response can have significant operational consequences.

In water and wastewater treatment, the KJ2005X1-MQ1 manages pump sequencing, chemical dosing control, and effluent quality monitoring across distributed treatment facilities. Its modular architecture supports phased system expansion as treatment capacity grows, enabling operators to add I/O cards and communication modules without disrupting existing control logic.

In mining and minerals processing, the controller coordinates crusher sequencing, conveyor speed control, and flotation cell management across geographically distributed process areas. The DeltaV Control Network's fiber-optic communication capability supports long-distance controller-to-I/O connections, enabling centralized control of remote process areas without signal degradation.

Q1: Is the KJ2005X1-MQ1 12P6381X022 compatible with existing DeltaV S-Series carrier backplanes and I/O modules already installed in my control system? Yes. The KJ2005X1-MQ1 is designed for direct installation into DeltaV S-Series carrier backplanes, including 8-slot and 12-slot configurations. It is compatible with the full range of DeltaV S-Series I/O modules, including analog input, analog output, discrete input, discrete output, and FOUNDATION Fieldbus interface cards. No backplane modification or firmware upgrade is required for standard replacement installations. For systems running DeltaV v11 or later, the controller's configuration is automatically recognized by the DeltaV Explorer engineering environment, enabling rapid commissioning and minimizing control system downtime during module replacement.

Q2: How does the KJ2005X1-MQ1 support controller redundancy, and what is the failover behavior during a primary controller fault? Controller redundancy is achieved by installing a second KJ2005X1-MQ1 module in the designated redundant controller slot on the same carrier backplane. The primary and secondary controllers maintain continuous synchronization of process data, control outputs, and module health status via the DeltaV redundancy communication link. In the event of a primary controller fault — whether hardware failure, communication loss, or power anomaly — the secondary controller assumes control within one scan cycle, ensuring bumpless transfer with no process upset. The DeltaV Diagnostics Explorer provides real-time visibility into redundancy status, synchronization health, and failover event history, enabling maintenance teams to address primary controller faults without interrupting process operations.

Q3: What pre-shipment testing and warranty coverage is provided for the KJ2005X1-MQ1 12P6381X022, and how does NANKMOS support long-term inventory availability for ongoing maintenance requirements? Every KJ2005X1-MQ1 12P6381X022 unit supplied by NANKMOS undergoes pre-shipment functional verification, including power-on testing, communication interface validation, and module self-diagnostic confirmation. Units are shipped with a 12-Month Warranty covering hardware defects and functional failures under normal operating conditions. NANKMOS maintains dedicated inventory of DeltaV controller modules, I/O cards, and power supply components to support both immediate replacement requirements and long-term maintenance planning for installed DeltaV systems. For bulk procurement, spare parts programs, or expedited delivery requirements, contact NANKMOS directly to discuss availability and lead times.
