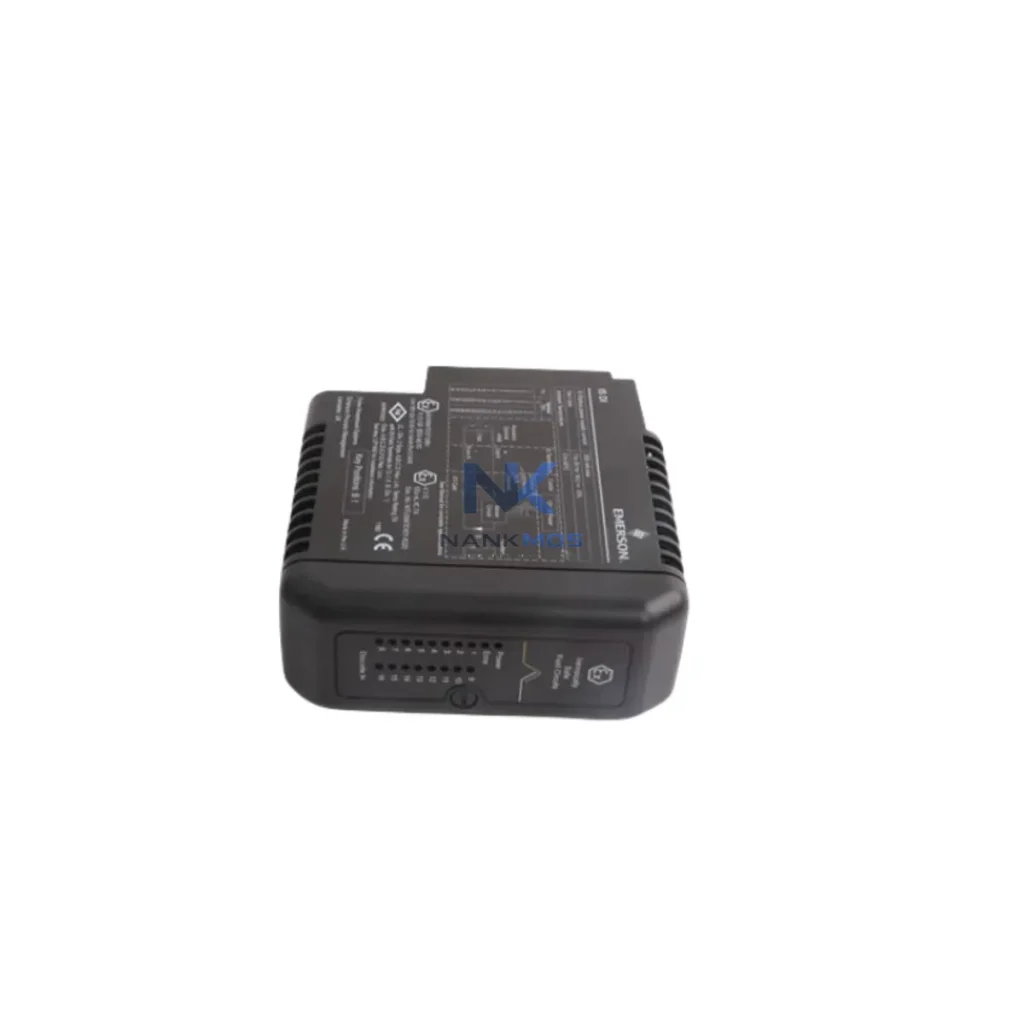

Emerson KJ2221X1-EA1 12P3241X012 DCS Communication Module

Product Details

KJ2221X1-EA1 12P3241X012 Product Description

The Emerson KJ2221X1-EA1 12P3241X012 DeltaV Repeater Carrier is a purpose-built network signal repeater module designed for Emerson's DeltaV Distributed Control System (DCS) architecture. In modern smart factory environments, reliable data transmission between field devices, I/O subsystems, and the central control layer is non-negotiable. This repeater carrier extends and regenerates the DeltaV network bus signal, ensuring that critical process data flows without degradation across long cable runs, complex panel layouts, and electrically noisy industrial environments.

As automation sites scale in complexity — integrating remote I/O nodes, HART-enabled field instruments, Fieldbus segments, and high-density marshalling cabinets — signal integrity becomes a primary engineering concern. The KJ2221X1-EA1 12P3241X012 addresses this directly by maintaining bus voltage levels and waveform quality across the DeltaV I/O network, enabling consistent, low-latency communication between the DeltaV controller and its distributed I/O cards.

In a fully integrated smart factory, the data journey begins at the field level — pressure transmitters, temperature sensors, flow meters, and valve positioners generate continuous process signals that must reach the DeltaV controller with zero data loss. The KJ2221X1-EA1 12P3241X012 Repeater Carrier sits at a critical junction in this data chain, regenerating the I/O bus signal between the DeltaV controller node and downstream I/O carrier assemblies.

Consider a typical DeltaV-based process control loop: a HART-enabled pressure transmitter feeds its 4–20 mA signal into a DeltaV KJ3002X1-BA1 analog input card mounted on a standard I/O carrier. As the I/O network expands — adding additional carriers for thermocouple inputs via KJ3222X1-BA1 modules, discrete output cards for solenoid valve control, or FOUNDATION Fieldbus interface cards for segment-level device integration — the cumulative cable length and electrical load on the I/O bus increases. Without signal regeneration, data integrity degrades, causing intermittent communication faults, missed HART variable updates, and unreliable alarm states in the DeltaV operator workstation.

The KJ2221X1-EA1 12P3241X012 resolves this by acting as a transparent bus repeater, allowing the DeltaV system to maintain full communication with all downstream I/O nodes. This is especially valuable in large-scale installations where DeltaV M-Series or S-Series controllers manage hundreds of I/O points distributed across multiple marshalling cabinets. The repeater carrier integrates seamlessly into the existing DeltaV carrier rail system, requiring no additional configuration in DeltaV Explorer — the system automatically recognizes the extended I/O segment.

At the SCADA and HMI layer, operators using DeltaV Operate or third-party SCADA platforms via OPC DA/UA connections rely on the uninterrupted data stream that this repeater carrier helps sustain. Real-time process values, alarm states, and device diagnostics from HART field instruments flow through the I/O network, through the DeltaV controller, and up to the historian and visualization layer without latency spikes or communication dropouts. For sites integrating DeltaV with Emerson AMS Device Manager for predictive maintenance, the HART pass-through capability of the I/O network — maintained by reliable bus signal quality — enables continuous device health monitoring without additional wiring infrastructure.

In remote I/O architectures where DeltaV CIOC (Controller I/O Card) nodes are installed in field junction boxes far from the main control room, the KJ2221X1-EA1 12P3241X012 enables reliable data transmission over extended distances. Combined with industrial Ethernet switches supporting PROFINET or EtherNet/IP backhaul, and edge gateway devices that aggregate field data for cloud-based analytics platforms, this repeater carrier forms a foundational element of the plant's end-to-end data infrastructure — from sensor to cloud.

Many automation sites operating legacy or expanded DeltaV installations encounter a common set of data integrity challenges that directly impact production efficiency and maintenance responsiveness:

Protocol and Signal Inconsistency: As DeltaV systems expand with additional I/O carriers and remote nodes, the I/O bus signal can degrade, causing inconsistent data reads and write failures. The KJ2221X1-EA1 12P3241X012 eliminates this by regenerating the bus signal at the point of extension, ensuring all downstream I/O cards — whether analog input, discrete output, or FOUNDATION Fieldbus interface types — receive a clean, full-strength signal.

Data Islands and Blind Spots: Without proper bus extension, remote marshalling cabinets may fall outside reliable communication range, creating data islands where process values are unavailable to the DCS controller and, by extension, to the SCADA historian and alarm management system. This repeater carrier bridges those gaps, ensuring complete process visibility across the entire I/O network.

Remote Monitoring and Diagnostics: For maintenance teams relying on DeltaV's built-in diagnostics or Emerson AMS Device Manager to perform remote HART device interrogation, a degraded I/O bus means incomplete device data and missed predictive maintenance alerts. By maintaining bus integrity, the KJ2221X1-EA1 12P3241X012 ensures that remote diagnostic workflows remain fully functional, reducing unplanned downtime.

Production Line Transparency and Alarm Tracking: In high-availability process environments, every missed alarm or delayed process value update carries operational risk. The repeater carrier supports the real-time data flow that underpins effective alarm management, enabling operators to respond to process deviations with confidence in the accuracy and timeliness of their data.

System Expansion Without Redesign: As production capacity grows and new I/O points are added to the DeltaV system, the repeater carrier provides a non-disruptive path to network extension. Engineers can add I/O carriers and expand marshalling cabinets without redesigning the bus topology, protecting the existing DeltaV infrastructure investment.

Q1: Does the KJ2221X1-EA1 12P3241X012 introduce communication latency into the DeltaV I/O network?No. As a transparent bus repeater, the KJ2221X1-EA1 12P3241X012 regenerates the DeltaV I/O bus signal without adding measurable latency to the communication cycle. The DeltaV controller continues to scan all downstream I/O cards at the configured scan rate, with no change to control loop timing or HART communication scheduling.

Q2: Is this repeater carrier compatible with both DeltaV M-Series and S-Series controller architectures?Yes. The KJ2221X1-EA1 12P3241X012 is designed for use within the DeltaV I/O carrier rail system and is compatible with DeltaV M-Series and S-Series controller nodes. It integrates into the existing carrier assembly without requiring changes to DeltaV Explorer configuration or I/O assignment.

Q3: Can this module support HART pass-through for connected field instruments?Yes. The DeltaV I/O network supports HART communication pass-through for connected HART-enabled field devices. The repeater carrier maintains the signal quality necessary for reliable HART variable transmission, supporting both primary variable process data and HART device diagnostic information used by Emerson AMS Device Manager and similar asset management platforms.

Q4: What quality assurance and warranty coverage is provided with this unit?Every KJ2221X1-EA1 12P3241X012 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify bus signal regeneration performance and carrier backplane connectivity. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch to minimize site downtime during emergency replacements or planned system expansions.
