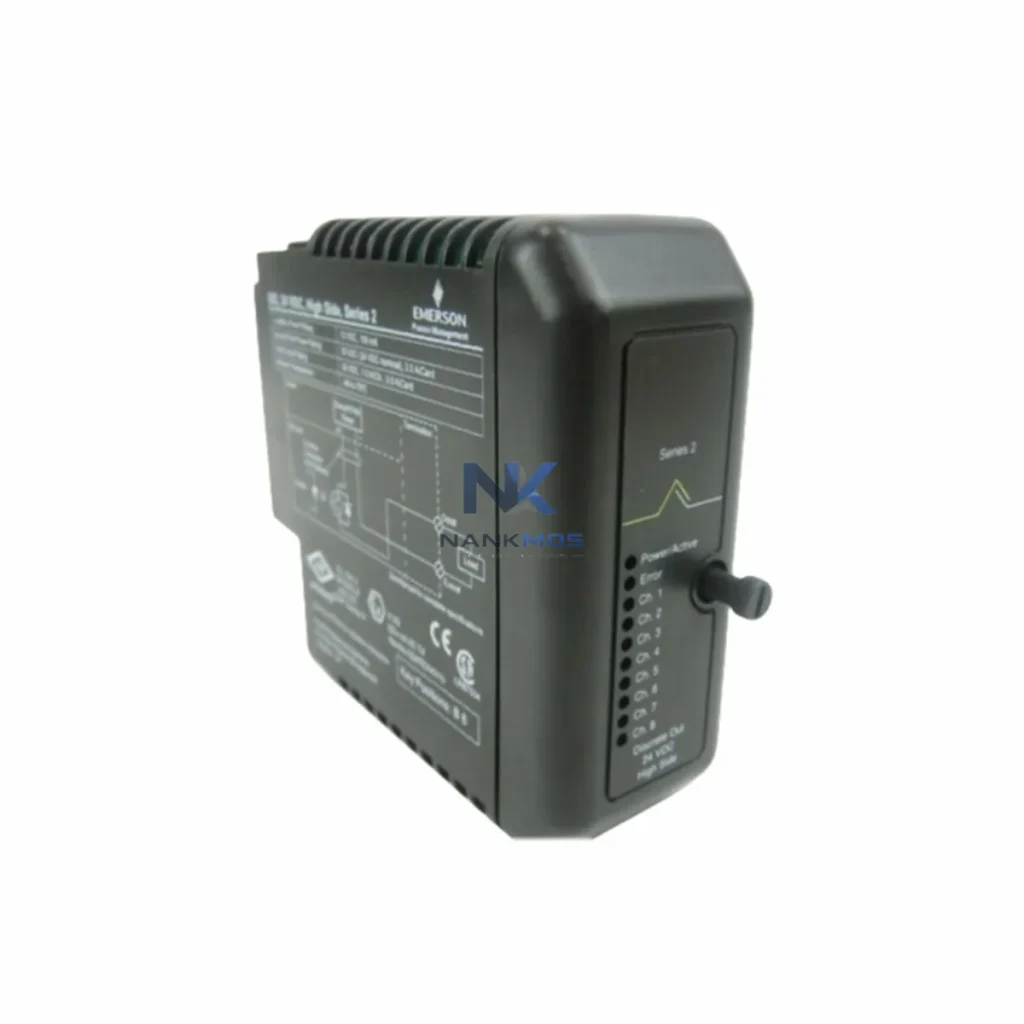

Emerson KJ3001X1-CA1 DCS Communication Module

Product Details

KJ3001X1-CA1 Product Description

The Emerson KJ3001X1-CA1 is a precision-engineered digital I/O and dry contact network interface module designed for the DeltaV Distributed Control System (DCS) platform. Purpose-built for industrial automation environments where data integrity, protocol interoperability, and real-time signal transmission are non-negotiable, the KJ3001X1-CA1 serves as a critical node in the smart factory data chain — bridging field-level devices with supervisory control, SCADA platforms, and enterprise data systems. Whether deployed in oil and gas, chemical processing, power generation, or advanced manufacturing, this module delivers the connectivity backbone that modern industrial operations demand.

In a fully integrated smart factory architecture, the KJ3001X1-CA1 operates at the intersection of field instrumentation and supervisory control — a position that demands both signal fidelity and protocol fluency. The data flow begins at the field level, where dry contact sensors, limit switches, motor status relays, and discrete field devices generate binary state signals. The KJ3001X1-CA1 captures these signals across its multi-channel digital input array and transmits them upstream through the DeltaV I/O bus with deterministic timing and minimal latency.

Within the DeltaV DCS controller — such as the Emerson KJ2003X1-BA1 controller module or the MD Plus Controller — the KJ3001X1-CA1's data is processed against control logic, alarm thresholds, and interlock conditions. This processed data is then made available to the DeltaV Operator Workstation and to connected SCADA platforms via OPC DA or OPC UA server interfaces, enabling real-time visualization of plant-wide discrete I/O states. Operators monitoring HMI screens — whether running DeltaV Live or third-party SCADA software — receive live status updates from every connected field device, with alarm events propagated in milliseconds.

For facilities integrating legacy Modbus RTU devices alongside DeltaV infrastructure, the KJ3001X1-CA1 works in conjunction with Emerson's CHARM I/O modules and protocol gateway solutions to normalize data formats before they reach the DCS controller. Similarly, where HART-enabled field instruments — such as pressure transmitters, flow meters, or valve positioners — are wired into the same I/O network, the HART pass-through capability of the DeltaV I/O subsystem allows secondary diagnostic data to be extracted alongside primary process values, feeding into asset management platforms like Emerson AMS Device Manager.

At the network transport layer, the KJ3001X1-CA1's data traverses the DeltaV control network — typically a redundant 100 Mbps Ethernet backbone — before reaching the application server tier. Here, data historians, MES platforms, and ERP integration middleware consume the real-time I/O state data for production reporting, OEE calculation, and compliance logging. Industrial Ethernet switches — such as managed Layer 2/3 switches with PROFINET or EtherNet/IP support — ensure deterministic packet delivery across the control network, maintaining the sub-100ms cycle times that DCS applications require.

For remote sites or distributed plant architectures, edge gateway devices aggregate KJ3001X1-CA1 data streams alongside inputs from variable frequency drives (VFDs), remote I/O racks, and smart sensors, then forward consolidated data payloads to cloud-based SCADA or IIoT platforms via MQTT or REST API. This edge-to-cloud data path enables remote diagnostics, predictive maintenance analytics, and centralized alarm management across geographically dispersed facilities — all anchored by the reliable discrete I/O acquisition that the KJ3001X1-CA1 provides at the field level.

Protocol Fragmentation: Many industrial sites operate a mix of legacy Modbus RTU devices, HART field instruments, and modern Foundation Fieldbus or PROFIBUS segments. The KJ3001X1-CA1, as part of the DeltaV I/O ecosystem, supports multi-protocol environments through gateway integration, eliminating the data silos that arise when incompatible protocols prevent field devices from communicating with the DCS controller. By standardizing discrete I/O data on the DeltaV bus, the module ensures that all connected devices — regardless of their native protocol — contribute to a unified process data model.

Data Islands and Production Transparency: In facilities where field device status is not reliably transmitted to the control room, operators face blind spots that increase the risk of undetected faults, missed alarms, and unplanned downtime. The KJ3001X1-CA1 eliminates these data islands by providing continuous, real-time digital input monitoring across all connected field points. Every dry contact state change — motor run/stop, valve open/closed, interlock triggered — is immediately visible at the DeltaV Operator Workstation and propagated to connected SCADA and MES systems, giving production managers full transparency into line status at all times.

Remote Monitoring and Alarm Tracking: For multi-site operations or unmanned remote facilities, the ability to monitor discrete I/O states remotely is essential. The KJ3001X1-CA1's integration with DeltaV's OPC UA server enables remote SCADA clients to subscribe to real-time I/O data feeds, receive alarm notifications, and trigger remote diagnostic routines without requiring on-site personnel. Alarm event logs are time-stamped at the controller level, ensuring accurate sequence-of-events reconstruction for root cause analysis and regulatory compliance reporting.

System Scalability: As production capacity expands, the DeltaV S-Series I/O architecture — of which the KJ3001X1-CA1 is a core component — supports incremental I/O expansion without requiring controller replacement or network redesign. Additional I/O modules can be added to existing carrier assemblies, and the DeltaV control network scales horizontally to accommodate new controllers, workstations, and application servers. This modular scalability protects the capital investment in existing DeltaV infrastructure while enabling the connectivity expansion that smart factory initiatives demand.

Q1: What communication protocols does the KJ3001X1-CA1 support, and is it compatible with third-party SCADA systems? The KJ3001X1-CA1 operates within the DeltaV I/O bus architecture and supports HART pass-through for connected field instruments. At the system level, DeltaV exposes process data via OPC DA and OPC UA interfaces, making the module's I/O data accessible to any OPC-compliant SCADA platform, including Wonderware, Ignition, iFIX, and Citect. Modbus TCP gateway integration is also supported for legacy SCADA connectivity.

Q2: How does the KJ3001X1-CA1 perform in high-noise industrial environments, and what is the expected communication latency? The KJ3001X1-CA1 is designed to IEC 61131 and ISA-S71 environmental standards, with robust EMI/RFI immunity suitable for heavy industrial environments including motor control centers, switchgear rooms, and process plant floors. Within the DeltaV control network, discrete I/O scan cycles are configurable from 100ms to 1 second, with alarm event propagation to the operator workstation typically completing within one scan cycle. Redundant network configurations further minimize latency impact from single-point network failures.

Q3: Can the KJ3001X1-CA1 be integrated into an existing DeltaV system without a full system upgrade? Yes. The KJ3001X1-CA1 is compatible with DeltaV S-Series carrier assemblies and is recognized by DeltaV Explorer during system configuration. It can be added to an existing DeltaV system running DeltaV v10.3 and later without requiring controller firmware upgrades, provided the carrier and power supply capacity are sufficient. NANKMOS recommends verifying carrier slot availability and DeltaV version compatibility before installation.

Q4: What does the 12-Month Warranty cover, and how are units tested before shipment? All KJ3001X1-CA1 units supplied by NANKMOS are subject to pre-shipment functional testing, including digital input channel verification, bus communication handshake confirmation, and visual inspection for physical integrity. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units that fail during the warranty period are replaced or repaired at no charge. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
