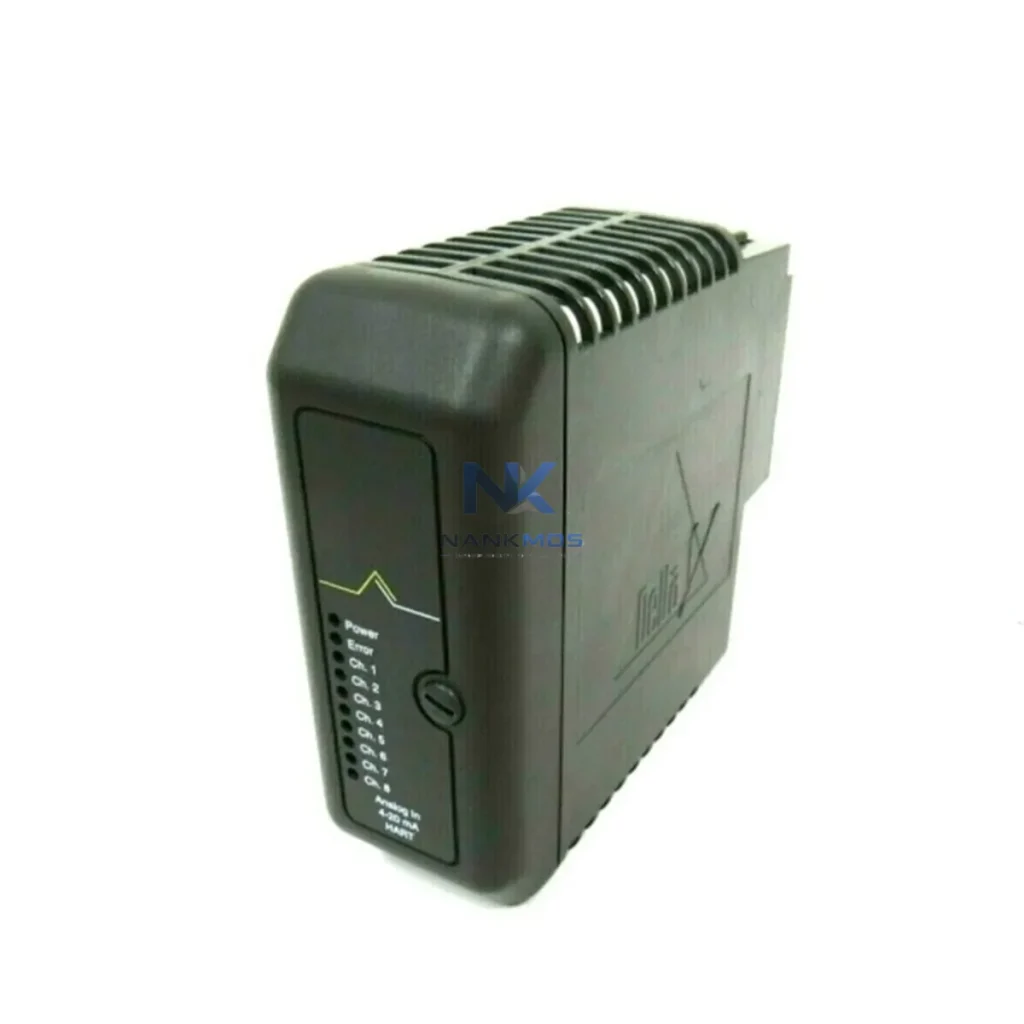

Emerson KJ3002X1-BA1 12P0680X122 Analog Input Module

Product Details

KJ3002X1-BA1 12P0680X122 Product Description

The KJ3002X1-BA1 12P0680X122 is engineered as a precision analog signal acquisition node within the Emerson DeltaV distributed control system. Its value is best understood not in isolation, but as a coordinated element across the full automation stack — from field instrumentation through to the supervisory layer.

At the control layer, the module interfaces directly with DeltaV KJ Series controllers such as the KJ2003X1-BA1 (MD Controller) and KJ2005X1-BA1 (MD Plus Controller), which execute the process logic and manage scan cycles across all connected I/O nodes. The analog input data acquired by the KJ3002X1-BA1 is consumed in real time by these controllers for PID regulation, cascade control, and alarm management.

At the I/O layer, the module is mounted on a KJ3001X1-BA1 I/O Carrier or equivalent KJ Series carrier assembly, which provides the backplane power rail and internal bus connectivity. Alongside the KJ3002X1-BA1, a typical I/O subsystem may include KJ3222X1-BA1 Analog Output Modules for control signal delivery to final control elements, and KJ3001X1-BA1 Digital Input Modules for discrete status acquisition from field devices such as limit switches, valve position feedback, and motor run signals.

At the communication layer, the DeltaV KJ architecture leverages the DeltaV CHARM I/O philosophy and HART pass-through capability embedded in the KJ3002X1-BA1 to enable remote device configuration, diagnostics, and calibration without interrupting the process. Integration with AMS Device Manager allows field instrument health data — from transmitters such as Rosemount 3051 pressure transmitters or Rosemount 644 temperature transmitters — to be surfaced directly in the control room, reducing unplanned downtime and enabling predictive maintenance workflows.

At the power layer, the KJ Series architecture relies on redundant power supplies such as the KJ1501X1-BA1 Power Supply Module to maintain continuous backplane voltage across all I/O carriers. Power redundancy ensures that a single supply failure does not interrupt analog signal acquisition, which is critical in continuous process industries such as refining, chemical, and power generation.

At the HMI layer, process values acquired through the KJ3002X1-BA1 are displayed and trended on DeltaV Operate workstations, providing operators with real-time visibility into temperature, pressure, flow, and level signals. Historian integration via DeltaV Continuous Historian enables long-term trend analysis and regulatory compliance reporting.

At the protection and redundancy layer, the KJ Series supports controller redundancy through paired MD/MD Plus controller modules. In redundant configurations, the KJ3002X1-BA1 continues to deliver analog input data to the standby controller via the backplane bus, ensuring bumpless transfer during controller switchover events — a requirement in safety-critical applications governed by IEC 61511 or ISA-84 standards.

At the maintenance and diagnostics layer, the module's HART pass-through capability, combined with DeltaV's built-in device diagnostics, allows maintenance teams to perform loop checks, calibration verification, and fault isolation without physical access to the field junction box. This capability significantly reduces mean time to repair (MTTR) and supports condition-based maintenance programs across large-scale process plants.

The KJ3002X1-BA1 12P0680X122 is deployed across a broad range of process-intensive industries where analog signal fidelity, system consistency, and long-term maintainability are non-negotiable requirements.

In oil refining and petrochemical facilities, the module acquires 4–20 mA signals from pressure, temperature, and flow transmitters distributed across distillation columns, heat exchangers, and reactor vessels. Its HART capability enables online diagnostics of field instruments without process interruption, supporting continuous operation targets and turnaround planning.

In power generation plants — including thermal, combined-cycle, and renewable energy facilities — the KJ3002X1-BA1 provides high-resolution analog acquisition for turbine control, boiler management, and emissions monitoring systems. Its compatibility with redundant DeltaV controller pairs ensures that analog input data remains available during planned and unplanned controller maintenance events.

In water and wastewater treatment infrastructure, the module supports analog acquisition from flow meters, pH analyzers, dissolved oxygen sensors, and level transmitters across treatment trains. Its wide operating temperature range and DIN-rail-compatible carrier mounting make it suitable for both climate-controlled control rooms and field-mounted enclosures in outdoor installations.

In mining and minerals processing operations, the KJ3002X1-BA1 is integrated into grinding circuit control, flotation cell management, and tailings monitoring systems. The module's robust signal isolation and 16-bit resolution support accurate measurement in electrically noisy environments typical of large rotating machinery and variable-frequency drive installations.

In pharmaceutical and food and beverage manufacturing, the module supports FDA 21 CFR Part 11 and GMP-compliant process control architectures, where analog signal traceability and audit-ready historian integration are mandatory. Its drop-in compatibility with existing KJ Series carriers minimizes validation effort during module replacement, reducing the cost and duration of change control procedures.

Q1: Is the KJ3002X1-BA1 12P0680X122 a direct drop-in replacement for existing KJ Series analog input modules in a live DeltaV system? Yes. The KJ3002X1-BA1 12P0680X122 is designed for direct carrier-level replacement within the KJ Series I/O subsystem. The module snaps onto the existing KJ Series I/O carrier without requiring changes to the DeltaV controller configuration, fieldbus wiring, or HART device assignments. In most installations, replacement can be completed during a brief maintenance window without a full system shutdown, provided the affected I/O carrier is isolated from the process loop. Always verify firmware compatibility with the installed DeltaV system version prior to replacement.

Q2: Does this module support HART communication, and how does it integrate with AMS Device Manager for predictive maintenance? Yes. The KJ3002X1-BA1 supports HART pass-through on each analog input channel, enabling two-way digital communication with HART-enabled field instruments over the existing 4–20 mA wiring. When integrated with Emerson AMS Device Manager, the module surfaces device health alerts, calibration status, and diagnostic variables directly in the DeltaV Operate environment. This integration supports condition-based maintenance workflows, allowing maintenance teams to identify instrument drift, sensor fouling, or wiring degradation before they result in process upsets or unplanned shutdowns.

Q3: What warranty and post-shipment support is provided, and how is inventory availability managed for critical spare applications? Every KJ3002X1-BA1 12P0680X122 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each module undergoes a functional test to verify analog input accuracy, HART communication integrity, and backplane bus connectivity. For critical spare applications where unplanned downtime carries significant operational cost, NANKMOS maintains dedicated stock of KJ Series I/O modules to support rapid dispatch. Contact our technical team to discuss consignment stock arrangements, lead time commitments, and multi-unit procurement for planned turnaround or capital project requirements.
