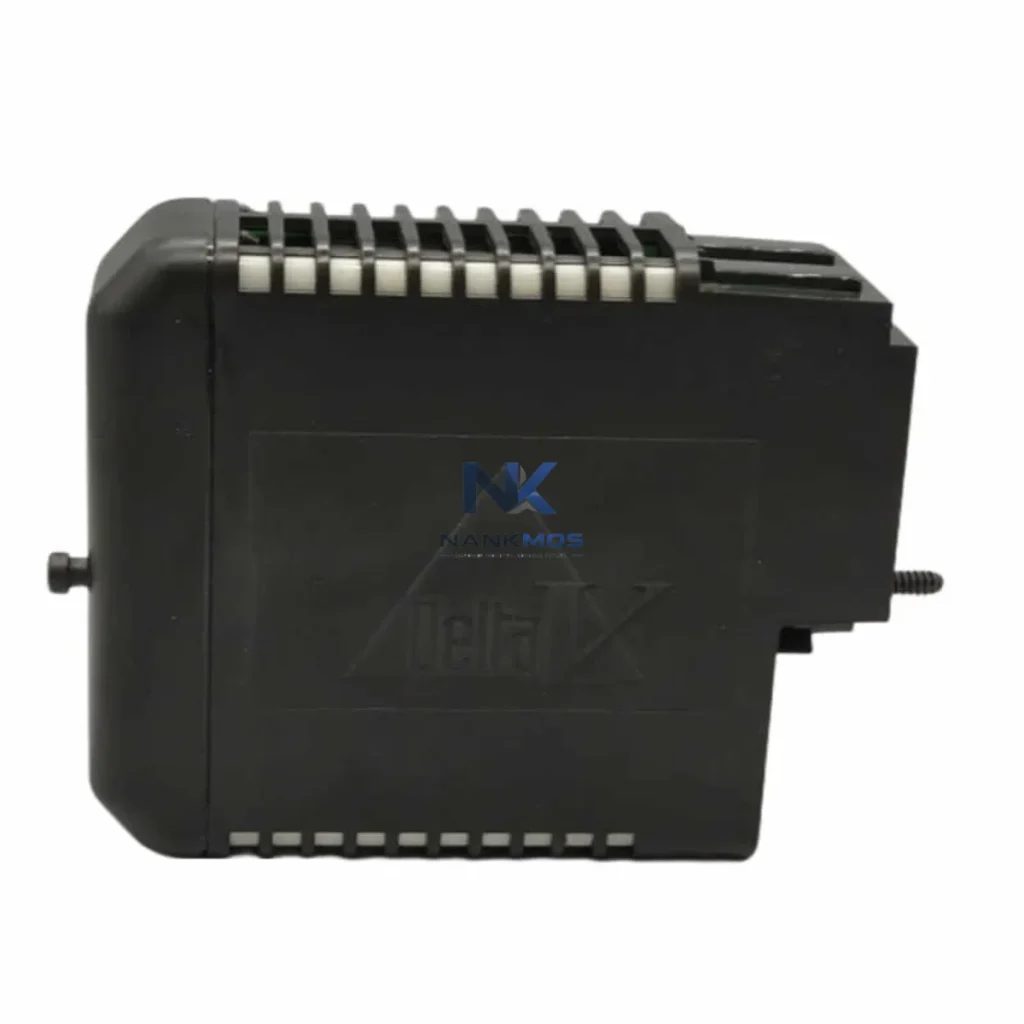

Emerson KJ3002X1-BG2 12P1731X082 Thermocouple Input Module

Product Details

KJ3002X1-BG2 12P1731X082 Product Description

The Emerson KJ3002X1-BG2 12P1731X082 is a thermocouple (TC) input module engineered for the DeltaV distributed control system platform. Designed to operate within Emerson's MQ Series I/O architecture, this module delivers precision temperature signal acquisition directly into the DeltaV control layer, enabling consistent process variable management across manufacturing, refining, power generation, and chemical processing environments. Its role within the control architecture extends beyond simple signal conversion — it serves as a critical node in the layered automation hierarchy, bridging field instrumentation with the DeltaV controller backbone and supporting system-wide diagnostic transparency, redundancy readiness, and long-term operational stability.

In modern industrial automation, thermocouple input modules must perform reliably not only as standalone signal conditioners but as integrated components within a broader control architecture. The KJ3002X1-BG2 12P1731X082 fulfills this requirement by conforming to DeltaV's native I/O bus protocol, ensuring seamless data exchange with DeltaV MD Plus Controllers, DeltaV S-Series Controllers, and DeltaV SIS Logic Solvers. This contextual integration eliminates signal translation overhead, reduces latency in temperature feedback loops, and supports deterministic scan cycle performance — all essential attributes for process-critical applications where temperature deviation can trigger safety interlocks or product quality failures.

The KJ3002X1-BG2 12P1731X082 achieves its full operational value when deployed within a complete DeltaV automation platform. At the controller layer, it interfaces directly with the DeltaV MD Plus Controller (KJ2003X1-BA1) and the DeltaV S-Series Controller, both of which manage I/O scanning, control execution, and historian data forwarding. The module mounts onto a DeltaV I/O Carrier (KJ1501X1-BF2) or compatible backplane, which provides both mechanical support and the electrical bus connection required for native DeltaV communication.

For power distribution within the control cabinet, the DeltaV Power Supply (KJ1501X1-BA1) and associated DeltaV Bus Conditioner ensure stable DC rail voltage to all I/O modules, including the KJ3002X1-BG2. In applications requiring analog output coordination — for example, where temperature readings drive valve positioner commands — the DeltaV Analog Output Module (KJ3221X1-BA1) operates in parallel on the same I/O bus, maintaining synchronized control loops without additional signal conditioning hardware.

Where process safety is a design requirement, the KJ3002X1-BG2 12P1731X082 can be deployed alongside the DeltaV SIS Logic Solver (KJ2201X1-BA1), enabling temperature-triggered safety instrumented functions (SIFs) that comply with IEC 61511 safety integrity level requirements. Communication transparency across the plant network is maintained through the DeltaV Workstation (Type PK Controller) and OPC DA/UA Server integration, allowing SCADA systems, MES platforms, and historian databases to consume real-time temperature data without protocol conversion.

For installations requiring field device integration beyond hardwired I/O, the Emerson FOUNDATION Fieldbus H1 Card (KJ4001X1-BA1) and HART Multiplexer extend the DeltaV architecture to smart transmitters and field instruments, creating a unified diagnostic and calibration environment. Signal isolation between field loops and the DeltaV bus is reinforced by DeltaV CHARMs (CHARM I/O modules) in newer installations, or by dedicated signal isolators and terminal blocks in legacy marshalling configurations — both approaches preserving the signal integrity that the KJ3002X1-BG2 depends on for accurate thermocouple linearization.

Refining and Petrochemical: In crude distillation units and catalytic cracking processes, the KJ3002X1-BG2 12P1731X082 monitors furnace outlet temperatures, heat exchanger profiles, and reactor bed gradients. Its multi-type TC input capability accommodates the diverse thermocouple types used across high-temperature process zones, while DeltaV's native integration ensures that temperature excursions trigger immediate control responses without relay-based intermediaries.

Power Generation: Steam turbine control systems and boiler management applications rely on precise temperature monitoring at superheater outlets, economizer sections, and turbine bearing housings. The KJ3002X1-BG2 supports these requirements by delivering low-drift, high-resolution TC readings directly to DeltaV control strategies, supporting both normal operation and startup/shutdown sequencing.

Chemical and Pharmaceutical Manufacturing: Batch reactor temperature control, sterilization cycle monitoring, and distillation column profiling all benefit from the module's deterministic scan performance and DeltaV historian integration. Regulatory compliance documentation is simplified through DeltaV's audit trail and electronic batch record capabilities, which consume temperature data directly from modules like the KJ3002X1-BG2.

Water and Wastewater Treatment: Thermal disinfection processes, sludge digester temperature management, and heat recovery systems in municipal water facilities use thermocouple input modules to maintain process temperatures within regulatory limits. The KJ3002X1-BG2's compatibility with DeltaV redundant I/O configurations supports continuous operation requirements in critical utility infrastructure.

Mining and Metallurgy: Smelting furnace temperature profiles, ladle preheating cycles, and conveyor drive thermal monitoring in mineral processing plants demand robust TC input modules capable of operating in high-EMI environments. The KJ3002X1-BG2's industrial-grade design and DeltaV bus isolation provide the signal stability required in these electrically noisy installations.

Q1: Is the KJ3002X1-BG2 12P1731X082 compatible with both legacy and current DeltaV controller generations? The KJ3002X1-BG2 is designed for the DeltaV MQ Series I/O platform and is compatible with DeltaV MD, MD Plus, and S-Series controllers. For legacy DeltaV systems using older I/O carriers, carrier compatibility should be verified against the specific DeltaV hardware revision in use. NANKMOS provides pre-shipment compatibility verification upon request, and all units are tested against DeltaV I/O bus specifications before dispatch.

Q2: Can this module be used in a redundant I/O configuration, and what additional components are required? Yes. DeltaV supports redundant I/O configurations where paired I/O modules operate in active/standby mode on redundant carriers. To implement redundancy with the KJ3002X1-BG2, a redundant I/O carrier and a second KJ3002X1-BG2 module are required, along with DeltaV controller redundancy licensing. This configuration eliminates single points of failure at the I/O layer, supporting continuous availability requirements in SIL-rated and high-uptime process applications.

Q3: What warranty and post-sale support does NANKMOS provide for the KJ3002X1-BG2 12P1731X082? All KJ3002X1-BG2 12P1731X082 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional performance against published DeltaV I/O specifications. Each unit undergoes functional testing prior to shipment. In-stock units are available for immediate dispatch to support urgent project timelines and unplanned replacement requirements. Post-warranty technical support and extended service options are available through NANKMOS engineering — contact [email protected] or +86 18359268345 for project-specific support arrangements.
