Emerson KJ3102X1-BB1 12P1864X032 Analog Output Module

Product Details

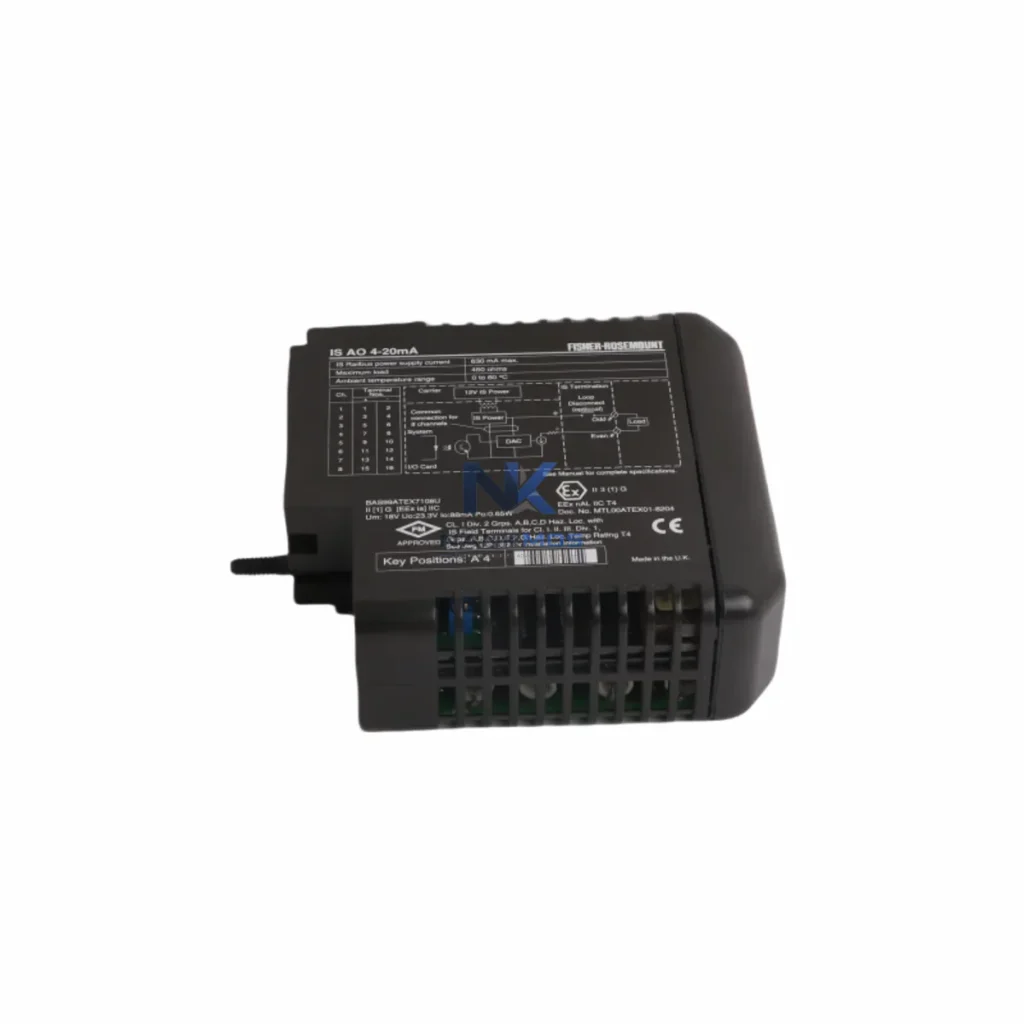

KJ3102X1-BB1 12P1864X032 Product Description

The Emerson KJ3102X1-BB1 12P1864X032 is a system-matched analog output module engineered for deployment within the Emerson DeltaV distributed control system architecture. Designed to deliver precise, conditioned 4–20 mA analog output signals to field-actuated devices, this module occupies a critical position in the I/O layer of process automation systems. Its role extends beyond simple signal conversion — it functions as a coordinated node within a multi-layer control hierarchy that spans the controller layer, I/O subsystem, communication backbone, power distribution network, and human-machine interface. For engineers specifying components in continuous process industries, the KJ3102X1-BB1 12P1864X032 represents a reliable, architecture-native solution that supports long-term system consistency and maintainability.

In modern industrial automation, the analog output module is the final translation point between digital control logic and physical process actuation. The KJ3102X1-BB1 12P1864X032 converts controller-issued setpoints into calibrated current loop signals that drive control valves, variable frequency drives, positioners, and other field devices. Its integration within the DeltaV I/O subsystem ensures that signal integrity is maintained from the controller bus through the marshalling cabinet to the field terminal, minimizing loop error and reducing commissioning time. The module's compatibility with DeltaV's electronic marshalling architecture further enables flexible I/O assignment without rewiring, a significant advantage during plant expansions or process reconfigurations.

The KJ3102X1-BB1 12P1864X032 achieves its full operational value when deployed as part of a coordinated DeltaV automation platform rather than as a standalone component. At the controller layer, it interfaces directly with DeltaV MD or MD Plus controllers — such as the KJ2003X1-BA1 — which execute the control strategies and issue output setpoints to the analog output module via the I/O bus. The controller's deterministic scan cycle ensures that output updates are synchronized with process feedback loops, maintaining closed-loop stability across all eight output channels.

On the power layer, the module draws from the DeltaV I/O power bus, which is typically supplied by redundant power supplies such as the KJ4001X1-BA1 or equivalent DeltaV-rated 24 VDC power conditioners. Redundant power architecture ensures that a single power supply failure does not interrupt analog output continuity — a critical requirement in processes where actuator loss can trigger emergency shutdowns or product quality deviations.

For HART-enabled field devices, the KJ3102X1-BB1 12P1864X032 supports HART pass-through communication, allowing asset management tools such as Emerson AMS Device Manager to communicate with smart transmitters and positioners without interrupting the primary 4–20 mA control signal. This capability is particularly valuable when paired with HART-capable control valves and valve positioners in modulating service applications.

Within the I/O subsystem, the module is mounted on DeltaV I/O carriers that connect to the system backplane. Companion modules in the same cabinet may include analog input modules such as the KJ3001X1-BA1 for process variable feedback, discrete output modules for on/off actuator control, and CHARM I/O modules for electronic marshalling flexibility. The combination of analog output, analog input, and discrete I/O modules on a shared backplane creates a compact, high-density I/O node that minimizes cabinet footprint while maximizing channel count.

At the communication layer, the DeltaV system integrates with plant-wide networks via OPC DA/UA servers, Modbus TCP gateways, and PROFIBUS DP interfaces. When the control system must exchange data with upstream MES or SCADA platforms, communication gateways such as the Emerson DeltaV OPC Mirror or third-party Modbus-to-DeltaV bridges ensure seamless data flow without compromising the real-time performance of the I/O bus. The KJ3102X1-BB1 12P1864X032 remains isolated from these higher-level communication layers, preserving signal determinism at the field level.

For HMI integration, DeltaV Operate workstations display real-time analog output values, channel diagnostics, and loop status for each channel of the KJ3102X1-BB1 12P1864X032. Operators can monitor output current, detect open-loop faults, and initiate manual output overrides directly from the HMI without requiring field access. This capability reduces operator response time during process upsets and supports safe manual control during controller maintenance windows.

In redundant control architectures, the KJ3102X1-BB1 12P1864X032 can be paired with redundant I/O carriers and controller modules to achieve bumpless transfer during controller failover. The DeltaV redundancy architecture ensures that the analog output module continues to drive field devices at the last commanded setpoint during switchover, preventing process disturbances caused by controller faults. This redundancy design is particularly important in safety-critical applications such as reactor temperature control, compressor surge protection, and boiler drum level regulation.

Oil & Gas and Petrochemical Processing: In upstream and downstream hydrocarbon processing facilities, the KJ3102X1-BB1 12P1864X032 drives control valves on distillation column reflux loops, heat exchanger bypass valves, and compressor anti-surge control circuits. The module's HART pass-through capability enables online valve diagnostics without process interruption, supporting predictive maintenance programs that reduce unplanned shutdowns. Its Class I, Division 2 compatibility allows deployment in classified areas when used with appropriate intrinsic safety barriers or galvanic isolators.

Power Generation and Utilities: In combined-cycle power plants and cogeneration facilities, analog output modules control turbine governor valves, boiler feedwater control valves, and steam pressure regulators. The KJ3102X1-BB1 12P1864X032 provides the precise, low-drift output signals required for tight pressure and temperature control in high-energy systems. Its integration with DeltaV's redundant controller architecture ensures continuous output availability during planned maintenance and unplanned controller faults.

Water and Wastewater Treatment: Municipal and industrial water treatment plants use analog output modules to modulate chemical dosing pumps, aeration blower inlet guide vanes, and filter backwash flow control valves. The KJ3102X1-BB1 12P1864X032 supports multi-loop control strategies that coordinate chemical feed rates with real-time water quality measurements, enabling consistent effluent quality while minimizing chemical consumption.

Mining and Mineral Processing: In flotation circuits, grinding mill control systems, and thickener underflow control applications, analog output modules regulate slurry pump speeds, reagent addition rates, and froth level control valves. The module's robust design and wide operating temperature range support reliable operation in the harsh environments typical of mineral processing facilities.

Pharmaceutical and Food & Beverage Manufacturing: In GMP-regulated manufacturing environments, the KJ3102X1-BB1 12P1864X032 supports precise temperature, pressure, and flow control in bioreactors, CIP systems, and filling lines. Its channel-level diagnostics and HART asset management integration support 21 CFR Part 11 compliance by providing auditable records of output performance and calibration history.

Q1: Is the KJ3102X1-BB1 12P1864X032 compatible with both legacy DeltaV S-series and current DeltaV S+ controller platforms? The KJ3102X1-BB1 12P1864X032 is designed for the DeltaV S-series I/O subsystem and is compatible with DeltaV MD, MD Plus, and SD Plus controllers operating on the standard DeltaV I/O bus. For DeltaV S+ or CHARM-based architectures, compatibility depends on the specific I/O carrier and backplane configuration. We recommend verifying the target controller firmware version and I/O bus revision against Emerson's compatibility matrix before installation. Our technical team can assist with pre-installation compatibility verification as part of the 12-Month Warranty support service.

Q2: Can this module be installed in a hot-standby redundant I/O configuration, and what is the failover behavior? Yes. When mounted on a redundant I/O carrier within a DeltaV redundant controller pair, the KJ3102X1-BB1 12P1864X032 supports bumpless transfer during controller failover. The active controller continuously synchronizes output setpoints to the standby controller, ensuring that the analog output module maintains its last commanded output value during switchover. Failover time is typically less than one scan cycle, minimizing process disturbance. Redundant power supply configuration is recommended to complement the redundant controller architecture.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims or advance replacement? All KJ3102X1-BB1 12P1864X032 modules supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and firmware-related issues identified during commissioning. Each module undergoes pre-shipment functional testing to verify output accuracy, channel isolation, and communication integrity before dispatch. For warranty claims, contact our support team at [email protected] or +86 18359268345. Advance replacement service is available for critical applications to minimize process downtime during warranty resolution.
