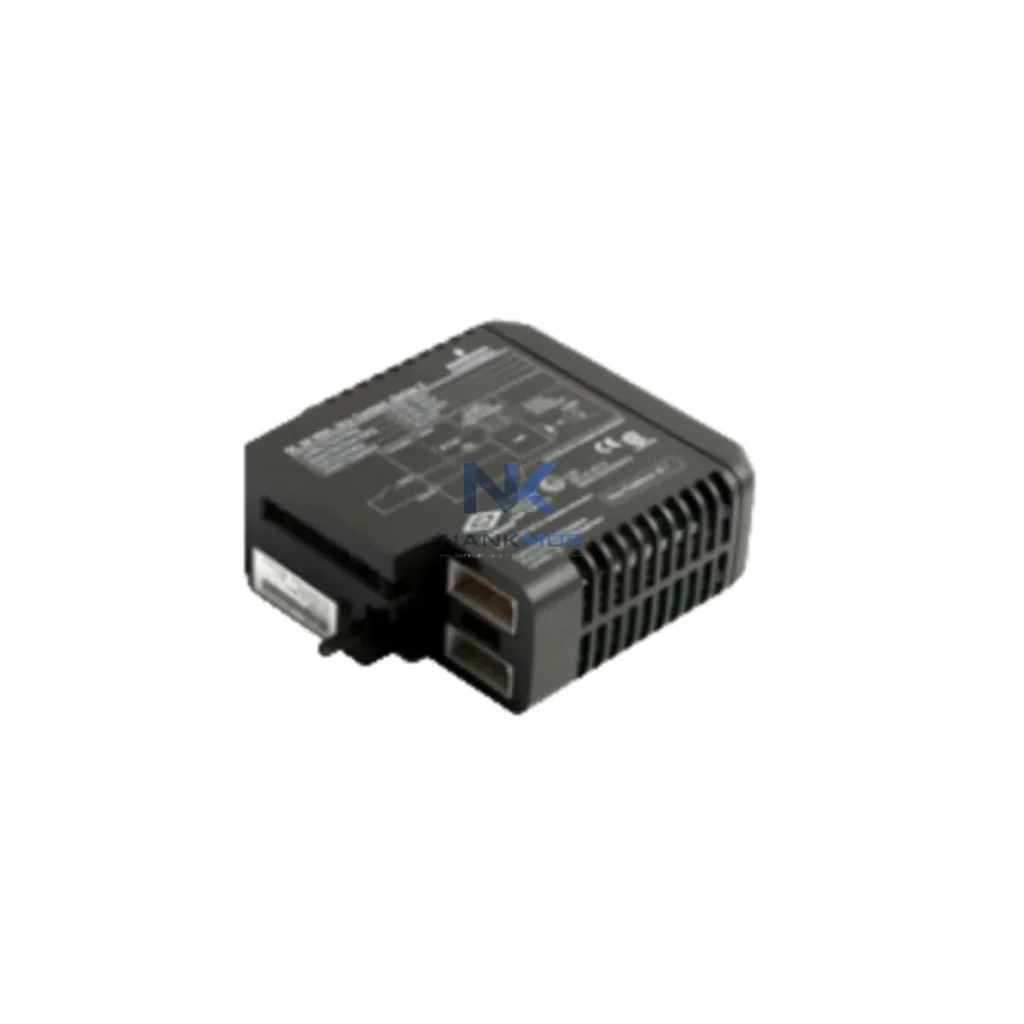

Emerson KJ3201X1-BA1 12P2535X052 Discrete Input Card

Product Details

KJ3201X1-BA1 12P2535X052 Product Description

The Emerson KJ3201X1-BA1 12P2535X052 is a DeltaV-series Discrete Input Card engineered for high-density field signal acquisition in distributed control system (DCS) architectures. Designed to bridge the gap between field-level sensors, actuators, and the DeltaV controller backbone, this module serves as a critical node in the industrial data chain — capturing discrete on/off states from limit switches, proximity sensors, push-button stations, and digital output devices, then transmitting structured data upstream to the DeltaV controller, SCADA platform, and HMI visualization layer.

In smart factory environments where production transparency, real-time alarm response, and remote diagnostics are non-negotiable, the KJ3201X1-BA1 12P2535X052 delivers the signal integrity and system compatibility required to sustain continuous data flow across the automation hierarchy. Its native integration within the DeltaV ecosystem eliminates protocol translation overhead, ensuring that discrete field states are accurately reflected in the control logic, historian, and operator interface without latency or data loss.

The KJ3201X1-BA1 12P2535X052 occupies a foundational position in the smart factory data flow architecture. At the field level, discrete signals from inductive proximity sensors, photoelectric detectors, emergency stop circuits, and valve position switches are wired directly into the module's input channels. These raw field states are scanned at high cycle rates and passed through the DeltaV I/O bus to the DeltaV MD Plus Controller or DeltaV M5Plus Controller, where control logic evaluates conditions, triggers interlocks, and generates setpoint commands.

Within the DeltaV network, the KJ3201X1-BA1 12P2535X052 operates alongside complementary I/O modules such as the KJ3202X1-BA1 Discrete Output Card, which closes the control loop by driving solenoid valves, motor starters, and indicator lamps based on controller decisions. For analog process variables — temperature, pressure, flow — the KJ3221X1-BA1 Analog Input Card works in parallel, feeding continuous process data into the same DeltaV controller for unified process management.

Data from the discrete input layer flows upward through the DeltaV Application Station to the DeltaV Operate HMI, where operators monitor equipment states, acknowledge alarms, and track production events in real time. Simultaneously, the DeltaV Continuous Historian captures time-stamped discrete event records, enabling post-event analysis, regulatory compliance reporting, and predictive maintenance workflows. For facilities integrating OPC-UA or Modbus TCP connectivity, the DeltaV OPC Server or a third-party industrial gateway — such as the Moxa MGate MB3660 or similar Ethernet-to-serial protocol converter — can bridge DeltaV data to SCADA platforms like Wonderware System Platform or Ignition SCADA, extending visibility to enterprise MES and ERP layers.

In multi-zone production environments, the KJ3201X1-BA1 12P2535X052 supports distributed I/O cabinet designs where remote I/O enclosures are connected back to the DeltaV controller via the DeltaV CIOC (Controller I/O Card) or EIOC (Ethernet I/O Card) infrastructure. This architecture reduces field wiring runs, improves signal quality, and enables zone-level diagnostics without requiring physical access to the control room. When paired with an industrial managed Ethernet switch — such as the Hirschmann RS20 or Cisco IE3400 — the DeltaV network maintains deterministic communication latency across all I/O nodes, ensuring that discrete state changes at the field level are reflected in the control system within milliseconds.

For remote diagnostic scenarios, the DeltaV Remote Client or DeltaV Mobile application allows maintenance engineers to monitor discrete input channel health, review diagnostic alerts, and verify wiring continuity from any networked device. This capability is particularly valuable in geographically distributed facilities — chemical plants, offshore platforms, pipeline stations — where on-site intervention is costly and time-sensitive. The KJ3201X1-BA1 12P2535X052's built-in channel diagnostics report open-wire faults, signal out-of-range conditions, and module health status directly to the DeltaV Alarm Management system, enabling proactive maintenance scheduling before process disruptions occur.

Many industrial facilities operate with fragmented I/O architectures — legacy PLCs running proprietary protocols alongside modern DCS platforms, with no unified data layer connecting field devices to SCADA or MES systems. The KJ3201X1-BA1 12P2535X052 addresses this challenge by providing a standardized, DeltaV-native discrete input interface that integrates seamlessly into existing DeltaV control strategies without requiring custom protocol mapping or middleware configuration.

Data island problems — where field device states are visible locally but not accessible to plant-wide monitoring systems — are eliminated through the DeltaV network's inherent data propagation model. Every discrete input channel state is automatically available to the DeltaV Operate HMI, the Continuous Historian, and any OPC-connected SCADA client, ensuring that production line transparency extends from the sensor to the boardroom dashboard.

For alarm tracking and event management, the KJ3201X1-BA1 12P2535X052 supports DeltaV's SOE (Sequence of Events) recording capability, capturing discrete state transitions with millisecond-resolution timestamps. This is critical for root-cause analysis following process upsets, equipment trips, or safety system activations — providing the forensic data trail required by process safety management (PSM) programs and regulatory audits.

System expansion is straightforward: additional KJ3201X1-BA1 12P2535X052 modules can be added to existing DeltaV I/O subsystems without controller reconfiguration, supporting phased capacity increases as production lines are extended or new equipment is commissioned. All units supplied by NANKMOS are drawn from verified inventory, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty — ensuring that expansion projects proceed on schedule without the risk of field failures from untested components.

Q1: What communication protocol does the KJ3201X1-BA1 12P2535X052 use, and is it compatible with non-DeltaV systems? The KJ3201X1-BA1 12P2535X052 communicates via the DeltaV proprietary I/O bus and is natively designed for DeltaV DCS architectures. Integration with non-DeltaV systems — such as Siemens PCS 7, Allen-Bradley ControlLogix, or third-party SCADA platforms — requires an OPC-UA server or protocol gateway (e.g., Modbus TCP/RTU converter) to bridge data between the DeltaV network and external systems. NANKMOS can advise on compatible gateway solutions for cross-platform integration projects.

Q2: How does this module support remote diagnostics and predictive maintenance? The KJ3201X1-BA1 12P2535X052 provides per-channel diagnostic data — including open-wire detection, signal validity, and module health status — accessible through the DeltaV Diagnostics application and DeltaV Remote Client. Maintenance teams can monitor channel conditions, review alarm histories, and schedule preventive interventions without requiring physical access to the I/O cabinet, reducing unplanned downtime and maintenance travel costs.

Q3: What is the network communication latency for discrete input scanning? Within the DeltaV I/O subsystem, discrete input scan cycles are synchronized with the DeltaV controller execution rate, typically 100 ms to 500 ms depending on controller configuration. For SOE applications requiring millisecond-resolution event capture, the DeltaV SOE module provides sub-millisecond timestamping independent of the standard scan cycle, ensuring accurate event sequencing for safety and compliance reporting.

Q4: Does NANKMOS provide warranty coverage and pre-shipment testing for this module? Yes. All KJ3201X1-BA1 12P2535X052 units supplied by NANKMOS are sourced from verified inventory channels, functionally tested prior to shipment, and covered by a 12-Month Warranty against manufacturing defects and operational failures. Expedited shipping options are available for urgent maintenance and shutdown requirements. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
