Emerson KJ3203X1-BA1 DCS Discrete Input Module

Product Details

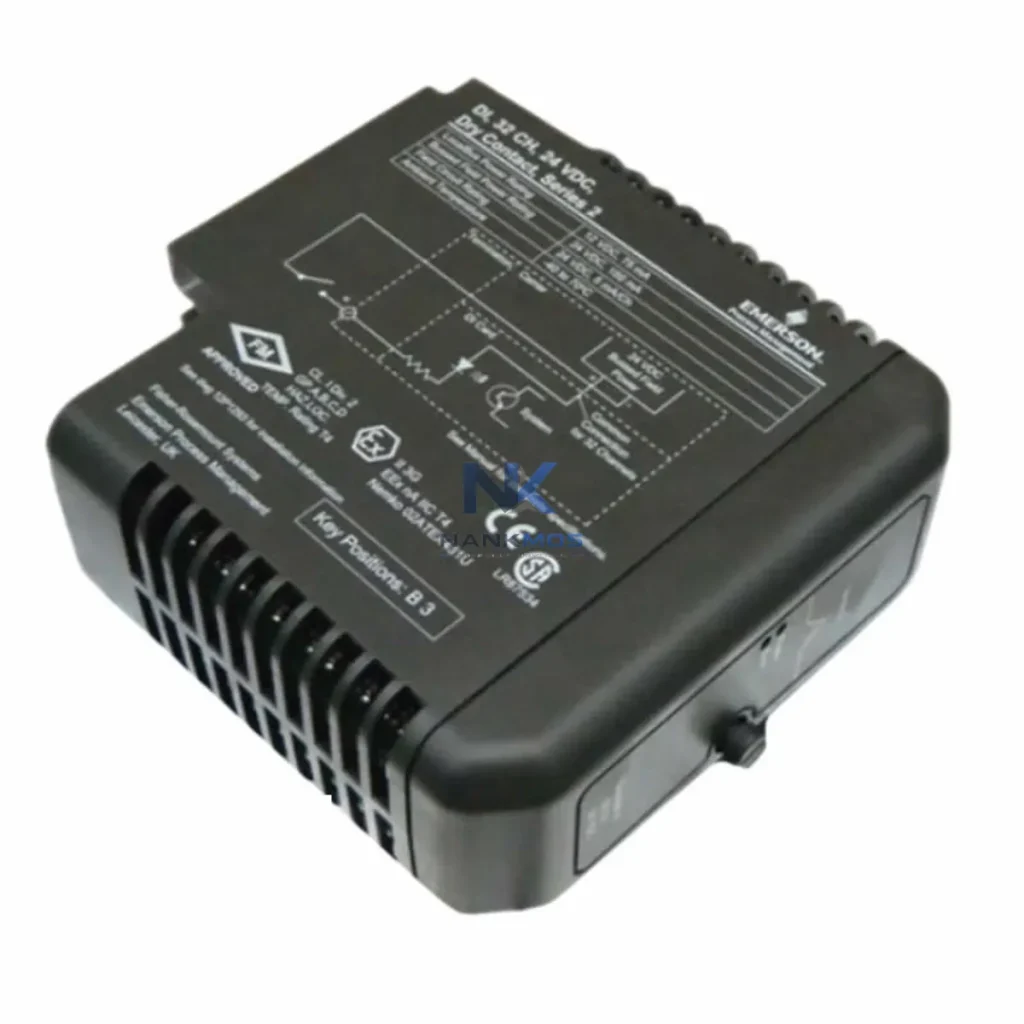

KJ3203X1-BA1 Product Description

The Emerson KJ3203X1-BA1 is a 32-channel Discrete Input Module engineered for the DeltaV distributed control system, delivering reliable, high-density digital signal acquisition across process automation environments. Designed to serve as a critical node in the plant-wide data chain, the KJ3203X1-BA1 bridges field-level discrete signals — from limit switches, proximity sensors, solenoid feedback contacts, and motor status relays — into the DeltaV controller network, enabling real-time process visibility, alarm management, and SCADA integration across the full automation hierarchy.

In smart factory deployments, the KJ3203X1-BA1 operates as the first link in the digital data chain: field devices generate discrete ON/OFF signals that are captured, conditioned, and transmitted through the DeltaV I/O bus to the controller layer. From there, data flows upstream to DeltaV workstations, historian servers, and SCADA platforms such as Emerson DeltaV Operate or third-party systems via OPC-DA and OPC-UA gateways. This end-to-end connectivity eliminates data silos and ensures that every discrete event — valve open/close, motor run/stop, interlock trip — is logged, timestamped, and available for real-time dashboards and remote diagnostic review.

The KJ3203X1-BA1 sits at the foundation of a layered industrial data architecture. At the field level, discrete sensors — including inductive proximity switches, photoelectric detectors, and pressure switch contacts — feed 24 VDC ON/OFF signals into the module's 32 input channels. These signals are scanned at high cycle rates and transmitted over the DeltaV I/O bus to the controller, where logic execution occurs in real time.

Within the DeltaV controller chassis, the KJ3203X1-BA1 works alongside analog input modules such as the KJ3002X1-BA1 (8-channel AI) and the KJ3221X1-BA1 (discrete output module) to form a complete mixed-signal I/O subsystem. The controller — for example, a DeltaV MD Plus Controller (KJ2003X1-BA1) — aggregates all I/O data and executes control strategies before forwarding process values to the DeltaV Application Station and historian.

For plants requiring remote I/O expansion, the KJ3203X1-BA1 can be deployed in conjunction with DeltaV Electronic Marshalling (CHARM I/O) cabinets, reducing home-run cabling and enabling flexible field wiring. Data from remote marshalling nodes travels over the DeltaV EIOC network back to the main controller, maintaining deterministic scan times and network integrity even across large process units.

At the network layer, DeltaV controllers communicate with the plant control network via redundant Ethernet, feeding real-time discrete status data to DeltaV Operate HMI workstations and to SCADA historian platforms. For cross-platform integration, an OPC-UA gateway — such as those provided by Kepware or Matrikon — bridges DeltaV data to MES, ERP, and cloud analytics systems, enabling full plant-wide data visibility. Edge computing nodes can subscribe to discrete event streams from the KJ3203X1-BA1 to trigger predictive maintenance alerts, equipment health scoring, and production KPI dashboards without burdening the DCS controller.

In safety-critical applications, the KJ3203X1-BA1 discrete input data feeds into DeltaV SIS (Safety Instrumented System) logic solvers, where interlock conditions — emergency stop signals, high-level switches, fire and gas detector contacts — are evaluated against IEC 61511 safety logic. This integration ensures that every discrete field event is captured, validated, and acted upon within the required safety response time.

For power infrastructure supporting the I/O subsystem, Emerson DeltaV Power Supplies (KJ1501X1-BA2) provide regulated 24 VDC to the I/O bus, ensuring stable module operation even under fluctuating plant power conditions. Redundant power configurations are supported to eliminate single points of failure in critical process areas.

Protocol Fragmentation: Many brownfield plants operate a mix of legacy relay logic, hardwired I/O panels, and modern DCS systems. The KJ3203X1-BA1 consolidates discrete field signals into the DeltaV protocol ecosystem, eliminating the need for separate signal converters or protocol bridges at the field level. All 32 channels are natively managed within DeltaV configuration tools, reducing engineering overhead and configuration errors.

Data Silos and Production Transparency: Without a unified discrete I/O network, equipment status data — conveyor running, valve position, pump seal failure — remains trapped in local panels and is invisible to SCADA and MES systems. The KJ3203X1-BA1 makes every discrete event visible at the controller level, from where it propagates to historian databases, enabling production reporting, OEE calculation, and downtime analysis across the entire plant.

Remote Monitoring and Alarm Management: Operators in central control rooms can monitor all 32 discrete input channels in real time through DeltaV Operate faceplates, with configurable alarm limits, event journaling, and alarm rationalization. Remote diagnostic access via DeltaV Remote Client or VPN-connected workstations allows maintenance engineers to review discrete input status, channel diagnostics, and module health without physical site visits, reducing mean time to repair (MTTR) and travel costs.

System Scalability: As production lines expand, additional KJ3203X1-BA1 modules can be added to existing DeltaV I/O subsystem carriers without controller replacement, supporting incremental capacity growth. Combined with DeltaV CHARM I/O for remote marshalling and DeltaV Virtual I/O for simulation, the architecture scales from small skid-mounted systems to large multi-unit process plants.

Q1: What communication protocol does the KJ3203X1-BA1 use, and is it compatible with third-party SCADA systems? The KJ3203X1-BA1 communicates over the DeltaV proprietary I/O bus within the DeltaV subsystem. For third-party SCADA integration, DeltaV controllers expose process data via OPC-DA and OPC-UA interfaces, enabling connectivity to any OPC-compliant SCADA, historian, or MES platform without additional hardware gateways.

Q2: How does the module support remote diagnostics and predictive maintenance? DeltaV provides built-in module diagnostics accessible through DeltaV Diagnostics and DeltaV Remote Client. Channel-level status, module health indicators, and communication fault flags are available in real time, allowing maintenance teams to identify wiring faults, open circuits, or module failures remotely before they escalate to process shutdowns.

Q3: Can the KJ3203X1-BA1 be used in safety instrumented system (SIS) applications? The KJ3203X1-BA1 is a standard DeltaV I/O module and is not SIL-rated for use as a primary SIS logic solver input. For SIS applications, Emerson's DeltaV SIS platform with dedicated SIS I/O modules should be used. However, the KJ3203X1-BA1 can provide supplementary discrete monitoring data to the basic process control system (BPCS) layer alongside a separate SIS architecture.

Q4: What warranty and pre-shipment testing does the KJ3203X1-BA1 include? Every KJ3203X1-BA1 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes functional testing prior to shipment. In-stock units are available for immediate dispatch to support urgent project timelines and unplanned maintenance requirements. Contact [email protected] or +86 18359268345 for availability and lead time confirmation.
