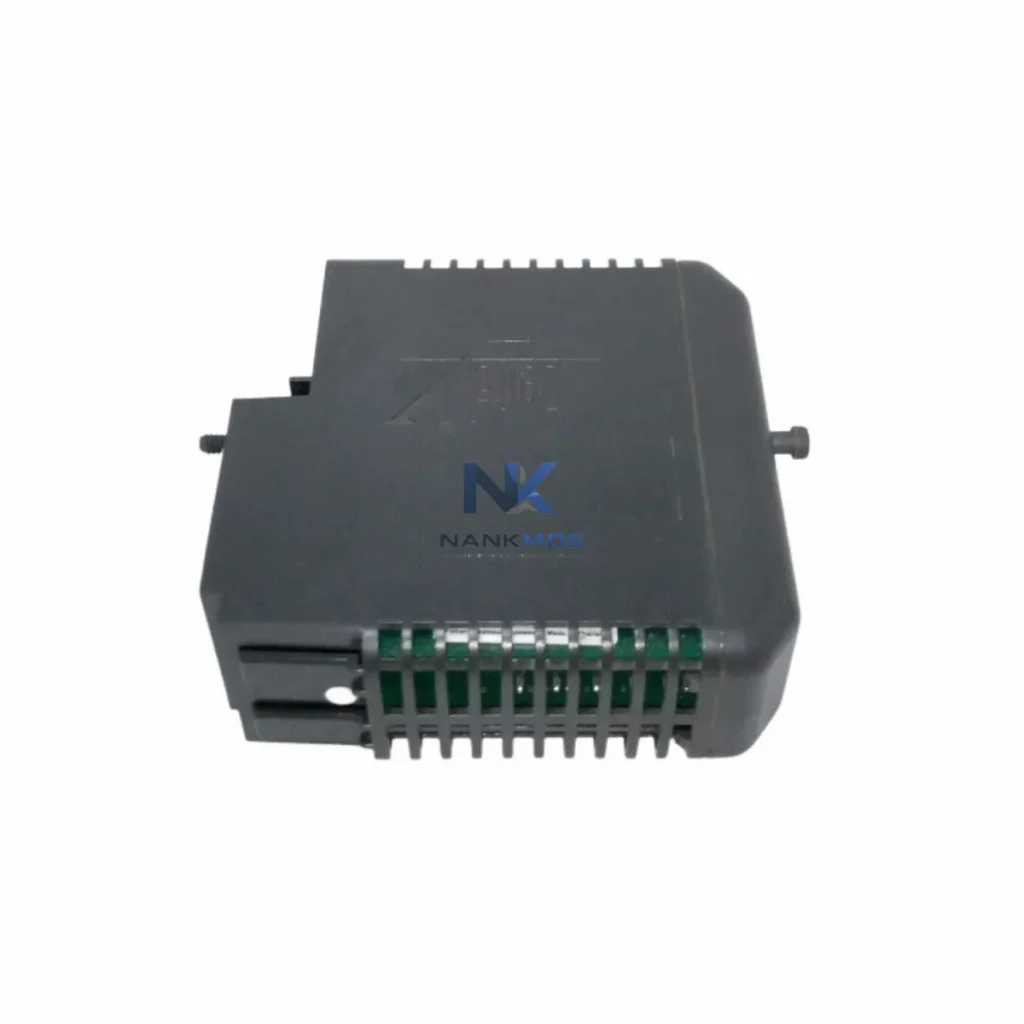

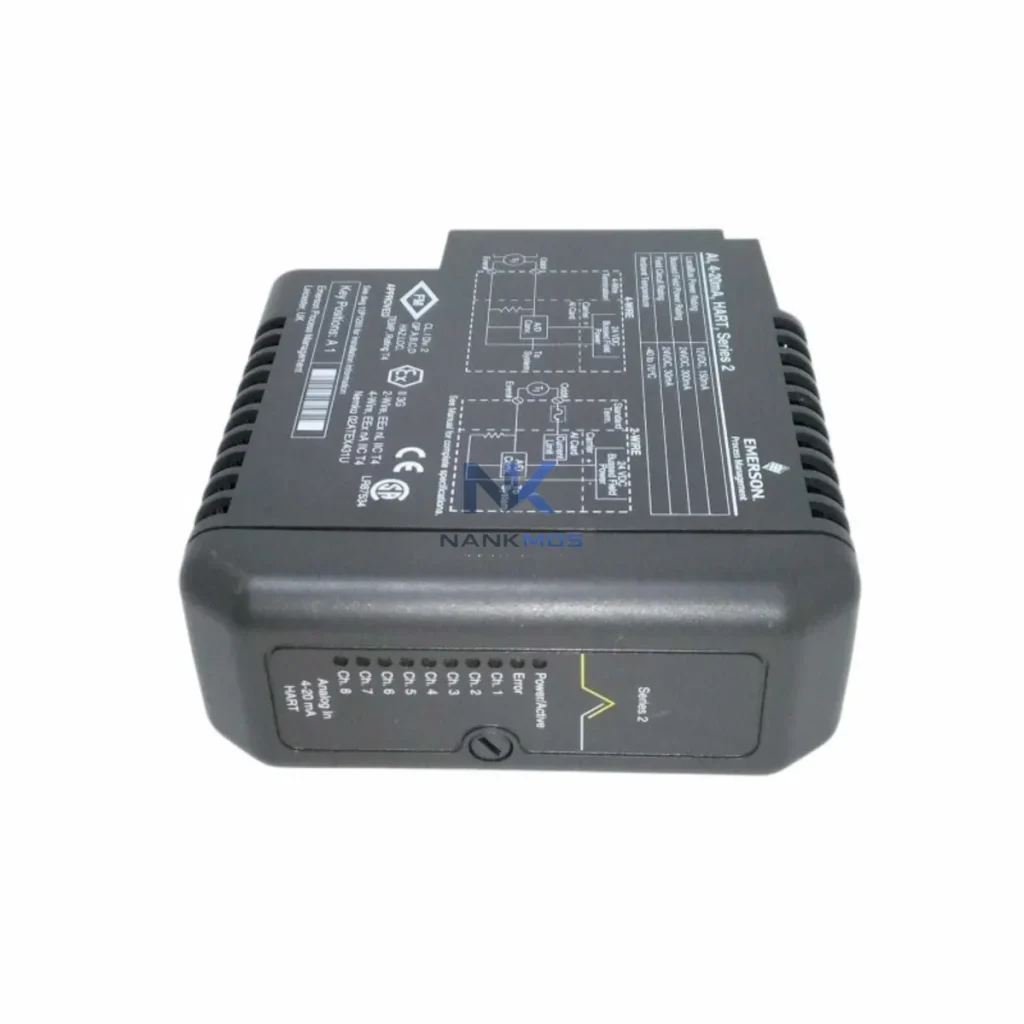

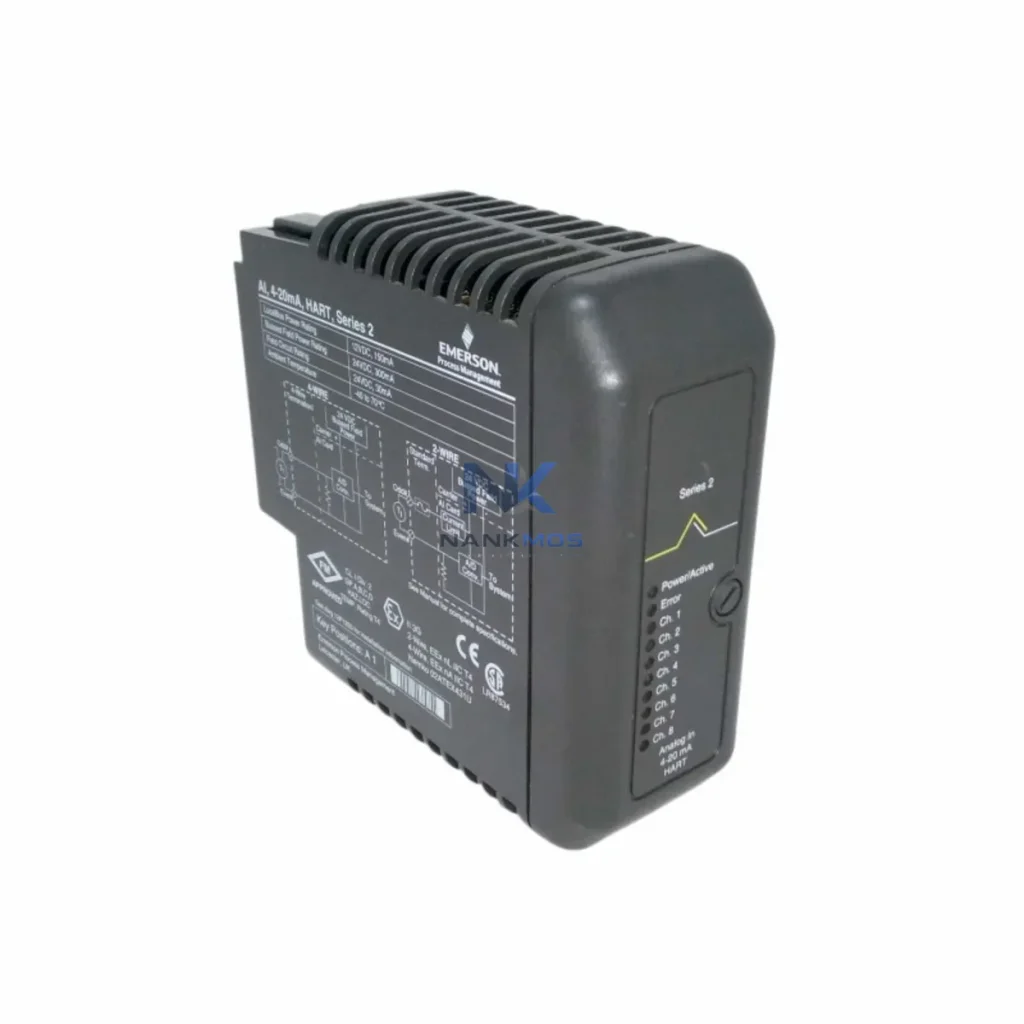

Emerson KJ3222X1-BA1 12P2532X112 HART Analog Input Module

Product Details

KJ3222X1-BA1 12P2532X112 Product Description

The Emerson KJ3222X1-BA1 12P2532X112 is a high-performance HART Analog Input Module engineered for the DeltaV Distributed Control System (DCS) platform. Designed to serve as a critical data acquisition node in smart factory environments, this module bridges field-level instrumentation — including pressure transmitters, flow meters, temperature sensors, and level gauges — with the upper-layer control and monitoring infrastructure. By supporting the HART (Highway Addressable Remote Transducer) protocol natively, the KJ3222X1-BA1 enables simultaneous analog signal transmission and digital communication over the same two-wire loop, delivering both process values and rich diagnostic data to the DeltaV controller without additional wiring overhead.

In a connected factory data architecture, the KJ3222X1-BA1 sits at the intersection of field device networks and the DeltaV process control backbone. Field instruments transmit 4–20 mA analog signals carrying primary process variables, while the superimposed HART digital signal carries secondary variables, device status, and configuration parameters. The module digitizes these inputs and passes structured data packets upstream to the DeltaV MD Plus Controller or DeltaV M5 Plus Controller via the DeltaV I/O bus, where the data is processed, alarmed, and forwarded to SCADA and HMI layers. This seamless data flow eliminates the traditional gap between field instrumentation and supervisory systems, enabling real-time process visibility across the entire production line.

The module integrates directly with the DeltaV Electronic Marshalling architecture, supporting CHARMs (Characterization Modules) for flexible I/O assignment. When paired with a CHARM I/O Card (CIOC), the KJ3222X1-BA1 allows engineers to reconfigure channel assignments in software without rewiring, dramatically reducing commissioning time and enabling rapid topology changes during plant expansions or process modifications. This flexibility is essential in modern smart manufacturing environments where production lines must adapt quickly to changing product mixes and batch requirements.

From a network communication perspective, the KJ3222X1-BA1 supports the full HART 5, 6, and 7 command sets, enabling multi-drop configurations where multiple HART devices share a single loop. The module's diagnostic capabilities extend beyond simple process values — it continuously monitors loop integrity, device health, and communication quality, forwarding alerts to the DeltaV Alarm Management system and, through OPC DA/UA interfaces, to connected SCADA platforms such as Emerson DeltaV Insight or third-party systems like Wonderware InTouch or Ignition SCADA. This closed-loop diagnostic chain ensures that maintenance teams receive actionable alerts before process deviations escalate into unplanned downtime.

Remote diagnostics represent one of the most compelling use cases for the KJ3222X1-BA1 in industrial IoT deployments. Through the DeltaV Remote Client or AMS Device Manager, plant engineers can interrogate connected HART instruments from a central control room or even from off-site locations via secure VPN connections. Device calibration status, loop current, sensor degradation trends, and valve signature data are all accessible without dispatching technicians to the field. This capability is particularly valuable in hazardous areas — such as offshore platforms, chemical processing units, or high-temperature furnace zones — where physical access is costly and risky.

The KJ3222X1-BA1 also plays a key role in data visualization pipelines. Process values collected by the module are historized by the DeltaV Continuous Historian and made available to plant-wide data platforms via OPC interfaces. Integration with edge computing gateways — such as the Emerson ROC800 Remote Operations Controller or third-party edge nodes — allows the data to be pre-processed locally before transmission to cloud analytics platforms, supporting predictive maintenance models and energy optimization algorithms. In multi-site operations, this architecture enables centralized performance dashboards that aggregate data from dozens of DeltaV systems across geographically distributed facilities.

System expansion is straightforward with the KJ3222X1-BA1. The DeltaV platform supports hot-swap module replacement, meaning the KJ3222X1-BA1 can be replaced or added to a running system without process interruption. Combined with the DeltaV redundancy options — including redundant controllers, redundant I/O networks, and redundant power supplies — the module contributes to a highly available control architecture suitable for continuous process industries such as oil and gas, pharmaceuticals, and specialty chemicals.

Every KJ3222X1-BA1 12P2532X112 unit supplied by NANKMOS undergoes pre-shipment functional testing, including loop current verification, HART communication handshake validation, and channel-by-channel signal integrity checks. Units are shipped with full traceability documentation and are backed by a 12-month warranty covering manufacturing defects and communication failures. Inventory is maintained in stock for immediate dispatch, supporting urgent MRO requirements and planned turnaround projects alike.

In a fully integrated smart factory, the KJ3222X1-BA1 anchors the field-to-control data chain. Field instruments — Rosemount 3051 pressure transmitters, Rosemount 648 wireless temperature transmitters adapted for wired HART loops, and Micro Motion Coriolis flow meters — connect directly to the module's input channels. The HART digital layer carries secondary variables and device diagnostics alongside the primary 4–20 mA process signal, feeding the DeltaV MD Plus Controller with a rich data stream that goes far beyond simple analog values.

At the control layer, the DeltaV MD Plus Controller processes the incoming data, executes PID control strategies, and communicates with peer controllers over the DeltaV Control Network — a 100 Mbps Ethernet backbone that also connects to DeltaV Operator Workstations running DeltaV Operate HMI. Alarm conditions detected by the KJ3222X1-BA1 — such as loop open-circuit faults, HART communication errors, or out-of-range process values — are immediately surfaced on the HMI and logged in the DeltaV Event Chronicle for audit trail purposes.

For remote monitoring, the DeltaV Remote Client provides secure access to the full DeltaV environment from any networked workstation, while AMS Device Manager enables HART instrument configuration and calibration management without physical field access. In facilities deploying edge computing strategies, an Emerson ROC800 or a third-party edge gateway aggregates historized data from the DeltaV Continuous Historian and forwards it to cloud analytics platforms, enabling predictive maintenance dashboards and energy consumption analysis across multiple production units.

The KJ3222X1-BA1 also integrates smoothly with safety instrumented systems. When the DeltaV SIS (Safety Instrumented System) platform is deployed alongside the process control DeltaV system, HART diagnostic data from the KJ3222X1-BA1 can be used to support partial stroke testing of safety valves and to verify the health of safety-critical transmitters, contributing to SIL compliance documentation and reducing proof test intervals.

Many industrial facilities face persistent data gaps that undermine process transparency and operational efficiency. Protocol fragmentation is one of the most common challenges: legacy 4–20 mA loops carry only a single process variable, leaving secondary diagnostics and device health data stranded at the field level. The KJ3222X1-BA1 resolves this by extracting the full HART digital payload from each connected instrument, making secondary variables, device status codes, and calibration data available to the DeltaV system and, through OPC interfaces, to any connected SCADA or MES platform.

Data silos are another critical issue in multi-vendor automation environments. When field devices from different manufacturers communicate over proprietary protocols, integration becomes costly and fragile. The HART protocol's open standard ensures that the KJ3222X1-BA1 can communicate with instruments from Rosemount, Yokogawa, Endress+Hauser, ABB, and other HART-compliant manufacturers, consolidating data from a heterogeneous device population into a single, unified DeltaV data model.

Remote monitoring gaps — particularly in geographically distributed or hazardous-area installations — are addressed through the module's integration with DeltaV Remote Client and AMS Device Manager. Maintenance engineers can perform remote loop diagnostics, adjust instrument ranges, and review calibration histories without entering restricted zones, reducing both safety risk and maintenance cost. Alarm tracking is enhanced by the DeltaV Alarm Management system, which correlates HART device alerts with process alarms to provide root-cause context rather than isolated fault notifications.

System expansion is handled gracefully through the DeltaV Electronic Marshalling architecture. Adding new measurement points requires only software reconfiguration of CHARM assignments — no rewiring, no panel modifications, and no process shutdown. This scalability makes the KJ3222X1-BA1 a future-proof investment for facilities planning phased capacity expansions or technology upgrades.

Q1: Does the KJ3222X1-BA1 support HART 7 multi-drop configurations? Yes. The KJ3222X1-BA1 supports HART 5, 6, and 7 command sets, including multi-drop mode where multiple HART devices share a single loop at a fixed 4 mA current. Multi-drop is supported within the DeltaV Electronic Marshalling architecture, and device addresses are managed through AMS Device Manager.

Q2: How does the module handle communication latency in time-critical control loops? The KJ3222X1-BA1 is optimized for the DeltaV I/O bus, which operates at deterministic scan rates configurable down to 100 ms for fast process loops. HART communication runs asynchronously alongside the primary analog signal, ensuring that digital diagnostic polling does not introduce latency into the primary control loop. For high-speed applications, the analog 4–20 mA channel remains the primary control signal.

Q3: Can the KJ3222X1-BA1 integrate with third-party SCADA systems outside the DeltaV environment? Yes. The DeltaV OPC DA and OPC UA servers expose all data collected by the KJ3222X1-BA1 — including primary process values, secondary HART variables, and device diagnostics — to any OPC-compliant SCADA platform, including Wonderware InTouch, Ignition SCADA, and Siemens WinCC. This makes the module suitable for hybrid automation environments where DeltaV coexists with other control platforms.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed? Every KJ3222X1-BA1 12P2532X112 unit is tested prior to shipment, including loop current verification, HART communication handshake validation, and channel signal integrity checks. The 12-month warranty covers manufacturing defects and communication failures from the date of delivery. Units are shipped with traceability documentation. For RFQ, lead time, and technical support, contact NANKMOS at [email protected] or +86 18359268345.
