KJ3222X1-BA1 12P2532X122 CE4003S2B1 Product Description

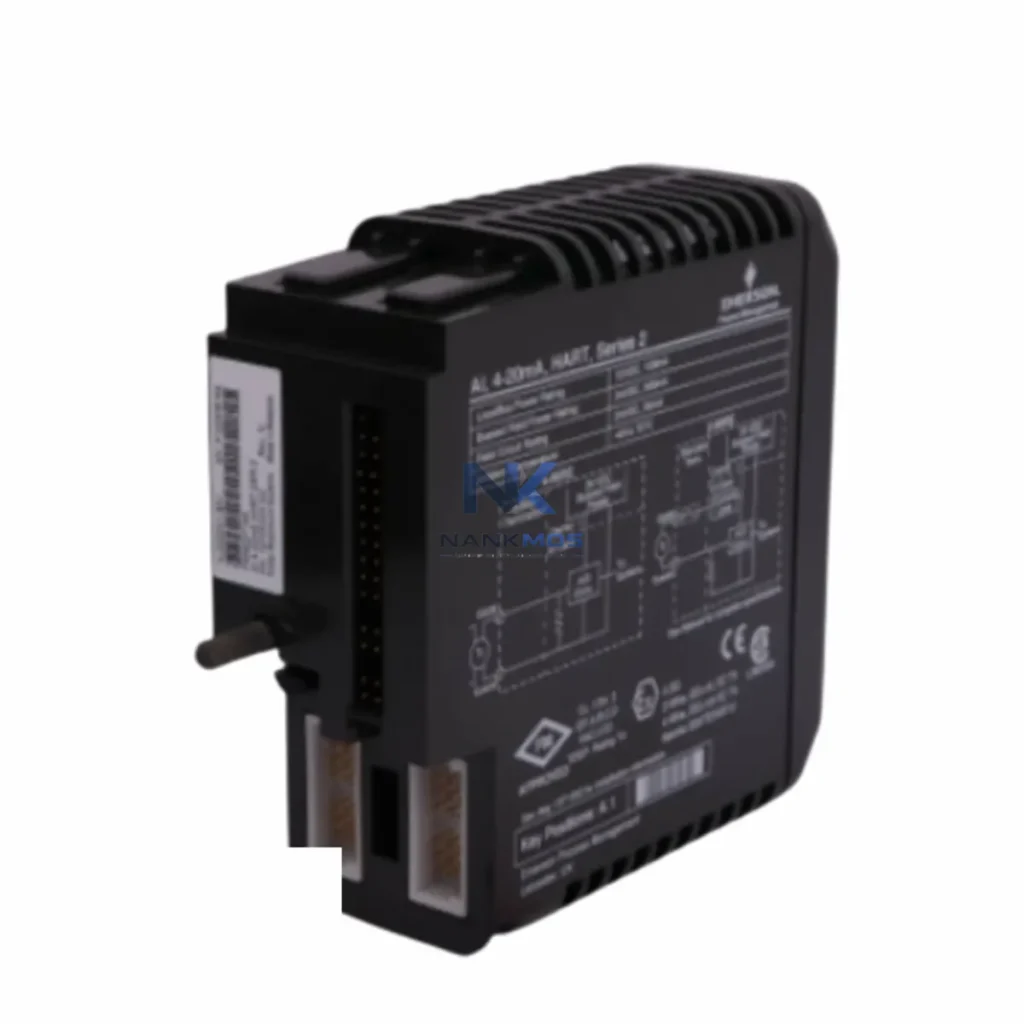

The Emerson KJ3222X1-BA1 is a high-integrity analog input module engineered for the DeltaV distributed control system (DCS) platform, delivering reliable 4–20mA and HART signal acquisition across process-critical environments. Designed to serve as a foundational data link between field instrumentation and upper-level control networks, the KJ3222X1-BA1 enables continuous, real-time signal flow from sensors and transmitters directly into the DeltaV controller fabric — forming the backbone of a connected, transparent smart factory architecture.

With native HART protocol support, this module bridges the gap between legacy analog field devices and modern digital diagnostics, allowing operators to extract secondary process variables, device health data, and calibration status without interrupting the primary 4–20mA control loop. This dual-layer communication capability is central to reducing unplanned downtime and enabling predictive maintenance strategies across manufacturing, oil and gas, chemical, and power generation sites.

In a fully integrated smart factory, the KJ3222X1-BA1 sits at the critical junction between physical process instrumentation and the digital control layer. Field-mounted pressure transmitters, temperature sensors, flow meters, and level instruments output 4–20mA signals that are captured by this module and converted into engineering-unit process variables within the DeltaV controller — such as the Emerson KJ3001X1-BA1 DeltaV MD Controller — for real-time loop control and alarm management.

The HART communication channel embedded in the KJ3222X1-BA1 enables the DeltaV Asset Management Solution (AMS) to poll connected HART-capable field devices — including Rosemount 3051 pressure transmitters, Fisher FIELDVUE digital valve controllers, and Micro Motion Coriolis flow meters — for device diagnostics, calibration records, and predictive health indicators. This data is surfaced through the DeltaV Operate HMI and forwarded upstream to SCADA platforms via OPC DA/UA gateways, enabling plant-wide visibility without additional wiring infrastructure.

For remote I/O architectures, the KJ3222X1-BA1 integrates seamlessly with Emerson CSLS00 DeltaV Remote I/O subsystems, extending the DCS reach to geographically distributed process areas — tank farms, compressor stations, or remote wellheads — while maintaining deterministic scan rates and data integrity over the DeltaV I/O bus. Paired with Emerson KJ4001X1-BA1 DeltaV Power Supplies, the module operates within a fully redundant power architecture, ensuring continuous data acquisition even during single-point power failures.

At the network layer, DeltaV controllers communicate upstream via Ethernet/IP and OPC-UA to plant historians such as OSIsoft PI or Wonderware Historian, enabling long-term trend analysis, KPI dashboards, and energy consumption reporting. Industrial managed switches — such as those in the Cisco IE3000 or Hirschmann RS series — provide the network backbone that carries this data securely from the control room to the enterprise MES and ERP layers. The KJ3222X1-BA1's reliable signal acquisition ensures that every data point entering this chain is accurate, timestamped, and traceable.

Edge computing nodes and IIoT gateways — including platforms compatible with the Emerson DeltaV Edge Environment — can subscribe to real-time process data streams from the DeltaV system, enabling local analytics, anomaly detection, and machine learning inference at the plant edge without burdening the core DCS network. This architecture supports the progressive digitalization roadmap that modern smart factories require, from basic SCADA connectivity to full Industry 4.0 data fabric integration.

Protocol Fragmentation: Many process plants operate a mix of legacy 4–20mA instruments alongside newer HART and Foundation Fieldbus devices. The KJ3222X1-BA1 resolves this fragmentation by supporting simultaneous analog signal acquisition and HART digital communication on the same wiring pair, eliminating the need for separate HART multiplexers or protocol converters in most DeltaV-based installations.

Data Silos and Visibility Gaps: Without a properly integrated analog input layer, process data remains trapped at the field level, invisible to SCADA operators and plant managers. The KJ3222X1-BA1 feeds structured, engineering-unit data directly into the DeltaV controller database, making every connected instrument's output immediately available for HMI display, historian logging, alarm management, and report generation — eliminating the data silos that impede operational transparency.

Remote Monitoring and Diagnostics: Unplanned shutdowns caused by undetected instrument failures are a leading source of production loss. By enabling HART-based remote diagnostics through the DeltaV AMS, the KJ3222X1-BA1 allows maintenance teams to detect sensor drift, wiring faults, and device failures before they escalate — reducing emergency callouts and extending mean time between failures (MTBF) across the instrumentation fleet.

System Scalability: As production capacity expands, additional KJ3222X1-BA1 modules can be added to existing DeltaV I/O subsystem carriers without controller reconfiguration, supporting incremental plant expansion with minimal engineering effort. This plug-and-play scalability is essential for facilities undergoing phased capacity upgrades or integrating new process units into an existing DCS architecture.

Alarm Traceability and Compliance: Regulatory environments in pharmaceutical, chemical, and food processing industries require full alarm traceability and audit trails. The KJ3222X1-BA1's integration with DeltaV's alarm management framework ensures that every process exceedance is logged with timestamp, operator acknowledgment, and corrective action records — supporting ISA-18.2 alarm management compliance and FDA 21 CFR Part 11 electronic records requirements.

Q1: Does the KJ3222X1-BA1 support HART communication for remote diagnostics? Yes. The KJ3222X1-BA1 supports HART protocol on each analog input channel, enabling the DeltaV Asset Management Solution (AMS) to communicate with connected HART-capable field devices for remote diagnostics, calibration, and device health monitoring — without interrupting the primary 4–20mA control signal.

Q2: Is this module compatible with all DeltaV controller generations? The KJ3222X1-BA1 is designed for the DeltaV Series 2 I/O subsystem and is compatible with DeltaV MD, MD Plus, SD, and SD Plus controllers. Compatibility with specific firmware versions should be verified against the DeltaV hardware compatibility matrix for your site's DCS revision.

Q3: What is the network scan rate and data latency for this module? The KJ3222X1-BA1 operates on the DeltaV I/O bus with deterministic scan rates configurable from 100ms to 1000ms per module, depending on controller loading and system configuration. This ensures predictable, low-latency data delivery to the DeltaV controller for time-critical process control loops.

Q4: What warranty and pre-shipment testing does NANKMOS provide for this module? Every KJ3222X1-BA1 supplied by NANKMOS is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify analog input accuracy, HART communication integrity, and backplane connectivity. In-stock units are available for immediate dispatch to support urgent project timelines and emergency replacement requirements.
