Emerson KJ3241X1-BA1 12P2506X102 DCS I/O Module

Product Details

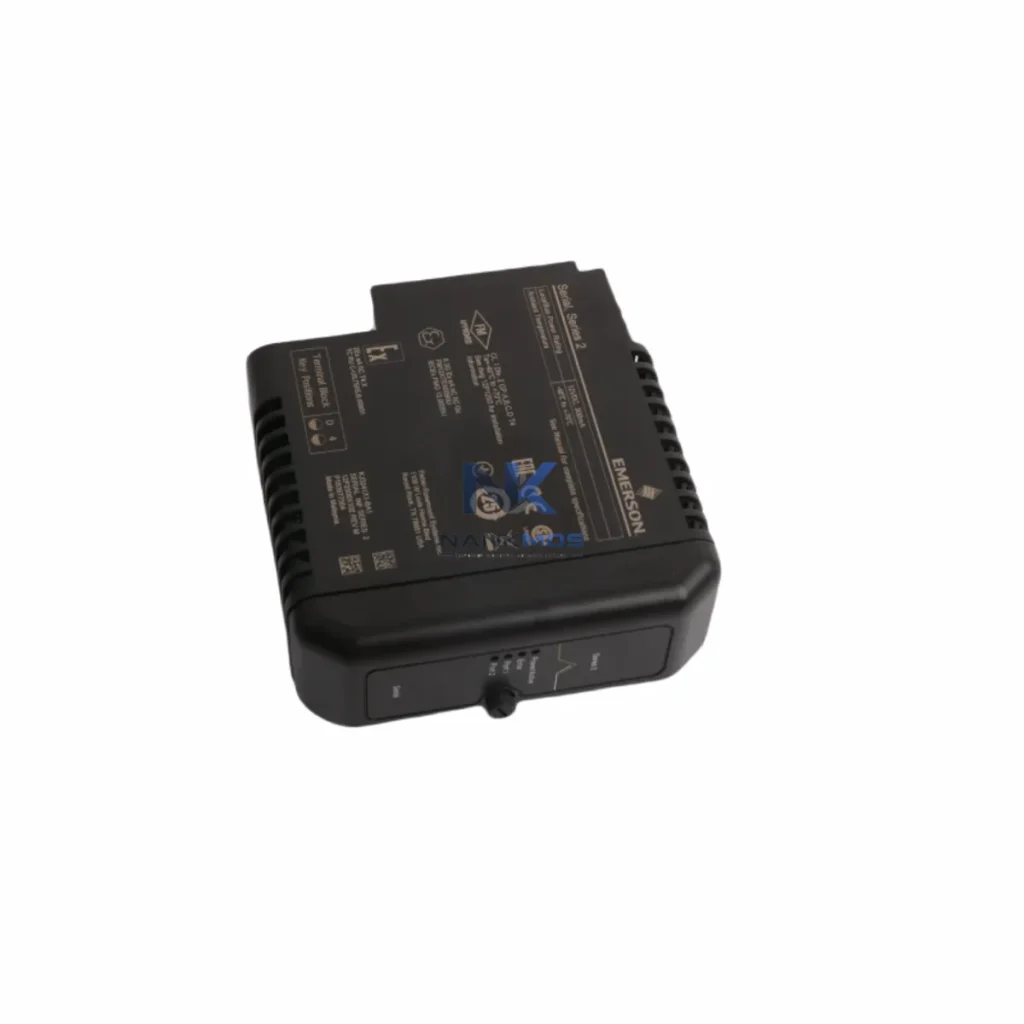

KJ3241X1-BA1 12P2506X102 Product Description

The Emerson KJ3241X1-BA1 12P2506X102 is a precision analog input module engineered for seamless integration within the DeltaV distributed control system (DCS) platform. Designed to operate within Emerson's modular I/O subsystem, this module delivers high-resolution signal acquisition, deterministic scan performance, and native compatibility with DeltaV controller nodes — making it a foundational component in process automation architectures across energy, petrochemical, water treatment, and advanced manufacturing environments.

As a system-ready analog input card, the KJ3241X1-BA1 supports multi-channel 4–20 mA and voltage signal inputs with built-in HART communication capability, enabling field device diagnostics without additional hardware. Its tight integration with the DeltaV I/O bus ensures low-latency data delivery to the controller layer, supporting real-time process visibility and closed-loop control with minimal engineering overhead.

The KJ3241X1-BA1 achieves its full performance potential when deployed as part of a cohesive DeltaV control architecture. At the controller layer, it interfaces directly with DeltaV MD Plus or MQ controllers, which manage scan cycles, control strategies, and system-wide diagnostics. The module mounts on DeltaV I/O carriers such as the KJ3001X1-BA1 or KJ3002X1-BA1 series, which provide the backplane power and bus connectivity required for deterministic I/O scanning.

For power distribution, the DeltaV power supply modules — including the KJ1501X1-BA2 redundant power supply — ensure uninterrupted voltage delivery to the I/O subsystem, supporting high-availability architectures in critical process environments. Redundant power configurations are particularly relevant in oil and gas, nuclear auxiliary, and continuous chemical processing applications where unplanned downtime carries significant operational risk.

On the communication layer, the KJ3241X1-BA1's HART pass-through capability integrates with Emerson's AMS Device Manager, enabling remote valve diagnostics, transmitter calibration, and predictive maintenance workflows without interrupting live process signals. This positions the module as a key enabler of IIoT-ready architectures where field intelligence is aggregated at the I/O layer rather than requiring dedicated HART multiplexers.

In marshalling and signal conditioning applications, the module pairs effectively with Emerson's CHARM (Characterization Module) I/O system for electronic marshalling, eliminating traditional hardwired marshalling cabinets and reducing installation footprint. For installations requiring signal isolation, dedicated signal isolators and barriers — such as Pepperl+Fuchs or MTL series intrinsic safety barriers — can be integrated upstream of the KJ3241X1-BA1 inputs to extend the module's applicability into Zone 1 and Zone 2 hazardous areas.

At the HMI and supervisory layer, process data acquired by the KJ3241X1-BA1 flows through the DeltaV controller to DeltaV Operate workstations or third-party SCADA systems via OPC DA/UA interfaces, providing operators with real-time trend visualization, alarm management, and historical data logging. Integration with Emerson's DeltaV Insight analytics platform further extends the module's value by enabling advanced process analytics and loop performance monitoring at the enterprise level.

For redundancy-critical applications, the KJ3241X1-BA1 can be deployed in conjunction with DeltaV SIS (Safety Instrumented System) modules — such as the KJ3222X1-BA1 digital input safety module — to create layered control and safety architectures that meet IEC 61511 SIL 2/3 requirements. This dual-layer approach ensures that process measurement and safety shutdown functions remain independent yet architecturally coherent within a single DeltaV platform.

Oil & Gas and Petrochemical: In upstream and midstream facilities, the KJ3241X1-BA1 handles pressure transmitter, flow meter, and temperature sensor inputs across wellhead control panels, compressor skids, and pipeline SCADA nodes. Its HART capability supports remote diagnostics of Rosemount 3051 pressure transmitters and Fisher control valves without field intervention, reducing maintenance costs in remote or hazardous locations.

Power Generation and Utilities: In combined-cycle power plants and utility substations, the module acquires analog signals from turbine inlet temperature sensors, generator excitation feedback loops, and boiler drum level transmitters. Its 16-bit resolution ensures precise measurement fidelity for closed-loop combustion control and load-following strategies, where signal accuracy directly impacts fuel efficiency and emissions compliance.

Water and Wastewater Treatment: Municipal water treatment facilities deploy the KJ3241X1-BA1 for monitoring dissolved oxygen sensors, pH analyzers, and flow totalizers across filtration, aeration, and disinfection stages. The module's multi-channel architecture consolidates signal acquisition from distributed field instruments into a single I/O carrier, simplifying panel design and reducing wiring complexity in large-scale treatment plants.

Mining and Metallurgy: In mineral processing and smelting operations, the module interfaces with belt scale transmitters, slurry density meters, and furnace temperature sensors. Its robust operating temperature range and DIN rail-compatible carrier mounting support deployment in harsh industrial environments with high vibration, dust, and thermal cycling.

Pharmaceutical and Food & Beverage: In regulated manufacturing environments, the KJ3241X1-BA1 supports 21 CFR Part 11-compliant process data acquisition for batch reactors, CIP systems, and clean-in-place temperature monitoring. Its integration with DeltaV Batch and DeltaV Recipe Management ensures full audit trail traceability from raw material input to finished product release.

Q1: Is the KJ3241X1-BA1 compatible with both DeltaV S-Series and M-Series controller platforms? The KJ3241X1-BA1 is designed for the DeltaV S-Series I/O subsystem and is compatible with DeltaV MD, MD Plus, and MQ controllers operating on DeltaV v11.3 and later firmware. Compatibility with legacy M-Series hardware depends on the specific carrier and backplane configuration; we recommend verifying the DeltaV Hardware Reference Manual or contacting NANKMOS technical support for mixed-generation architecture validation. All supplied units include a 12-Month Warranty covering hardware defects and functional performance.

Q2: Can this module be used in SIL-rated safety architectures alongside DeltaV SIS components? The KJ3241X1-BA1 is a standard process I/O module and is not independently SIL-rated. However, it can coexist within a DeltaV architecture that includes SIS modules such as the KJ3222X1-BA1 or KJ3232X1-BA1, provided that the safety and process I/O subsystems are physically and logically segregated per IEC 61511 requirements. NANKMOS supplies both standard and SIS-compatible DeltaV I/O modules with full Contextual Integration support for mixed-architecture deployments.

Q3: What is the lead time and warranty coverage for the KJ3241X1-BA1? NANKMOS maintains in-stock inventory of the KJ3241X1-BA1 12P2506X102 for immediate dispatch. Standard global shipping lead times range from 3–7 business days depending on destination. Each unit undergoes pre-shipment functional testing and is covered by a 12-Month Warranty against manufacturing defects and operational failures. For volume procurement, OEM integration projects, or expedited delivery requirements, contact [email protected] or call +86 18359268345.
