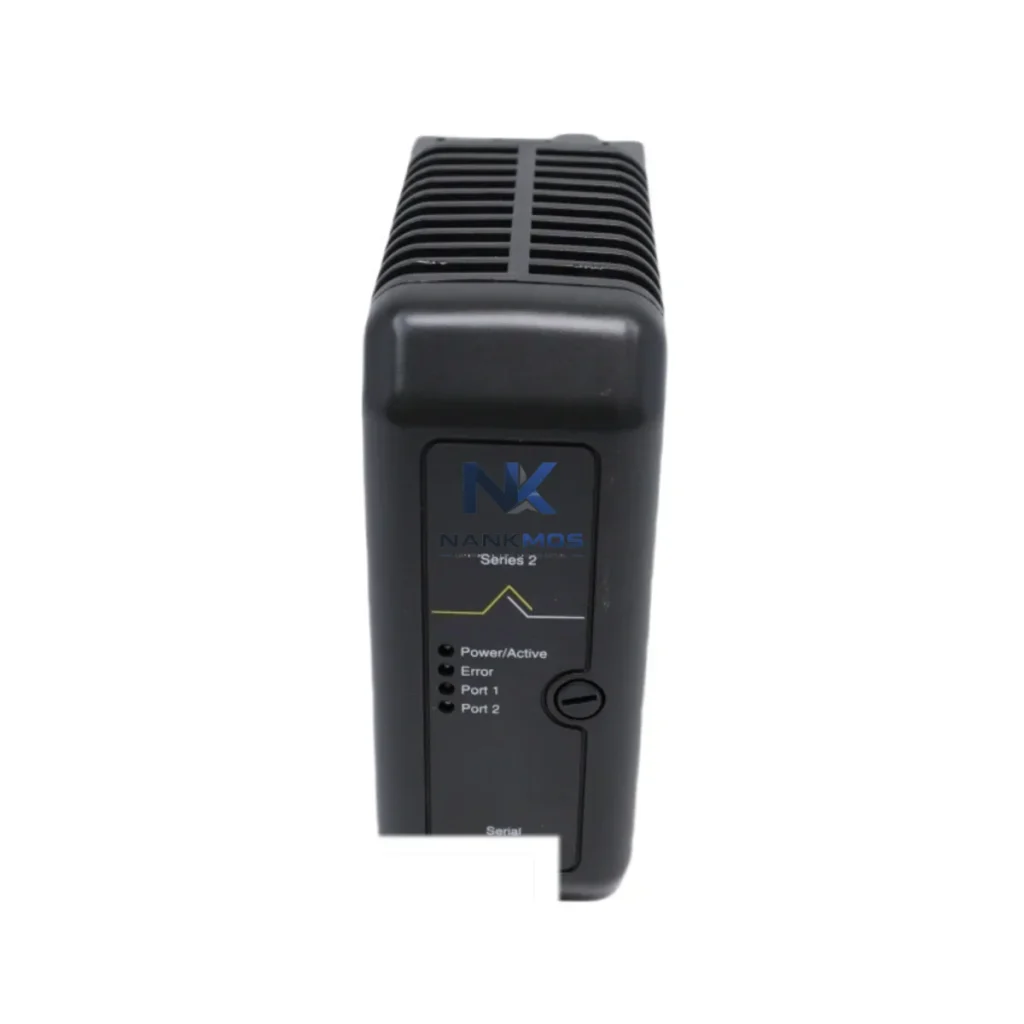

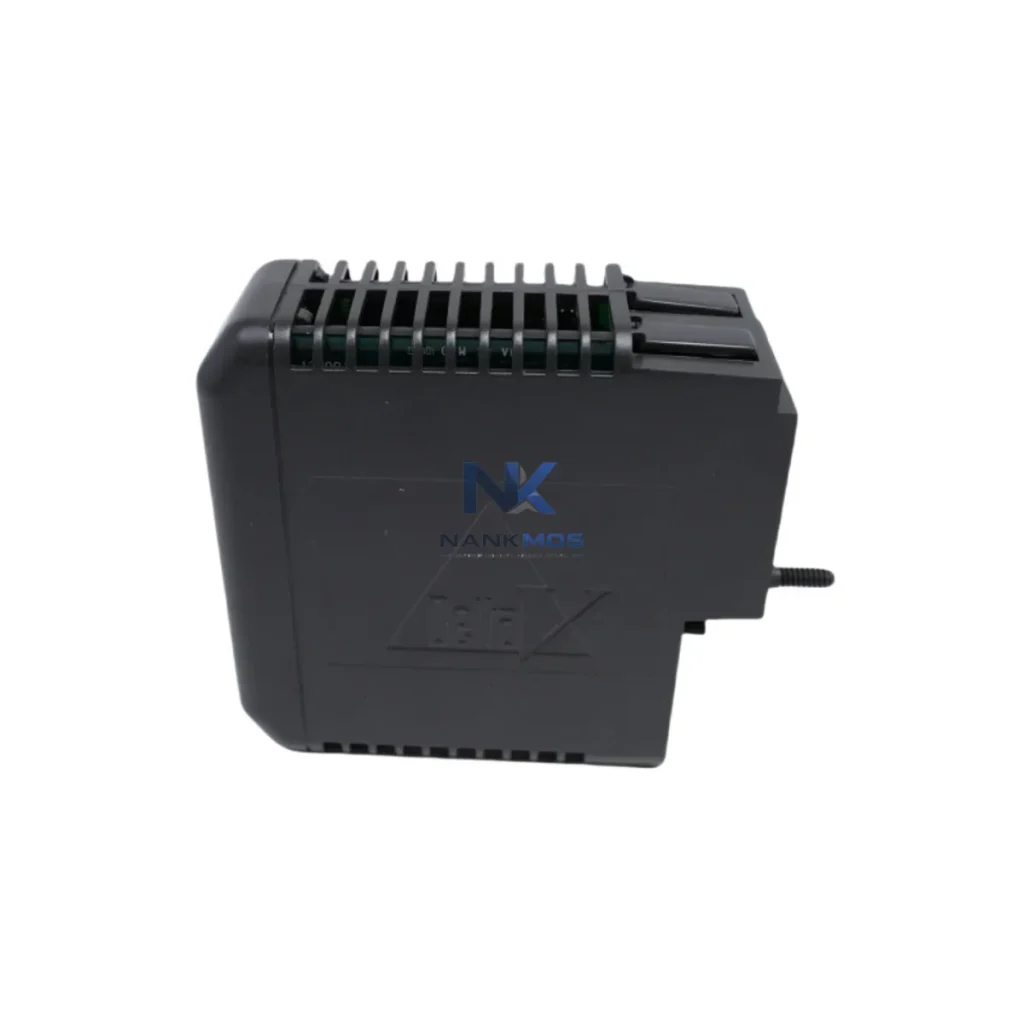

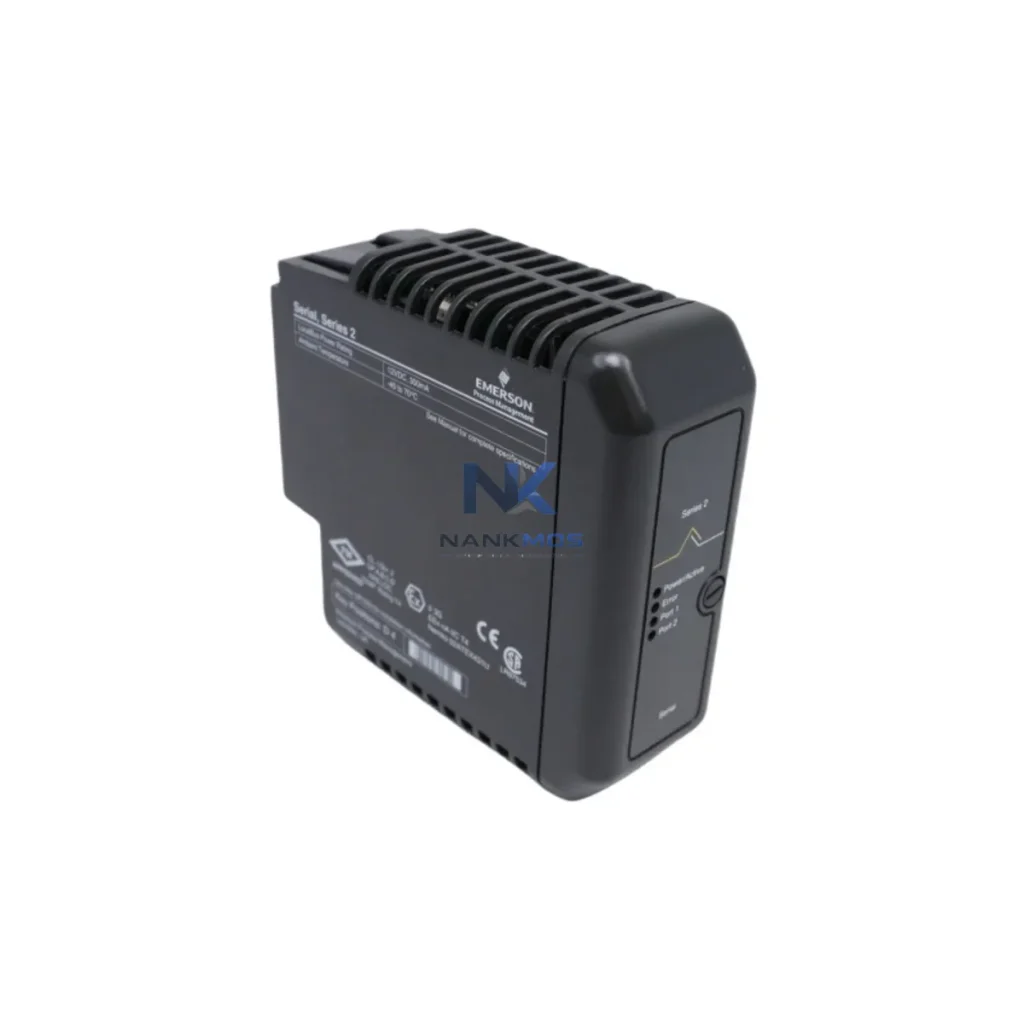

Emerson KJ3243X1-BB2 DCS Interface Card

Product Details

KJ3243X1-BB2 Product Description

The Emerson KJ3243X1-BB2 is a dedicated Profibus DP interface card engineered for seamless integration within the Emerson DeltaV Distributed Control System (DCS) platform. Designed to bridge the fieldbus communication layer with the DeltaV control architecture, this module enables deterministic, high-speed data exchange between field devices and the DeltaV controller network. Whether deployed in greenfield automation projects or as a replacement component in existing DeltaV installations, the KJ3243X1-BB2 delivers the signal integrity, protocol compliance, and system compatibility required for mission-critical process control environments.

In modern industrial automation, the Profibus DP protocol remains a cornerstone of field-level communication, particularly in sectors such as power generation, petrochemical refining, water treatment, pharmaceutical manufacturing, and mining operations. The KJ3243X1-BB2 is purpose-built to serve as the communication gateway between Profibus DP field devices — including variable frequency drives, intelligent valve positioners, remote I/O stations, and motor control centers — and the DeltaV DCS controller layer. This contextual integration ensures that process data flows reliably from the field to the control room, supporting real-time monitoring, closed-loop control, and advanced diagnostics.

Within the DeltaV system architecture, the KJ3243X1-BB2 occupies a critical role at the communication layer, interfacing directly with the DeltaV controller carrier and I/O subsystem. It supports the full Profibus DP protocol stack, enabling the DeltaV system to act as a Class 1 master, polling field devices cyclically and exchanging acyclic diagnostic data as required. This capability is essential for maintaining system transparency across large-scale distributed installations where hundreds of field devices must be managed from a centralized control platform.

The module is designed for installation within the standard DeltaV I/O carrier and controller enclosure infrastructure. It is compatible with the DeltaV MD, MD Plus, and SD series controllers, and integrates with the DeltaV redundant controller architecture to support high-availability process control. When paired with redundant DeltaV controllers such as the KJ2003X1-BA1 or KJ2003X1-BB1 controller modules, the KJ3243X1-BB2 contributes to a fully redundant control architecture that minimizes unplanned downtime and supports continuous process operation.

At the I/O layer, the KJ3243X1-BB2 complements the DeltaV I/O subsystem by extending the system's reach to Profibus DP-connected field devices without requiring additional I/O marshalling infrastructure. This reduces wiring complexity, lowers installation costs, and simplifies commissioning in both new and retrofit projects. The module works in conjunction with DeltaV I/O cards such as the KJ3221X1-BA1 analog input module and KJ3222X1-BA1 analog output module, ensuring a consistent signal chain from field transmitters through to the DeltaV control strategy.

From a power layer perspective, the KJ3243X1-BB2 is powered through the DeltaV carrier backplane, drawing regulated DC power from the DeltaV power supply infrastructure. Compatibility with DeltaV power supplies such as the KJ1501X1-BA1 ensures stable, conditioned power delivery to the interface card, protecting against voltage transients and ensuring reliable fieldbus communication even in electrically noisy industrial environments.

The HMI and supervisory layer benefits directly from the KJ3243X1-BB2's integration capabilities. Process data collected from Profibus DP field devices is made available to the DeltaV operator workstation and DeltaV Operate HMI environment in real time, enabling operators to monitor field device status, configure device parameters, and respond to process alarms without leaving the DeltaV environment. This seamless data flow supports the DeltaV Asset Management Solution (AMS), allowing maintenance engineers to perform remote device diagnostics, calibration verification, and predictive maintenance scheduling directly from the control room.

For redundancy and protection, the KJ3243X1-BB2 supports Profibus DP redundancy configurations when used with compatible redundant fieldbus infrastructure. In safety-critical applications, this redundancy capability ensures that a single point of failure in the fieldbus communication path does not compromise process control integrity. The module's design aligns with the DeltaV SIS (Safety Instrumented System) architecture philosophy, supporting layered protection strategies across the control and safety layers.

Engineering teams responsible for system commissioning and long-term maintenance will appreciate the KJ3243X1-BB2's plug-and-play compatibility with the DeltaV configuration environment. Device integration is managed through the DeltaV Explorer and DeltaV Diagnostics tools, which provide real-time bus health monitoring, device communication statistics, and fault isolation capabilities. This diagnostic transparency reduces mean time to repair (MTTR) and supports proactive maintenance strategies that extend the operational life of the overall DeltaV installation.

All units supplied by NANKMOS are pre-shipment tested against Emerson factory specifications, verifying Profibus DP communication integrity, carrier compatibility, and firmware version compliance before dispatch. Each KJ3243X1-BB2 is covered by a 12-Month Warranty, providing procurement teams and plant engineers with confidence in component reliability and supply chain continuity. In-stock availability ensures rapid deployment to support planned maintenance outages, emergency replacements, and system expansion projects.

The KJ3243X1-BB2 achieves its full value when deployed as part of a cohesive DeltaV automation platform. At the control layer, it operates under the supervision of DeltaV controller modules such as the KJ2003X1-BA1 MD Controller and KJ2003X1-BB1 MD Plus Controller, which execute the control strategies that consume Profibus DP field data. The controller communicates with the KJ3243X1-BB2 via the DeltaV carrier backplane, ensuring low-latency data exchange between the fieldbus interface and the control execution environment.

At the I/O layer, the KJ3243X1-BB2 works alongside conventional DeltaV I/O modules including the KJ3221X1-BA1 8-channel analog input card and KJ3222X1-BA1 8-channel analog output card, providing a unified I/O architecture that handles both hardwired and fieldbus-connected signals within the same DeltaV carrier. This mixed I/O approach is common in process plants where legacy 4–20 mA instruments coexist with modern Profibus DP field devices.

The power layer is anchored by DeltaV power supply modules such as the KJ1501X1-BA1, which delivers conditioned DC power to the carrier backplane and all installed I/O and interface cards. Redundant power supply configurations are supported, ensuring that power loss to a single supply does not interrupt fieldbus communication or control execution.

At the communication and network layer, the KJ3243X1-BB2 connects to the Profibus DP segment via standard DB9 connectors and Profibus-compliant cabling, supporting baud rates from 9.6 kbps to 12 Mbps. The DeltaV system's Ethernet-based control network — typically implemented using managed industrial switches such as the Cisco IE-2000 series or equivalent DIN-rail switches — carries DeltaV controller-to-workstation traffic independently of the Profibus DP fieldbus segment, maintaining clear separation between control and field communication layers.

The HMI layer is served by DeltaV Operate workstations and DeltaV Remote Client stations, which display real-time process data sourced from Profibus DP field devices through the KJ3243X1-BB2. Integration with the DeltaV Asset Management Solution (AMS) extends HMI visibility to device-level diagnostics, enabling operators and maintenance engineers to access HART and Profibus device parameters, calibration records, and predictive maintenance alerts from a single interface.

At the execution and protection layers, Profibus DP-connected devices such as ABB ACS880 variable frequency drives, Metso Neles ND9000 valve controllers, and remote I/O stations from the Pepperl+Fuchs FieldConnex range interface directly with the KJ3243X1-BB2, enabling precise motor speed control, valve positioning, and distributed I/O management across the process plant. This layered architecture ensures that the KJ3243X1-BB2 serves as a reliable, high-throughput communication bridge across all automation layers.

The Emerson KJ3243X1-BB2 is deployed across a wide range of industrial sectors where Profibus DP fieldbus communication and DeltaV DCS integration are standard requirements:

Power Generation: In combined-cycle and coal-fired power plants, the KJ3243X1-BB2 enables DeltaV to communicate with Profibus DP-connected turbine control actuators, boiler feed pump drives, and combustion air damper positioners. The module's support for redundant fieldbus configurations ensures continuous control during planned maintenance and unplanned fault conditions.

Petrochemical and Refining: Refinery DCS installations rely on the KJ3243X1-BB2 to integrate Profibus DP field devices across distillation columns, heat exchanger networks, and compressor control systems. The module's compatibility with DeltaV SIS architecture supports the implementation of Safety Instrumented Functions (SIFs) that protect against overpressure, high-temperature, and runaway reaction scenarios.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the KJ3243X1-BB2 to connect Profibus DP-enabled submersible pumps, chemical dosing drives, and flow control valves to the DeltaV control system. The module's diagnostic capabilities support remote monitoring of pump health and valve performance, reducing the need for manual field inspections.

Mining and Minerals Processing: In ore processing and mineral beneficiation plants, the KJ3243X1-BB2 integrates Profibus DP-connected conveyor drives, crusher motor controllers, and flotation cell agitator drives with the DeltaV DCS. The module's robust design supports operation in dusty, high-vibration environments typical of mining facilities.

Marine and Offshore: Offshore platform and FPSO vessel automation systems use the KJ3243X1-BB2 to connect Profibus DP field devices within hazardous area enclosures to the DeltaV control system. The module's compatibility with DeltaV intrinsically safe I/O infrastructure supports ATEX and IECEx-compliant installations in Zone 1 and Zone 2 classified areas.

Q1: Is the KJ3243X1-BB2 compatible with all DeltaV controller versions, and does it support redundant controller configurations? The KJ3243X1-BB2 is designed for use with DeltaV MD, MD Plus, and SD series controllers. It is compatible with DeltaV redundant controller pairs, where the active controller manages Profibus DP communication through the interface card and the standby controller assumes control seamlessly in the event of a primary controller fault. Compatibility with specific DeltaV firmware versions should be verified against the Emerson DeltaV compatibility matrix prior to installation. NANKMOS technical support can assist with version verification for your specific DeltaV system configuration.

Q2: What is the maximum number of Profibus DP devices that can be connected to a single KJ3243X1-BB2, and how does this affect DeltaV system performance? The Profibus DP standard supports up to 126 device addresses per segment, with practical installations typically limited to 32 devices per segment without repeaters to maintain signal integrity at higher baud rates. The KJ3243X1-BB2 operates as a Class 1 Profibus DP master, and the number of devices it can manage is also constrained by the DeltaV controller's I/O capacity and scan rate configuration. For large-scale installations requiring more than one Profibus DP segment, multiple KJ3243X1-BB2 cards can be installed in the same DeltaV carrier, each managing an independent fieldbus segment. NANKMOS recommends conducting a DeltaV system load analysis before finalizing the fieldbus architecture for high-device-count installations.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for KJ3243X1-BB2 units from NANKMOS? All KJ3243X1-BB2 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects, communication failures, and component-level faults identified under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify Profibus DP communication integrity and DeltaV carrier compatibility before dispatch. In-stock units are typically available for same-week shipment, supporting urgent maintenance requirements and planned outage schedules. For bulk procurement or long-term supply agreements, NANKMOS offers priority stock reservation to ensure supply continuity for multi-site DeltaV installations.
