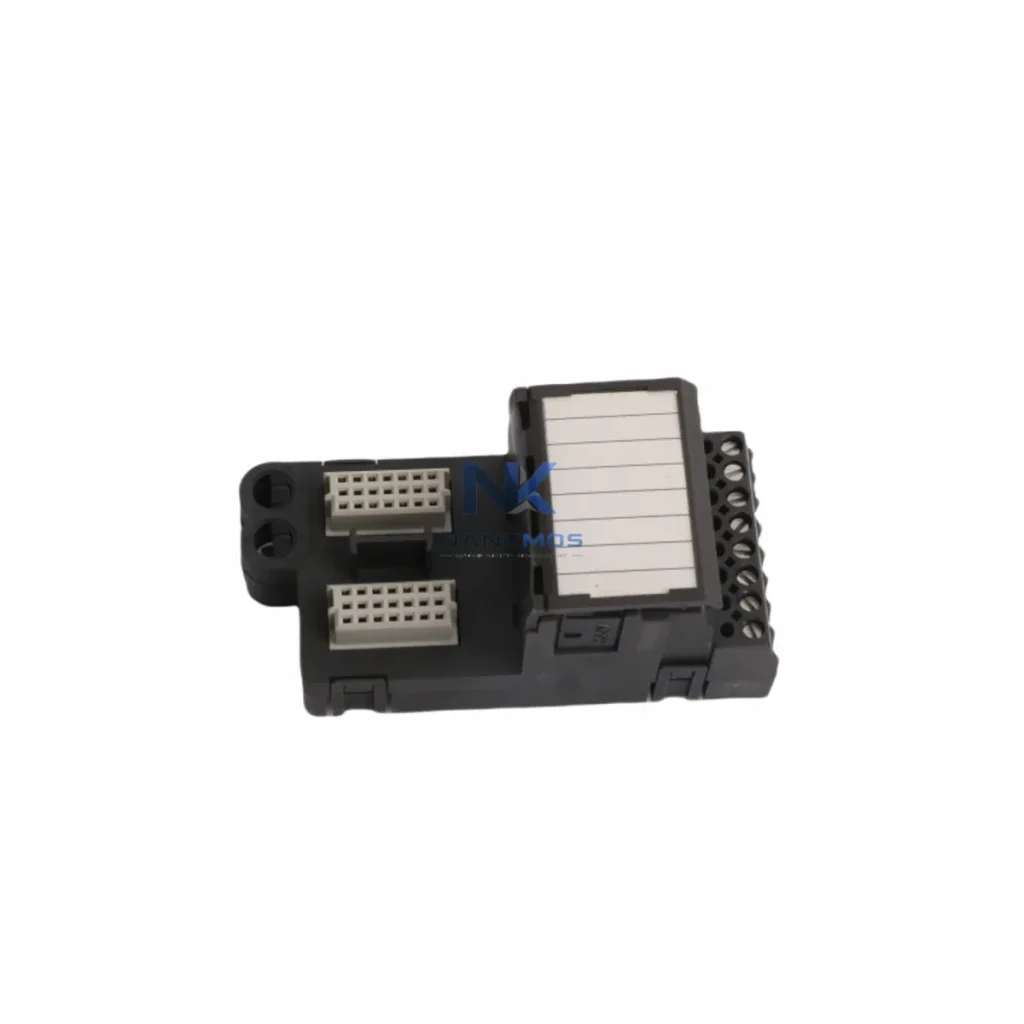

Emerson KJ4001-CB1 12P0625X072 I/O Terminal Block

Product Details

KJ4001-CB1 12P0625X072 Product Description

The Emerson KJ4001-CB1-12P0625X072 is a system-matched I/O terminal block engineered for seamless integration within the Emerson DeltaV distributed control system (DCS) architecture. Designed to interface directly with DeltaV I/O subsystem cards, this terminal block serves as the critical signal termination layer between field instrumentation and the DeltaV controller network. Its role in the control hierarchy spans the I/O layer and the field wiring layer, providing a structured, reliable, and maintainable connection point that supports long-term system integrity across demanding process environments.

In a fully deployed DeltaV architecture, signal quality and termination consistency are foundational to system performance. The KJ4001-CB1-12P0625X072 addresses this requirement by providing a standardized, high-density terminal interface that reduces wiring complexity, minimizes signal degradation, and supports modular expansion as plant capacity grows. Whether deployed in a greenfield automation project or integrated into an existing DeltaV control network during a brownfield upgrade, this terminal block delivers the mechanical and electrical consistency required for long-term operational reliability.

From a system architecture perspective, the KJ4001-CB1-12P0625X072 operates at the intersection of the field signal layer and the I/O card layer. It is designed to work in conjunction with DeltaV I/O cards such as the KJ3002X1-BA1 analog input card and the KJ3222X1-BA1 discrete output card, ensuring that field signals — whether 4–20 mA analog loops, discrete 24 VDC signals, or HART-enabled transmitter outputs — are correctly terminated, shielded, and routed to the appropriate I/O channel. This structured signal path is essential for maintaining measurement accuracy, reducing noise interference, and enabling reliable process control across the full operating range of the plant.

The terminal block's mechanical design supports DIN rail mounting within standard control cabinets, allowing it to be positioned adjacent to DeltaV I/O carriers and marshalling panels. This proximity reduces cable run lengths, simplifies loop checking during commissioning, and supports efficient fault isolation during maintenance. The compact form factor is optimized for high-density cabinet layouts common in oil and gas, chemical processing, power generation, and water treatment facilities, where panel space is at a premium and wiring discipline is critical to system uptime.

Within the broader DeltaV ecosystem, the KJ4001-CB1-12P0625X072 supports Contextual Integration by maintaining consistent signal naming, channel mapping, and termination standards across the I/O subsystem. When paired with DeltaV CHARM I/O technology — including the CHARMS characterization module and the CIOC controller — the terminal block enables a flexible, distributed I/O architecture that can be deployed closer to field devices, reducing cable costs and improving signal integrity. This architecture is particularly valuable in large-scale process plants where field junction boxes and remote I/O panels must maintain the same termination standards as the main control room marshalling cabinets.

Power distribution within the control cabinet is supported by the Emerson KJ4003X1-BA1 power supply module, which provides regulated 24 VDC to the I/O subsystem. The KJ4001-CB1-12P0625X072 terminal block is designed to operate within this power envelope, ensuring that field loop power, signal conditioning, and I/O card power requirements are met without exceeding cabinet power budgets. Proper power architecture planning, including redundant power supply configurations using dual KJ4003X1-BA1 modules, ensures that the I/O termination layer remains operational even during single-point power failures.

Communication stability across the DeltaV network is maintained through the DeltaV controller backplane, which connects I/O subsystem cards to the DeltaV MD Plus or MQ controller modules. The KJ4001-CB1-12P0625X072 terminal block supports this communication architecture by ensuring that field signals are correctly terminated before they enter the I/O card's analog-to-digital conversion stage, preventing signal errors that could propagate through the FOUNDATION Fieldbus or HART communication layers to the DeltaV operator workstation. This signal integrity at the termination layer is a prerequisite for reliable process data acquisition and control loop performance.

For facilities operating redundant control architectures, the KJ4001-CB1-12P0625X072 can be deployed in mirrored I/O configurations where dual I/O cards share a common terminal block interface, enabling bumpless switchover between primary and secondary I/O paths during card failures or planned maintenance. This redundancy capability is essential for SIL-rated safety instrumented systems (SIS) and high-availability process control applications where unplanned downtime carries significant operational and safety consequences.

Diagnostic efficiency is enhanced by the terminal block's clear channel labeling and structured wiring layout, which allows maintenance technicians to quickly identify individual field loops, perform loop checks, and isolate faults without disrupting adjacent channels. When used alongside the DeltaV Diagnostics application and the AMS Device Manager, the KJ4001-CB1-12P0625X072 supports a comprehensive asset management strategy that tracks field device health, I/O card status, and termination integrity across the entire control network.

Long-term maintenance efficiency is further supported by the terminal block's modular design, which allows individual terminal sections to be replaced or reconfigured without disturbing the overall wiring infrastructure. This modularity reduces maintenance downtime, simplifies spare parts management, and supports phased system upgrades where new I/O cards or field devices are added to an existing DeltaV architecture without requiring a complete rewiring of the marshalling cabinet.

All units supplied by NANKMOS are sourced from verified supply channels, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty against manufacturing defects and operational failures. Fast global shipping is available to support urgent project timelines and unplanned maintenance requirements.

The KJ4001-CB1-12P0625X072 is most effective when deployed as part of a fully integrated DeltaV automation platform. At the controller layer, the DeltaV MD Plus controller and DeltaV MQ controller provide the processing backbone that manages I/O scanning, control loop execution, and network communication. The terminal block connects field signals to I/O cards such as the KJ3002X1-BA1 8-channel analog input card and the KJ3222X1-BA1 8-channel discrete output card, which in turn communicate with the controller via the DeltaV I/O carrier backplane.

Power integrity across the I/O subsystem is maintained by the KJ4003X1-BA1 power supply module, with redundant configurations recommended for critical process areas. At the communication layer, the DeltaV CHARM I/O controller (CIOC) extends the I/O architecture to remote field locations, while the DeltaV SIS logic solver supports safety instrumented function (SIF) execution in SIL-rated applications. The DeltaV operator workstation, running DeltaV Operate, provides the HMI layer through which process operators monitor signal values, control loop outputs, and alarm states derived from field signals terminated at the KJ4001-CB1-12P0625X072.

For facilities requiring network-level integration, the DeltaV OPC server and the DeltaV Ethernet I/O network switch provide connectivity to plant-level SCADA systems, historian servers, and MES platforms. The AMS Device Manager, integrated with the DeltaV network, enables HART device configuration and diagnostics directly from the control room, leveraging the signal paths established at the terminal block level. This end-to-end architecture — from field device through terminal block, I/O card, controller, and HMI — represents the full scope of Contextual Integration that the KJ4001-CB1-12P0625X072 supports within the DeltaV ecosystem.

Oil & Gas Processing: In upstream and midstream oil and gas facilities, the KJ4001-CB1-12P0625X072 is deployed in wellhead control panels and gas compression station marshalling cabinets, where it terminates pressure transmitter, temperature element, and flow meter signals before routing them to DeltaV analog input cards. The terminal block's HART compatibility enables remote device configuration and diagnostics without interrupting the live process signal.

Chemical & Petrochemical Plants: Continuous process plants operating with DeltaV DCS rely on structured I/O termination to maintain measurement accuracy across hundreds of field loops. The KJ4001-CB1-12P0625X072 supports high-density marshalling configurations in reactor control, distillation column management, and heat exchanger monitoring applications, where signal integrity directly impacts product quality and process safety.

Power Generation: In combined-cycle power plants and cogeneration facilities, the terminal block is used to terminate boiler instrumentation, turbine control signals, and generator protection relay outputs within DeltaV-controlled distributed control architectures. Its compatibility with 24 VDC discrete signals supports both analog measurement and digital status monitoring within the same marshalling cabinet.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the KJ4001-CB1-12P0625X072 to terminate flow, level, and pH transmitter signals in DeltaV-controlled treatment process systems. The terminal block's DIN rail mounting and modular design simplify cabinet layout in compact pump station control panels and centralized SCADA-integrated treatment plant control rooms.

Mining & Minerals Processing: In mineral processing plants and concentrator facilities, the terminal block supports DeltaV-based control of flotation circuits, grinding mill drives, and thickener control systems, where robust signal termination is required to maintain process stability in electrically noisy environments with long cable runs from field instruments to the control room.

Q1: Is the KJ4001-CB1-12P0625X072 compatible with all DeltaV I/O card types, including CHARM I/O? The KJ4001-CB1-12P0625X072 is designed for use with the DeltaV traditional I/O subsystem, including analog input, analog output, discrete input, and discrete output card types. For CHARM I/O deployments, Emerson provides dedicated CHARM terminal blocks (CTBs) that interface directly with the CHARMS characterization modules. In mixed architectures where both traditional I/O and CHARM I/O are deployed, the KJ4001-CB1-12P0625X072 serves the traditional I/O marshalling sections, while CTBs handle the CHARM I/O field termination. NANKMOS can supply both terminal block types to support hybrid DeltaV architectures.

Q2: What are the installation and commissioning requirements for the KJ4001-CB1-12P0625X072 in a DeltaV control cabinet? Installation requires DIN rail mounting within a control cabinet that meets the DeltaV environmental specifications (0°C to 60°C operating temperature, controlled humidity, and adequate ventilation). The terminal block must be positioned to minimize cable run lengths between field wiring and the associated DeltaV I/O card. During commissioning, each field loop should be verified using the DeltaV loop check function, which confirms signal continuity, channel assignment, and engineering unit scaling before the control loop is placed in automatic mode. NANKMOS provides pre-shipment functional testing documentation to support site acceptance testing (SAT) procedures.

Q3: What warranty and long-term supply support does NANKMOS provide for the KJ4001-CB1-12P0625X072? All KJ4001-CB1-12P0625X072 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and operational failures under normal operating conditions. NANKMOS maintains inventory of DeltaV I/O subsystem components to support both planned maintenance schedules and emergency replacement requirements. Long-term supply continuity is supported through verified sourcing channels, ensuring that spare parts availability is maintained throughout the operational lifecycle of the DeltaV control system. For volume procurement or project-specific supply agreements, contact NANKMOS at [email protected] or +86 18359268345.
