Emerson KJ4001X1-BA3 12P3378X012 VE3051C0 DCS Carrier Module

Product Details

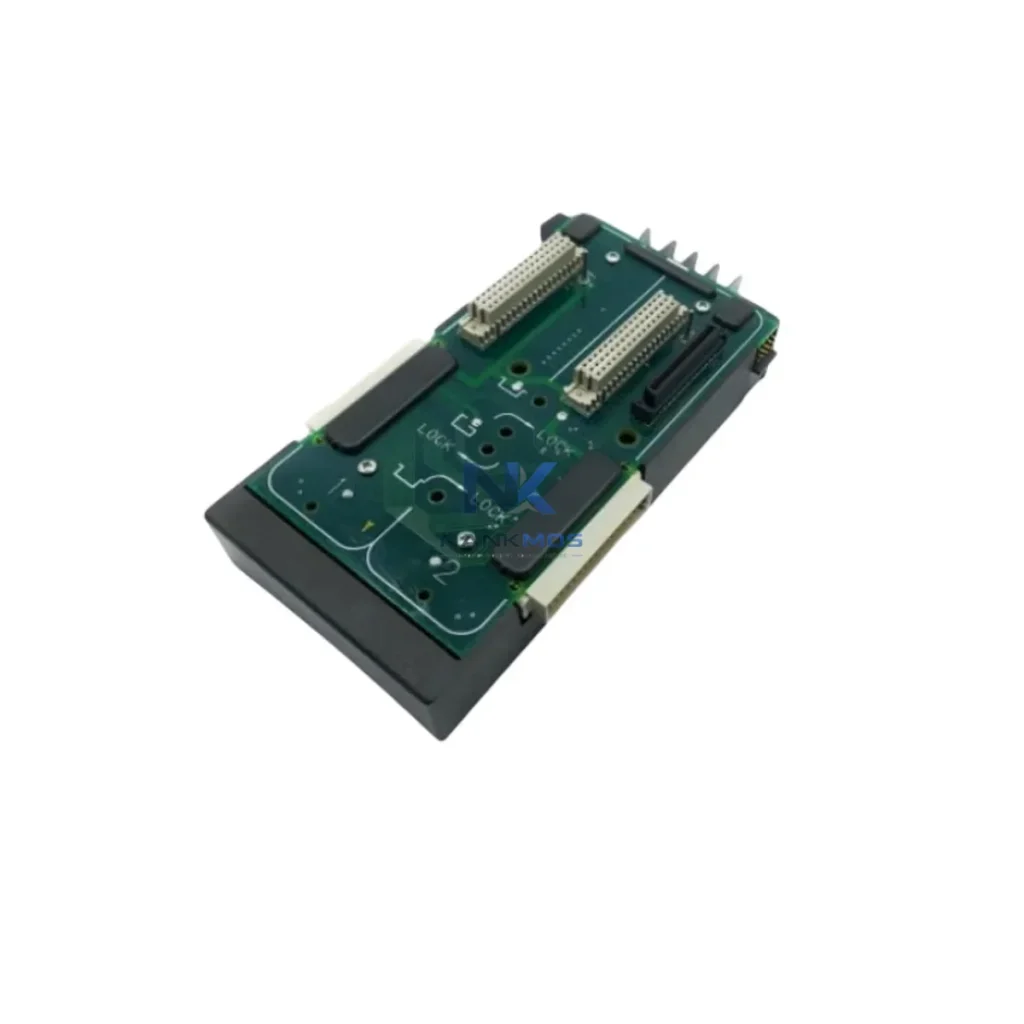

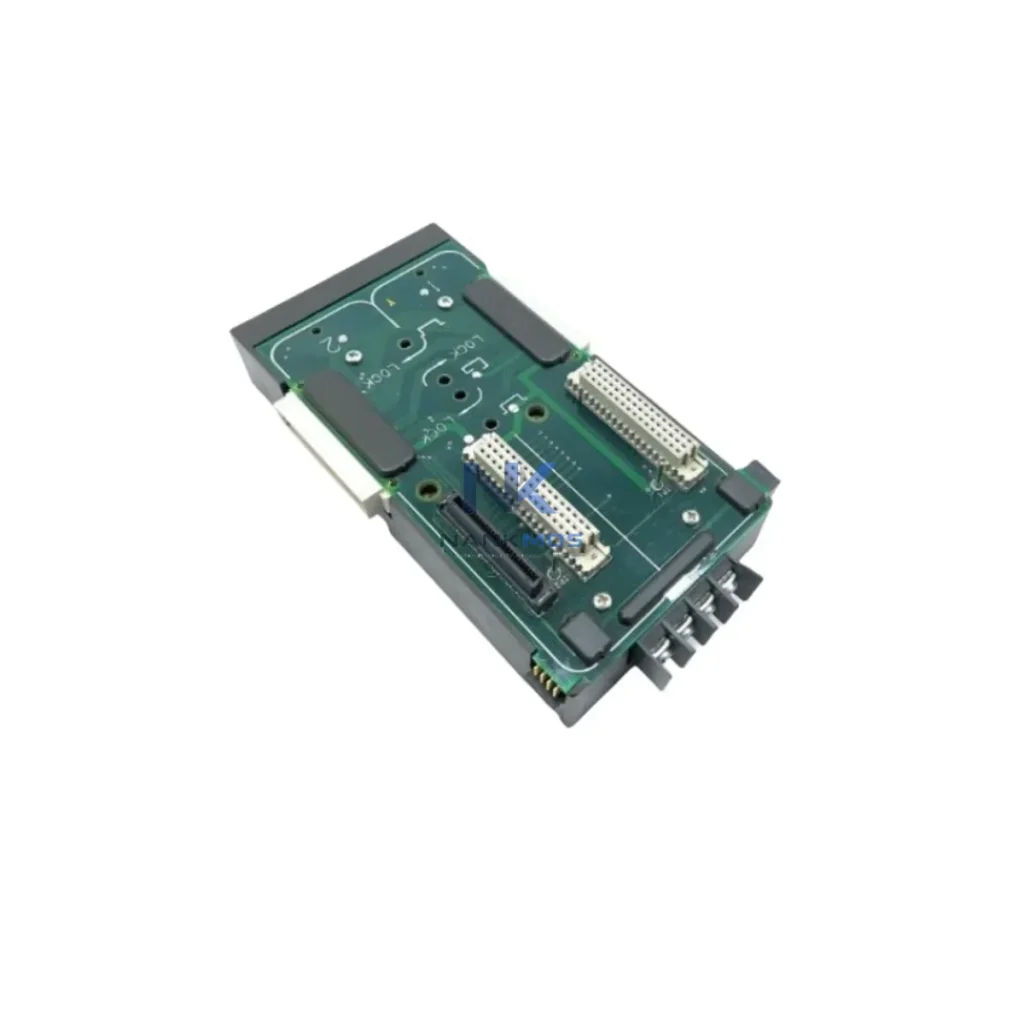

KJ4001X1-BA3 12P3378X012 VE3051C0 Product Description

The Emerson KJ4001X1-BA3 (also referenced as 12P3378X012 / VE3051C0) is a precision-engineered carrier base module designed for seamless integration within the Emerson DeltaV Distributed Control System (DCS) platform. As a foundational hardware element in the DeltaV I/O subsystem, this carrier base provides the mechanical and electrical interface between I/O modules and the DeltaV controller backplane, enabling structured, scalable, and maintainable control architecture across demanding industrial environments.

In modern process automation, the carrier base is not a passive component — it is the structural backbone of the I/O layer. The KJ4001X1-BA3 ensures signal integrity, module alignment, and bus continuity across the full DeltaV node, directly supporting system uptime, diagnostic transparency, and long-term field reliability. Whether deployed in a greenfield DCS installation or as a replacement in an existing DeltaV architecture, this carrier base delivers the mechanical precision and electrical compatibility required for mission-critical control environments.

The KJ4001X1-BA3 carrier base operates at the heart of the DeltaV I/O layer, and its value is best understood within the context of the full DeltaV control architecture. A complete DeltaV node typically integrates the following layers and components, all of which interact directly or indirectly with the carrier base:

Controller Layer: The DeltaV MD Plus Controller (KJ2003X1-BA1) or DeltaV M5Plus Controller manages all process logic and communicates with I/O modules through the carrier base bus. The carrier base must maintain electrical continuity and mechanical alignment to ensure deterministic scan cycles and reliable controller-to-field communication.

I/O Module Layer: Analog Input modules such as the KJ3002X1-BA1 (8-channel AI) and Digital Output modules such as the KJ3221X1-BA1 seat directly into the KJ4001X1-BA3 carrier slots. The carrier base provides the backplane connection, power distribution, and signal routing for each seated module, making module-level hot-swap and field replacement straightforward without disrupting adjacent channels.

Power Layer: The DeltaV Power Supply (KJ4001X1-BA1 or equivalent node power supply) feeds the carrier base bus. Proper power architecture — including redundant power supply configurations — ensures that the carrier base and all seated I/O modules maintain continuous operation during single-point power failures, a critical requirement in oil & gas, chemical, and power generation applications.

Communication Layer: DeltaV nodes communicate upstream to the DeltaV Application Station or Operator Workstation via Ethernet-based DeltaV Control Network. The carrier base supports this architecture by maintaining stable I/O bus performance, reducing latency between field signal acquisition and controller processing. In larger architectures, DeltaV Remote I/O Carriers and CHARM I/O modules (such as the CIOC — CHARM I/O Card) extend the I/O layer across marshalling cabinets, all relying on carrier base integrity for signal fidelity.

HMI and SCADA Layer: DeltaV Operate (the DeltaV HMI environment) and third-party SCADA systems receive process data originating from field instruments connected through I/O modules seated in the KJ4001X1-BA3 carrier. Accurate, low-noise signal transmission from the carrier bus directly impacts the quality of process visualization, alarm management, and operator decision-making.

Redundancy and Diagnostics: In redundant DeltaV architectures, paired carrier bases support redundant I/O module configurations, ensuring that a single module failure does not interrupt process monitoring or control. The DeltaV system's built-in diagnostics can detect carrier bus faults, module seating issues, and power anomalies, enabling maintenance teams to respond proactively before process impact occurs. Integration with the DeltaV Diagnostics application provides real-time health monitoring at the carrier and module level.

Terminal and Marshalling Layer: Field wiring terminates at DeltaV terminal blocks and marshalling panels before connecting to I/O modules seated in the carrier base. Proper carrier base installation ensures that field wiring, terminal block connections, and I/O module interfaces are mechanically stable and electrically isolated, reducing the risk of ground loops, signal cross-talk, and wiring errors during commissioning.

The Emerson KJ4001X1-BA3 carrier base is deployed across a wide range of process industries where DeltaV DCS platforms are the control standard:

Oil & Gas and Petrochemical: In upstream and downstream oil & gas facilities, DeltaV systems manage wellhead control, pipeline monitoring, separator control, and safety instrumented systems (SIS). The KJ4001X1-BA3 carrier base supports high-density I/O configurations in hazardous area control rooms, where module reliability and hot-swap capability are essential for continuous production.

Power Generation: Combined cycle power plants, cogeneration facilities, and renewable energy installations use DeltaV for turbine control, boiler management, and grid synchronization. The carrier base's robust backplane design ensures stable I/O performance under the electrical noise and vibration conditions common in power generation environments.

Chemical and Specialty Manufacturing: Batch and continuous chemical processes rely on DeltaV for recipe management, reactor control, and safety shutdown. The KJ4001X1-BA3 supports the high I/O channel counts required in multi-unit chemical plants, enabling modular expansion as production capacity grows.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities deploy DeltaV for pump control, chemical dosing, filtration monitoring, and SCADA integration. The carrier base's compatibility with DeltaV remote I/O configurations allows control architecture to span large geographic footprints with consistent signal quality.

Mining and Metals: Mineral processing, smelting, and materials handling operations use DeltaV for conveyor control, crusher management, and process optimization. The carrier base supports the rugged, high-availability I/O configurations required in dusty, high-vibration mining environments.

Pharmaceutical and Life Sciences: FDA-regulated pharmaceutical manufacturing requires validated DCS configurations with full audit trails and change management. The KJ4001X1-BA3 carrier base supports DeltaV's 21 CFR Part 11 compliance architecture, enabling validated I/O configurations with documented module replacement procedures.

Q1: Is the KJ4001X1-BA3 compatible with both legacy DeltaV S-Series and current DeltaV generation controllers?The KJ4001X1-BA3 is designed for the DeltaV I/O subsystem and is compatible with DeltaV S-Series and DeltaV M-Series controller nodes. It supports the standard DeltaV I/O bus architecture used across multiple DeltaV generations. For specific firmware and hardware revision compatibility, cross-reference the DeltaV Hardware Reference Manual or consult your DeltaV system integrator. NANKMOS can provide technical documentation and compatibility verification prior to shipment.

Q2: Can the KJ4001X1-BA3 be used in a redundant I/O configuration, and what additional components are required?Yes. DeltaV supports redundant I/O configurations where paired I/O modules operate in primary/secondary mode, with automatic failover on module fault. Implementing redundant I/O requires compatible redundant I/O modules (such as the KJ3002X1-BA1 in redundant pairs), a redundant power supply configuration, and proper DeltaV system configuration in DeltaV Explorer. The carrier base itself provides the physical slots for both primary and redundant module seating. NANKMOS stocks associated redundant I/O modules and can supply complete redundant node kits.

Q3: What is the warranty coverage and quality assurance process for the KJ4001X1-BA3 supplied by NANKMOS?All KJ4001X1-BA3 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing, visual inspection, and electrical verification to confirm backplane bus integrity and module slot condition. Units are shipped in anti-static packaging with full traceability documentation. In the event of a warranty claim, NANKMOS provides rapid replacement or repair support to minimize control system downtime. Contact [email protected] or +86 18359268345 for warranty registration and technical support.
