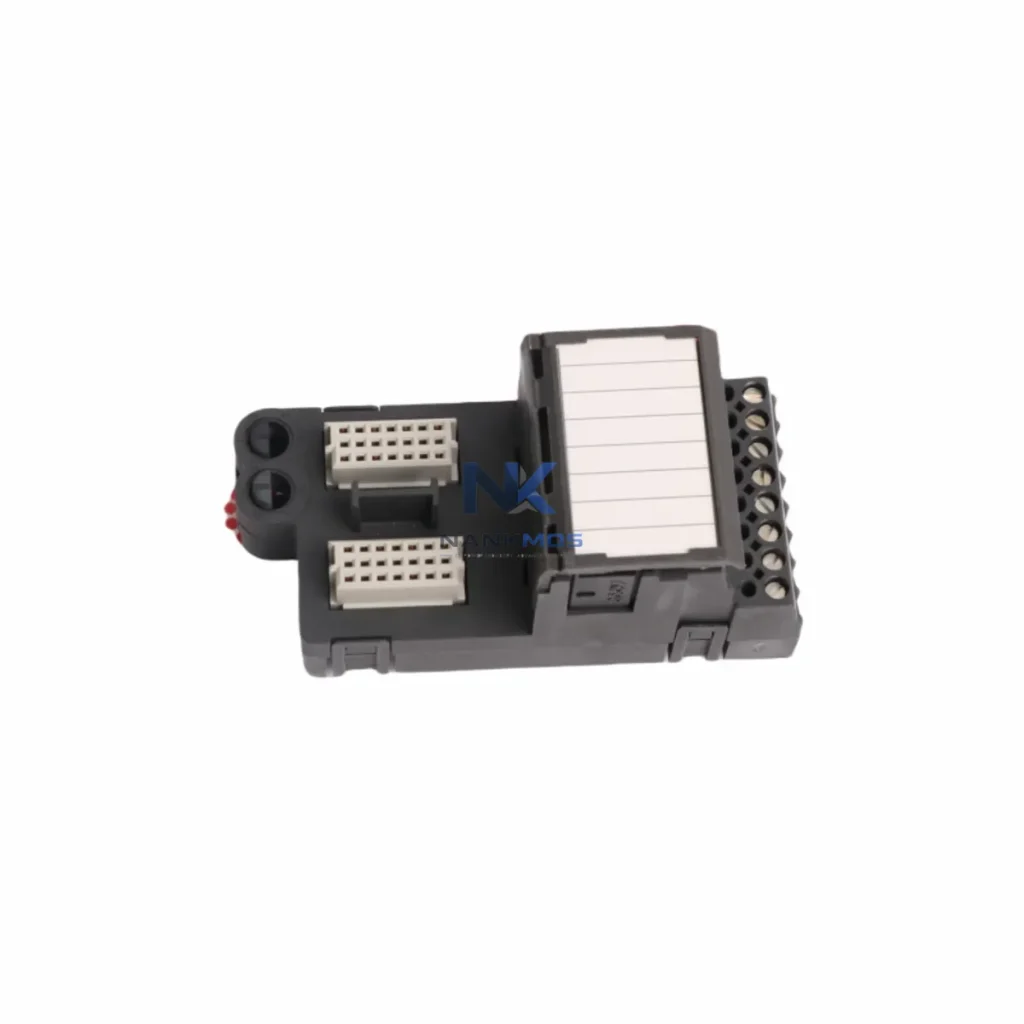

Emerson KJ4001X1-CB1 12P0625X072 I/O Terminal Block

Product Details

KJ4001X1-CB1 12P0625X072 Product Description

The Emerson KJ4001X1-CB1 (12P0625X072) is a precision-engineered I/O terminal block designed for the DeltaV distributed control system, purpose-built to support energy-efficient automation in process industries, manufacturing facilities, and energy-intensive production environments. As a critical interface component between field instruments and the DeltaV controller subsystem, the KJ4001X1-CB1 enables accurate signal routing, minimizes wiring losses, and supports the kind of deterministic I/O performance that underpins modern load management and energy optimization strategies. Whether deployed in chemical processing, oil and gas, power generation, or discrete manufacturing, this terminal block delivers the signal integrity and structural reliability that smart production lines demand.

In energy-aware automation architectures, every component in the signal chain contributes to overall system efficiency. The KJ4001X1-CB1 is no exception. By providing a stable, low-resistance termination point for analog and digital field signals, it reduces measurement error and signal drift — both of which can lead to overcorrection by control loops, unnecessary actuator cycling, and elevated energy consumption. When paired with the DeltaV M-Series or S-Series controllers, the terminal block ensures that field data arrives at the control layer with the fidelity required for precise PID tuning, reducing the energy overhead associated with hunting control loops and unstable process variables.

The KJ4001X1-CB1 operates at the intersection of field instrumentation and control logic, making it a foundational element in any power-aware automation strategy. In a typical DeltaV architecture, field signals from pressure transmitters, flow meters, temperature sensors, and motor feedback devices are terminated at the KJ4001X1-CB1 before being routed to the DeltaV I/O subsystem. The accuracy of these signals directly influences how the DeltaV controller — running on modules such as the KJ3001X1-BA1 controller card or the KJ2201X1-BA1 power supply module — responds to process deviations.

When integrated with variable frequency drives (VFDs) controlling pump and fan motors, the quality of the feedback signal terminated at the KJ4001X1-CB1 determines how precisely the DeltaV system can modulate motor speed. Accurate speed control is one of the highest-impact energy-saving measures available in process plants — reducing motor speed by just 20% can cut energy consumption by nearly 50% due to the affinity laws governing centrifugal loads. The KJ4001X1-CB1 ensures that the analog feedback from VFD status outputs and motor current sensors reaches the DeltaV controller without degradation, enabling tight closed-loop speed regulation.

Similarly, when the DeltaV system interfaces with Emerson's AMS Device Manager or HART-enabled field instruments via the KJ4001X1-CB1 terminal block, operators gain access to real-time device diagnostics. This data feeds into predictive maintenance workflows, allowing maintenance teams to identify failing sensors, degraded actuators, or drifting transmitters before they cause process upsets — upsets that typically result in energy-intensive recovery operations, emergency shutdowns, or off-spec production runs. The KJ4001X1-CB1 also supports integration with Emerson's DeltaV Insight analytics platform and SCADA systems via OPC-DA/UA gateways, enabling plant-wide energy dashboards that aggregate consumption data from across the production line.

In multi-loop control architectures, the terminal block works alongside DeltaV SIS safety instrumented system modules, Emerson Rosemount 3051 pressure transmitters, Fisher control valves with FIELDVUE digital valve controllers, and Micro Motion Coriolis flow meters. Each of these devices relies on the KJ4001X1-CB1 as the physical termination point that bridges field wiring to the DeltaV backplane — making its reliability and signal integrity non-negotiable in energy-critical applications.

Modern production lines face increasing pressure to reduce energy intensity — measured in kWh per unit of output — while maintaining throughput, quality, and uptime. The KJ4001X1-CB1 contributes to this goal in several interconnected ways.

Reduced Actuator Cycling: Signal noise and termination errors at the I/O layer cause control loops to oscillate, driving unnecessary actuator movement. Each unnecessary valve stroke or motor start consumes energy and accelerates mechanical wear. The KJ4001X1-CB1's robust terminal design minimizes these error sources, stabilizing control loop behavior and reducing actuator energy demand.

Lower Thermal Load in Control Panels: Poor-quality terminal blocks with high contact resistance generate excess heat within marshalling cabinets and control panels. This heat must be removed by panel cooling systems — typically air conditioners or heat exchangers — which themselves consume significant energy. The KJ4001X1-CB1's low-resistance contacts reduce self-heating, contributing to a lower overall thermal load in the control room environment.

Stable Production Rhythm: In batch and continuous processes alike, process variability driven by poor signal quality leads to production rhythm disruptions — extended batch cycles, increased raw material consumption, and higher energy use per unit. By ensuring clean, stable signal transmission, the KJ4001X1-CB1 supports the consistent process conditions that enable optimized production scheduling and energy-efficient batch sequencing.

Predictive Maintenance Enablement: When field device diagnostics are accurately transmitted through the KJ4001X1-CB1 to the DeltaV system, maintenance teams can act on early warning indicators rather than responding to failures. Planned maintenance windows are far less energy-intensive than emergency repairs, which often require extended equipment restarts, purge cycles, and off-spec production disposal.

Equipment Utilization Improvement: Reliable I/O termination reduces the frequency of nuisance trips and false alarms that take equipment offline unnecessarily. Higher equipment availability means more production output per unit of energy consumed — directly improving the energy intensity metric that modern industrial facilities track as a key performance indicator.

All units supplied by NANKMOS undergo outgoing quality inspection and functional verification prior to shipment, ensuring that the KJ4001X1-CB1 you receive performs to Emerson's original specification from day one. Stock is maintained for prompt dispatch, and each unit is covered by a 12-Month Warranty against manufacturing defects and functional failures.

Q1: How does the KJ4001X1-CB1 contribute to energy savings in a DeltaV-controlled plant? The KJ4001X1-CB1 provides accurate, low-noise signal termination between field instruments and the DeltaV I/O subsystem. This signal integrity enables tighter control loop tuning, reduces actuator overcycling, and supports precise VFD speed control — all of which directly reduce energy consumption in motor-driven and valve-controlled processes.

Q2: Is the KJ4001X1-CB1 compatible with both analog and digital I/O modules in the DeltaV system? Yes. The KJ4001X1-CB1 is designed for use within the Emerson DeltaV I/O subsystem and supports termination of both analog (4–20 mA, HART) and digital (discrete) field signals, making it suitable for a wide range of process measurement and control applications across the DeltaV M-Series and S-Series platforms.

Q3: Can the KJ4001X1-CB1 replace an existing terminal block in a live DeltaV system, and what is the recommended replacement procedure? Direct replacement is supported within the DeltaV I/O architecture. The recommended procedure involves placing the affected I/O channel in manual mode via the DeltaV operator workstation, de-energizing the field loop, removing the existing terminal block, installing the KJ4001X1-CB1, verifying signal continuity, and returning the channel to automatic control. NANKMOS recommends performing replacement during a scheduled maintenance window to minimize production impact.

Q4: What warranty and quality assurance does NANKMOS provide for the KJ4001X1-CB1? Every KJ4001X1-CB1 supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures. Prior to shipment, each unit undergoes outgoing quality inspection to verify physical integrity and functional performance. In-stock units are available for prompt dispatch to minimize downtime in your facility.
