Emerson KJ4001X2-BE1 12P0818X072 I/O Carrier Module

Product Details

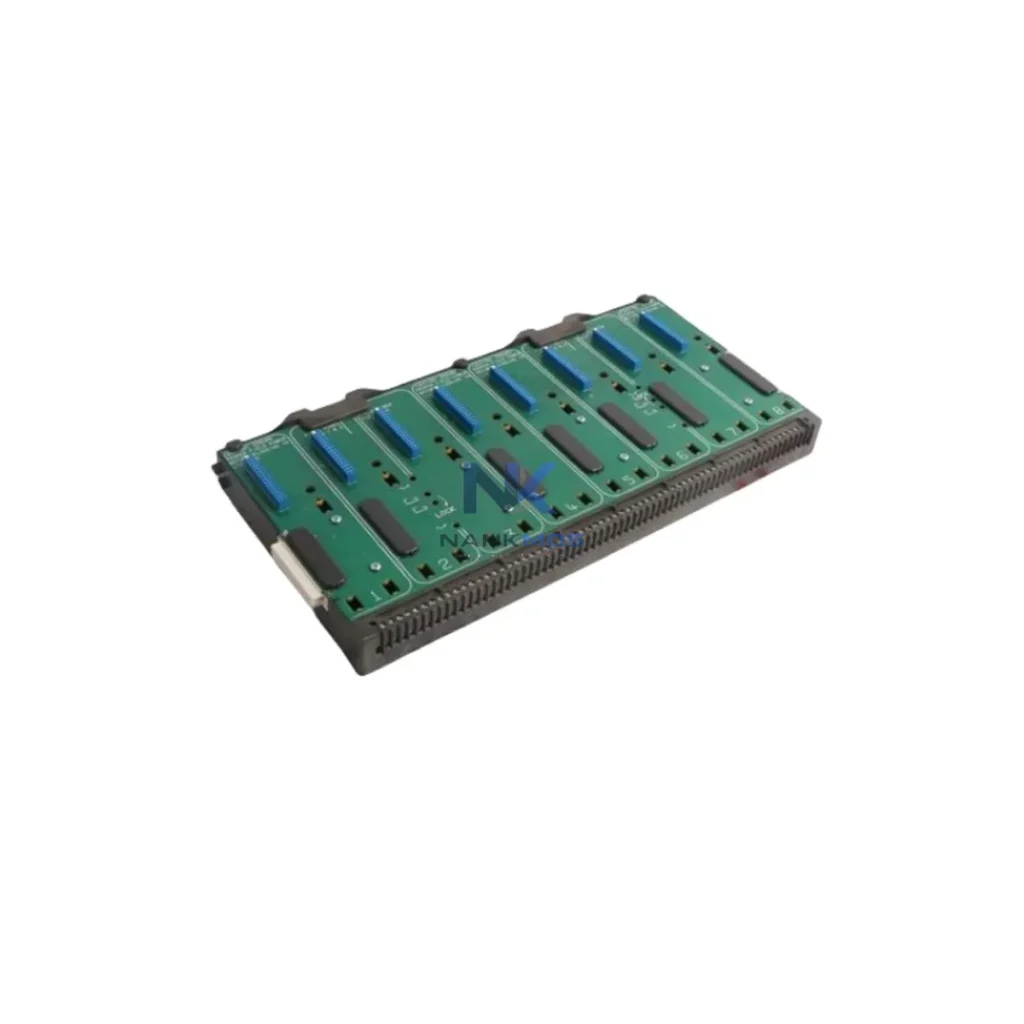

KJ4001X2-BE1 12P0818X072 Product Description

The Emerson KJ4001X2-BE1 12P0818X072 is a precision-engineered I/O Carrier Module designed for seamless integration within the Emerson DeltaV distributed control system (DCS) architecture. As a foundational element of the DeltaV S-series I/O subsystem, this carrier provides the physical and electrical interface between field-wired terminal blocks and the DeltaV Electronic Marshalling infrastructure, enabling deterministic signal routing, modular I/O expansion, and long-term maintainability across process-critical installations.

Engineered for demanding industrial environments, the KJ4001X2-BE1 12P0818X072 supports the DeltaV CHARM (Characterization Module) ecosystem, allowing field signals to be characterized at the marshalling cabinet level without rewiring. This architecture-level flexibility reduces commissioning time, simplifies loop modifications, and supports phased project execution — making it a preferred choice for greenfield DCS builds and brownfield migration projects alike.

The KJ4001X2-BE1 12P0818X072 operates as a core I/O layer component within a fully integrated DeltaV control architecture. Its system role becomes most apparent when viewed alongside the broader platform stack that Emerson DeltaV installations typically deploy.

At the controller layer, the DeltaV M-series or S-series Controller (such as the MD Plus or SD Plus) manages process execution and communicates with I/O subsystems via the DeltaV control network. The KJ4001X2-BE1 carrier interfaces directly with the DeltaV CIOC (Cabinet I/O Controller) or WIOC (Wireless I/O Controller), which serves as the local I/O bus master, coordinating signal acquisition from all CHARM carriers within the marshalling cabinet.

Each carrier slot accepts individual DeltaV CHARM modules — such as the KJ3221X1-BA1 AI CHARM for 4–20 mA HART analog inputs, the KJ3222X1-BA1 AO CHARM for analog output loops, or the KJ3231X1-BA1 DI CHARM for discrete field contacts. This modular characterization approach eliminates the need for traditional marshalling panels and allows signal type changes without cabinet rewiring.

Power integrity across the marshalling cabinet is maintained by the DeltaV Power Supply Module (such as the KJ4001X1-BA1 series), which feeds the carrier bus and ensures stable voltage delivery to all active CHARMs. For redundant power architectures, dual power supply configurations are supported natively within the DeltaV cabinet design.

At the field termination layer, DeltaV Bulk Terminal Blocks and Intrinsic Safety Barriers (where required for Zone 1/Zone 2 hazardous area installations) connect directly to the carrier's field wiring terminals. The CHARM architecture supports IS-rated CHARMs for direct Zener barrier or galvanic isolator integration, reducing panel footprint in safety-classified areas.

For system-wide visibility, the DeltaV Operator Workstation (OWS) and DeltaV Engineering Workstation (EWS) provide real-time diagnostics, loop commissioning tools, and HART pass-through communication — enabling field device configuration without breaking the process loop. Integration with AMS Device Manager further extends predictive maintenance capability across all HART-enabled field instruments connected through the carrier.

In larger installations, the DeltaV Application Station and DeltaV Historian aggregate process data from all I/O nodes, supporting long-term trend analysis, regulatory compliance reporting, and advanced process control (APC) integration. The KJ4001X2-BE1 carrier's role in this architecture is to ensure deterministic, low-latency signal delivery from field to controller — a prerequisite for closed-loop control performance in process-critical applications.

The Emerson KJ4001X2-BE1 12P0818X072 I/O Carrier is deployed across a wide range of process industries where DeltaV DCS architecture is the platform of choice for regulatory control, safety integration, and operational continuity.

In oil and gas upstream and midstream facilities, the carrier supports wellhead automation, separator control, and pipeline SCADA integration. Its CHARM-based architecture allows rapid loop reconfiguration during production optimization campaigns without process interruption. In LNG and refinery applications, the carrier's compatibility with IS-rated CHARMs enables direct deployment in classified hazardous areas, reducing the need for remote I/O enclosures.

In power generation and utility control, DeltaV systems equipped with KJ4001X2-BE1 carriers manage boiler combustion control, turbine auxiliary systems, and balance-of-plant automation. The carrier's online diagnostic capability supports condition-based maintenance strategies aligned with planned outage schedules.

In pharmaceutical and biotech manufacturing, the DeltaV platform's 21 CFR Part 11 compliance framework relies on accurate, validated I/O signal chains. The KJ4001X2-BE1 carrier's channel-level diagnostics and HART transparency support instrument qualification and batch record integrity requirements.

In water and wastewater treatment, the carrier enables distributed I/O deployment across pump stations, filtration systems, and chemical dosing skids — reducing field wiring costs while maintaining centralized DCS visibility. In mining and minerals processing, the carrier's robust operating temperature range and DIN rail mounting support deployment in remote, environmentally challenging control rooms.

In food and beverage and packaging lines, the modular CHARM architecture supports rapid product changeover and recipe-driven control, with the carrier providing the stable I/O foundation for high-speed discrete and analog signal management.

Q1: Is the KJ4001X2-BE1 12P0818X072 compatible with all DeltaV CHARM module types?The KJ4001X2-BE1 carrier is designed for the DeltaV Electronic Marshalling platform and is compatible with the full range of DeltaV CHARM characterization modules, including AI, AO, DI, DO, and HART-enabled variants. Compatibility with specific CHARM generations (standard vs. IS-rated) should be confirmed against the DeltaV system version and CIOC/WIOC firmware revision in use. NANKMOS recommends verifying the carrier revision level against your DeltaV system's hardware compatibility matrix prior to installation.

Q2: Can this carrier be replaced online without shutting down the DeltaV controller or affecting adjacent I/O channels?DeltaV Electronic Marshalling architecture supports online CHARM replacement at the module level; however, carrier-level replacement typically requires field wiring disconnection at the terminal block. The CHARM modules themselves can be hot-swapped without affecting adjacent channels on the same carrier, provided the CIOC/WIOC remains powered and the DeltaV controller maintains its scan cycle. For carrier replacement planning, NANKMOS recommends coordinating with your DeltaV system integrator to schedule the procedure during a planned maintenance window to minimize process impact.

Q3: What warranty and pre-shipment testing does NANKMOS provide for the KJ4001X2-BE1 12P0818X072?All KJ4001X2-BE1 12P0818X072 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify electrical integrity, connector condition, and firmware readiness prior to dispatch. NANKMOS maintains in-stock inventory of DeltaV I/O carrier modules to support urgent project timelines and unplanned maintenance requirements. For procurement inquiries, lead time confirmation, or technical pre-sales support, contact [email protected] or +86 18359268345.
