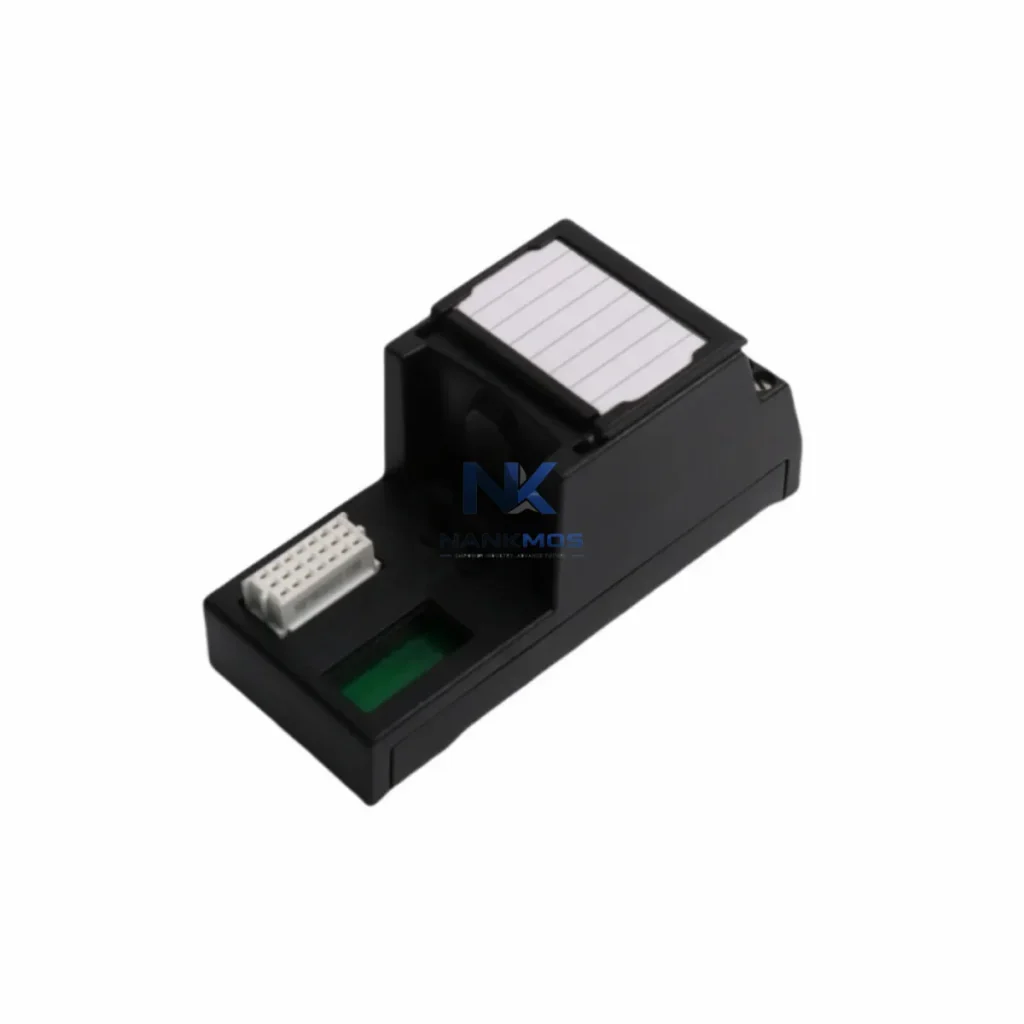

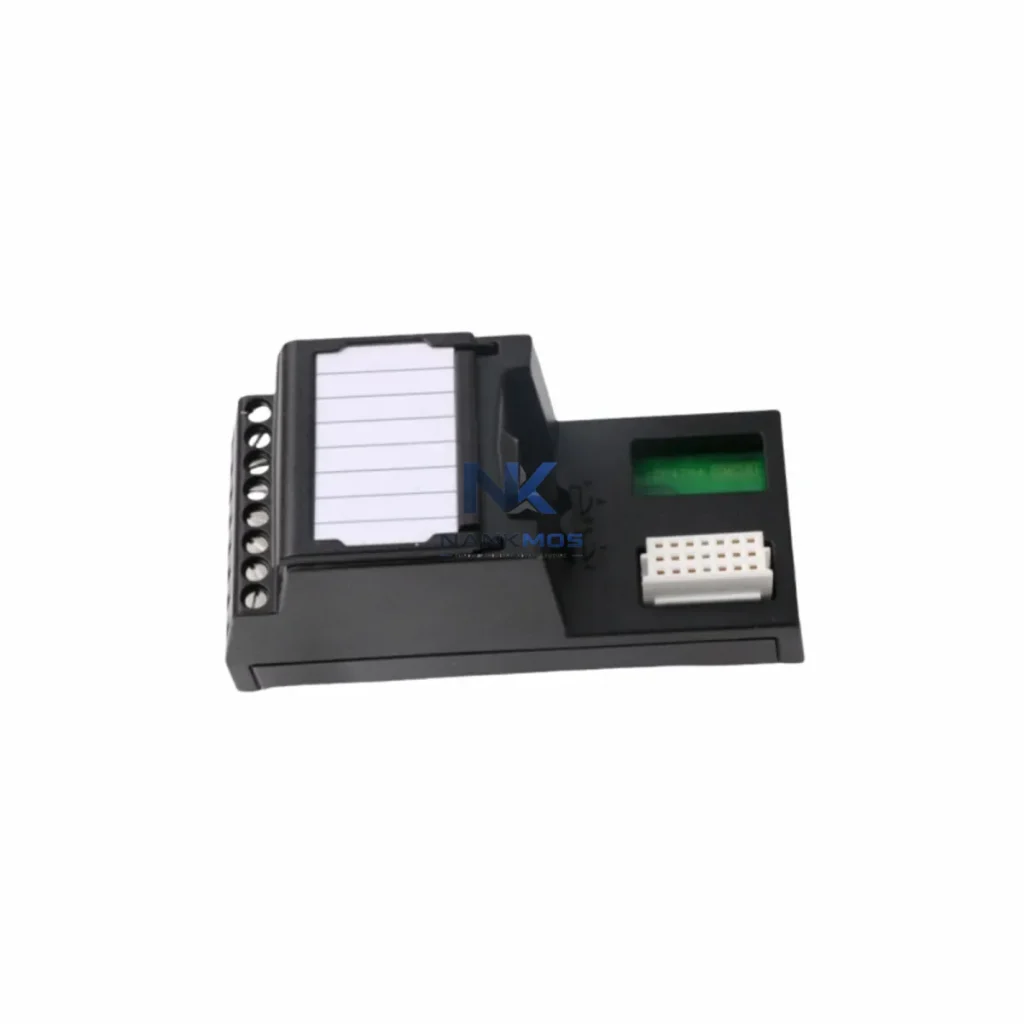

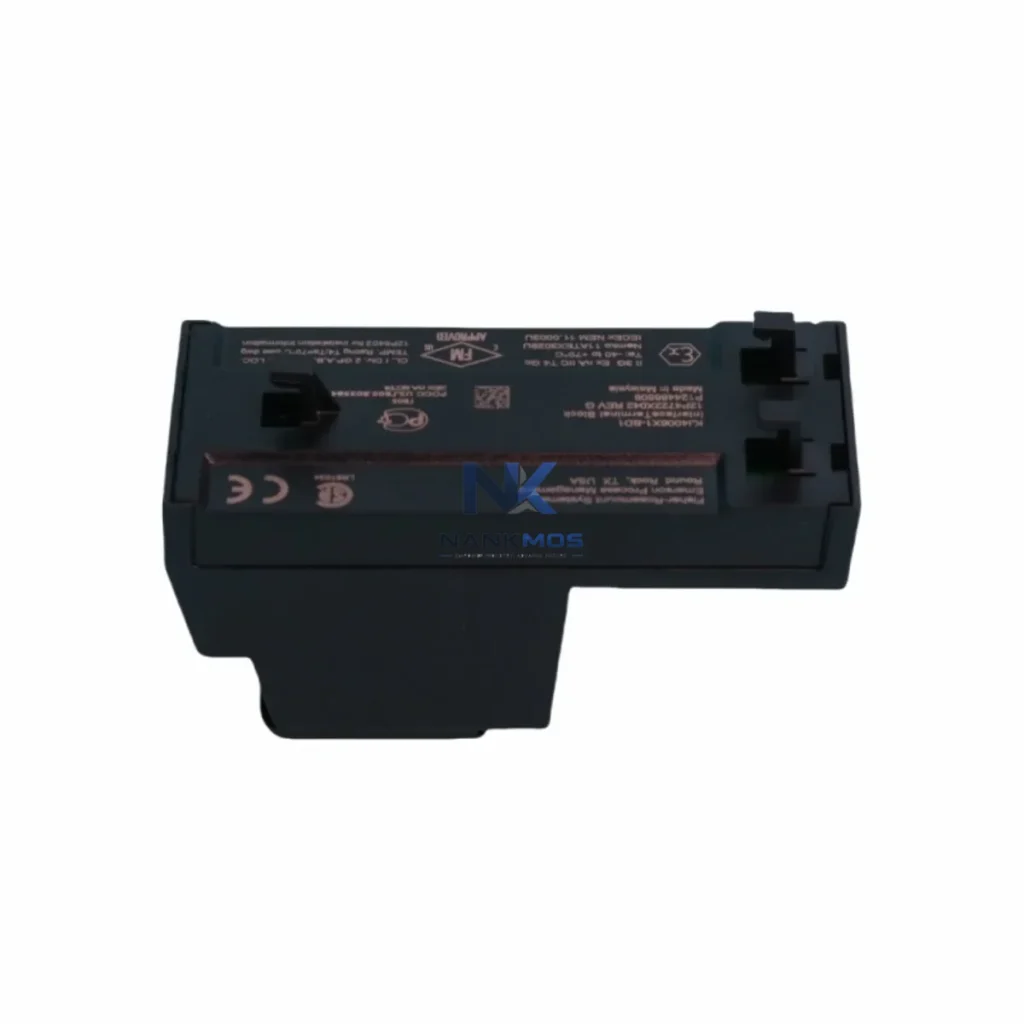

Emerson KJ4006X1-BC1 12P4720X062 DCS Terminal Block

Product Details

KJ4006X1-BC1 12P4720X062 Product Description

The Emerson KJ4006X1-BC1 12P4720X062 is a system-matched fused terminal block engineered for seamless integration within the Emerson DeltaV Distributed Control System (DCS) architecture. Designed to interface directly with DeltaV I/O subsystems, this terminal block plays a critical role in maintaining signal integrity, field wiring protection, and modular expandability across multi-layer industrial control platforms. Whether deployed in greenfield automation projects or brownfield upgrades, the KJ4006X1-BC1 12P4720X062 delivers the electrical reliability and architectural consistency demanded by modern process control environments.

In a fully integrated DeltaV control architecture, every layer — from the controller level down to field instrumentation — must operate with precision and interoperability. The KJ4006X1-BC1 12P4720X062 occupies the I/O layer, serving as the physical and electrical bridge between field devices and the DeltaV I/O cards. Its fused design provides individual channel protection, preventing fault propagation across the I/O bus and ensuring that a single field wiring fault does not compromise adjacent channels or upstream controller modules such as the KJ2003X1-BA1 DeltaV Controller or the KJ3001X1-BA1 Power Supply module.

System architects integrating the KJ4006X1-BC1 12P4720X062 benefit from its compatibility with the DeltaV CHARM I/O architecture and traditional S-series I/O subsystems. When paired with CHARM I/O cards like the KJ3221X1-BA1 Analog Input CHARM or the KJ3222X1-BA1 Analog Output CHARM, the terminal block ensures consistent signal conditioning and loop integrity from the field junction box to the DeltaV workstation. This contextual integration capability reduces commissioning time and simplifies loop verification during factory acceptance testing (FAT) and site acceptance testing (SAT).

From a communication layer perspective, the DeltaV architecture relies on deterministic Ethernet-based communication between controllers and I/O subsystems. The KJ4006X1-BC1 12P4720X062 supports this architecture by maintaining clean, low-impedance field connections that minimize noise injection into analog signal paths. When used alongside DeltaV network infrastructure components such as the CIOC (Controller I/O Card) and redundant DeltaV network switches, the terminal block contributes to overall system communication stability and uptime.

Power layer integrity is equally critical in DeltaV deployments. The KJ4006X1-BC1 12P4720X062 is designed to operate within the voltage and current parameters defined by the DeltaV I/O power distribution architecture. When the system incorporates redundant power supplies — such as dual KJ3001X1-BA1 units in a 1oo2 power redundancy configuration — the terminal block's fused channels ensure that power faults are isolated at the field level, protecting both the I/O cards and the field instruments connected downstream.

For HMI and SCADA integration, the signal quality maintained by the KJ4006X1-BC1 12P4720X062 directly impacts the accuracy of process variable readings displayed on DeltaV Operate workstations and third-party SCADA systems connected via OPC-DA or OPC-UA interfaces. Accurate field wiring termination at the terminal block level is the foundation of reliable process visualization, alarm management, and advanced process control (APC) performance.

In execution layer applications — including control of variable frequency drives (VFDs), solenoid valves, and smart field instruments such as HART-enabled transmitters — the KJ4006X1-BC1 12P4720X062 provides the necessary fused protection to safeguard both the DeltaV I/O cards and the connected actuators. This is particularly important in high-density I/O marshalling cabinets where multiple field loops share a common terminal block assembly.

The protection layer benefits of the fused terminal block design extend to arc flash risk reduction during maintenance activities. Technicians can safely isolate individual field circuits without de-energizing the entire I/O subsystem, enabling hot-work procedures in compliance with NFPA 70E and IEC 60079 standards for hazardous area maintenance.

Long-term maintenance efficiency is a key design consideration for the KJ4006X1-BC1 12P4720X062. Its modular form factor allows individual fuse replacement without disturbing adjacent wiring, reducing mean time to repair (MTTR) and minimizing production downtime. Maintenance teams working with DeltaV Asset Management Solutions (AMS) can correlate field wiring faults detected at the terminal block level with device health diagnostics, enabling predictive maintenance workflows that extend equipment lifecycle and reduce unplanned shutdowns.

NANKMOS maintains verified inventory of the Emerson KJ4006X1-BC1 12P4720X062, with pre-shipment functional testing performed on every unit. Each module is covered by a 12-Month Warranty, ensuring that your control architecture investment is protected from the moment of installation through the first year of operation. Our global logistics network supports expedited delivery to process industries across Asia, Europe, the Middle East, and the Americas.

The KJ4006X1-BC1 12P4720X062 achieves its full performance potential when deployed as part of a cohesive DeltaV automation platform. A typical DeltaV control cabinet integrating this terminal block may include the following components working in concert:

At the control layer, the KJ2003X1-BA1 DeltaV MD Controller manages process logic execution and communicates with I/O subsystems over the DeltaV control network. Redundant controller configurations using paired MD Controllers ensure continuous process control even during controller module failures. The KJ3001X1-BA1 DeltaV Power Supply provides regulated DC power to the I/O bus, with dual-supply redundancy configurations protecting against single-point power failures.

At the I/O layer, the KJ4006X1-BC1 12P4720X062 terminal block interfaces with KJ3221X1-BA1 Analog Input CHARM modules for 4–20 mA field instrument connections and KJ3222X1-BA1 Analog Output CHARM modules for control valve positioner signals. Digital I/O applications utilize KJ3241X1-BA1 Discrete Input CHARM and KJ3242X1-BA1 Discrete Output CHARM modules, all mounted on the DeltaV CIOC carrier.

Communication layer integrity is maintained through the DeltaV CIOC (Controller I/O Card), which aggregates I/O data from CHARM modules and transmits it to the MD Controller over the redundant DeltaV Ethernet control network. Industrial-grade managed Ethernet switches with fiber uplinks ensure deterministic communication latency across large DeltaV installations spanning multiple control rooms and field junction boxes.

At the HMI layer, DeltaV Operate workstations provide real-time process visualization, with signal data originating from field instruments terminated at the KJ4006X1-BC1 12P4720X062. The accuracy of this data chain — from field transmitter through fused terminal block to I/O card to controller to HMI — is the foundation of effective process monitoring and alarm management.

For marshalling cabinet applications, the KJ4006X1-BC1 12P4720X062 is typically installed alongside DeltaV CHARM I/O Carriers and DeltaV Electronic Marshalling (EM) infrastructure, enabling flexible field wiring assignment without physical rewiring. This architecture significantly reduces engineering change order (ECO) costs during project execution and plant modifications.

Oil & Gas and Petrochemical: In upstream and downstream hydrocarbon processing facilities, the KJ4006X1-BC1 12P4720X062 is deployed in safety-critical marshalling cabinets where field instrument signals from pressure transmitters, temperature elements, and flow meters must be reliably terminated and protected. DeltaV DCS platforms are widely used in LNG liquefaction trains, crude distillation units, and gas compression stations, where the fused terminal block's channel isolation capability is essential for maintaining SIL-rated loop integrity.

Power Generation and Utilities: Combined cycle power plants and cogeneration facilities utilize DeltaV DCS for boiler management, turbine control, and balance-of-plant automation. The KJ4006X1-BC1 12P4720X062 supports high-density I/O marshalling in generator control panels, where reliable field wiring termination directly impacts plant availability and grid stability.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems deploy DeltaV DCS for pump sequencing, chemical dosing control, and filtration process management. The terminal block's modular fuse replacement capability minimizes maintenance downtime in 24/7 continuous operation environments.

Mining and Minerals Processing: Concentrator plants and smelting operations use DeltaV DCS for crusher control, flotation cell management, and conveyor automation. The KJ4006X1-BC1 12P4720X062 provides robust field wiring protection in high-vibration, high-dust control cabinet environments typical of mining applications.

Pharmaceutical and Life Sciences: FDA-regulated manufacturing facilities require validated DCS platforms with full audit trail capability. DeltaV's built-in batch management and electronic records compliance (21 CFR Part 11) make it the preferred platform for bioreactor control, CIP/SIP automation, and cleanroom HVAC management, with the KJ4006X1-BC1 12P4720X062 supporting validated I/O termination in GMP-compliant control panels.

Q1: Is the KJ4006X1-BC1 12P4720X062 compatible with both DeltaV CHARM I/O and traditional S-Series I/O architectures?A: Yes. The KJ4006X1-BC1 12P4720X062 is designed for use within the Emerson DeltaV ecosystem and is compatible with both the Electronic Marshalling (CHARM) architecture and the traditional S-Series I/O subsystem. When integrating with CHARM I/O, the terminal block interfaces with CHARM carriers and individual CHARM modules, enabling flexible signal assignment. In S-Series applications, it provides standard fused termination for analog and discrete I/O cards. Always verify the specific I/O card model and carrier configuration with your DeltaV system documentation before installation.

Q2: How does the fused terminal block design improve long-term maintenance efficiency in DeltaV control cabinets?A: The individual channel fusing of the KJ4006X1-BC1 12P4720X062 allows maintenance technicians to isolate and replace a single blown fuse without interrupting adjacent field loops or requiring a full I/O subsystem shutdown. This capability is critical in continuous process industries where unplanned downtime carries significant production cost. Combined with DeltaV AMS diagnostic tools, maintenance teams can correlate fuse events with field device health data, enabling root cause analysis and predictive maintenance scheduling that extends the operational lifecycle of both the terminal block and connected field instruments.

Q3: What warranty and supply chain support does NANKMOS provide for the KJ4006X1-BC1 12P4720X062?A: NANKMOS provides a 12-Month Warranty on all KJ4006X1-BC1 12P4720X062 units, covering manufacturing defects and functional failures under normal operating conditions. Every unit undergoes pre-shipment functional testing to verify electrical integrity before dispatch. Our inventory management system maintains buffer stock of critical DeltaV spare parts to support emergency procurement requirements, with expedited global shipping available to minimize control system downtime. For project procurement, volume pricing and lead time commitments are available upon request. Contact us at [email protected] or +86 18359268345 for availability confirmation and technical support.
