Emerson KJ4006X1-BP1 Industrial Network Interface

Product Details

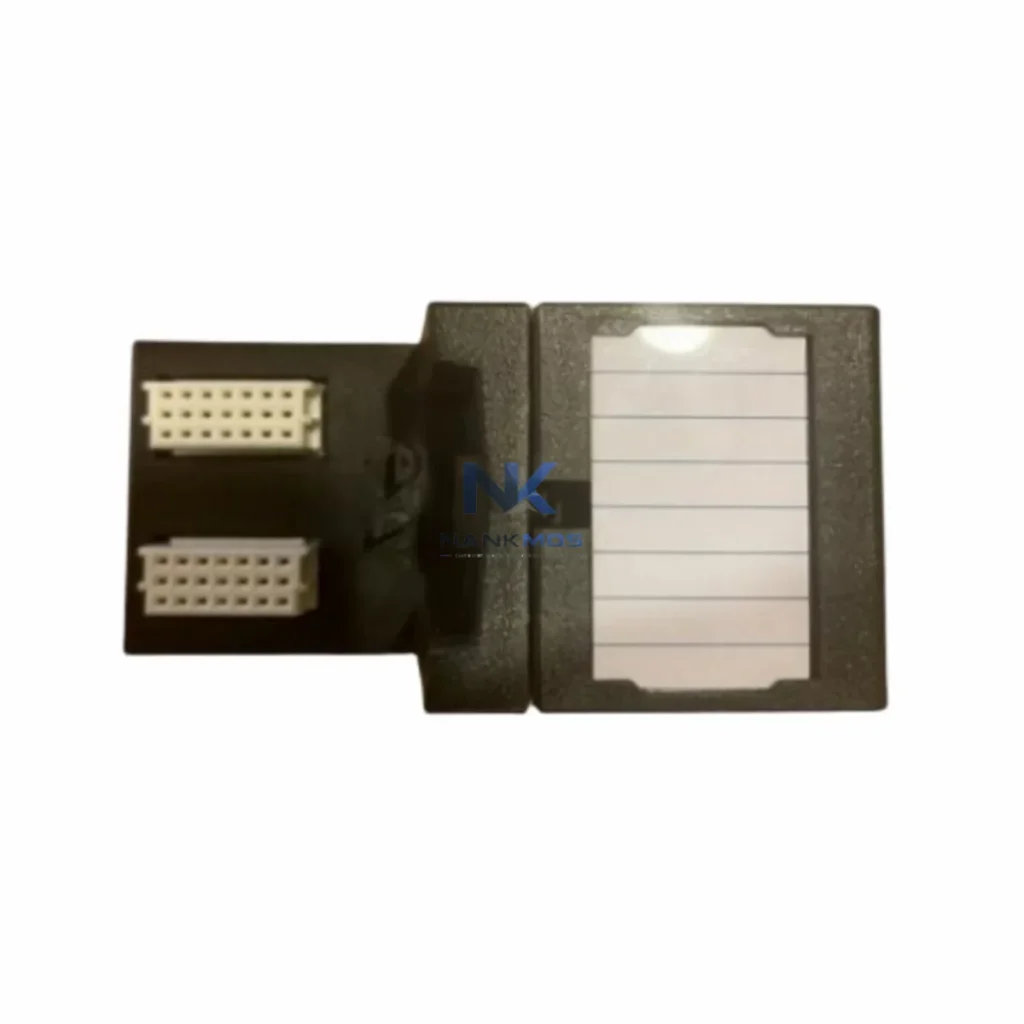

KJ4006X1-BP1 Product Description

In modern smart manufacturing environments, the integrity of the data link between field instruments and supervisory control systems determines the responsiveness of the entire production line. The Emerson KJ4006X1-BP1 is a precision-engineered backplane interface module designed for the DeltaV S-Series controller chassis, providing the foundational communication backbone that connects field-level signals to the DeltaV distributed control system. As industrial facilities accelerate their transition toward Industry 4.0 architectures, the KJ4006X1-BP1 plays a critical role in ensuring that every data point — from sensor signal acquisition to SCADA visualization — travels reliably, in real time, and without protocol ambiguity.

The KJ4006X1-BP1 is not simply a passive backplane component. It actively manages the internal bus communication within the DeltaV S-Series chassis, coordinating data exchange between the controller CPU, I/O subsystem modules, and the broader plant network. This makes it an indispensable element in any DeltaV-based control architecture where data continuity, deterministic communication, and system uptime are non-negotiable requirements.

The data journey in a DeltaV-based smart factory begins at the field instrument level. Temperature transmitters, pressure sensors, flow meters, and valve positioners — many communicating over HART protocol — feed their process values into the DeltaV I/O subsystem. The KJ4006X1-BP1 backplane interface serves as the internal communication spine of the S-Series chassis, ensuring that data from HART-enabled I/O cards such as the KJ3002X1-BA1 analog input module and KJ3221X1-BA1 HART I/O module is reliably transferred to the DeltaV controller CPU without latency or data loss.

At the controller level, the DeltaV MD Plus Controller processes incoming field data and executes control logic in real time. The KJ4006X1-BP1 ensures that the backplane bus between the controller and its associated I/O cards maintains deterministic timing — a requirement for closed-loop PID control, cascade strategies, and safety interlock functions. This determinism is what separates a well-engineered DCS from a loosely coupled data acquisition system.

Moving up the automation hierarchy, the DeltaV system connects to plant-level SCADA and HMI platforms via OPC DA/UA or DeltaV's native Ethernet communication layer. Operators at the DeltaV Operate HMI workstation receive live process data, alarm notifications, and trend histories sourced directly from the field instruments — all routed through the KJ4006X1-BP1's backplane communication path. This seamless data flow enables operators to monitor critical process variables, acknowledge alarms, and initiate corrective actions without leaving the control room.

For facilities deploying Foundation Fieldbus segments, the KJ4006X1-BP1 chassis supports hosting of KJ3232X1-BA1 Fieldbus H1 interface cards, which connect directly to FF device segments carrying smart transmitters and actuators. The backplane interface manages the data handoff between the Fieldbus segment and the DeltaV controller, preserving the full device descriptor (DD) information that enables advanced diagnostics and predictive maintenance workflows.

In remote monitoring and edge computing scenarios, the DeltaV system can interface with Emerson Smart Wireless Gateways and third-party industrial edge gateways running MQTT or OPC-UA publish/subscribe models. Data aggregated at the edge is synchronized with the DeltaV historian and forwarded to cloud-based analytics platforms for long-term trend analysis, energy optimization, and asset performance management. The KJ4006X1-BP1 ensures that the on-premise DCS layer remains the authoritative real-time data source, while edge and cloud layers consume structured, validated process data.

Network infrastructure supporting the DeltaV system typically includes managed industrial Ethernet switches configured with VLAN segmentation to isolate control traffic from business network traffic. Redundant ring topologies using RSTP or MRP protocols protect against single-point network failures. The KJ4006X1-BP1's role within this architecture is to guarantee that the chassis-level communication remains unaffected by upstream network events, providing a stable, isolated data path for time-critical control functions.

For power and signal integrity, the S-Series chassis powered by the KJ4006X1-BP1 backplane interface is typically paired with DeltaV redundant power supplies and UPS systems to ensure continuous operation during power transients. This combination of hardware redundancy at the power, communication, and controller levels forms the resilient foundation that modern smart factories demand.

Protocol Fragmentation: Many legacy automation sites operate with a mix of HART, Modbus RTU, Foundation Fieldbus, and proprietary protocols across different generations of field devices. The DeltaV S-Series architecture, anchored by the KJ4006X1-BP1 backplane interface, provides a unified I/O subsystem that accommodates multiple protocol types within a single chassis. This eliminates the need for external protocol converters and reduces the risk of data translation errors that can corrupt process values or trigger false alarms.

Data Silos and Visibility Gaps: In facilities where field data never reaches the SCADA or historian layer, operators are forced to make decisions based on incomplete information. The KJ4006X1-BP1 ensures that every I/O card in the DeltaV chassis has a reliable, high-bandwidth path to the controller and, by extension, to the DeltaV historian and OPC server. This closes the visibility gap between field instruments and plant management systems, enabling real-time dashboards, KPI tracking, and production reporting.

Remote Monitoring and Diagnostics: Unplanned downtime caused by undetected device degradation is one of the most costly challenges in process manufacturing. The DeltaV system's HART pass-through capability — enabled by the KJ4006X1-BP1's backplane communication — allows the AMS Device Manager to continuously poll HART-enabled field devices for diagnostic data, including sensor drift, loop integrity, and device health status. Maintenance teams can identify failing instruments before they cause process upsets, shifting from reactive to predictive maintenance strategies.

Production Line Transparency: As manufacturing sites adopt MES and ERP integration, the demand for structured, timestamped process data increases. The DeltaV historian, fed by the KJ4006X1-BP1-enabled I/O subsystem, provides the time-series data foundation for OEE calculations, batch reporting, and regulatory compliance documentation. This transparency supports continuous improvement initiatives and audit readiness without requiring manual data collection.

System Scalability: As production capacity expands, the DeltaV S-Series architecture scales by adding controller nodes, I/O chassis, and network segments. The KJ4006X1-BP1 backplane interface supports this expansion by providing a standardized, validated communication platform that integrates new chassis into the existing DeltaV network without requiring architectural redesign. This modularity protects the capital investment in the existing DCS infrastructure while accommodating future growth.

Q1: What communication protocols does the Emerson KJ4006X1-BP1 support in a DeltaV S-Series system? The KJ4006X1-BP1 operates as the backplane communication interface within the DeltaV S-Series chassis, supporting the DeltaV internal bus protocol for controller-to-I/O communication. Depending on the I/O cards installed in the chassis, the system supports HART pass-through (for HART 5/6/7 field devices), Foundation Fieldbus H1 segments, and Modbus RTU via serial interface cards. This multi-protocol capability makes the KJ4006X1-BP1 chassis suitable for heterogeneous field device environments.

Q2: How does the KJ4006X1-BP1 contribute to network stability and deterministic communication in a DCS environment? The KJ4006X1-BP1 manages the internal backplane bus timing within the DeltaV S-Series chassis, ensuring that I/O scan cycles are executed with deterministic latency. This is critical for closed-loop control applications where scan time jitter can degrade control performance. The backplane interface isolates the chassis-level communication from upstream Ethernet network events, providing a stable, predictable data path for time-critical control functions regardless of plant network load.

Q3: Can the KJ4006X1-BP1 support remote diagnostics and predictive maintenance workflows? Yes. When paired with HART-enabled I/O cards in the DeltaV S-Series chassis, the KJ4006X1-BP1 backplane interface provides the data path for HART pass-through communication, allowing the Emerson AMS Device Manager to continuously monitor field device health, calibration status, and diagnostic alerts. This enables maintenance teams to implement condition-based maintenance strategies, reducing unplanned downtime and extending field device service life.

Q4: What warranty and quality assurance does NANKMOS provide for the Emerson KJ4006X1-BP1? All Emerson KJ4006X1-BP1 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing and visual inspection to verify communication integrity, backplane connector condition, and firmware compatibility. In-stock units are available for immediate dispatch to support urgent project timelines and minimize control system downtime. For procurement inquiries, contact [email protected] or call +86 18359268345.
