Emerson KJ4010X1-BF1 12P0831X062 DCS Power Supply Module

Product Details

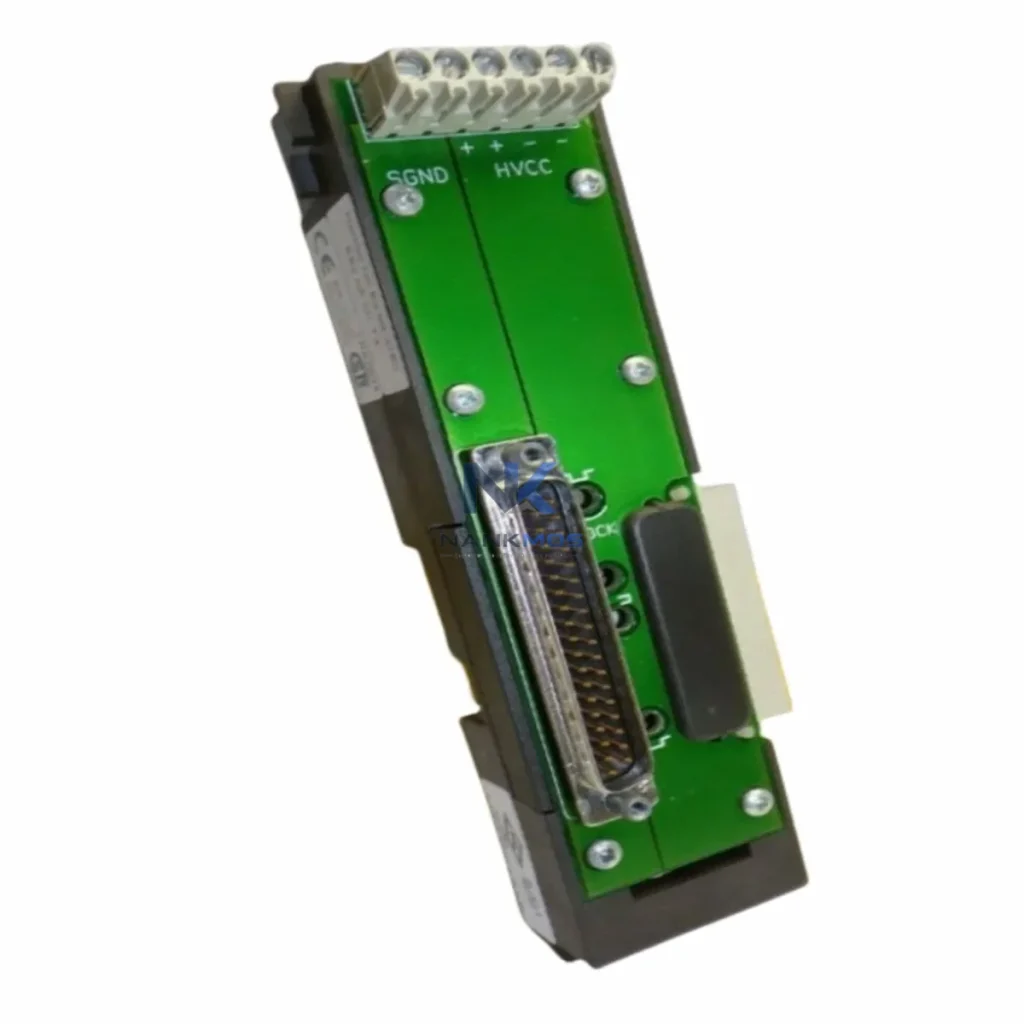

KJ4010X1-BF1 12P0831X062 Product Description

The Emerson KJ4010X1-BF1 12P0831X062 is a precision-engineered power supply module purpose-built for the DeltaV distributed control system platform. Within a fully integrated automation architecture, the power layer is not a peripheral concern — it is the foundational tier upon which every control, I/O, communication, and diagnostic function depends. This module delivers regulated, stable DC power to DeltaV controller nodes and I/O subsystems, ensuring that upstream and downstream layers operate within their specified electrical envelopes across continuous industrial duty cycles.

In modern process automation environments — spanning refining, petrochemical, power generation, water treatment, and advanced manufacturing — the power supply module occupies a critical position in the control cabinet hierarchy. The KJ4010X1-BF1 12P0831X062 is designed to integrate directly into DeltaV carrier assemblies, providing consistent voltage regulation and current capacity to support multi-node controller configurations, redundant I/O marshalling, and high-density signal termination without introducing noise or ripple that could compromise analog signal fidelity or fieldbus communication integrity.

The KJ4010X1-BF1 12P0831X062 does not operate in isolation — its value is realized through contextual integration within the broader DeltaV control architecture. At the controller layer, it powers DeltaV MD or MD Plus controllers (e.g., KJ2003X1-BA1, KJ2003X1-BB1), which execute process logic, PID loops, and sequence control across the plant. These controllers communicate with I/O subsystems via the DeltaV backplane bus, where the power supply module ensures stable bus voltage under varying load conditions.

At the I/O layer, modules such as the KJ3001X1-BA1 (AI), KJ3002X1-BA1 (AO), KJ3221X1-BA1 (DI), and KJ3222X1-BA1 (DO) rely on the power supply for consistent excitation and signal conditioning. Any voltage instability at the power layer propagates directly into analog measurement accuracy and digital output reliability — making the KJ4010X1-BF1 12P0831X062 a system-critical component rather than a commodity item.

At the communication layer, DeltaV CHARM I/O cards and CIOC controllers (e.g., VE3008) interface with FOUNDATION Fieldbus segments and HART-enabled field instruments. The power supply supports the electrical demands of these communication-intensive subsystems, maintaining signal integrity across multi-drop fieldbus networks. For Profibus PA or HART multiplexer configurations, stable power delivery is essential to prevent spurious diagnostics or communication timeouts.

At the HMI and workstation layer, DeltaV operator workstations and engineering stations connect via the DeltaV control network (DCN). While the workstations draw from separate UPS-backed AC supplies, the controller and I/O nodes powered by the KJ4010X1-BF1 12P0831X062 must maintain uninterrupted operation to sustain real-time data acquisition and alarm management. In redundant power configurations, a secondary power supply module — such as the KJ4010X1-BF1 paired unit — provides automatic failover without process interruption.

At the protection and maintenance layer, the module's design supports hot-swap capability within DeltaV carrier assemblies, enabling field replacement without system shutdown. This is particularly valuable in continuous-process industries — refining, LNG, power generation — where planned outages are costly and unplanned failures are unacceptable. Paired with DeltaV's built-in diagnostics and asset management tools (AMS Device Manager), maintenance teams can monitor power supply health, track module history, and schedule preventive replacement within the 12-month warranty window and beyond.

Petrochemical & Refining: In crude distillation, hydrocracking, and gas processing units, DeltaV systems manage thousands of I/O points across multiple controller nodes. The KJ4010X1-BF1 12P0831X062 provides the stable power foundation for continuous 24/7 operation, supporting SIL-rated safety instrumented functions and advanced process control (APC) loops that optimize yield and energy efficiency.

Power Generation & Utilities: In combined-cycle gas turbine (CCGT) plants and coal-fired boiler control systems, DeltaV controllers manage burner management, steam drum level, and turbine speed control. The power supply module ensures that controller redundancy and I/O availability are maintained during grid disturbances, load swings, and emergency shutdown sequences.

Water & Wastewater Treatment: Municipal water treatment facilities deploy DeltaV for SCADA-integrated process control of filtration, dosing, and pumping systems. The KJ4010X1-BF1 12P0831X062 supports low-maintenance, long-lifecycle deployments where power supply reliability directly impacts regulatory compliance and public safety.

Mining & Minerals Processing: In SAG mill control, flotation cell management, and tailings monitoring, DeltaV systems operate in electrically noisy environments. The power supply module's regulated output protects sensitive I/O and communication modules from conducted interference generated by large variable-frequency drives and motor starters.

Pharmaceutical & Life Sciences: FDA-regulated manufacturing environments require validated DeltaV configurations with documented change control. The KJ4010X1-BF1 12P0831X062's in-stock availability and 12-month warranty support rapid spare-parts qualification and IQ/OQ/PQ validation cycles without extended lead times.

Q1: Is the KJ4010X1-BF1 12P0831X062 compatible with both legacy and current DeltaV S-Series carrier assemblies?The KJ4010X1-BF1 12P0831X062 is designed for DeltaV S-Series carrier and backplane assemblies. Compatibility with specific carrier generations (e.g., 8-slot vs. 12-slot carriers) should be verified against the DeltaV hardware catalog and the carrier's power budget. NANKMOS provides pre-shipment testing and can advise on carrier compatibility based on your system's BOM and revision level. For mixed-generation DeltaV architectures, consult the DeltaV Hardware Reference Manual or contact our engineering support team.

Q2: Can this power supply module support a redundant power configuration, and what is required for failover?Yes. DeltaV S-Series carriers support redundant power supply configurations using two power supply modules installed in designated slots. In a redundant configuration, both modules share the load under normal conditions and one module assumes full load automatically upon failure of the other — without controller reset or I/O interruption. The KJ4010X1-BF1 12P0831X062 is compatible with this architecture. Ensure that the carrier assembly and DeltaV version support power redundancy, and that both modules are sourced from the same hardware revision for matched electrical characteristics.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term spare parts availability?All KJ4010X1-BF1 12P0831X062 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects, functional failures, and electrical parameter deviations identified under normal operating conditions. Each unit undergoes pre-shipment functional testing and is shipped with test documentation. NANKMOS maintains in-stock inventory of DeltaV power supply modules and related components to support rapid spare-parts replenishment for planned maintenance, emergency replacement, and long-term lifecycle support programs. For warranty claims or technical support, contact [email protected].
