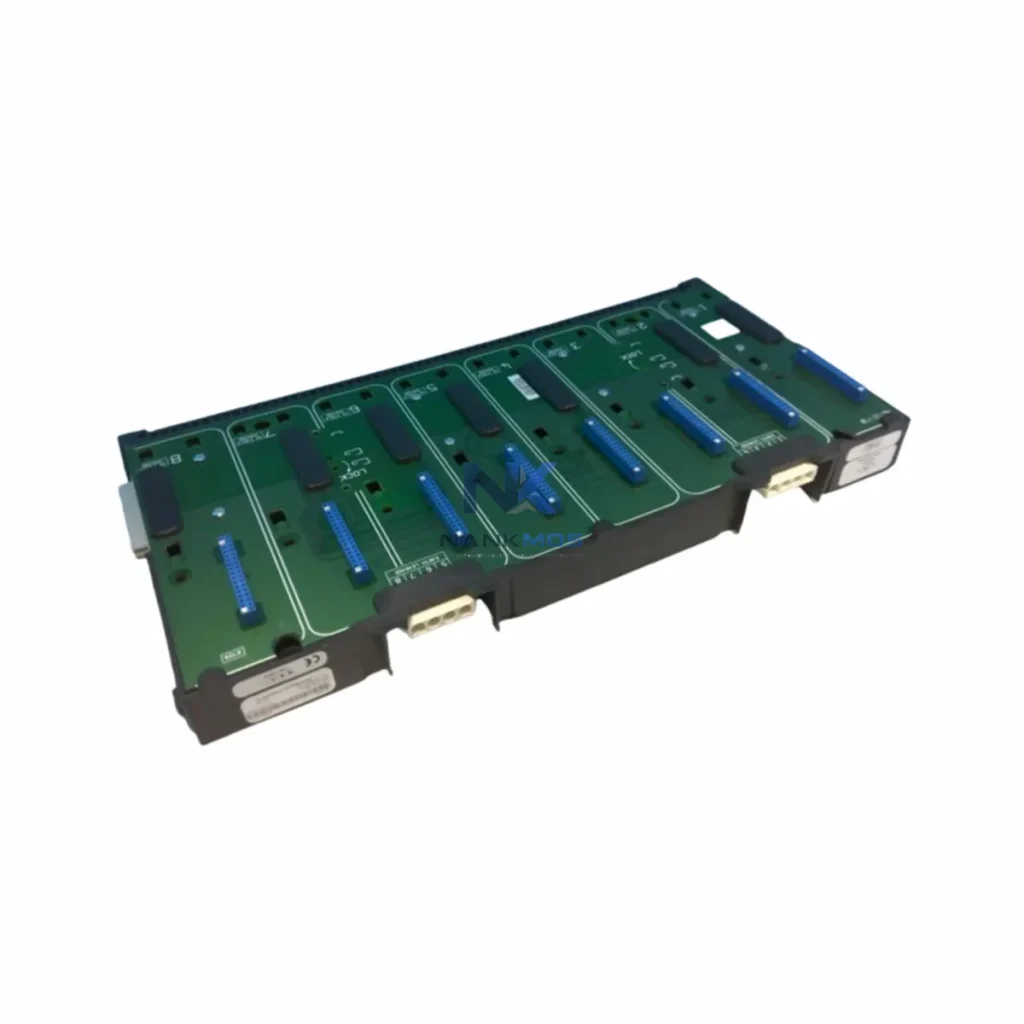

Emerson KJ4101X1-BA1 I/O Module

Product Details

KJ4101X1-BA1 Product Description

The Emerson KJ4101X1-BA1 is a high-integrity industrial network interface and I/O module engineered for the DeltaV distributed control system platform. Designed to serve as a critical data link between field instrumentation and upper-level control architectures, the KJ4101X1-BA1 enables seamless signal acquisition, protocol-transparent communication, and real-time data delivery across the full automation stack — from sensor-level inputs to SCADA dashboards and enterprise MES layers.

In modern smart factory environments, the ability to move process data reliably across heterogeneous networks is no longer optional — it is the foundation of operational transparency. The KJ4101X1-BA1 addresses this need by providing a stable, deterministic communication backbone that connects field devices, remote I/O nodes, PLC controllers, HMI terminals, and edge gateways within a unified DeltaV control architecture.

The KJ4101X1-BA1 sits at the intersection of field-level signal acquisition and plant-wide data distribution. In a typical smart factory deployment, field sensors — including pressure transmitters, flow meters, and temperature elements — feed analog and digital signals into the KJ4101X1-BA1's input channels. These signals are conditioned, digitized, and forwarded over the DeltaV I/O bus to the Emerson DeltaV M-series or S-series controller, where control logic executes in real time.

From the controller layer, process values are published to the DeltaV Operate HMI and to upstream SCADA platforms via OPC-DA or OPC-UA server interfaces. Operators monitoring the control room receive live process graphics, trend data, and alarm states — all sourced from the I/O data flowing through the KJ4101X1-BA1. When integrated with Emerson AMS Device Manager, the module also enables HART pass-through diagnostics, allowing maintenance teams to interrogate field instruments remotely without interrupting the process loop.

For facilities running hybrid network architectures, the KJ4101X1-BA1 can be paired with an industrial Ethernet switch (such as a managed Layer 2 switch supporting PROFINET or EtherNet/IP backbone segments) to bridge DeltaV I/O data into broader plant networks. Edge gateways — for example, an Emerson ROC800 remote operations controller or a third-party IIoT edge device — can then aggregate this data for cloud-based analytics or enterprise historian platforms such as the OSIsoft PI System or Emerson Plantweb Insight.

In multi-loop control scenarios, the KJ4101X1-BA1 works alongside Emerson KJ3001X1-BA1 analog input modules and KJ2201X1-BA1 discrete output modules to form a complete I/O subsystem. Variable frequency drives (VFDs) controlling pump and compressor motors receive setpoint commands originating from DeltaV control modules, with feedback signals routed back through the I/O bus. This closed-loop data path — from sensor to controller to actuator — is the operational core of any DeltaV-based smart factory cell.

Remote I/O enclosures deployed in hazardous or geographically distributed areas connect back to the main DeltaV controller via FOUNDATION Fieldbus H1 segments or HART multiplexers, with the KJ4101X1-BA1 serving as the termination and marshalling point. This architecture eliminates the need for dedicated point-to-point wiring runs, reduces installation costs, and dramatically simplifies future I/O expansion — a key advantage when scaling production lines or adding new measurement points to an existing process unit.

Protocol fragmentation is one of the most persistent challenges in brownfield automation environments. Legacy PLCs, third-party field devices, and newer DCS platforms often speak incompatible protocols — creating data silos that prevent unified monitoring and control. The KJ4101X1-BA1, operating within the DeltaV ecosystem, supports HART and FOUNDATION Fieldbus natively, and when paired with a protocol gateway module, can bridge Modbus RTU devices into the DeltaV data fabric without requiring hardware replacement of existing field instruments.

Remote monitoring gaps are addressed through the module's compatibility with DeltaV Remote Client and web-based operator interfaces. Process engineers can access live I/O values, device health indicators, and alarm histories from any networked workstation — reducing the need for physical site visits and enabling faster fault response. When an instrument goes out of range or a communication fault is detected, the DeltaV alarm management system generates structured alerts that are logged, time-stamped, and routed to the appropriate operator or maintenance team.

Production line transparency improves significantly when all I/O data is centralized through a structured DeltaV I/O architecture. KPIs such as OEE (Overall Equipment Effectiveness), batch cycle times, and energy consumption per unit can be calculated in real time using data sourced directly from KJ4101X1-BA1 input channels — feeding dashboards in Emerson Plantweb Optics or third-party MES platforms. This level of visibility supports both continuous improvement programs and regulatory compliance reporting.

System expansion is handled gracefully within the DeltaV CHARM architecture. Additional I/O modules can be added to existing carriers without controller downtime, and the KJ4101X1-BA1's modular form factor ensures that new measurement points can be commissioned rapidly as production requirements evolve.

Q1: What communication protocols does the KJ4101X1-BA1 support, and is it compatible with third-party SCADA systems? The KJ4101X1-BA1 supports FOUNDATION Fieldbus H1 and HART protocols natively within the DeltaV I/O architecture. Via OPC-DA and OPC-UA server interfaces on the DeltaV workstation, process data can be consumed by any OPC-compliant SCADA or HMI platform, including Wonderware, iFIX, and Ignition. This makes the module compatible with multi-vendor control room environments without requiring custom integration work.

Q2: How does the KJ4101X1-BA1 support remote diagnostics and predictive maintenance? When used with HART-enabled field instruments, the KJ4101X1-BA1 passes secondary HART variables and device status information to Emerson AMS Device Manager. This enables remote calibration checks, valve signature analysis, and instrument health monitoring — all without interrupting the primary process signal. Alerts generated by degraded instruments are surfaced in the DeltaV alarm system and can be forwarded to maintenance management platforms via standard interfaces.

Q3: What is the network latency profile of the KJ4101X1-BA1 in a real-time control loop? The KJ4101X1-BA1 is designed for deterministic I/O scanning within the DeltaV control execution environment. Scan rates are configurable per module and are synchronized with the DeltaV controller's execution period, typically ranging from 100 ms to 1 second for standard process control applications. For fast-loop or safety-instrumented applications, Emerson's SIS platform with dedicated I/O modules is recommended.

Q4: Does NANKMOS provide pre-shipment testing and a warranty for the KJ4101X1-BA1? Yes. Every KJ4101X1-BA1 unit supplied by NANKMOS undergoes pre-shipment functional verification before dispatch. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and communication faults under normal operating conditions. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
