Emerson KJ4101X1-BC1 12P1872X012 Power Supply Carrier

Product Details

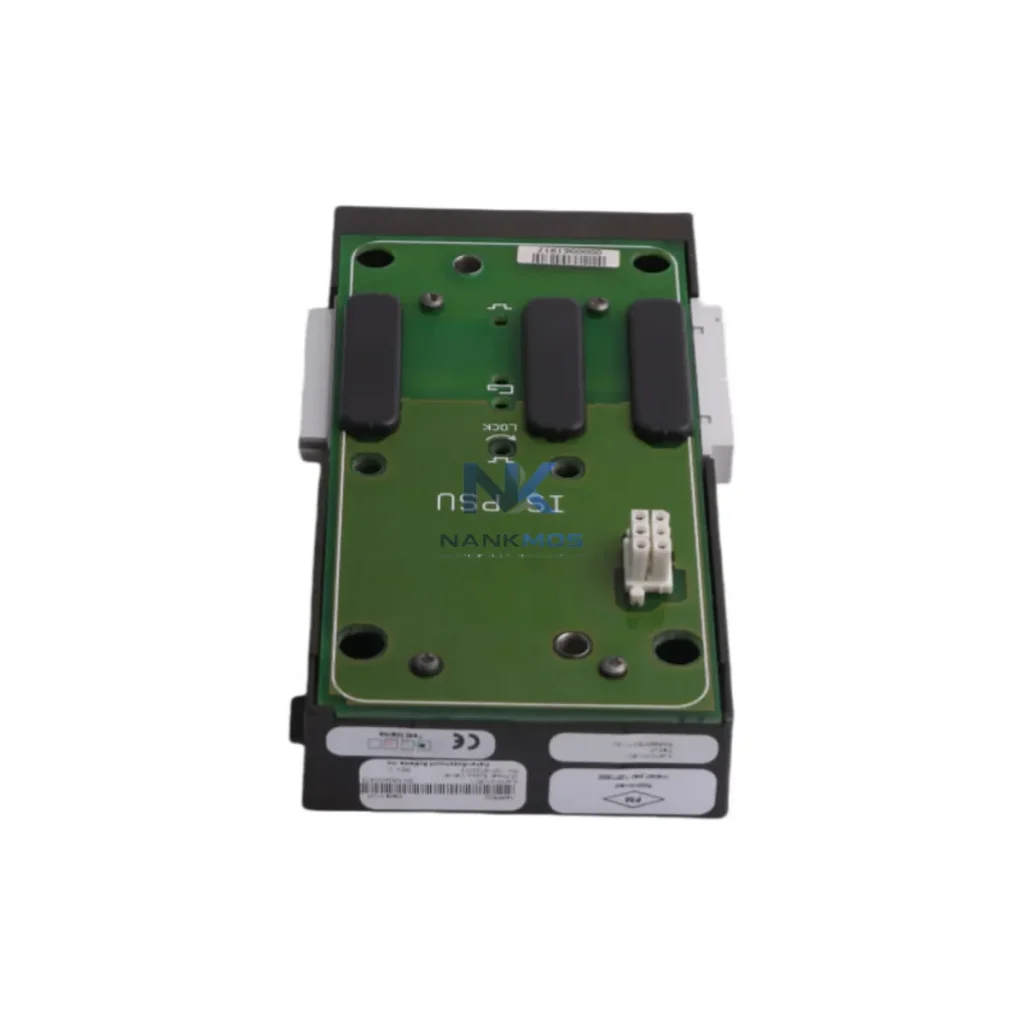

KJ4101X1-BC1 12P1872X012 Product Description

The Emerson KJ4101X1-BC1 (SKU: KJ4101X1-BC1 12P1872X012) is a purpose-engineered power supply carrier module designed for the Emerson DeltaV distributed control system. Far beyond a passive power rail, this module serves as a critical node in the industrial data chain — providing stable, conditioned power delivery to I/O subsystems while maintaining the electrical integrity required for high-fidelity FOUNDATION Fieldbus and HART protocol communication across the plant floor.

In modern smart factory architectures, power and data are inseparable. The KJ4101X1-BC1 ensures that field instruments — pressure transmitters, flow meters, temperature sensors, and valve positioners — receive clean, regulated power while simultaneously transmitting process variables upstream through the DeltaV I/O bus. This dual role makes it indispensable in any DeltaV-based automation topology where signal integrity and network uptime are non-negotiable.

The KJ4101X1-BC1 sits at the intersection of power infrastructure and field-level data acquisition. In a typical DeltaV smart factory deployment, the data flow begins at the field instrument layer — where devices such as Emerson Rosemount 3051 pressure transmitters and Fisher FIELDVUE DVC6200 digital valve controllers communicate process variables via HART or FOUNDATION Fieldbus H1 segments. The KJ4101X1-BC1 carrier provides the conditioned power backbone that keeps these H1 segments energized and stable, preventing voltage sag that would otherwise corrupt fieldbus frames and trigger nuisance alarms.

Moving up the data chain, the carrier interfaces with Emerson DeltaV CHARM I/O cards (CIOC) and Electronic I/O Cards (EIOC), which aggregate field signals and pass them to the DeltaV M-series or S-series controllers over the DeltaV I/O bus. These controllers execute the control logic and push real-time process data to the DeltaV Operate HMI and DeltaV Live visualization platform, where operators monitor trends, configure alarms, and initiate remote setpoint adjustments.

For asset management and remote diagnostics, the KJ4101X1-BC1-powered field devices are interrogated by Emerson AMS Device Manager, which reads HART device descriptors, calibration records, and predictive health indicators without interrupting the live process. This enables maintenance teams to schedule proactive interventions — replacing a failing transmitter before it causes a process upset — rather than reacting to unplanned shutdowns.

At the network layer, DeltaV controllers connect to the plant-wide DeltaV Application Station and DeltaV Pro Plus Workstations via a redundant Ethernet control network. Upstream, OPC DA/UA gateways bridge DeltaV process data to SCADA platforms and Historian servers such as OSIsoft PI or Emerson Syncade, enabling enterprise-level data visualization, KPI dashboards, and long-term trend analysis. The KJ4101X1-BC1's role in maintaining clean H1 power directly impacts the quality and continuity of this entire data chain — from sensor to cloud.

In multi-loop control architectures, the carrier supports co-location with Emerson DeltaV SIS Logic Solvers for safety-instrumented system integration, ensuring that both regulatory control and safety shutdown functions share a common, reliable power infrastructure. This reduces panel footprint, simplifies wiring, and accelerates commissioning timelines on greenfield and brownfield projects alike.

Protocol Fragmentation: Many legacy plants run a mix of 4–20 mA analog, HART, and FOUNDATION Fieldbus devices on the same DeltaV system. The KJ4101X1-BC1 carrier, paired with the appropriate DeltaV I/O cards, bridges these protocol layers — allowing HART device data to be surfaced alongside Fieldbus block parameters in a single DeltaV Operate faceplate, eliminating the data silos that plague mixed-protocol installations.

Data Islands and Visibility Gaps: Without stable carrier power, H1 fieldbus segments experience intermittent device dropouts — instruments disappear from the DeltaV device list, creating blind spots in process monitoring. The KJ4101X1-BC1 eliminates this failure mode by delivering consistent, regulated power that keeps all segment devices online and continuously reporting.

Remote Monitoring and Diagnostics: Through AMS Device Manager integration, operators gain remote access to device health parameters — loop current, sensor temperature, diagnostic alerts — without requiring a technician to walk the field. This is particularly valuable in hazardous areas (Zone 1/Zone 2, Class I Div 1) where physical access is restricted or time-consuming.

Production Line Transparency: By ensuring uninterrupted fieldbus communication, the KJ4101X1-BC1 supports continuous data feeds to Historian and SCADA systems, enabling real-time OEE calculations, batch tracking, and regulatory compliance reporting — all of which depend on gap-free process data.

Alarm Rationalization and Traceability: Stable power delivery reduces spurious alarms caused by voltage fluctuations on H1 segments. Fewer nuisance alarms mean operators can focus on genuine process deviations, and alarm logs remain clean and auditable for safety reviews and incident investigations.

System Scalability: The modular DeltaV carrier architecture allows additional KJ4101X1-BC1 units to be added as the control system expands — new process units, additional field devices, or expanded safety loops — without redesigning the power distribution infrastructure.

Q1: Does the KJ4101X1-BC1 support both FOUNDATION Fieldbus and HART simultaneously? The KJ4101X1-BC1 is a power supply carrier that provides the electrical foundation for DeltaV I/O subsystems. FOUNDATION Fieldbus H1 and HART protocol support is determined by the I/O card installed in the carrier — such as the DeltaV FFIC (Fieldbus Interface Card) for FF-H1 or HART I/O cards for HART devices. The carrier itself is protocol-agnostic at the power level, making it compatible with both communication standards within the DeltaV ecosystem.

Q2: How does this module contribute to network stability and reduced communication latency? Voltage instability on an H1 fieldbus segment is a primary cause of increased communication retries, extended cycle times, and device timeouts. The KJ4101X1-BC1 delivers regulated, conditioned power that maintains segment voltage within the IEC 61158 specification, minimizing retry overhead and keeping fieldbus cycle times predictable — typically under 1 second for standard H1 configurations.

Q3: Can the KJ4101X1-BC1 be integrated into an existing DeltaV system without a full shutdown? In most DeltaV architectures, carrier modules can be replaced or added during planned maintenance windows with minimal disruption. Emerson's CHARMs-based I/O architecture supports hot-swap capability on select configurations. We recommend consulting your DeltaV system documentation or contacting our technical team to confirm hot-swap eligibility for your specific revision and firmware version.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the KJ4101X1-BC1? Every KJ4101X1-BC1 unit shipped by NANKMOS carries a 12-month warranty and undergoes pre-shipment functional testing to verify power output, connector integrity, and module identification. Stock is sourced from verified supply channels and stored under controlled conditions. For volume orders or urgent project timelines, contact us directly for lead time confirmation and expedited shipping options.
