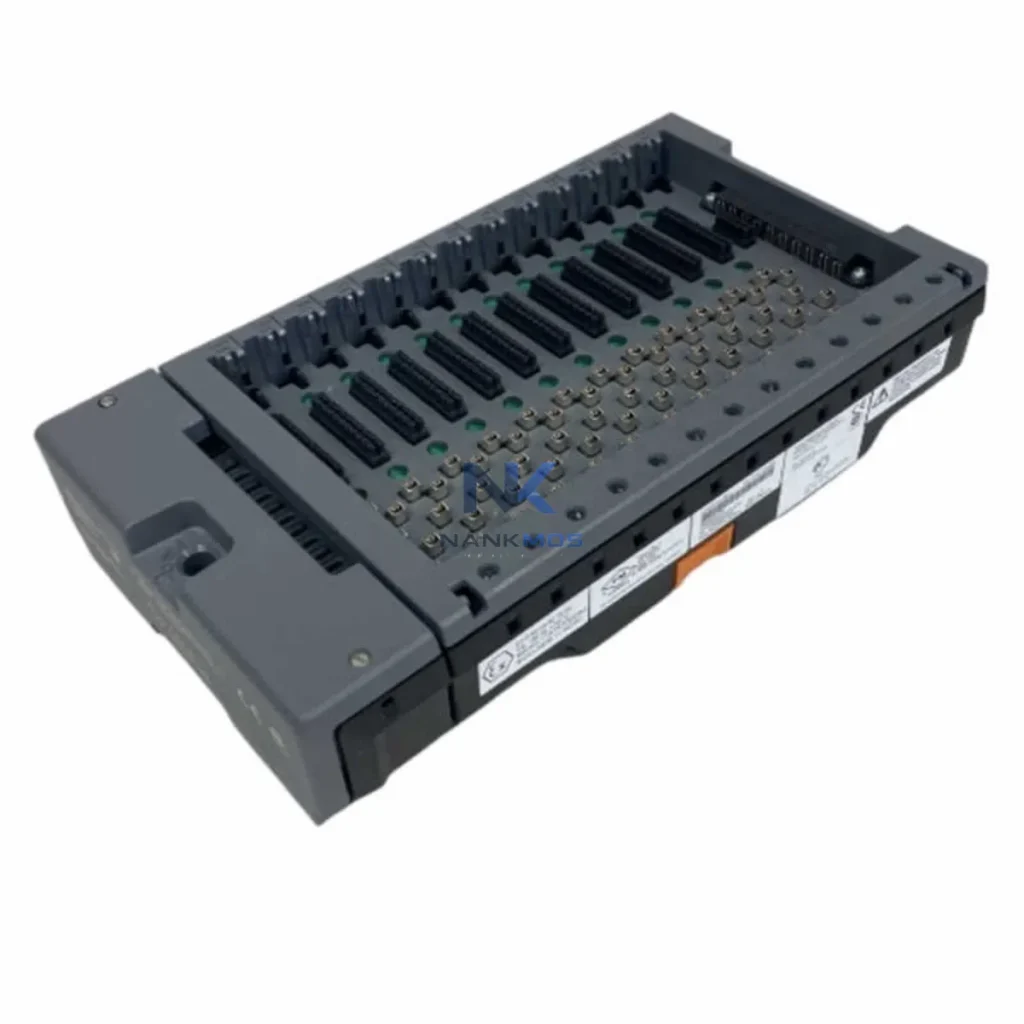

Emerson KL4201X1-BA1 DCS I/O Module

Product Details

KL4201X1-BA1 Product Description

The Emerson KL4201X1-BA1 is a precision-engineered I/O module designed for seamless integration within the DeltaV distributed control system (DCS) architecture. As part of Emerson's KL Series Electronic Marshalling platform, this module delivers deterministic signal handling, flexible field wiring, and native compatibility with DeltaV CHARM-based I/O infrastructure — enabling engineers to build scalable, maintainable, and redundancy-capable control systems across demanding industrial environments.

In modern process automation, the I/O layer is not a passive interface — it is a critical architectural node that governs signal fidelity, loop integrity, and system-wide diagnostic transparency. The KL4201X1-BA1 fulfills this role by providing a structured, modular connection point between field instrumentation and the DeltaV controller fabric, supporting both greenfield deployments and brownfield retrofits with equal engineering confidence.

The KL4201X1-BA1 achieves its full engineering value when deployed within a coherent DeltaV automation platform. At the controller layer, the Emerson DeltaV MD Plus Controller or DeltaV M5Plus Controller provides the processing backbone, executing control strategies and managing I/O polling cycles with deterministic timing. The KL4201X1-BA1 connects to the controller via the DeltaV CIOC (CHARM I/O Card), which aggregates multiple CHARM modules onto a single carrier and communicates upstream over the DeltaV control network.

Power integrity across the I/O cabinet is maintained by the Emerson DeltaV Power Supply PS2 or equivalent redundant power modules, ensuring that signal loops remain stable even during partial power events. For field wiring flexibility, the KL Series CHARM Baseplate provides the physical mounting and signal routing infrastructure, allowing engineers to assign any CHARM type to any terminal without rewiring — a key advantage during commissioning and loop modifications.

In architectures requiring intrinsic safety, the KL4201X1-BA1 IS variant eliminates the need for external Zener barriers or galvanic isolators by embedding IS certification directly at the CHARM level. This simplifies cabinet design and reduces component count compared to conventional marshalling panels. Where additional signal conditioning is required, Pepperl+Fuchs or MTL signal isolators can be integrated at the field junction box level without impacting the DeltaV backplane architecture.

At the communication layer, the DeltaV system supports FOUNDATION Fieldbus H1, HART, and Profibus DP integration through dedicated CHARM types and interface cards, enabling the KL4201X1-BA1 to coexist with legacy field devices and modern smart instruments within the same marshalling cabinet. For remote I/O extensions, the DeltaV RLIM (Remote Local Interface Module) extends the I/O fabric across long cable runs without signal degradation.

HMI and operator interface functions are served by Emerson DeltaV Operate workstations or DeltaV Live graphics environments, providing real-time loop status, CHARM diagnostic alarms, and channel-level health monitoring. This end-to-end visibility — from field terminal to operator display — is a defining characteristic of the DeltaV Electronic Marshalling architecture and a primary reason engineers specify the KL4201X1-BA1 for new and retrofit projects alike.

For redundancy-critical applications, pairing the KL4201X1-BA1 with a DeltaV SIS Logic Solver or DeltaV SQ Controller in a Safety Instrumented System (SIS) configuration provides the separation of basic process control and safety functions required by IEC 61511. The modular CHARM architecture supports this separation at the I/O level, reducing integration complexity and audit overhead during SIL verification.

Oil & Gas and Petrochemical: In upstream and downstream process facilities, the KL4201X1-BA1 supports analog output loops for control valves, variable speed drives, and positioners across distillation columns, compressor trains, and separator vessels. Its IS-capable variant is particularly valued in Zone 1 and Zone 2 classified areas where conventional marshalling would require extensive barrier panels.

Power Generation and Utilities: Combined cycle and cogeneration plants deploy DeltaV CHARM I/O for boiler control, turbine auxiliary systems, and balance-of-plant automation. The KL4201X1-BA1 provides reliable analog output channels for steam flow control, feedwater regulation, and burner management auxiliary loops, where signal stability and loop diagnostics directly impact plant efficiency and safety.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use DeltaV-based control for dosing systems, filtration control, and pump station automation. The KL4201X1-BA1 enables precise 4–20 mA output to chemical dosing pumps and modulating valves, with HART pass-through capability for remote valve diagnostics without additional field visits.

Mining and Minerals Processing: Flotation circuits, thickener control, and conveyor drive systems in mining operations benefit from the KL4201X1-BA1's robust signal handling in high-vibration, high-dust environments. The module's electronic marshalling architecture reduces panel wiring complexity in remote concentrator buildings where maintenance access is limited.

Pharmaceutical and Life Sciences: FDA-regulated manufacturing environments require validated control systems with full audit trails and change management. The DeltaV platform's native batch management and electronic records capabilities, combined with the KL4201X1-BA1's channel-level diagnostics, support 21 CFR Part 11 compliance and simplify IQ/OQ/PQ validation documentation.

Q1: Is the KL4201X1-BA1 compatible with existing DeltaV S-series and M-series controller platforms?Yes. The KL4201X1-BA1 is designed for the DeltaV Electronic Marshalling architecture and is compatible with DeltaV M-series controllers (MD, MD Plus, M5Plus) via the CIOC interface card. Compatibility with S-series controllers depends on the specific CIOC revision and DeltaV software version deployed. Engineers should verify the DeltaV Hardware Reference Manual and confirm CIOC firmware compatibility before integration. All units supplied by NANKMOS are tested against known-good DeltaV configurations prior to shipment.

Q2: Can the KL4201X1-BA1 be hot-swapped during live plant operation?The DeltaV CHARM architecture is designed to support module replacement without full system shutdown, subject to the control strategy configuration and loop criticality. Individual CHARM modules can typically be removed and replaced while the carrier and adjacent channels remain operational. However, hot-swap procedures must be validated against the site's Management of Change (MOC) process and DeltaV system configuration. NANKMOS recommends consulting the DeltaV Electronic Marshalling Installation Guide and coordinating with the site DCS engineer before performing live replacements.

Q3: What does the 12-Month Warranty cover, and what is the supply lead time?All KL4201X1-BA1 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to dispatch. In-stock units are available for immediate shipment globally, with typical lead times of 3–7 business days depending on destination. For urgent project requirements or bulk procurement, contact NANKMOS directly to confirm availability and expedited shipping options.
