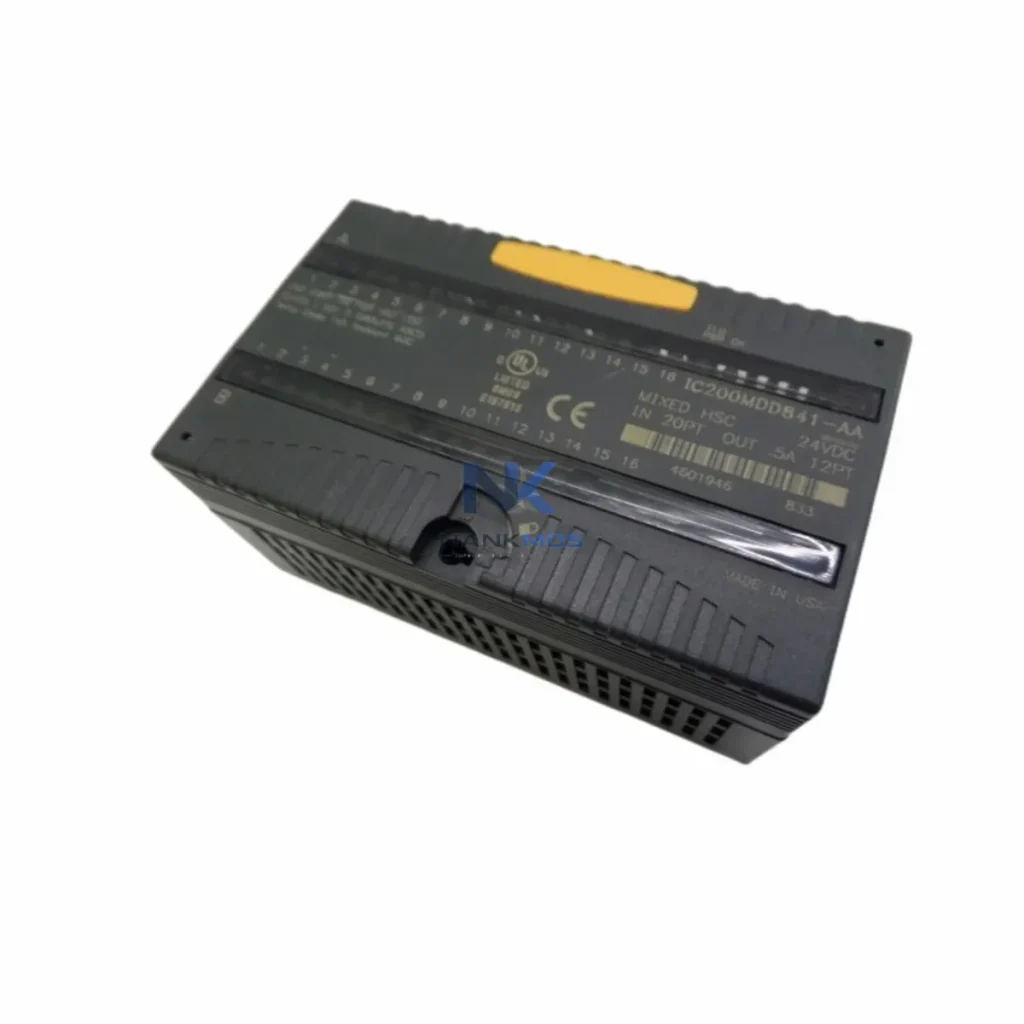

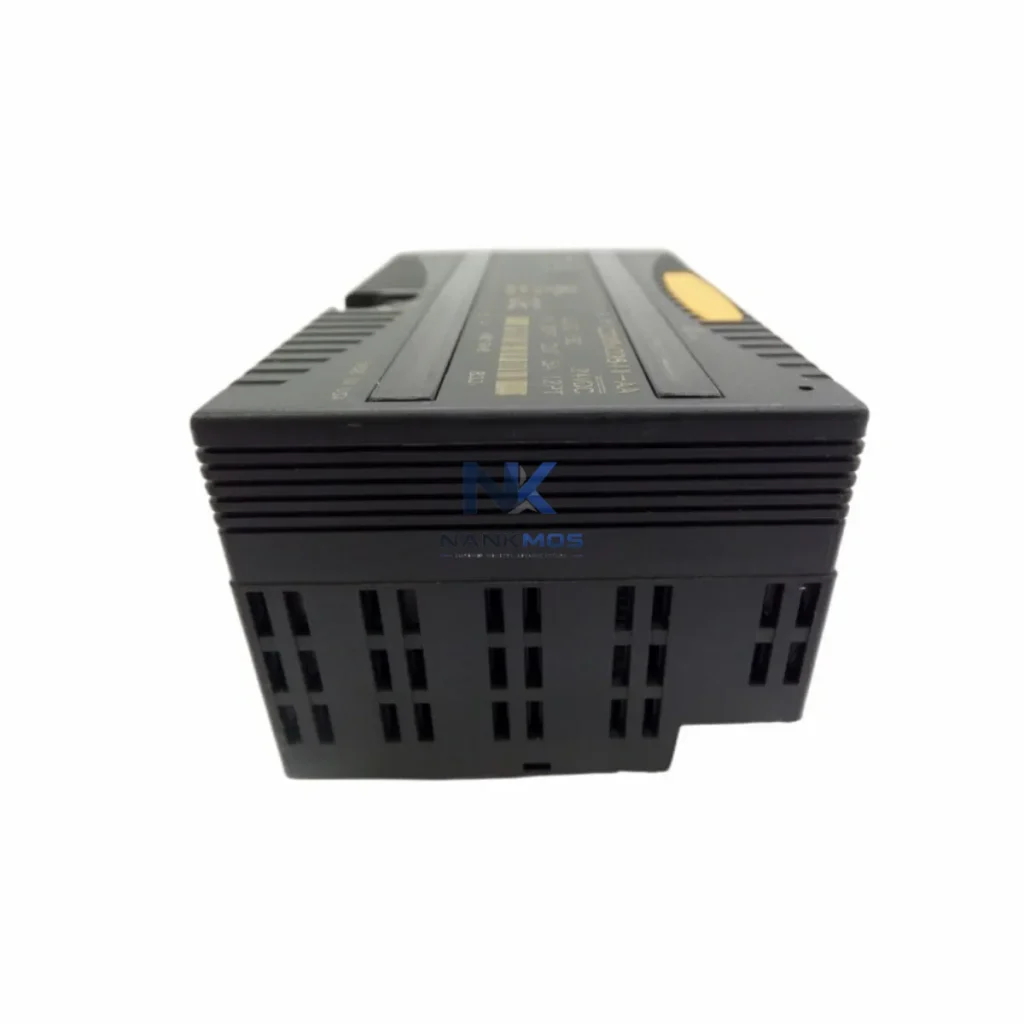

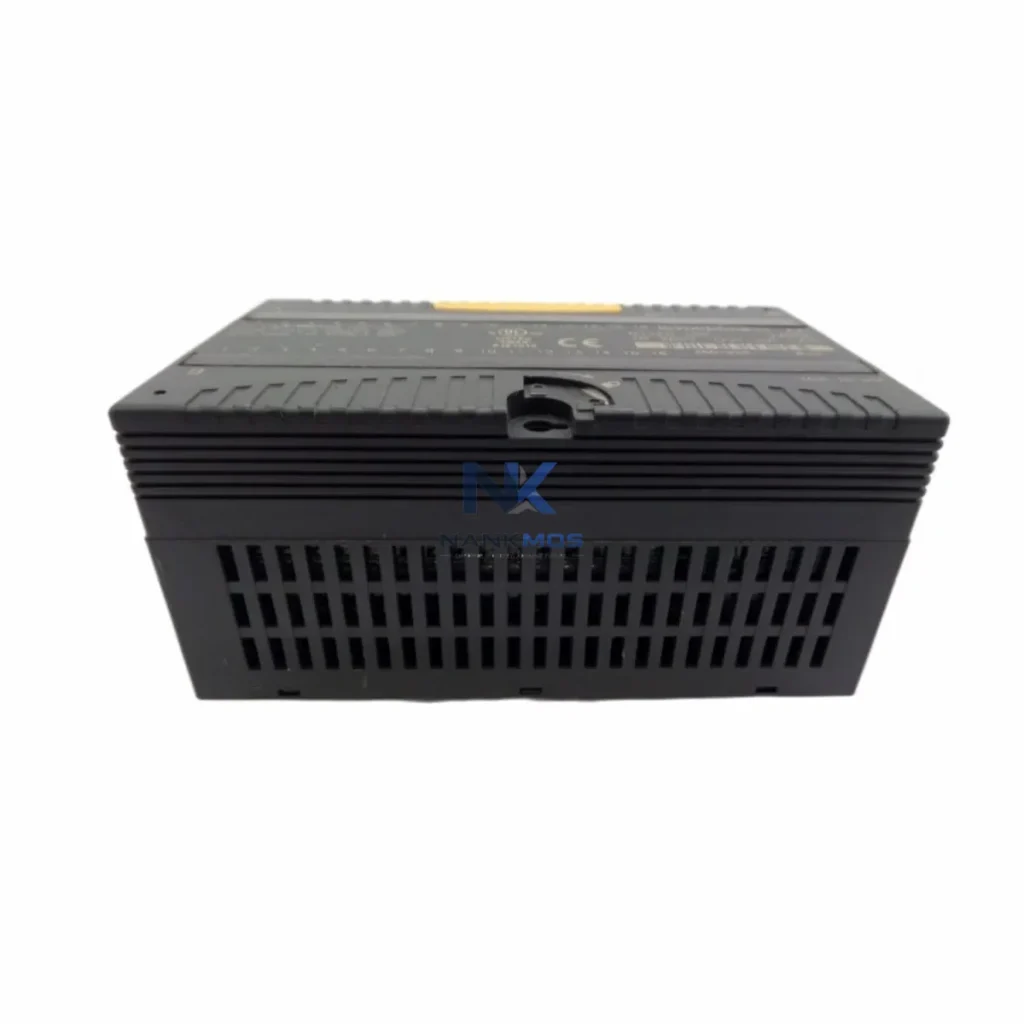

GE IC200MDD841 High Speed Counter Module

Product Details

IC200MDD841 Product Description

The GE IC200MDD841 is a VersaMax Micro High Speed Counter Module engineered for precision pulse and frequency signal acquisition in demanding industrial environments. As a core I/O component within the GE VersaMax Micro PLC platform, the IC200MDD841 bridges field-level sensor signals and high-level control architectures, enabling seamless data flow across the entire smart factory data chain — from signal capture at the machine edge to real-time visualization in SCADA and HMI systems.

In modern industrial automation sites, the ability to capture high-frequency pulse signals with microsecond accuracy is foundational to process transparency. The IC200MDD841 supports high-speed counting inputs that interface directly with encoders, proximity sensors, flow meters, and position transducers. These signals are processed locally within the VersaMax Micro CPU — such as the IC200UDR005 or IC200UAL006 — and then transmitted upstream via the GE PACSystems network architecture to supervisory control layers. This tight integration between field I/O and control logic eliminates latency-induced data gaps that commonly plague legacy automation systems.

The module's role in the connected factory data flow extends well beyond simple pulse counting. When paired with GE PACSystems RX3i controllers or networked through Ethernet-capable communication modules such as the IC200ETM001, the IC200MDD841 feeds real-time positional and velocity data into SCADA platforms like iFIX or Proficy Historian. This enables operators to monitor conveyor speeds, spindle RPMs, batch counts, and fill volumes from centralized HMI dashboards — without requiring manual data entry or localized operator intervention.

For facilities deploying distributed control architectures, the IC200MDD841 integrates naturally with remote I/O expansion racks connected via the VersaMax Remote I/O Scanner (IC200CHS022 or equivalent). This allows high-speed counter data from geographically dispersed machine cells to be aggregated at a central PACSystems controller, supporting plant-wide OEE tracking and production reporting. Edge gateway devices can further relay this data to cloud-based MES or ERP platforms, completing the digital thread from sensor to enterprise.

In variable-speed drive applications, the IC200MDD841 works alongside GE AF-650GP or compatible VFD units to provide closed-loop speed feedback. The counter module captures encoder pulses from motor shafts, and the VersaMax CPU processes this data to issue corrective speed commands — ensuring precise motor control in web tension, winding, and conveyor synchronization applications. This feedback loop is critical for maintaining product quality and reducing mechanical wear in high-throughput production lines.

Remote diagnostics and predictive maintenance workflows benefit significantly from the IC200MDD841's integration within the PACSystems ecosystem. Maintenance engineers can access live counter values, overflow flags, and gate status bits through Proficy Machine Edition or equivalent programming environments, enabling remote fault isolation without dispatching field technicians. Alarm thresholds configured in the SCADA layer trigger automated notifications when counter values deviate from expected ranges — supporting proactive maintenance scheduling and minimizing unplanned downtime.

Every GE IC200MDD841 unit supplied by NANKMOS undergoes pre-shipment functional verification, including counter input response testing and communication integrity checks. Units are sourced from verified supply channels and backed by a 12-month warranty, ensuring operational confidence for both new installations and system expansions. Global inventory availability supports rapid deployment for MRO replacement, system commissioning, and capacity upgrade projects.

The IC200MDD841 sits at the signal acquisition layer of the smart factory data chain. Encoders and proximity sensors mounted on production machinery feed pulse signals directly into the module's high-speed counter inputs. The VersaMax Micro CPU — typically an IC200UDR005 for compact machine control or an IC200UAL006 for analog-integrated applications — processes these inputs in real time, executing ladder logic routines that convert raw pulse counts into engineering units such as meters per minute or units per hour.

Upstream data transmission is handled through the PACSystems communication layer. Where Ethernet connectivity is required, the IC200ETM001 Ethernet communication module bridges the VersaMax backplane to the plant LAN, enabling the PACSystems RX3i controller to aggregate data from multiple VersaMax Micro nodes across the facility. This architecture supports both peer-to-peer PLC communication and SCADA server polling, ensuring that production data from every machine cell is available to supervisory systems without communication bottlenecks.

At the SCADA and HMI layer, Proficy iFIX or GE Cimplicity servers subscribe to counter data tags published by the PACSystems controller. Operators view real-time trend charts, batch counters, and alarm states on HMI panels — including GE QuickPanel+ or equivalent touch displays — positioned at machine stations or control rooms. When counter values exceed configured alarm thresholds, the SCADA system triggers automated alerts via email or SMS, enabling rapid response to process deviations.

For facilities requiring edge analytics, an industrial edge gateway — such as those running Proficy Edge or compatible IIoT middleware — can subscribe to PACSystems data streams and forward aggregated metrics to cloud-based MES or ERP platforms. This completes the data flow from the IC200MDD841's pulse inputs at the machine level to enterprise-wide production dashboards, supporting real-time OEE calculation, shift reporting, and predictive maintenance analytics without manual data extraction.

Industrial automation sites frequently encounter data gaps caused by protocol fragmentation, isolated machine controllers, and the absence of real-time visibility into high-speed process variables. The IC200MDD841 addresses these challenges by providing a standardized, high-accuracy pulse acquisition interface within the GE VersaMax Micro ecosystem — eliminating the need for external signal converters or protocol gateways between field sensors and the PLC control layer.

Protocol inconsistency is a common barrier to plant-wide data integration. By operating natively within the PACSystems backplane architecture and communicating upstream via standard Ethernet TCP/IP through the IC200ETM001, the IC200MDD841 ensures that high-speed counter data is immediately accessible to any SCADA, historian, or MES system capable of communicating with a GE PACSystems controller — without custom protocol translation middleware.

Data silos at the machine level are eliminated through the VersaMax Remote I/O architecture, which allows multiple IC200MDD841 modules deployed across distributed machine cells to report to a single PACSystems RX3i controller. This centralized data aggregation model provides a unified view of production throughput, cycle times, and equipment utilization across the entire facility — supporting production line transparency and enabling data-driven continuous improvement initiatives.

Remote monitoring and alarm tracking are further enhanced by the IC200MDD841's diagnostic bit structure, which exposes counter overflow conditions, gate status, and input signal integrity flags to the PLC program. These diagnostic signals can be mapped to SCADA alarm tags, enabling maintenance teams to detect sensor failures, cable faults, or counter overflow events remotely — reducing mean time to repair and supporting compliance with predictive maintenance programs.

Q: What communication protocols does the GE IC200MDD841 support for SCADA integration?A: The IC200MDD841 communicates natively over the GE VersaMax Micro backplane bus. For Ethernet-based SCADA integration, it operates in conjunction with the IC200ETM001 Ethernet communication module, enabling Modbus TCP, SRTP, and OPC DA/UA connectivity to Proficy iFIX, Cimplicity, and third-party SCADA platforms.

Q: Can the IC200MDD841 be used in distributed remote I/O architectures?A: Yes. The IC200MDD841 is compatible with VersaMax Remote I/O expansion configurations, allowing it to be deployed in remote I/O racks connected to a central PACSystems RX3i controller. This supports distributed machine cell architectures where high-speed counter data from multiple locations must be aggregated at a single control node.

Q: How does NANKMOS ensure the IC200MDD841 is functional before shipment?A: Every IC200MDD841 unit undergoes pre-shipment functional verification, including counter input response testing and backplane communication integrity checks. Units are sourced from verified supply channels and covered by a 12-month warranty from the date of shipment.

Q: Is the IC200MDD841 suitable for system expansion in existing GE PACSystems installations?A: Yes. The IC200MDD841 is designed for seamless integration into existing VersaMax Micro and PACSystems architectures. It supports hot-insertion in compatible configurations and is fully programmable via Proficy Machine Edition, making it an efficient choice for capacity upgrades, MRO replacement, and new machine cell additions within established GE automation environments.
