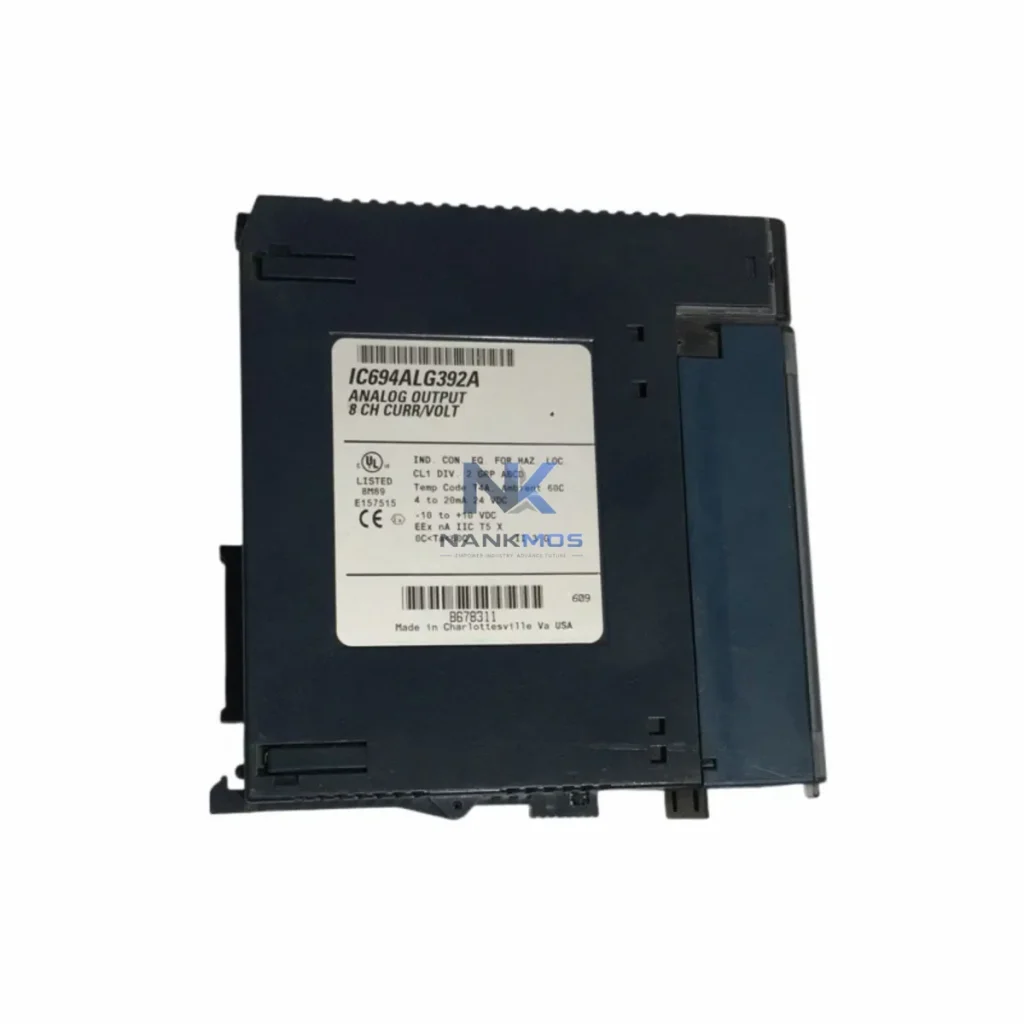

GE IC694ALG392A Analog Output Module

Product Details

IC694ALG392A Product Description

The GE IC694ALG392A is a high-density analog output module engineered for the GE Series 90-30 programmable logic controller platform. Designed to deliver precise voltage and current signal outputs across demanding industrial environments, this module serves as a critical execution-layer component within multi-tier control architectures. Its role extends beyond simple signal conversion — it functions as a system-coherent output interface that bridges the PLC control layer with field-level actuators, control valves, variable-speed drives, and process instrumentation. Whether deployed in continuous process control, discrete manufacturing, or hybrid automation systems, the IC694ALG392A ensures signal fidelity, architectural consistency, and long-term operational reliability.

Every IC694ALG392A unit supplied by NANKMOS is sourced from verified inventory channels, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty. In-stock availability supports rapid project deployment and minimizes procurement lead times for system integrators and maintenance engineers worldwide.

The IC694ALG392A achieves its full engineering value when deployed as part of a coherent Series 90-30 automation platform. At the control layer, GE Series 90-30 CPUs such as the IC694CPU310 and IC694CPU364 execute ladder logic and function block programs that generate analog setpoint values, which are then transmitted via the backplane bus to the IC694ALG392A for real-time signal output. This tight integration between CPU scan cycle and analog output refresh ensures deterministic control response — a critical requirement in closed-loop process applications.

At the power layer, the IC694PWR321 and IC694PWR330 power supply modules provide stable 5 VDC and 24 VDC backplane power, ensuring that analog output accuracy is not compromised by power rail fluctuations. Voltage ripple on the backplane directly affects DAC linearity; therefore, pairing the IC694ALG392A with a regulated GE power supply is an architectural best practice.

For I/O expansion, the IC694ALG392A coexists on the same backplane with discrete I/O modules such as the IC694MDL645 (16-point 24 VDC input) and IC694MDL740 (16-point relay output), enabling mixed analog-discrete control within a single rack. In applications requiring analog input feedback for closed-loop PID control, the IC694ALG221 analog input module provides the corresponding measurement channel, completing the signal loop from sensor to actuator.

At the communications layer, the IC694CMM321 Ethernet module and IC694CMM302 serial communications module extend the Series 90-30 platform's connectivity to SCADA systems, historian servers, and remote HMI panels. This enables supervisory setpoint adjustment and real-time analog output monitoring without interrupting the control scan cycle. For fieldbus integration, the IC694BEM331 Genius Bus Controller allows the Series 90-30 rack to participate in distributed I/O architectures, extending analog output reach to remote field panels.

At the HMI layer, GE QuickPanel+ operator terminals and third-party HMI panels communicate with the Series 90-30 CPU via Ethernet or serial links, providing operators with real-time visibility into analog output values, setpoint adjustments, and alarm conditions. This HMI-to-CPU-to-analog-output chain forms the complete operator interaction pathway in process control applications.

Process Manufacturing (Chemical, Petrochemical, Pharmaceutical): The IC694ALG392A drives control valve positioners and variable-frequency drives in continuous process loops. In a typical distillation column control application, the module outputs 4–20 mA signals to pneumatic valve positioners, regulating reflux ratios and feed flow rates under PID supervision from the Series 90-30 CPU. The 12-bit resolution ensures fine-grained valve positioning, reducing process variability and improving product quality consistency.

Power Generation and Utilities: In power plant auxiliary systems and substation automation, the IC694ALG392A provides analog setpoint signals to excitation controllers, governor systems, and reactive power compensation equipment. Its optical isolation between channels and backplane prevents ground loop interference — a common challenge in high-voltage electrical environments where signal integrity is paramount.

Water and Wastewater Treatment: Municipal water treatment facilities deploy the IC694ALG392A to control chemical dosing pumps, aeration blowers, and sludge transfer systems. The module's 0–20 mA output range is compatible with most variable-speed pump drive interfaces, enabling precise flow rate control based on real-time water quality measurements fed back through companion analog input modules.

Mining and Metals Processing: In ore processing and smelting operations, the IC694ALG392A controls conveyor speed references, furnace temperature setpoints, and hydraulic pressure regulators. The module's wide operating temperature range and robust backplane mounting make it suitable for the vibration and thermal cycling conditions typical of heavy industrial environments.

Packaging and Discrete Manufacturing: High-speed packaging lines use the IC694ALG392A to provide speed reference signals to servo amplifiers and AC drives, synchronizing multiple motion axes under Series 90-30 CPU coordination. The module's fast output update rate supports the tight timing requirements of coordinated multi-axis motion profiles.

Q1: Is the IC694ALG392A compatible with all Series 90-30 backplane configurations, and can it be mixed with other I/O module types in the same rack? Yes. The IC694ALG392A is fully compatible with all standard Series 90-30 backplanes, including the 5-slot IC694CHS392, 10-slot IC694CHS398, and 12-slot IC694CHS782. It can be installed in any I/O slot and mixed freely with discrete input, discrete output, analog input, and communications modules in the same rack. The Series 90-30 CPU automatically identifies the module type during rack configuration and assigns the appropriate I/O memory references. No special slot restrictions apply to the IC694ALG392A.

Q2: What is the recommended commissioning procedure for verifying analog output accuracy after installation, and how should calibration drift be managed over the product lifecycle? After installation, use the GE Proficy Machine Edition programming software to perform a forced output test on each channel, verifying the output signal at the field terminal with a calibrated milliammeter or voltmeter. Compare measured values against the programmed engineering unit range to confirm DAC linearity. For long-term calibration management, GE recommends annual verification against a traceable reference standard. The IC694ALG392A does not support field recalibration; modules exhibiting drift beyond ±0.1% of full scale should be replaced. NANKMOS maintains in-stock inventory to support rapid module exchange, and all replacement units are covered by the 12-Month Warranty from the date of shipment.

Q3: How does NANKMOS ensure the quality and long-term supply availability of the IC694ALG392A, and what does the 12-Month Warranty cover? NANKMOS sources IC694ALG392A modules from verified supply channels and subjects each unit to pre-shipment functional testing, including backplane communication verification, channel output accuracy checks, and visual inspection for physical integrity. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty service includes module replacement or repair at NANKMOS's discretion. Long-term supply availability is supported by maintained stock levels and active procurement from multiple verified sources, ensuring continuity for ongoing maintenance and spare parts programs.
