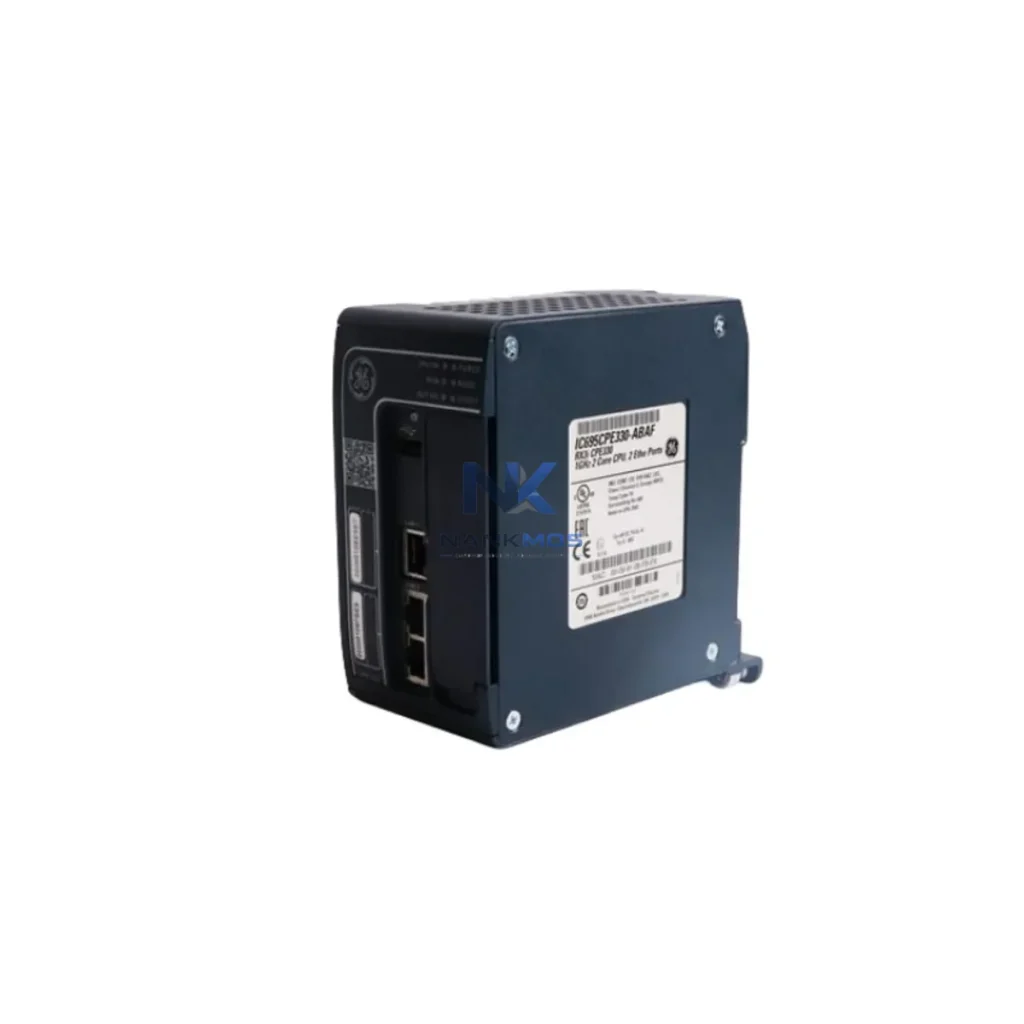

GE IC695CPE330-ABAF PLC CPU Module

Product Details

IC695CPE330-ABAF Product Description

The GE IC695CPE330 is a high-performance central processing unit engineered for the PACSystems RX3i platform, delivering deterministic scan-cycle execution, broad I/O scalability, and native Ethernet connectivity within a unified control architecture. Designed for demanding industrial environments, this CPU module serves as the command core of a layered automation system — coordinating signal acquisition, logic execution, inter-device communication, and real-time diagnostics across every tier of the control hierarchy.

In modern industrial automation, no component operates in isolation. The IC695CPE330 is architected to function as the central intelligence node within a fully integrated PACSystems RX3i rack, where its performance is amplified by the surrounding ecosystem of power supplies, I/O modules, communication adapters, and HMI interfaces. Understanding this module's role within the broader control architecture is essential for engineers designing scalable, maintainable, and redundancy-capable systems.

The IC695CPE330 achieves its full potential when deployed within a coherent PACSystems RX3i architecture. At the control layer, this CPU executes ladder logic, function block diagrams, and structured text programs with deterministic cycle times, making it suitable for high-speed process control and coordinated multi-axis sequencing. Its dual Ethernet ports enable simultaneous connection to the plant network and a dedicated device network, eliminating single-point communication failure.

At the power layer, the IC695PSA040 or IC695PSD040 power supply modules provide regulated backplane power, ensuring stable voltage delivery to all rack-mounted modules. For critical applications, redundant power configurations using dual IC695PSA140 supplies can be implemented to eliminate power-related downtime.

The I/O layer is served by a broad range of RX3i-compatible modules. Discrete input modules such as the IC694MDL660 and IC694MDL753 handle field-level digital signals, while analog input modules like the IC695ALG600 and IC695ALG616 provide high-resolution process variable acquisition. For analog output control, the IC695ALG704 delivers precise signal conditioning to final control elements. These modules communicate with the IC695CPE330 via the high-speed RX3i backplane, ensuring minimal latency between field signal changes and CPU response.

At the communication layer, the IC695ETM001 Ethernet interface module extends network connectivity beyond the CPU's onboard ports, enabling segmented network architectures and VLAN-based traffic isolation. For legacy serial device integration, the IC695CMM002 serial communications module supports RS-232 and RS-485 protocols, allowing the IC695CPE330 to interface with older instrumentation, drives, and third-party controllers without protocol conversion gateways.

The HMI layer connects to the IC695CPE330 via Ethernet using SRTP or Modbus TCP, enabling real-time visualization of process variables, alarm management, and operator control. GE QuickPanel+ HMI terminals are natively compatible with the PACSystems RX3i platform, reducing integration engineering time and ensuring consistent data mapping between the CPU and operator interface.

For applications requiring motion and drive coordination, the IC695CPE330 can interface with variable frequency drives and servo controllers via Ethernet or serial links, providing coordinated speed and torque references within the same scan cycle as process logic execution. This tight integration eliminates the latency associated with separate motion controllers and simplifies system commissioning.

At the protection layer, the IC695CPE330 supports hardware fault detection, watchdog timer supervision, and module health diagnostics accessible via the embedded web server or programming software. Fault log data is retained in non-volatile memory, enabling post-event analysis without requiring a connected programming terminal.

In manufacturing automation, the IC695CPE330 serves as the primary controller for assembly line sequencing, robotic cell coordination, and conveyor system management. Its high I/O capacity and fast scan times support complex interlocking logic across multiple production zones within a single CPU instance, reducing hardware costs and simplifying network topology.

In power generation and distribution applications, the IC695CPE330 provides the deterministic control required for generator synchronization, load shedding, and substation automation. Its support for DNP3 protocol enables direct integration with SCADA systems used in utility-scale power management, while its redundancy-capable architecture supports hot-standby configurations for critical grid infrastructure.

In oil, gas, and petrochemical facilities, the IC695CPE330 manages process control loops for compressor stations, pipeline monitoring, and tank farm automation. Its wide operating temperature range and robust EMC performance make it suitable for installation in field control panels located in electrically noisy environments adjacent to high-power switchgear.

In water and wastewater treatment plants, the IC695CPE330 coordinates pump sequencing, chemical dosing control, and flow measurement across distributed lift stations and treatment processes. Its Ethernet Global Data (EGD) capability enables peer-to-peer data exchange between multiple RX3i CPUs without requiring a central SCADA server, improving system resilience during network disruptions.

In mining and metals processing, the IC695CPE330 controls crusher sequencing, conveyor load management, and ore processing automation. Its ability to handle large I/O point counts within a single rack simplifies panel design in space-constrained underground installations, while its diagnostic capabilities reduce mean time to repair during unplanned stoppages.

Q1: Is the IC695CPE330 compatible with existing PACSystems RX3i racks and I/O modules already installed in my facility?The IC695CPE330 is fully backward-compatible with all PACSystems RX3i backplanes (IC695CHS007, IC695CHS012, IC695CHS016) and the complete range of RX3i I/O, communication, and specialty modules. No rack or wiring modifications are required when replacing an earlier RX3i CPU with the IC695CPE330. Firmware updates may be required for some older modules to access advanced features introduced with this CPU revision. All units supplied by NANKMOS are pre-tested for backplane communication integrity prior to shipment.

Q2: Can the IC695CPE330 support a redundant CPU architecture for high-availability applications?Yes. The IC695CPE330 supports hot-standby CPU redundancy when paired with the IC695RMX128 redundancy memory exchange module and a compatible redundancy power supply configuration. In a redundant architecture, the primary and secondary CPUs maintain synchronized memory images, enabling bumpless switchover in the event of a CPU fault. This configuration is commonly deployed in power generation, water treatment, and continuous process industries where unplanned downtime carries significant operational cost. NANKMOS maintains stock of both the IC695CPE330 and associated redundancy modules to support complete redundant system builds.

Q3: What is the warranty coverage and what pre-shipment testing is performed on the IC695CPE330?Every IC695CPE330 supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on self-test, backplane communication check, Ethernet port validation, and firmware version confirmation. Units that do not pass all test criteria are quarantined and not shipped. In the event of a warranty claim, NANKMOS provides advance replacement support to minimize system downtime. Contact [email protected] or +86 18359268345 for warranty registration and technical support.
