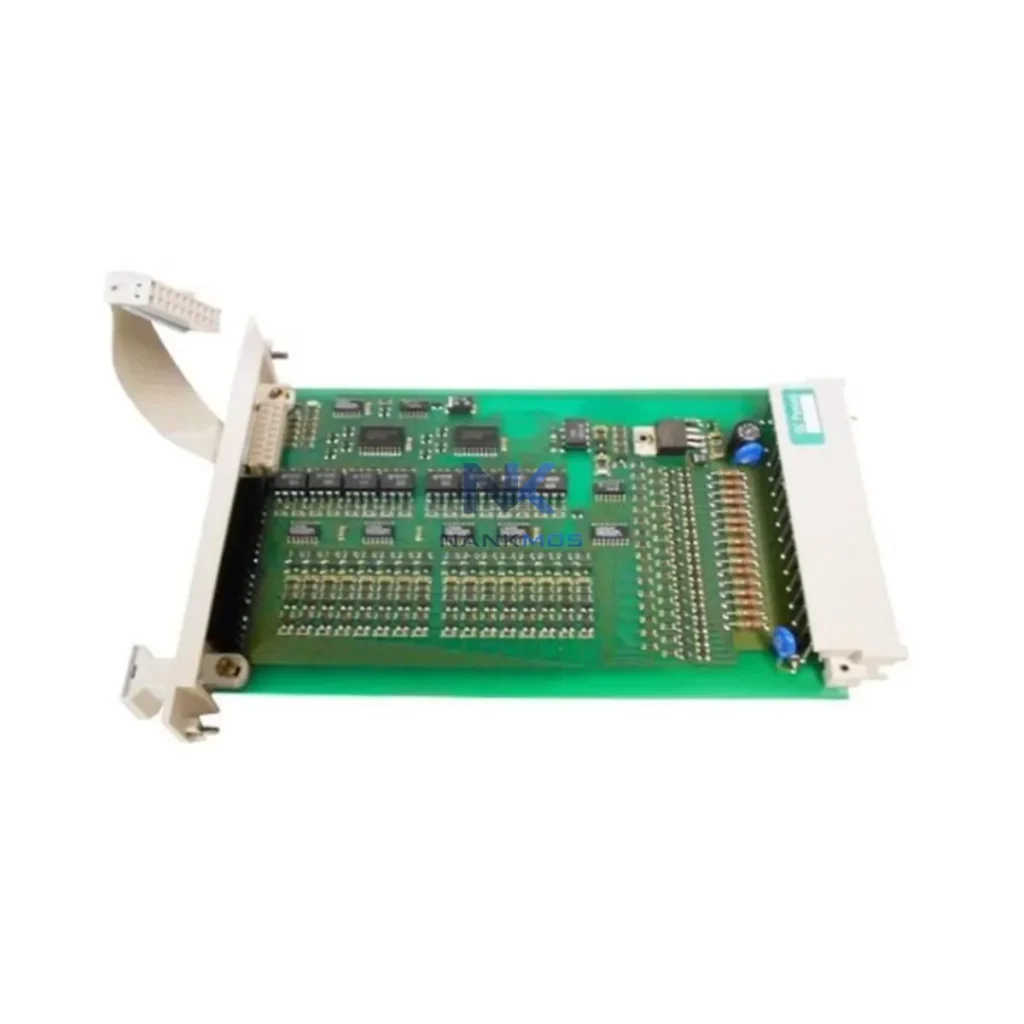

Honeywell 10102/2/1 Safety Analog Input Module

Product Details

10102/2/1 Product Description

The Honeywell 10102/2/1 is a fail-safe analog input module engineered for SIL-rated safety instrumented systems (SIS) operating within modern smart factory environments. Designed to bridge field-level signal acquisition with upper-layer control and monitoring platforms, this module plays a critical role in the industrial data chain — from sensor signal capture through protocol-compliant transmission to real-time SCADA visualization and remote diagnostic feedback.

In today's connected production facilities, the integrity of analog signal data is foundational. The Honeywell 10102/2/1 ensures that 4–20 mA and discrete field signals from pressure transmitters, temperature sensors, and flow meters are accurately captured, conditioned, and forwarded to the safety logic controller without data loss or latency-induced risk. Its architecture supports seamless integration into Honeywell Safety Manager and compatible SIS platforms, enabling deterministic data delivery across the safety network layer.

The Honeywell 10102/2/1 sits at the signal acquisition layer of the smart factory data chain. Field instruments — including Honeywell STT850 temperature transmitters, pressure sensors, and gas detection units — feed analog signals directly into the 10102/2/1 module. These signals are conditioned and validated against fail-safe thresholds before being passed to the Honeywell Safety Manager controller over the internal safety I/O bus.

Within the safety controller chassis, the 10102/2/1 works alongside digital output modules such as the Honeywell 10102/2/2 and relay output cards to form a complete SIS I/O assembly. The safety controller then communicates upstream via Modbus TCP or OPC-UA — typically through an industrial Ethernet switch or a protocol gateway — to the plant's Experion PKS DCS or third-party SCADA platform. This enables real-time process variable monitoring, alarm management, and safety function status visualization on operator HMI screens.

For facilities deploying edge intelligence, the analog data captured by the 10102/2/1 can be routed through an edge gateway — such as a Moxa MGate or Kepware OPC server — to cloud-based analytics platforms or MES systems. This architecture supports predictive maintenance workflows, where deviations in analog signal trends from field transmitters trigger early warning alerts before a safety function is demanded. The result is a closed-loop data flow: field sensor → 10102/2/1 analog input → safety controller → Ethernet gateway → SCADA/HMI → alarm dashboard → remote diagnostic console.

In multi-zone process plants, the 10102/2/1 modules are often deployed in redundant pairs across separate safety I/O racks, with each rack connected to an industrial managed switch supporting PROFINET or EtherNet/IP ring topology. This ensures that a single network segment failure does not interrupt safety data transmission. Alongside Honeywell's 10102/2/3 power supply modules and 10102/2/4 communication interface cards, the 10102/2/1 forms a robust, field-proven SIS I/O backbone capable of supporting hundreds of analog measurement points across a single safety domain.

Protocol Fragmentation: Many legacy process plants operate with a mix of HART field devices, Modbus RTU instruments, and proprietary safety bus protocols. The Honeywell 10102/2/1 addresses this by providing a standardized analog input interface that accepts signals from any 4–20 mA HART-compatible transmitter, while the upstream safety controller handles protocol normalization before data reaches the SCADA layer. This eliminates the need for per-device protocol converters at the field level.

Data Silos and Transparency: In facilities where safety system data is isolated from the process control network, the 10102/2/1's integration with Experion PKS and OPC-UA-capable gateways enables bidirectional data visibility. Process engineers can view real-time analog values, diagnostic counters, and module health status from the same HMI console used for DCS operations — breaking down the traditional barrier between safety and process data layers.

Remote Monitoring and Alarm Tracking: The 10102/2/1 supports continuous self-diagnostics, reporting channel-level faults, open-circuit conditions, and out-of-range signals back to the safety controller. These diagnostic events are time-stamped and forwarded to the SCADA historian, enabling post-incident analysis and regulatory compliance reporting. Remote maintenance teams can access this data via VPN-connected engineering workstations without requiring physical access to the control room.

System Scalability: As production lines expand, additional 10102/2/1 modules can be added to existing safety I/O racks without reconfiguring the network topology. The modular backplane architecture supports hot-swap capability in select configurations, minimizing planned downtime during capacity upgrades. This scalability makes the 10102/2/1 a long-term investment for facilities planning phased smart factory rollouts.

Q1: What communication protocols does the Honeywell 10102/2/1 support for SCADA integration? The 10102/2/1 communicates natively over the Honeywell Safety Manager I/O bus. For SCADA integration, the safety controller aggregates analog data and exposes it via Modbus TCP, OPC-DA, or OPC-UA through a configured communication interface. HART pass-through is supported for field device parameterization without interrupting the safety function.

Q2: How does the module ensure network stability in high-noise industrial environments? The 10102/2/1 incorporates galvanic isolation on all analog input channels, suppressing common-mode noise from variable frequency drives, motor starters, and high-current switching equipment. The safety I/O bus uses differential signaling with CRC error detection, ensuring data integrity even in electrically noisy panel environments.

Q3: Can the 10102/2/1 be used in a redundant safety architecture? Yes. The module is designed for use in 1oo2 and 2oo3 voting architectures within Honeywell Safety Manager systems. Redundant module pairs can be configured to provide continuous analog input coverage, with automatic switchover in the event of a module fault — maintaining SIL integrity without process interruption.

Q4: What does the 12-month warranty cover, and how are units tested before shipment? All Honeywell 10102/2/1 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each module undergoes pre-shipment functional testing, including analog channel verification, bus communication check, and diagnostic self-test validation. Units are shipped in anti-static packaging with test records available upon request. For warranty claims or technical support, contact [email protected].
