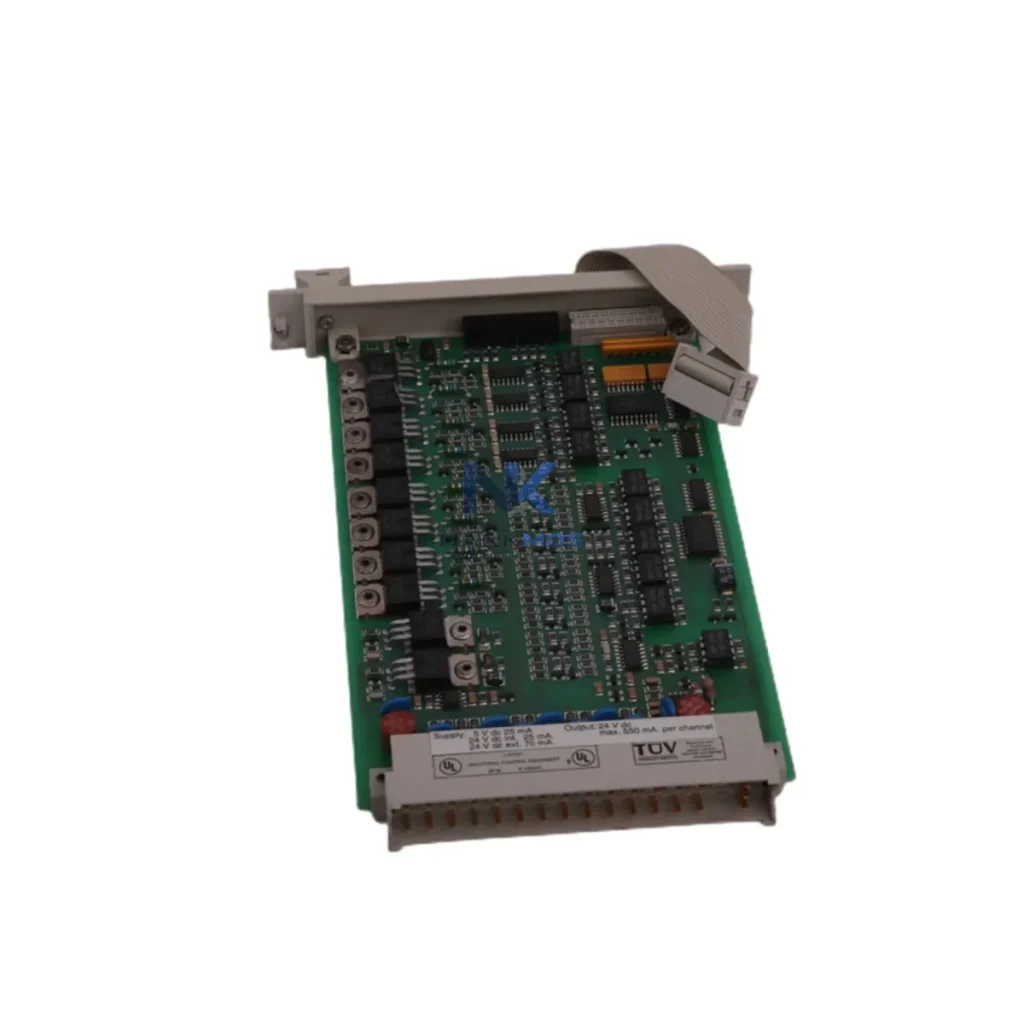

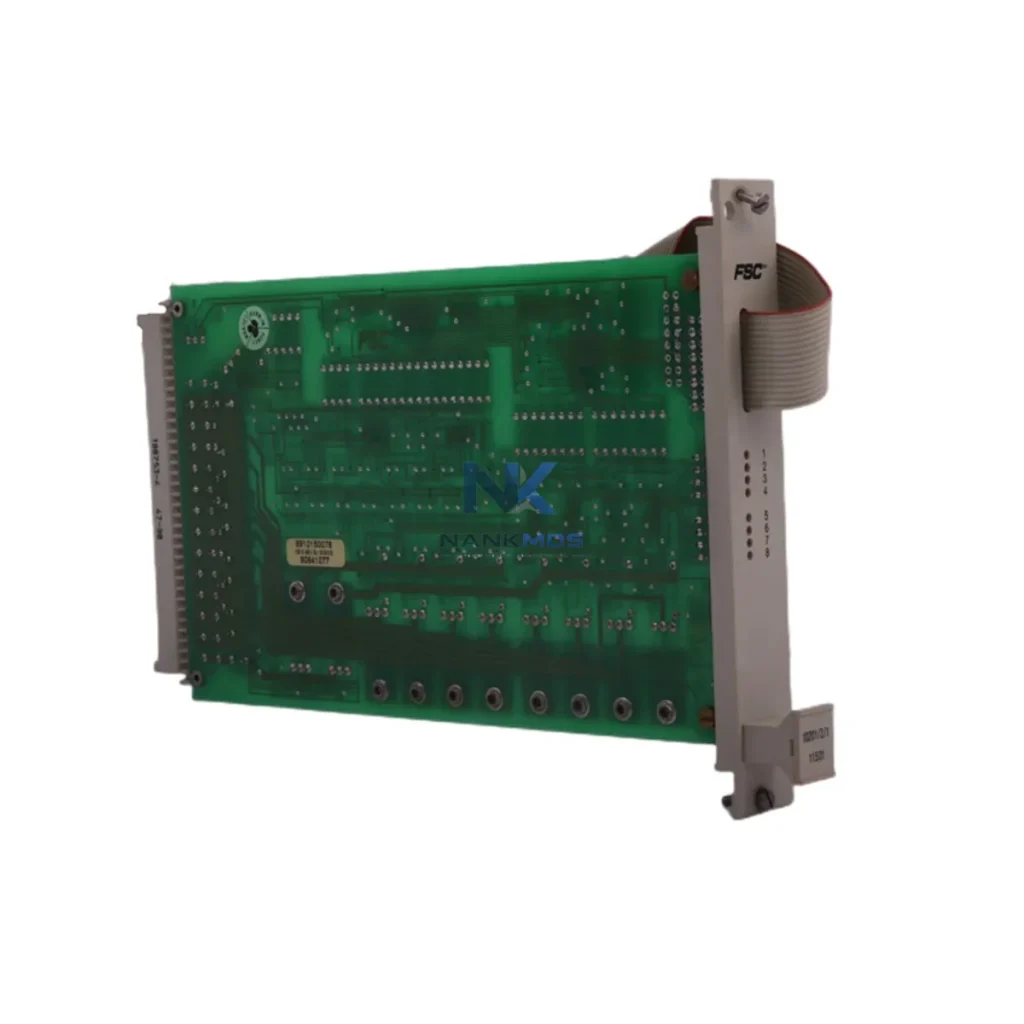

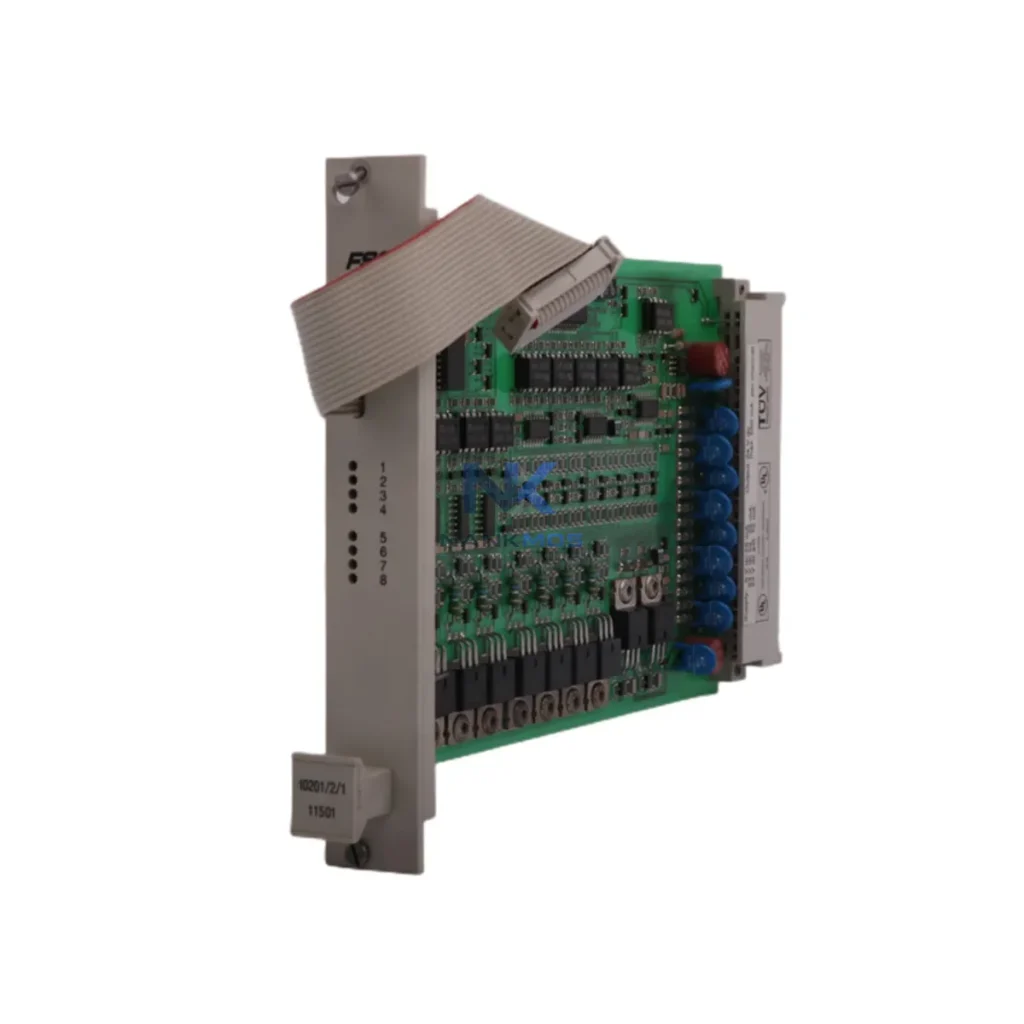

Honeywell 10201/2/1 Digital Output Module

Product Details

10201/2/1 Product Description

The Honeywell 10201/2/1 is a field-proven Digital Output Module engineered for seamless integration within the Honeywell 10200 Series Distributed Control System (DCS) architecture. Designed to deliver deterministic, high-reliability discrete output control across demanding industrial environments, this module occupies a critical position in the control layer — translating supervisory commands from the controller into precise, electrically isolated switching signals that drive field actuators, solenoid valves, motor starters, and relay-based loads. Its role extends beyond simple signal switching: the 10201/2/1 is a structural component of a coherent, layered automation platform where every module contributes to system-wide consistency, redundancy readiness, and long-term maintainability.

In a fully integrated 10200 Series architecture, the 10201/2/1 operates in close coordination with the system's CPU and controller modules — such as the Honeywell 10201/1/1 Controller Module — which manage scan cycles, logic execution, and output command sequencing. The module slots directly into the 10200 Series backplane, sharing the system bus for synchronized data exchange and deterministic output timing. This tight backplane integration eliminates inter-module communication latency and ensures that output state changes are executed within the controller's defined scan window, a critical requirement for process-critical applications in power generation, chemical processing, and continuous manufacturing lines.

From a signal flow perspective, the 10201/2/1 receives discrete output commands from the controller layer and drives field-side loads through electrically isolated output channels. This isolation architecture protects the control backplane from field-side voltage transients, ground loops, and inductive kickback — common failure modes in industrial environments where solenoids, contactors, and motor starters are frequently switched. The module's output channels are designed to interface directly with 24 VDC or AC field devices, and its channel-level diagnostics provide real-time feedback on output state, load continuity, and fault conditions — enabling the control system to detect open-circuit or short-circuit faults without requiring manual field inspection.

Within the broader I/O layer of the 10200 Series platform, the 10201/2/1 complements the system's digital input modules — including the Honeywell 10201/1/2 Digital Input Module — which capture field-side discrete signals such as limit switch states, proximity sensor outputs, and equipment run/stop feedback. Together, the digital input and output modules form a closed-loop discrete control subsystem that supports interlocking logic, permissive sequences, and safety-related shutdown functions. This bidirectional discrete I/O capability is foundational to process automation architectures where equipment state must be continuously monitored and controlled in real time.

The 10201/2/1 also integrates with the communication layer of the 10200 Series architecture. The system's communication modules — such as Honeywell 10200 Series gateway and network interface modules — aggregate I/O data from all installed modules and transmit it upstream to supervisory systems, SCADA platforms, and historian servers via standard industrial protocols. This communication architecture enables plant-wide visibility of discrete output states, supports remote diagnostics, and facilitates integration with Honeywell's Experion PKS or legacy TDC 3000 supervisory platforms. For facilities operating hybrid control architectures, the 10201/2/1's compatibility with the 10200 Series communication infrastructure ensures that discrete output data is available at every level of the automation hierarchy — from field device to enterprise MES.

Power supply integrity is a prerequisite for reliable digital output operation. The 10200 Series architecture supports redundant power supply configurations using Honeywell 10200 Series power supply modules, which provide regulated, filtered DC power to the backplane and all installed I/O modules. The 10201/2/1 draws its operating power directly from the backplane bus, and its internal power conditioning circuitry ensures stable output switching even under backplane voltage fluctuations. In redundant power configurations, automatic power source switchover occurs without interrupting module operation or causing spurious output state changes — a critical requirement for continuous process applications where unplanned output transitions can trigger equipment trips or process upsets.

For HMI and operator interface integration, the 10201/2/1's output states are mapped to operator display faceplates within the Honeywell Experion PKS or compatible HMI platforms, providing operators with real-time visibility of discrete output status, manual override capability, and alarm annunciation for output fault conditions. This HMI integration supports both local panel displays and remote operator stations, enabling centralized monitoring of distributed discrete output points across large-scale process plants. The module's diagnostic data — including output state, fault flags, and channel health indicators — is surfaced directly in the HMI environment, reducing the time required to identify and resolve field-side faults during commissioning and routine maintenance.

In terms of modular expansion and system scalability, the 10201/2/1 supports incremental I/O expansion within the 10200 Series chassis. Additional digital output modules can be added to available backplane slots without requiring controller reconfiguration or system shutdown in hot-swap capable configurations, enabling phased capacity expansion aligned with plant production growth. This modularity is particularly valuable in greenfield projects where initial I/O counts are conservative and expansion headroom must be preserved for future process additions. The 10200 Series backplane architecture supports mixed I/O configurations — combining digital output, digital input, analog input, and analog output modules — within a single chassis, minimizing cabinet footprint and simplifying cable management.

From a maintenance and lifecycle perspective, the 10201/2/1 is designed for long-term field serviceability. Its module-level replacement architecture allows faulty units to be swapped without disturbing adjacent modules or requiring backplane rewiring. Channel-level diagnostics reduce mean time to repair (MTTR) by pinpointing fault locations to the individual output channel, eliminating the need for systematic field-side troubleshooting. All units supplied by NANKMOS undergo pre-shipment functional testing, including output switching verification, isolation resistance measurement, and channel diagnostic validation, ensuring that replacement modules arrive ready for immediate installation and commissioning.

Every Honeywell 10201/2/1 Digital Output Module supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures. Our inventory is maintained from verified supply channels, and all units are inspected and tested prior to dispatch. Global shipping is available with expedited options for critical maintenance requirements. For system architecture consultation, compatibility verification, or bulk procurement inquiries, contact our technical team at [email protected] or +86 18359268345.

The Honeywell 10201/2/1 achieves its full operational value when deployed as part of a complete 10200 Series automation platform. A typical integrated architecture pairs this digital output module with the Honeywell 10201/1/1 Controller Module for logic execution and output command generation, the Honeywell 10201/1/2 Digital Input Module for closed-loop discrete feedback, and Honeywell 10200 Series Analog Input Modules for process variable acquisition from temperature, pressure, and flow transmitters. The system backplane — a Honeywell 10200 Series Backplane/Rack Assembly — provides the physical and electrical infrastructure for module interconnection, power distribution, and system bus communication.

Power integrity across the platform is maintained by Honeywell 10200 Series Power Supply Modules, which support redundant configurations to eliminate single points of failure in the power layer. Communication between the 10200 Series chassis and supervisory systems is handled by Honeywell 10200 Series Network Interface or Gateway Modules, enabling data exchange with Experion PKS workstations, SCADA servers, and plant historians via Ethernet or proprietary Honeywell network protocols. For operator interface, Honeywell Experion PKS Operator Stations or compatible HMI terminals provide real-time visualization of discrete output states and alarm management. In applications requiring signal conditioning between field devices and the I/O layer, Honeywell or third-party signal isolators and terminal modules are deployed in the marshalling cabinet to protect the 10201/2/1's input circuitry from field-side electrical noise and ground potential differences. This complete, integrated platform architecture ensures that the 10201/2/1 operates within a validated, system-consistent environment — maximizing reliability, simplifying commissioning, and supporting long-term maintainability.

Power Generation: In thermal and hydroelectric power plants, the 10201/2/1 controls discrete outputs for turbine auxiliary systems, valve actuators, and protection relay trip circuits. Its deterministic output timing and channel-level diagnostics support the stringent reliability requirements of power generation control architectures, where output failures can trigger unit trips and generation loss.

Chemical and Petrochemical Processing: Continuous process plants deploy the 10201/2/1 to control solenoid valves, motor starters, and interlock relay outputs within safety-instrumented and basic process control systems. Its electrical isolation architecture prevents field-side fault propagation into the control backplane, maintaining system integrity in environments with high electrical noise and frequent switching loads.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the 10201/2/1 to control pump motor starters, valve actuators, and dosing system outputs. Its compatibility with the 10200 Series communication infrastructure enables centralized SCADA monitoring of distributed discrete output points across geographically dispersed treatment facilities.

Mining and Mineral Processing: In conveyor control, crusher management, and flotation circuit automation, the 10201/2/1 provides reliable discrete output control for high-cycle switching applications. Its modular replacement architecture minimizes maintenance downtime in remote mining environments where rapid module swap-out is essential for production continuity.

Packaging and Discrete Manufacturing: High-speed packaging lines and assembly systems deploy the 10201/2/1 for synchronized discrete output control of pneumatic actuators, reject mechanisms, and conveyor drive enables. Its backplane-integrated scan cycle synchronization ensures output timing consistency with the controller's logic execution cycle, supporting high-throughput production line control.

Q1: Is the Honeywell 10201/2/1 compatible with both Experion PKS and legacy TDC 3000 architectures?The 10201/2/1 is designed for the Honeywell 10200 Series DCS platform, which has integration pathways with both Experion PKS and TDC 3000 supervisory architectures. Compatibility depends on the specific system configuration, firmware revision, and communication module complement installed in the target chassis. NANKMOS recommends providing your system architecture details — including controller module model, backplane revision, and supervisory platform version — for a pre-installation compatibility assessment before deployment.

Q2: Can the 10201/2/1 be installed or replaced without a full system shutdown?Hot-swap capability in the 10200 Series architecture depends on the chassis configuration and controller firmware version. In systems configured for online module replacement, the 10201/2/1 can be removed and reinstalled without requiring a full controller shutdown, provided that the affected output channels are placed in a safe state prior to module removal. NANKMOS recommends consulting the 10200 Series hardware installation manual and verifying hot-swap support with your system integrator before performing live module replacements in production environments.

Q3: What warranty and post-shipment support does NANKMOS provide for the 10201/2/1?Every Honeywell 10201/2/1 supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures from the date of shipment. All units undergo pre-shipment functional testing including output switching verification, isolation resistance measurement, and channel diagnostic validation. In the event of a warranty claim, NANKMOS provides expedited replacement dispatch to minimize production downtime. For ongoing technical support, architecture consultation, or bulk procurement, contact [email protected] or +86 18359268345.
