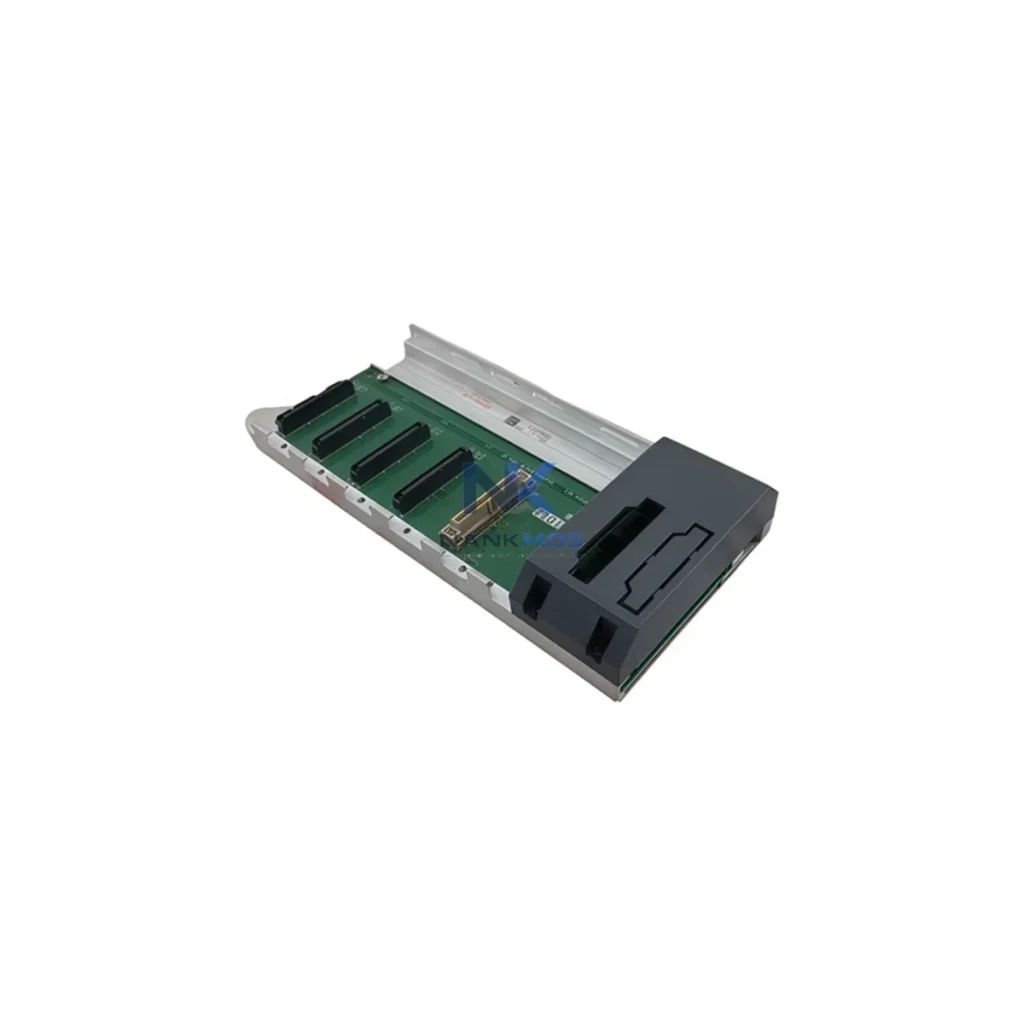

Honeywell 2MLB-E04A DCS Extension Base

Product Details

2MLB-E04A Product Description

The Honeywell 2MLB-E04A is a purpose-engineered extension base designed to expand the I/O capacity and modular reach of the HC900 Hybrid Controller platform. Within a fully integrated industrial automation architecture, the 2MLB-E04A serves as a critical structural and electrical backbone that enables seamless rack-level expansion without compromising system coherence, signal integrity, or communication stability. Whether deployed in a greenfield process control installation or integrated into an existing HC900 rack system, this extension base delivers the modularity, reliability, and long-term serviceability that demanding industrial environments require.

At NANKMOS, every 2MLB-E04A unit is sourced through verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty. Our inventory is maintained to support urgent project timelines, MRO replenishment cycles, and large-scale system expansions across manufacturing, power generation, petrochemical, water treatment, and mining sectors.

The 2MLB-E04A extension base is not a standalone component — it is an architectural enabler within the broader HC900 control ecosystem. Understanding its role requires examining how it interacts with every functional layer of the automation platform.

At the control layer, the HC900 CPU modules — including the HC900 C50 Controller (900C50-0143-00) and the high-availability HC900 C75 Redundant Controller — serve as the processing core. The 2MLB-E04A extends the physical rack footprint of these controllers, allowing additional I/O modules to be mounted and addressed within the same logical control domain. This eliminates the need for additional controller nodes in mid-scale expansions, preserving system coherence and reducing licensing complexity.

At the I/O layer, the extension base accommodates a wide range of HC900-compatible I/O modules, including analog input modules such as the 900G32-0101 (16-channel AI), digital output modules, thermocouple input modules, and RTD input modules. Each slot on the 2MLB-E04A is electrically connected to the backplane bus, ensuring deterministic scan-cycle communication between field signals and the controller. This is particularly important in process control applications where signal latency or dropout can trigger unsafe operating conditions.

At the power layer, the 2MLB-E04A is designed to work in conjunction with the HC900 Power Supply Module (900P01-0001), which provides regulated DC power to all modules mounted on the base. In redundant power configurations, dual power supply modules can be deployed across the primary and extension racks to eliminate single points of failure — a critical design requirement in continuous process industries such as petrochemical refining and power generation.

At the communication layer, the HC900 platform supports Ethernet-based supervisory communication via Modbus TCP and OPC DA/UA protocols, enabling integration with SCADA systems, historian platforms, and DCS supervisory layers. The 2MLB-E04A, as part of the rack assembly, ensures that all I/O modules mounted within it participate fully in this communication architecture. For peer-to-peer controller communication, the HC900 also supports HC900 Peer-to-Peer Ethernet links, which can be configured through the HC Designer engineering tool.

At the HMI layer, operators interact with the HC900 system through Honeywell's HC Designer Configuration Software and compatible SCADA platforms. The extension base, by expanding available I/O points, directly increases the number of process variables that can be monitored and controlled from the HMI — improving situational awareness and operator response capability without requiring architectural redesign.

At the protection and redundancy layer, the 2MLB-E04A supports the deployment of redundant I/O modules in conjunction with the HC900's redundancy architecture. When paired with the HC900 C75 Redundant Controller and redundant power supplies, the extension base becomes part of a fault-tolerant control node capable of bumpless transfer during controller failover events.

At the maintenance and diagnostics layer, the HC900 platform provides module-level diagnostics accessible through HC Designer and the controller's built-in web server. Modules mounted on the 2MLB-E04A are individually addressable, allowing maintenance engineers to isolate faults, perform hot-swap replacements (where supported), and validate I/O channel integrity without taking the entire rack offline. This capability significantly reduces mean time to repair (MTTR) and supports predictive maintenance strategies in high-availability production environments.

For terminal connectivity, the HC900 I/O modules mounted on the 2MLB-E04A interface with field wiring through HC900 Terminal Assemblies and 900TBK series terminal blocks, which provide organized, labeled, and removable field wiring connections. This design simplifies commissioning, reduces wiring errors, and accelerates future module replacements during scheduled maintenance windows.

Manufacturing & Discrete Production Lines: In automotive assembly, food and beverage processing, and packaging lines, the 2MLB-E04A enables I/O expansion within existing HC900 control panels without panel redesign. Additional analog and digital I/O modules can be added to accommodate new sensors, actuators, and safety interlocks as production lines evolve.

Power Generation & Utilities: In gas turbine auxiliary control, boiler management, and substation automation applications, the HC900 platform with 2MLB-E04A extension bases provides the I/O density and communication reliability required for continuous, unattended operation. Redundant controller and power supply configurations ensure control continuity during planned and unplanned maintenance events.

Petrochemical & Refining: Process units in refineries and chemical plants demand high I/O counts, precise analog signal handling, and robust communication to DCS supervisory layers. The 2MLB-E04A supports the deployment of thermocouple, RTD, and pressure transmitter inputs within a single rack assembly, reducing panel footprint and simplifying hazardous area cable management.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use HC900-based control systems for pump sequencing, chemical dosing, and effluent monitoring. The 2MLB-E04A allows operators to expand I/O capacity as treatment capacity grows, without replacing the primary controller or rewiring existing field devices.

Mining & Metals Processing: In ore processing, conveyor control, and smelting operations, the HC900 platform's rugged design and the 2MLB-E04A's reliable backplane connectivity support high-vibration, high-temperature industrial environments. The extension base enables centralized control of distributed process zones from a single controller node.

Marine & Offshore: Shipboard automation and offshore platform control systems require compact, reliable I/O expansion solutions. The 2MLB-E04A's panel-mount form factor and compatibility with HC900 marine-rated configurations make it suitable for engine room automation, ballast control, and cargo management systems.

Q1: Is the Honeywell 2MLB-E04A compatible with all HC900 CPU variants, and can it be added to an existing HC900 rack system without reconfiguration? The 2MLB-E04A is designed for use within the HC900 Hybrid Controller platform and is compatible with HC900 C30, C50, C70, and C75 CPU modules. Adding an extension base to an existing system requires updating the rack configuration within HC Designer software to recognize the new base and any I/O modules installed within it. No hardware reconfiguration of the primary rack is required, and the extension base connects to the primary rack via the HC900 rack interconnect cable. NANKMOS recommends verifying firmware compatibility between the CPU and any new I/O modules prior to installation.

Q2: What are the power supply requirements for the 2MLB-E04A, and does it support redundant power configurations? The 2MLB-E04A requires a dedicated HC900 Power Supply Module (such as the 900P01-0001) to power the modules installed within its slots. The extension base supports redundant power supply configurations when used in conjunction with HC900 redundant power supply modules, providing protection against single power supply failures. Total power consumption must be calculated based on the specific I/O modules installed, and NANKMOS can assist with power budget analysis for complex rack configurations.

Q3: What warranty and supply assurance does NANKMOS provide for the Honeywell 2MLB-E04A, and how quickly can units be shipped for urgent project requirements? All Honeywell 2MLB-E04A units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures. Each unit undergoes pre-shipment functional testing to verify backplane connectivity, slot integrity, and electrical compliance before dispatch. NANKMOS maintains ready stock of HC900 platform components to support urgent MRO requirements, project commissioning timelines, and emergency replacement scenarios. Standard lead times are 3–7 business days for international shipments, with expedited options available. Contact [email protected] or +86 18359268345 for availability confirmation and volume pricing.
