Honeywell 2MLB-M04A-CC DCS Base Module

Product Details

2MLB-M04A-CC Product Description

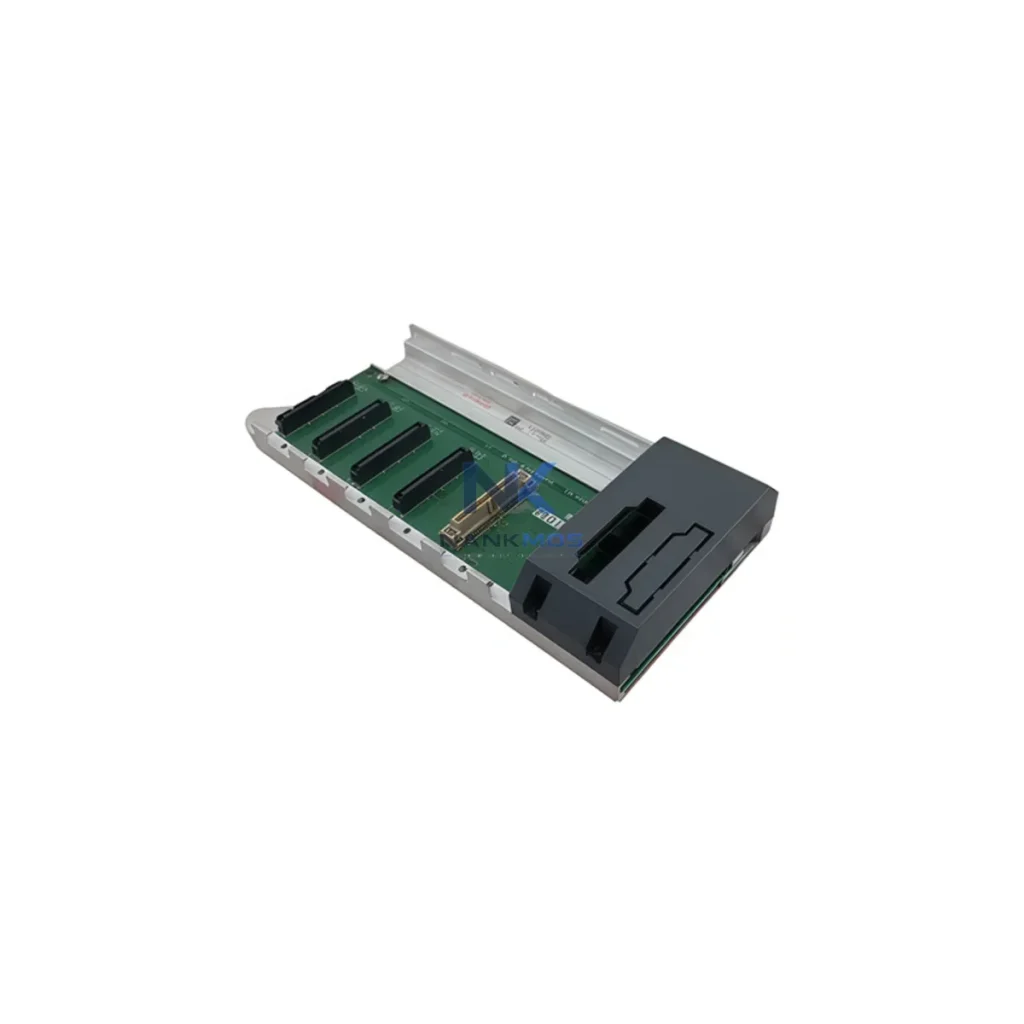

The Honeywell 2MLB-M04A-CC is a 4-slot main base module engineered for the Experion Process Knowledge System (PKS), delivering a robust and deterministic data backbone across distributed control architectures. In modern smart factory environments, where every millisecond of signal latency and every byte of process data carries operational weight, the 2MLB-M04A-CC serves as the physical and logical foundation upon which reliable industrial communication is built. From field-level sensor inputs to enterprise-level SCADA dashboards, this module anchors the data flow that drives real-time decision-making, predictive maintenance, and production transparency.

In a fully integrated smart factory, the Honeywell 2MLB-M04A-CC operates at the heart of the control layer, bridging field instrumentation with supervisory systems through a structured and redundant data path. The journey begins at the sensor level — pressure transmitters, flow meters, and temperature probes feed analog and digital signals into remote I/O modules such as the Honeywell HC-TAIX11 analog input module or the HC-TDIL01 digital input module. These signals are aggregated and passed upward through the backplane of the 2MLB-M04A-CC base, where the resident C300 Controller Module executes the control logic in real time.

The C300 communicates upstream via Fault Tolerant Ethernet (FTE), a dual-ring redundant network architecture that ensures zero-packet-loss data delivery even during cable faults or switch failures. This FTE backbone connects to Honeywell's Experion PKS Server, which aggregates process data from multiple controller nodes across the plant. Operators interact with this data through Experion Station HMI terminals, where live process graphics, alarm summaries, and trend displays provide full production visibility.

For facilities that require integration with third-party PLCs or legacy equipment, the 2MLB-M04A-CC platform supports protocol bridging through Modbus TCP and ControlNet interfaces, enabling seamless data exchange with Siemens S7 series PLCs, Allen-Bradley ControlLogix systems, or standalone variable frequency drives (VFDs) managing motor loads on the production floor. Edge gateway devices — such as the Honeywell Enraf SmartRadar or compatible third-party IIoT gateways — can further extend connectivity to cloud-based analytics platforms, enabling remote diagnostics and OEE (Overall Equipment Effectiveness) monitoring from any location.

Power integrity across the base is maintained by industrial DIN-rail power supplies rated for 24VDC operation, ensuring stable voltage delivery to all seated modules. The modular architecture of the 2MLB-M04A-CC allows engineers to populate slots with a mix of controller, communication, and I/O modules — including the Honeywell HC-SCMB-02 serial communication module for RS-232/RS-485 legacy device integration — without requiring system downtime for reconfiguration.

All data flowing through the 2MLB-M04A-CC is time-stamped at the source, enabling precise sequence-of-events (SOE) reconstruction for alarm analysis and regulatory compliance reporting. This time-synchronized data stream feeds directly into Honeywell Uniformance PHD historian software, where long-term process trends are stored and made available for advanced analytics, energy optimization studies, and predictive maintenance algorithms.

Many industrial facilities face persistent challenges around data fragmentation, protocol incompatibility, and limited remote visibility. The Honeywell 2MLB-M04A-CC directly addresses these pain points within the Experion PKS ecosystem:

Protocol Fragmentation: Legacy field devices often communicate over proprietary or older protocols such as HART, Modbus RTU, or Profibus DP. The 2MLB-M04A-CC base, when paired with appropriate communication modules, enables protocol normalization — converting diverse field signals into a unified FTE data stream that the Experion server can process without custom middleware.

Data Silos: In plants where DCS, PLC, and SCADA systems operate in isolation, the 2MLB-M04A-CC's open Ethernet connectivity allows cross-system data sharing. Process variables from the Experion domain can be published to OPC-UA servers, making them accessible to MES (Manufacturing Execution Systems) and ERP platforms without manual data entry.

Remote Monitoring Gaps: With FTE redundancy and Experion's built-in remote access capabilities, maintenance engineers can connect to the 2MLB-M04A-CC system from off-site locations to review controller diagnostics, acknowledge alarms, and perform parameter adjustments — reducing the need for on-site emergency callouts and accelerating mean time to repair (MTTR).

Production Line Transparency: By centralizing I/O data through the 2MLB-M04A-CC base and surfacing it on Experion HMI displays, plant managers gain real-time visibility into every production stage — from raw material intake to finished goods output — enabling faster response to deviations and more accurate production reporting.

Alarm Tracking and Escalation: The Experion PKS alarm management framework, anchored by the 2MLB-M04A-CC controller infrastructure, supports ISA-18.2 compliant alarm rationalization, priority filtering, and escalation routing — ensuring that critical process alerts reach the right personnel through the right channels without alarm flood conditions.

System Scalability: The modular slot architecture of the 2MLB-M04A-CC supports incremental expansion. As production capacity grows, additional base modules and I/O cards can be added to the Experion network without redesigning the control architecture, protecting the initial capital investment and reducing future integration costs.

Q1: What communication protocols does the Honeywell 2MLB-M04A-CC support, and is it compatible with third-party SCADA systems?The 2MLB-M04A-CC operates natively within the Honeywell Experion PKS FTE (Fault Tolerant Ethernet) network. It also supports Modbus TCP and ControlNet for integration with third-party PLCs and SCADA platforms. OPC-DA and OPC-UA data publishing is available through the Experion server layer, enabling compatibility with most modern SCADA and MES systems.

Q2: How does the FTE redundancy in the 2MLB-M04A-CC system ensure network stability in demanding industrial environments?FTE uses a dual-ring Ethernet topology where both network paths carry live traffic simultaneously. In the event of a cable break, switch failure, or port fault, traffic automatically reroutes over the surviving path within milliseconds — with no packet loss and no controller restart required. This makes the 2MLB-M04A-CC platform suitable for continuous process industries where unplanned downtime carries significant financial and safety consequences.

Q3: Can the 2MLB-M04A-CC be used for remote diagnostics and predictive maintenance?Yes. The Experion PKS platform provides built-in remote access tools that allow authorized engineers to monitor controller health, review I/O module status, and analyze process trends from any networked location. When integrated with Honeywell Uniformance PHD historian and analytics tools, the 2MLB-M04A-CC infrastructure supports condition-based monitoring and early fault detection across connected field devices.

Q4: What does the 12-month warranty cover, and how is the unit tested before shipment?Every Honeywell 2MLB-M04A-CC unit supplied by NANKMOS undergoes pre-shipment functional verification, including backplane continuity checks, communication port testing, and visual inspection for physical integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for installation guidance, configuration assistance, and warranty claim processing. Contact us at [email protected] or +86 18359268345 for availability and lead time confirmation.
