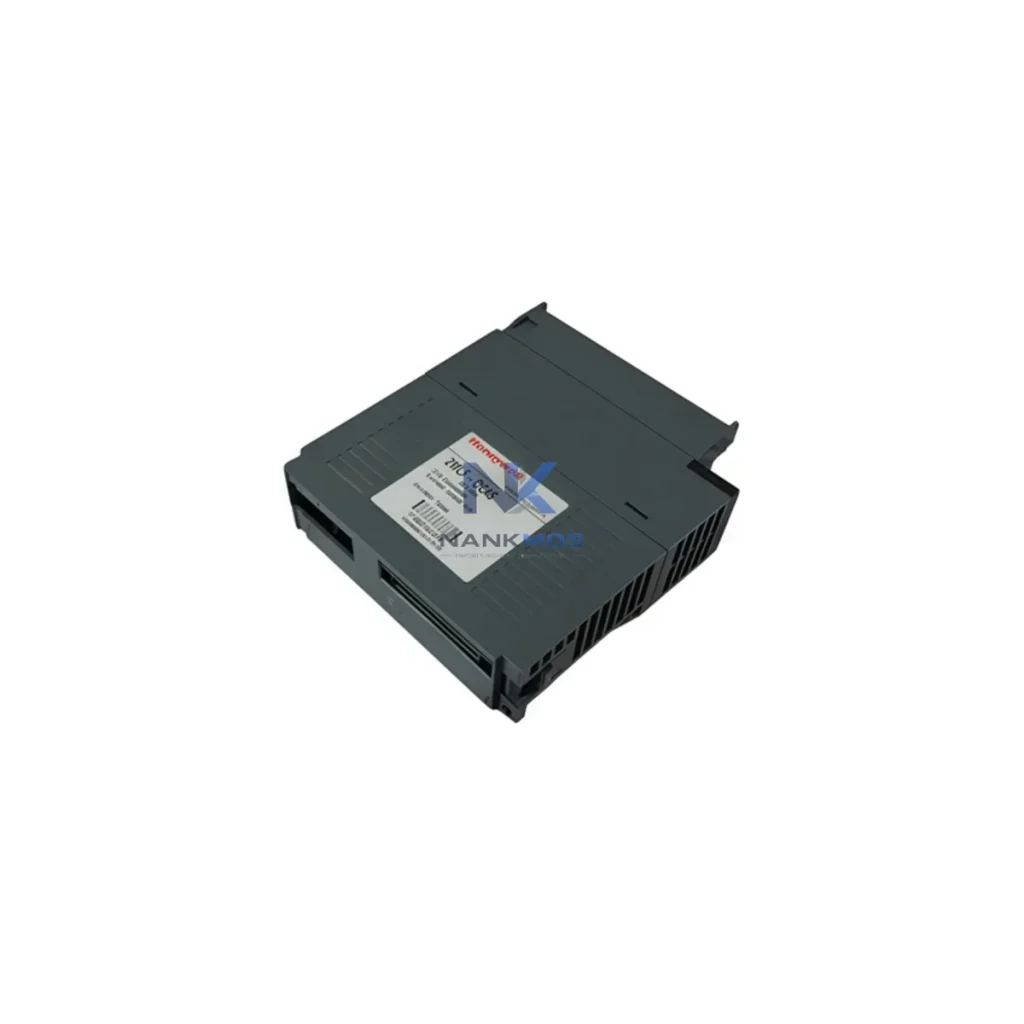

Honeywell 2MLF-DC4H DCS Output Module

Product Details

2MLF-DC4H Product Description

The Honeywell 2MLF-DC4H is not a standalone component — it is a precision-engineered element within the Experion PKS distributed control architecture, designed to deliver reliable DC output signals across the full I/O layer of a process automation system. Understanding its role requires examining how it interacts with adjacent modules, communication layers, and system-level redundancy mechanisms.

At the control layer, the 2MLF-DC4H receives execution commands from Honeywell C300 Controller modules, which serve as the primary process controllers within the Experion PKS platform. The C300 manages scan cycles, logic execution, and output arbitration, passing discrete control signals down through the backplane to I/O modules including the 2MLF-DC4H. In redundant configurations, a pair of C300 controllers operates in active-standby mode, ensuring that any controller failover does not interrupt the DC output signals managed by the 2MLF-DC4H — a critical requirement in continuous process environments.

The I/O layer surrounding the 2MLF-DC4H typically includes complementary modules such as the Honeywell 2MLI-DC4H DC Input Module, which handles field-side discrete input acquisition, and the 2MLF-AC4H AC Output Module for applications requiring AC-driven actuators. Together, these modules populate the Experion PKS I/O chassis, sharing a common backplane bus that ensures synchronized data exchange with the controller. The IOTA (I/O Termination Assembly) carrier boards provide the physical field wiring interface, allowing the 2MLF-DC4H to connect directly to solenoid valves, motor starters, relay coils, and other DC-driven field devices without additional signal conditioning hardware.

At the communication layer, the Experion PKS architecture relies on Fault Tolerant Ethernet (FTE) — a dual-ring, redundant Ethernet backbone — to link controllers, I/O subsystems, and operator workstations. The 2MLF-DC4H participates in this architecture through its chassis integration, with the C300 controller managing all FTE communication on its behalf. For remote I/O applications, Honeywell IOLIM (I/O Link Interface Module) components extend the I/O bus over longer distances, enabling the 2MLF-DC4H to be deployed in distributed field junction boxes while maintaining full system visibility from the central control room.

Power integrity is foundational to reliable DC output performance. The 2MLF-DC4H operates within a chassis powered by Honeywell Experion PKS Power Supply modules, which provide regulated 24 VDC to the I/O backplane. In high-availability installations, redundant power supply pairs with automatic switchover ensure that a single power supply failure does not affect output module operation. External field power for the DC output circuits is typically sourced from dedicated 24 VDC field power distribution panels, isolated from the control system power rail to prevent ground loops and noise coupling.

At the HMI and supervisory layer, Experion PKS operator stations running Honeywell's Station software provide real-time visualization of all output states managed by the 2MLF-DC4H. Operators can monitor individual channel status, acknowledge alarms triggered by output faults, and initiate manual overrides directly from the HMI without requiring physical access to the field cabinet. This tight integration between the output module and the HMI layer is a defining characteristic of the Experion PKS contextual integration philosophy — every field device state is visible, traceable, and actionable from the control room.

For protection and diagnostics, the 2MLF-DC4H incorporates channel-level fault detection, reporting open-circuit and short-circuit conditions back to the controller and HMI in real time. This diagnostic capability reduces mean time to repair (MTTR) by allowing maintenance teams to identify faulty field wiring or actuator failures without manual loop testing. When combined with Honeywell's Asset Management System (AMS) or the Experion PKS built-in diagnostics framework, the 2MLF-DC4H contributes to a comprehensive predictive maintenance strategy that extends equipment life and reduces unplanned downtime.

Oil, Gas & Petrochemical: In refinery and upstream processing facilities, the 2MLF-DC4H drives solenoid-operated shutdown valves (SDVs) and blowdown valves within Safety Instrumented Systems (SIS) and Basic Process Control Systems (BPCS). Its deterministic output response and fault-reporting capability make it suitable for emergency shutdown (ESD) logic execution where output integrity is non-negotiable.

Power Generation & Utilities: In thermal power plants and combined-cycle facilities, the 2MLF-DC4H controls auxiliary equipment including cooling water pump starters, lube oil system solenoids, and turbine bypass valve actuators. Its integration within the Experion PKS platform allows power plant operators to manage all auxiliary DC outputs from a unified control environment, reducing operator workload and improving response time during load transients.

Water & Wastewater Treatment: Municipal and industrial water treatment plants deploy the 2MLF-DC4H to control dosing pump enable signals, UV disinfection system triggers, and filter backwash valve actuators. The module's ability to operate reliably in electrically noisy environments — common in water treatment facilities with large motor drives — ensures consistent output performance without signal degradation.

Mining & Metallurgy: In ore processing and smelting operations, the 2MLF-DC4H manages conveyor interlock signals, crusher feed gate solenoids, and furnace atmosphere control valves. Its robust industrial design and Experion PKS integration allow mining automation engineers to implement complex interlock logic with full diagnostic visibility, reducing the risk of equipment damage from incorrect sequencing.

Pharmaceutical & Fine Chemical Manufacturing: In GMP-regulated manufacturing environments, the 2MLF-DC4H provides validated DC output control for bioreactor agitator drives, clean-in-place (CIP) valve sequences, and sterile air supply solenoids. Its integration with Experion PKS audit trail and electronic batch record systems supports 21 CFR Part 11 compliance requirements.

Q1: Is the Honeywell 2MLF-DC4H compatible with both new Experion PKS installations and existing legacy Honeywell TDC 3000 migration projects? A: The 2MLF-DC4H is designed for the Experion PKS I/O architecture and is the recommended output module for new installations and TDC 3000 migration projects using Honeywell's Universal Migration approach. In migration scenarios, the module slots into Experion PKS I/O chassis that replace legacy PM/APM I/O cards, with field wiring re-terminated at the IOTA carrier level — preserving existing field cabling while delivering modern diagnostic and communication capabilities. Compatibility should always be verified against the specific Experion PKS release and chassis configuration in use.

Q2: How does the 2MLF-DC4H support redundant control architectures, and what happens to output states during a controller failover event? A: In redundant C300 controller configurations, the Experion PKS platform maintains continuous output state synchronization between the active and standby controllers. During a failover event, the standby controller assumes control within milliseconds, and the 2MLF-DC4H output channels maintain their last commanded state throughout the transition — preventing spurious actuator trips or unintended valve movements. This bumpless transfer capability is essential in continuous process applications where output interruptions can trigger process upsets or safety system activations.

Q3: What warranty and supply chain support does NANKMOS provide for the Honeywell 2MLF-DC4H? A: NANKMOS provides a 12-Month Warranty on all Honeywell 2MLF-DC4H modules supplied, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output channel integrity, communication bus compatibility, and electrical parameter compliance before dispatch. NANKMOS maintains inventory of the 2MLF-DC4H and related Experion PKS I/O modules to support urgent replacement requirements, with expedited shipping available for critical plant maintenance situations. For procurement inquiries, system compatibility verification, or technical support, contact NANKMOS at [email protected] or +86 18359268345.
