Honeywell 2MLF-HD2A High Speed Counter Module

Product Details

2MLF-HD2A Product Description

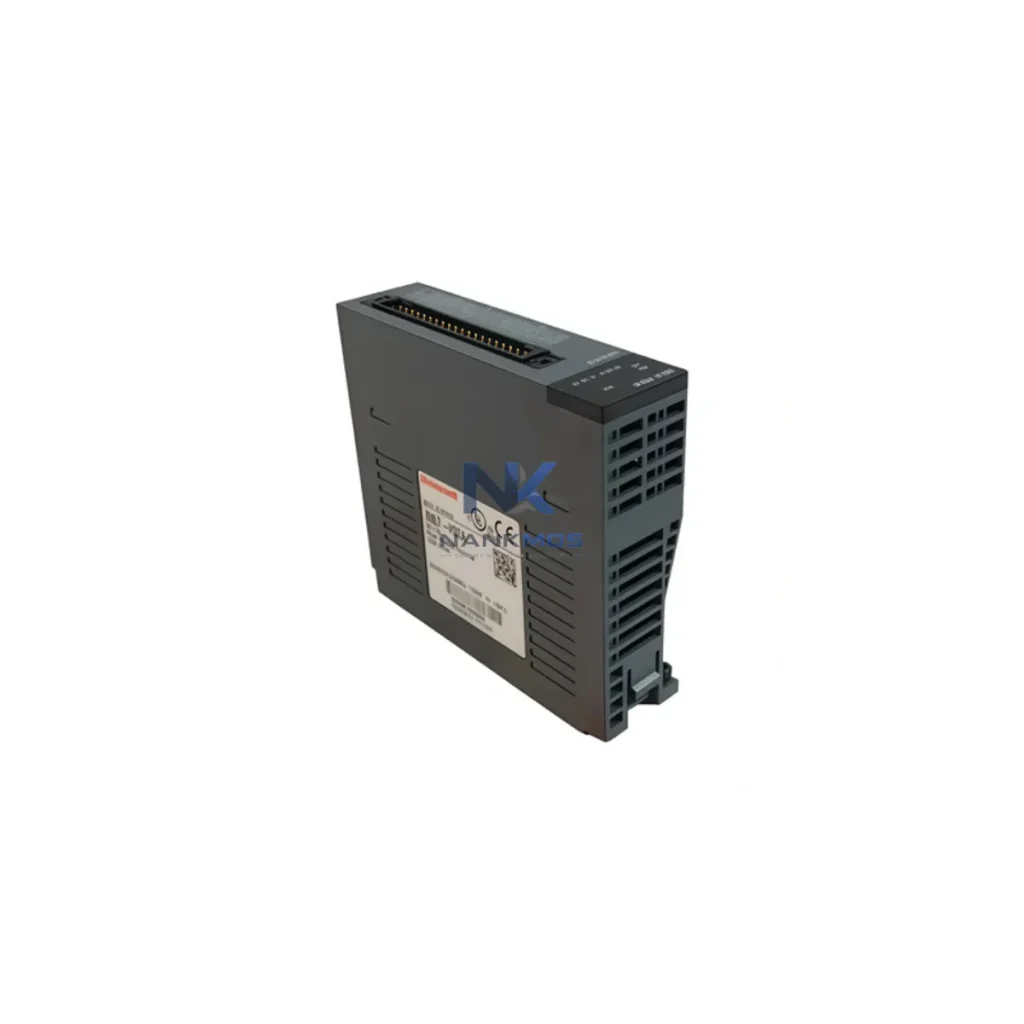

The Honeywell 2MLF-HD2A is a high-speed counter module engineered for seamless integration within the Experion PKS distributed control architecture. Designed to serve as a critical node in the industrial data chain, the 2MLF-HD2A bridges field-level signal acquisition with upper-layer control and monitoring systems, enabling real-time data flow across every tier of a smart factory environment. From pulse counting at the sensor edge to live visualization on SCADA dashboards, this module delivers the connectivity precision that modern automation sites demand.

In a typical smart factory deployment, the 2MLF-HD2A receives high-frequency pulse signals from encoders, flow meters, and proximity sensors installed on production lines. These raw signals are conditioned, counted, and formatted into structured data packets that are transmitted upstream through the Experion PKS C300 Controller or the Experion PKS EHPM Highway Processor Module. The module's tight integration with the Honeywell control backbone ensures deterministic scan cycles and minimal latency, which is essential for high-throughput manufacturing processes where every millisecond of data delay can translate into quality deviations or production loss.

The 2MLF-HD2A occupies a pivotal position in the connected factory data flow. At the field level, it interfaces directly with high-speed sensors and encoders, capturing pulse trains that represent rotational speed, flow volume, or positional displacement. This data is then passed through the Experion PKS chassis backplane to the Honeywell C300 Process Controller, which executes control logic and forwards processed values to the plant-wide network via Fault Tolerant Ethernet (FTE).

For sites requiring protocol bridging between legacy serial devices and modern Ethernet-based systems, the 2MLF-HD2A works in conjunction with Honeywell EPLCG Ethernet to Serial Gateway modules, enabling Modbus RTU field devices to participate in the Experion PKS data ecosystem without hardware replacement. This protocol conversion capability is essential for brownfield automation upgrades where existing instrumentation — including Honeywell ST 3000 Smart Transmitters and legacy HART-enabled sensors — must be retained while the control layer is modernized.

At the network layer, data from the 2MLF-HD2A flows through Honeywell FTE industrial switches that provide redundant, fault-tolerant Ethernet paths between controllers, I/O modules, and server infrastructure. These managed switches support VLAN segmentation and Quality of Service (QoS) prioritization, ensuring that time-critical counter data is never delayed by lower-priority traffic. The network architecture supports integration with Honeywell Experion PKS Remote I/O (RMIO) nodes deployed in distributed field cabinets, extending the data collection perimeter across large plant footprints without signal degradation.

At the supervisory level, the 2MLF-HD2A's data is consumed by Honeywell Experion PKS Station HMI workstations and the Honeywell Uniformance PHD process historian, where operators can monitor real-time counter values, configure alarm thresholds, and review historical trends. Integration with third-party SCADA platforms is supported through OPC DA/UA server interfaces, allowing the 2MLF-HD2A's data to be published to Wonderware System Platform or Ignition SCADA environments for enterprise-wide visibility. For edge computing applications, the module's data can be aggregated by Honeywell Experion Edge gateways, enabling local analytics and anomaly detection before data is forwarded to cloud-based MES or ERP systems.

Many industrial sites operate with fragmented automation architectures where different generations of equipment communicate over incompatible protocols — Modbus RTU, PROFIBUS DP, DeviceNet, and proprietary serial formats coexist without a unified data layer. The 2MLF-HD2A, as part of the Experion PKS ecosystem, addresses this challenge by providing a standardized data acquisition point that normalizes high-speed pulse signals into structured process variables accessible across the entire control network.

Data silos are a persistent problem in plants where PLCs, DCS controllers, and standalone instruments each maintain isolated data stores with no cross-system visibility. By routing 2MLF-HD2A counter data through the Experion PKS server infrastructure, operations teams gain a single source of truth for production metrics — eliminating the manual data reconciliation that previously consumed engineering hours and introduced transcription errors.

Remote monitoring and diagnostics are fully supported through the Experion PKS architecture. Maintenance engineers can access live counter values, module health status, and diagnostic fault codes from any networked workstation or via secure remote desktop connections to the Experion PKS Station. Alarm events generated by the 2MLF-HD2A — such as counter overflow, signal loss, or communication timeout — are automatically propagated to the plant alarm management system, ensuring that no fault condition goes undetected regardless of shift staffing levels.

Production line transparency is achieved through configurable data publishing rates and historian archiving. Counter data from the 2MLF-HD2A can be logged at sub-second intervals in the Uniformance PHD historian, providing the granular time-series data required for OEE (Overall Equipment Effectiveness) calculations, batch traceability reports, and regulatory compliance documentation. System expansion is straightforward: additional 2MLF-HD2A modules can be added to existing Experion PKS chassis without controller reconfiguration, supporting phased capacity increases as production demands grow.

Q1: What communication protocols does the Honeywell 2MLF-HD2A support, and is it compatible with third-party SCADA systems?The 2MLF-HD2A communicates natively over the Experion PKS backplane and supports Fault Tolerant Ethernet (FTE) for controller-to-server communication. Data can be exposed to third-party SCADA systems including Wonderware, Ignition, and iFIX through OPC DA/UA server interfaces hosted on the Experion PKS server, ensuring broad protocol compatibility without additional hardware.

Q2: How does the 2MLF-HD2A perform in high-noise industrial environments, and what is the expected network latency?The module is designed to Honeywell's industrial-grade EMC standards, with shielded backplane connections and optically isolated signal inputs that reject common-mode noise from variable frequency drives, welding equipment, and high-current motor starters. Network latency within the FTE architecture is deterministic and typically sub-10ms for controller scan cycles, ensuring reliable real-time data delivery even in electrically demanding environments.

Q3: Can the 2MLF-HD2A be integrated into an existing Experion PKS system without a full system shutdown?Hot-insertion capability depends on the specific chassis configuration and firmware version. In most Experion PKS deployments, I/O modules can be inserted into powered chassis with the controller in run mode, minimizing production disruption. It is recommended to consult the Experion PKS I/O Installation Guide and verify chassis compatibility before performing live insertion. NANKMOS provides pre-shipment configuration verification to confirm module compatibility with your existing system revision.

Q4: What does the 12-month warranty cover, and what is the process for warranty claims?The 12-month warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact NANKMOS at [email protected] or +86 18359268345 with the module serial number, purchase documentation, and a description of the fault. Replacement or repair is typically completed within 10 business days of fault verification.
