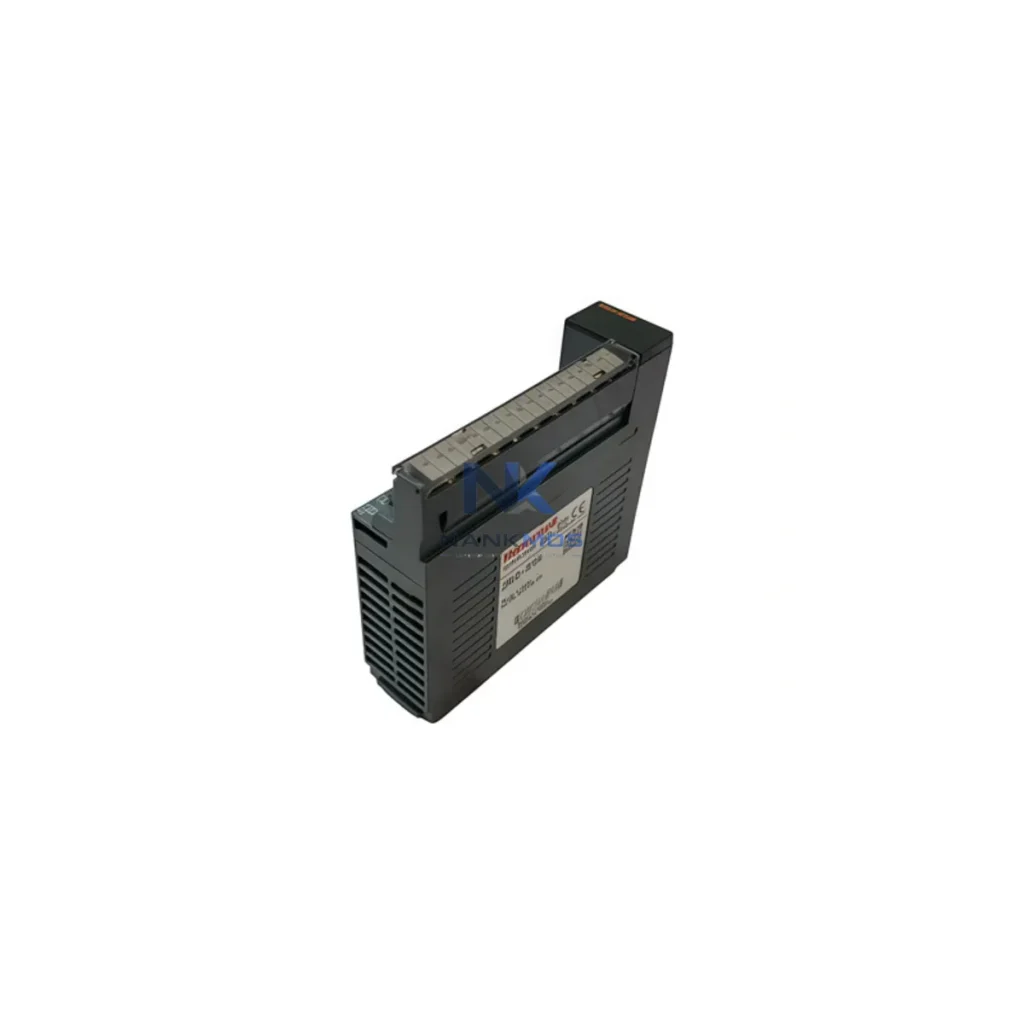

Honeywell 2MLQ-RY2B Digital Output Module

Product Details

2MLQ-RY2B Product Description

The Honeywell 2MLQ-RY2B is a relay-type digital output module engineered for the Honeywell TDC 3000 Distributed Control System (DCS) platform. Designed to bridge field-level actuators and high-level control networks, the 2MLQ-RY2B delivers reliable discrete signal output across multi-node industrial architectures. Whether deployed in petrochemical refineries, power generation facilities, or advanced manufacturing plants, this module serves as a critical node in the smart factory data chain — converting control commands from the DCS into precise relay switching actions that drive solenoids, motor starters, alarm annunciators, and safety interlock circuits.

In a fully integrated smart factory, the Honeywell 2MLQ-RY2B operates at the intersection of the control layer and the field device layer. The data flow begins upstream at the Honeywell TDC 3000 Universal Control Network (UCN), where process controllers such as the Honeywell PM (Process Manager) and AM (Advanced Manager) modules generate discrete output commands based on real-time process logic. These commands travel through the Local Control Network (LCN) backplane to the 2MLQ-RY2B, which converts the digital signal into a physical relay contact closure — triggering downstream field devices with precision and speed.

At the field level, the relay outputs of the 2MLQ-RY2B connect directly to motor control centers, solenoid valve actuators, alarm panels, and safety shutdown circuits. When integrated alongside Honeywell 2MLF-AI16 analog input modules and 2MLQ-DI2B digital input modules, the system creates a closed-loop feedback architecture: sensors and transmitters feed real-time process values back through the input modules, while the 2MLQ-RY2B executes the corresponding output commands — enabling true bidirectional data flow across the automation layer.

For facilities running hybrid network architectures, the 2MLQ-RY2B can coexist with modern edge gateway devices such as the Honeywell Experion PKS platform, which provides OPC-UA and Modbus TCP bridging between legacy TDC 3000 nodes and contemporary SCADA systems. This allows operators to visualize relay output states, alarm conditions, and interlock statuses on Honeywell HMIWeb Display Builder or third-party SCADA platforms including Wonderware InTouch and Ignition SCADA, without replacing existing field wiring or DCS infrastructure.

Remote I/O expansion is also supported through integration with Honeywell HLAI and HDOB series remote I/O modules, which extend the digital output reach to geographically distributed field panels across large plant footprints. Industrial Ethernet switches — such as managed Layer 2 switches supporting IEEE 802.3 and PROFINET-compatible topologies — provide the network backbone that carries status data from the 2MLQ-RY2B's relay states up to the plant historian and MES layer. Variable frequency drives (VFDs) connected to motor starter circuits controlled by the 2MLQ-RY2B can report speed feedback and fault codes through separate Modbus RTU or PROFIBUS DP links, creating a comprehensive device-level data loop that feeds into the plant's centralized data visualization dashboard.

For power-sensitive installations, the 2MLQ-RY2B is typically paired with Honeywell TDC 3000 Power Supply modules and redundant 24VDC industrial power supplies to ensure uninterrupted relay operation during grid fluctuations. The complete data chain — from sensor signal acquisition through PLC/DCS processing, relay output actuation, and SCADA visualization — is designed for deterministic, low-latency performance that meets the demands of continuous process industries.

Many industrial facilities operating legacy DCS platforms face persistent challenges: protocol fragmentation between older Honeywell Data Hiway nodes and modern Ethernet-based systems, data silos that prevent real-time visibility into relay output states, and the inability to perform remote diagnostics on discrete output modules without physical site access. The Honeywell 2MLQ-RY2B addresses these challenges directly within the TDC 3000 ecosystem.

Protocol Unification: By operating natively on the TDC 3000 LCN/UCN backplane, the 2MLQ-RY2B eliminates the need for external protocol converters between the DCS controller and field relay outputs. When paired with an Experion PKS migration gateway, legacy Data Hiway signals are transparently mapped to OPC-UA tags, making relay output states accessible to modern SCADA and MES platforms without rewiring.

Eliminating Data Silos: Relay output status, contact health, and switching cycle counts can be surfaced through the TDC 3000 historian and forwarded to plant-wide data lakes via OPC-DA/OPC-UA bridges. This transforms previously invisible discrete output events into traceable, time-stamped data points that support predictive maintenance and production reporting.

Remote Monitoring and Diagnostics: Through integration with Honeywell's Experion PKS or third-party remote access platforms, maintenance engineers can monitor the 2MLQ-RY2B's output states, verify relay contact integrity, and receive alarm notifications for output faults — all without dispatching field technicians. This capability is especially valuable for unmanned substations, offshore platforms, and geographically dispersed process units.

Production Line Transparency: By feeding relay output event logs into SCADA alarm management systems, the 2MLQ-RY2B contributes to ISA-18.2-compliant alarm rationalization workflows. Operators gain full visibility into which output channels are active, which interlocks have been triggered, and how frequently specific relay contacts are cycling — enabling data-driven decisions about maintenance scheduling and process optimization.

System Scalability: The modular card-slot architecture of the TDC 3000 platform allows additional 2MLQ-RY2B modules to be added to existing I/O cabinets without system downtime, supporting phased capacity expansion as production requirements grow.

Q1: What communication protocols does the Honeywell 2MLQ-RY2B support? The 2MLQ-RY2B communicates natively over the Honeywell TDC 3000 Local Control Network (LCN) and Universal Control Network (UCN) backplane protocols. For integration with modern Ethernet-based SCADA or MES systems, it is used in conjunction with Honeywell Experion PKS gateways that provide OPC-UA, Modbus TCP, and OPC-DA protocol bridging — enabling seamless data exchange without replacing existing field infrastructure.

Q2: How does the 2MLQ-RY2B support remote diagnostics and network stability? When integrated within a TDC 3000 system connected to an Experion PKS or equivalent OPC server, relay output states and fault conditions are continuously monitored and can be accessed remotely via SCADA HMI displays. The module's relay contact status is polled at the DCS scan rate, ensuring real-time alarm generation for output failures. Redundant power supply configurations further enhance network stability by eliminating single points of failure in the output circuit.

Q3: Is the Honeywell 2MLQ-RY2B compatible with modern SCADA and HMI systems? Yes. While the 2MLQ-RY2B is a native TDC 3000 module, its output states are fully accessible through Honeywell's Experion PKS migration platform, which maps legacy LCN/UCN data points to standard OPC-UA tags. These tags can be consumed by any OPC-UA-compatible SCADA platform — including Wonderware, Ignition, and iFIX — as well as Honeywell's own HMIWeb and Experion Station displays, enabling full HMI visualization without hardware replacement.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 2MLQ-RY2B? All Honeywell 2MLQ-RY2B modules supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify relay contact continuity, backplane communication integrity, and output channel response. Units are shipped in anti-static protective packaging with full traceability documentation. For urgent requirements, expedited shipping and priority stock allocation are available — contact [email protected] or call +86 18359268345 for availability confirmation.
