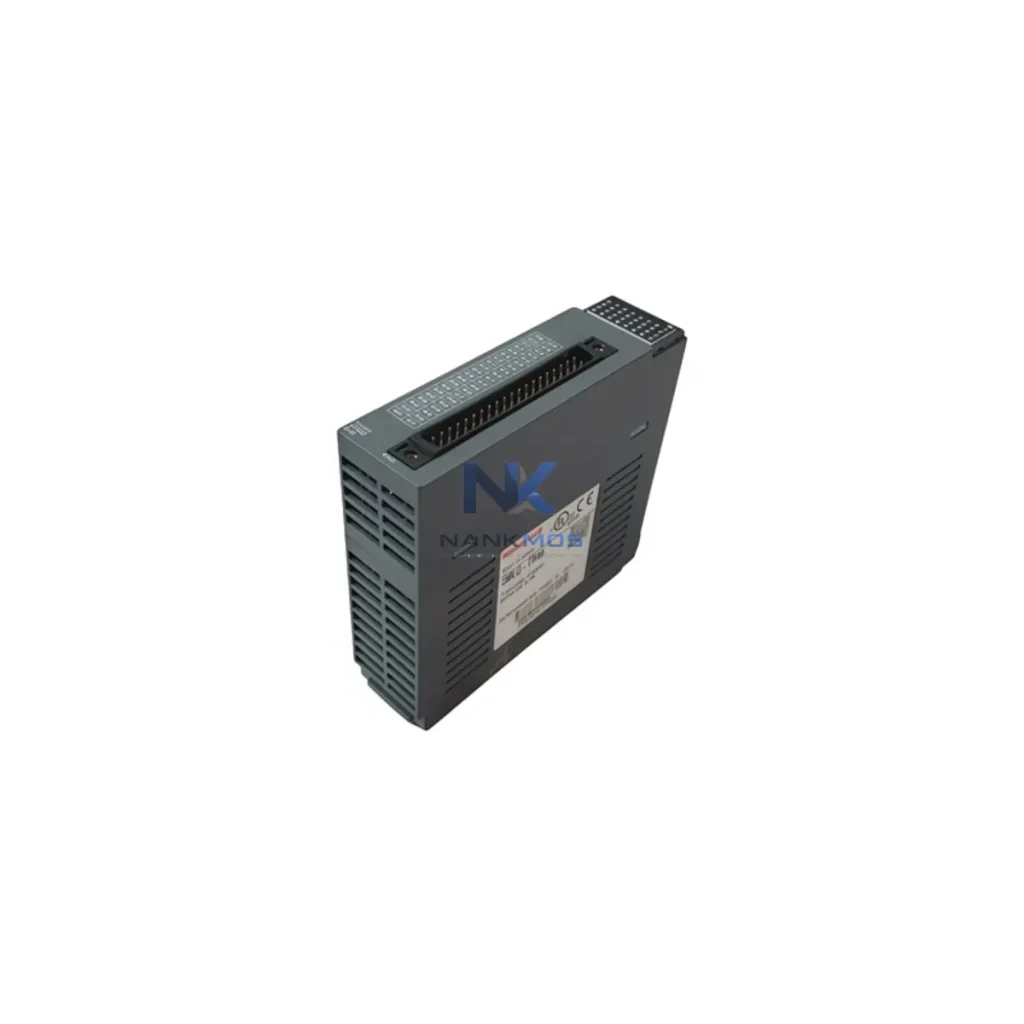

Honeywell 2MLQ-TR8A DCS Thermocouple Input Module

Product Details

2MLQ-TR8A Product Description

The Honeywell 2MLQ-TR8A is not a standalone component — it is a precision signal acquisition node engineered for deep Contextual Integration within the Honeywell Experion PKS distributed control architecture. Understanding its role requires examining how it interacts across every functional layer of a modern industrial automation platform.

At the control layer, the 2MLQ-TR8A operates in direct coordination with the Honeywell C300 Controller and C200 Controller, which serve as the primary processing engines for the Experion PKS platform. The C300 Controller manages high-density I/O configurations and supports redundant control paths, while the C200 handles mid-range process loops. The 2MLQ-TR8A feeds real-time thermocouple data directly into these controllers via the backplane bus, ensuring zero-latency signal delivery for closed-loop temperature control strategies.

At the I/O layer, the 2MLQ-TR8A is designed to coexist within the same chassis as complementary modules such as the Honeywell 2MLQ-MR8A Millivolt/Resistance Input Module and the Honeywell 2MLQ-AO8A Analog Output Module. This modular co-deployment allows engineers to build mixed-signal I/O assemblies within a single rack, reducing cabinet footprint and simplifying field wiring. The 8-channel architecture of the 2MLQ-TR8A supports high-density temperature monitoring across furnaces, reactors, heat exchangers, and distillation columns without requiring additional chassis slots.

At the communication layer, the Experion PKS backplane bus ensures deterministic data exchange between the 2MLQ-TR8A and the system controller. For plants requiring supervisory connectivity, the Honeywell ENET-2 Ethernet Communication Module and Honeywell FTE (Fault Tolerant Ethernet) Switch extend process data to the Experion PKS server and historian, enabling real-time trending, alarm management, and remote diagnostics. The 2MLQ-TR8A's signal data is fully accessible through the Experion PKS OPC DA/UA server interface, supporting integration with third-party SCADA and MES platforms.

At the power layer, the 2MLQ-TR8A draws power directly from the I/O chassis backplane, which is supplied by the Honeywell PS-IOTA Power Supply Module. For critical process applications, redundant power supply configurations using dual PS-IOTA units ensure uninterrupted module operation even during single-supply failures. This eliminates the need for external 24VDC field power wiring to the module itself, simplifying installation and reducing potential failure points.

At the HMI layer, temperature data acquired by the 2MLQ-TR8A is rendered in real time on Honeywell Experion PKS Operator Stations running the Station software environment. Operators can monitor individual thermocouple channel values, configure alarm setpoints, and review historical trends without leaving the unified Experion PKS interface. For field-level visualization, Honeywell Mobility Station tablets provide wireless access to live process data, supporting mobile operator rounds in large-scale facilities.

At the protection layer, the 2MLQ-TR8A incorporates open-circuit detection and out-of-range diagnostics for each thermocouple channel. When a sensor wire break or signal anomaly is detected, the module immediately flags the affected channel and generates a system alarm within the Experion PKS alarm management framework. This capability is critical in safety-instrumented environments where undetected sensor failures can lead to process upsets. For SIL-rated applications, the 2MLQ-TR8A can be deployed alongside Honeywell Safety Manager SC modules to provide independent temperature verification loops.

At the maintenance layer, the 2MLQ-TR8A supports hot-swap replacement within the Experion PKS chassis, allowing field technicians to replace a faulty module without shutting down adjacent I/O channels or the controller. Module configuration is stored in the Experion PKS Control Builder database and is automatically downloaded to a replacement module upon insertion, minimizing mean time to repair (MTTR). Paired with the Honeywell Control Builder Engineering Tool, maintenance engineers can perform online diagnostics, channel calibration verification, and firmware status checks from the engineering workstation.

The Honeywell 2MLQ-TR8A serves as a critical temperature acquisition component across a wide spectrum of process industries, each with distinct control architecture requirements:

Petrochemical and Refining: In crude distillation units and catalytic cracking processes, precise temperature profiling across multiple reactor zones is essential for yield optimization and safety compliance. The 2MLQ-TR8A's 8-channel capacity allows a single module to monitor an entire reactor temperature gradient, feeding data directly to the C300 Controller for advanced process control (APC) algorithms.

Power Generation: In coal-fired and gas turbine power plants, thermocouple inputs from boiler tubes, turbine exhaust stacks, and heat recovery steam generators (HRSGs) are consolidated through 2MLQ-TR8A modules deployed across multiple Experion PKS I/O cabinets. The module's cold junction compensation ensures measurement accuracy across wide ambient temperature ranges typical of turbine hall environments.

Metallurgy and Steel Production: Electric arc furnaces, continuous casting lines, and annealing furnaces require high-temperature thermocouple inputs (Type R, S, B) operating near the upper limits of the 2MLQ-TR8A's measurement range. The module's 16-bit resolution provides the measurement granularity needed for tight temperature control in metallurgical processes where ±2°C deviations can affect product quality.

Water and Wastewater Treatment: In municipal water treatment facilities, the 2MLQ-TR8A monitors temperature across UV disinfection reactors, sludge digesters, and heat exchangers. Its integration with the Experion PKS historian enables long-term temperature trend analysis for regulatory compliance reporting.

Pharmaceutical and Food Processing: Sterilization-in-place (SIP) and clean-in-place (CIP) processes in pharmaceutical manufacturing require validated temperature measurement with full audit trail capability. The 2MLQ-TR8A's integration with Experion PKS provides the data integrity and electronic batch record support required for FDA 21 CFR Part 11 compliance.

Mining and Mineral Processing: In SAG mill and ball mill drive systems, motor winding temperature monitoring via thermocouple inputs protects against overheating failures. The 2MLQ-TR8A's open-circuit detection capability provides an additional layer of protection by alerting operators to sensor failures before they result in undetected thermal events.

Q1: Is the Honeywell 2MLQ-TR8A compatible with both C200 and C300 Controller platforms within the same Experion PKS system? Yes. The 2MLQ-TR8A is designed for full Contextual Integration within the Experion PKS I/O subsystem and is compatible with both the C200 and C300 Controller families. In mixed-controller architectures — common in phased plant expansions — the module can be assigned to either controller platform through the Control Builder configuration tool without hardware modification. This flexibility supports long-term architecture scalability without requiring I/O hardware replacement during controller upgrades.

Q2: What redundancy options are available for the 2MLQ-TR8A in high-availability process control applications? For applications requiring continuous availability, the Experion PKS architecture supports redundant I/O configurations where critical thermocouple inputs are wired to dual 2MLQ-TR8A modules installed in separate chassis. The C300 Controller's redundant I/O scanning capability monitors both modules simultaneously and performs automatic switchover in the event of a module failure, with no process data interruption. Additionally, redundant PS-IOTA power supplies at the chassis level ensure that a single power supply failure does not affect module operation. All redundancy configurations are managed through the Experion PKS Control Builder without custom programming.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for replacement units? All Honeywell 2MLQ-TR8A modules supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) units. Prior to shipment, each module undergoes functional verification testing to confirm channel integrity, communication bus response, and power consumption within specification. For replacement units, NANKMOS maintains inventory stock to support expedited delivery, with standard lead times of 3–7 business days for in-stock units and priority shipping options available for urgent plant maintenance requirements. Contact [email protected] or +86 18359268345 for real-time stock confirmation and shipping quotations.
