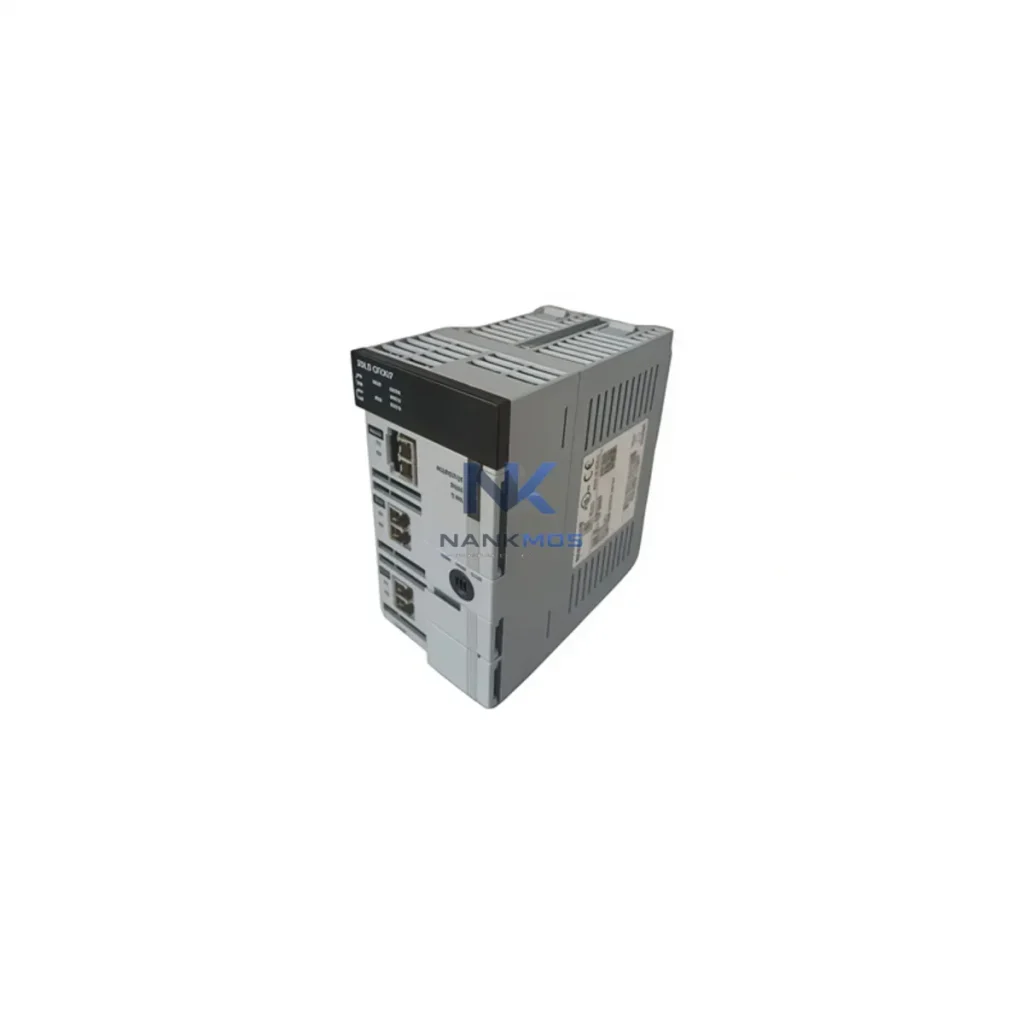

Honeywell 2MLR-CPUH/F Safety CPU Module

Product Details

2MLR-CPUH/F Product Description

The Honeywell 2MLR-CPUH/F is a high-integrity Safety Manager CPU module engineered for the SM Series safety system platform. Designed to serve as the central processing and communication hub within safety-critical automation environments, the 2MLR-CPUH/F delivers deterministic control, multi-protocol gateway capability, and seamless integration across the full industrial data chain — from field-level sensors and actuators through to SCADA supervisory systems and enterprise MES platforms. In smart factory deployments where uptime, data transparency, and remote diagnostics are non-negotiable, this module provides the network backbone that connects every layer of the automation hierarchy.

Built to IEC 61508 SIL3 standards, the 2MLR-CPUH/F is not simply a safety controller — it is an active node in the plant-wide communication architecture. Its ability to bridge legacy field protocols with modern Ethernet-based industrial networks makes it a critical enabler of digital transformation in process industries including oil and gas, chemical, power generation, and advanced manufacturing.

In a modern smart factory, the Honeywell 2MLR-CPUH/F sits at the intersection of operational technology (OT) and information technology (IT), orchestrating data flow across every layer of the automation stack. The data journey begins at the field level, where process sensors — pressure transmitters, temperature sensors, flow meters, and gas detectors — feed analog and digital signals into the SM Series remote I/O modules. These field signals are conditioned and transmitted over HART or PROFIBUS DP to the 2MLR-CPUH/F, which performs real-time safety logic execution and simultaneously packages process data for upstream communication.

Within the SM Series architecture, the 2MLR-CPUH/F works in close coordination with the Honeywell SM Series I/O modules (such as the 2MLR-AIM and 2MLR-AOM analog input/output cards) to maintain continuous signal integrity across the safety loop. The CPU's dual redundant Ethernet ports connect directly to the plant's industrial Ethernet backbone, enabling high-speed Modbus TCP/IP and OPC UA data exchange with the site's Honeywell Experion PKS DCS or third-party SCADA platforms. This architecture ensures that process variables, alarm states, and safety system diagnostics are available in real time at the operator HMI level — whether that HMI is a local panel running Honeywell HMIWeb Display Builder or a remote workstation connected via the plant LAN.

For facilities integrating variable frequency drives (VFDs) and motor control centers into the safety architecture, the 2MLR-CPUH/F provides the protocol gateway function that translates drive status data — speed references, fault codes, run/stop commands — from Modbus RTU or PROFIBUS DP into the safety system's internal data model. This allows the Honeywell Safety Manager to issue certified safe-state commands to drives and actuators without requiring additional protocol converters or edge gateways, reducing network latency and eliminating potential single points of failure in the communication chain.

At the network infrastructure layer, the 2MLR-CPUH/F connects to managed industrial Ethernet switches — typically DIN-rail mounted units supporting IEEE 802.3 with VLAN segmentation and IGMP snooping — that form the ring or star topology backbone of the safety network. These switches provide the physical layer redundancy that complements the CPU's hot-standby redundancy, ensuring that a single cable or switch failure does not interrupt safety-critical data transmission. The combination of hardware redundancy at both the CPU and network switch level is a fundamental requirement in SIL3-rated safety instrumented systems (SIS).

Edge computing and remote diagnostics are increasingly important in distributed plant environments. The 2MLR-CPUH/F supports OPC UA server functionality, enabling industrial edge gateways — such as those running on embedded Linux platforms — to subscribe to real-time process data and push it to cloud-based analytics platforms or on-premise data historians. This data pipeline supports predictive maintenance workflows, where vibration data from smart sensors, combined with safety system trip records from the 2MLR-CPUH/F, can be analyzed to identify equipment degradation trends before they result in unplanned shutdowns.

For power-sensitive installations, the SM Series safety system powered by the 2MLR-CPUH/F is typically supported by Honeywell or third-party 24VDC industrial power supplies with redundant input capability, ensuring that the safety CPU and its associated I/O modules maintain continuous operation even during primary power interruptions. The overall system — from field sensor through safety CPU, industrial switch, SCADA gateway, and edge analytics node — forms a complete, auditable data chain that supports both real-time operational decisions and long-term process optimization.

Protocol Fragmentation: Many brownfield automation sites operate a mix of legacy serial protocols (Modbus RTU, PROFIBUS DP) alongside modern Ethernet-based systems (Modbus TCP/IP, OPC UA, Ethernet/IP). The 2MLR-CPUH/F's built-in multi-protocol support eliminates the need for standalone protocol converters, reducing hardware complexity and potential communication bottlenecks. A single CPU module can simultaneously serve as a Modbus slave to a DCS, an OPC UA server to a SCADA historian, and a PROFIBUS DP master to field instruments — all without additional middleware.

Data Silos and Production Transparency: In facilities where safety systems and process control systems operate on separate, non-communicating networks, critical process data remains invisible to production management and maintenance teams. The 2MLR-CPUH/F's OPC UA and Modbus TCP/IP interfaces break down these silos by providing standardized, secure data access to authorized systems across the plant network. Real-time safety system data — including trip counts, bypass status, diagnostic alarms, and process variable trends — becomes available to MES and ERP systems, enabling true production transparency and data-driven decision making.

Remote Monitoring and Alarm Management: Distributed plant sites — offshore platforms, remote pipeline stations, unmanned substations — present significant challenges for alarm management and fault response. The 2MLR-CPUH/F's remote diagnostic capability, accessed via its Ethernet interface and OPC UA data model, allows maintenance engineers to interrogate the safety system's internal diagnostics, review alarm histories, and assess system health without requiring physical site access. This capability dramatically reduces the mean time to diagnose (MTTD) for safety system faults and supports the shift from reactive to predictive maintenance strategies.

System Scalability: As production requirements evolve, the SM Series architecture supported by the 2MLR-CPUH/F scales gracefully through the addition of remote I/O expansion racks, additional communication modules, and peer-to-peer safety network connections. The CPU's processing capacity and communication bandwidth are designed to accommodate system growth without requiring a complete architecture redesign, protecting the initial capital investment and minimizing the engineering effort required for future expansions.

Q1: What communication protocols does the Honeywell 2MLR-CPUH/F support, and is it compatible with third-party SCADA systems? The 2MLR-CPUH/F supports Modbus RTU, Modbus TCP/IP, PROFIBUS DP, HART pass-through, OPC DA, and OPC UA. This broad protocol coverage ensures compatibility with all major SCADA platforms including Wonderware (AVEVA), Ignition (Inductive Automation), Honeywell Experion, and Siemens WinCC. OPC UA in particular provides a vendor-neutral, secure data exchange standard that simplifies integration with modern SCADA and MES systems without requiring custom drivers.

Q2: How does the /F suffix in 2MLR-CPUH/F relate to network redundancy and system availability? The /F designation indicates a fault-tolerant, hot-standby redundant CPU configuration. In this architecture, two 2MLR-CPUH/F modules operate in parallel — one active, one in standby — with continuous state synchronization over a dedicated redundancy link. In the event of a primary CPU failure, the standby module assumes control within milliseconds, with no interruption to safety logic execution or network communication. This redundancy architecture is essential for SIL3-rated safety instrumented systems where high availability is a design requirement.

Q3: What is the typical network latency for real-time data exchange between the 2MLR-CPUH/F and a connected SCADA or DCS system? Over a properly configured industrial Ethernet network with managed switches and appropriate QoS settings, Modbus TCP/IP and OPC UA communication cycles between the 2MLR-CPUH/F and a SCADA or DCS system typically achieve update rates of 100–500ms for standard process data. Safety-critical internal logic execution operates at the CPU's configured scan rate (typically 100–250ms), independent of external communication cycles. For time-sensitive alarm and event data, OPC UA subscriptions with monitored item change notifications provide near-real-time delivery with sub-second latency.

Q4: Does NANKMOS provide pre-shipment testing, and what warranty coverage applies to the 2MLR-CPUH/F? Yes. Every Honeywell 2MLR-CPUH/F unit supplied by NANKMOS undergoes pre-shipment functional verification, including power-on testing, communication interface checks, and firmware version confirmation. All units are supplied with a 12-month warranty covering manufacturing defects and operational failures under normal use conditions. In-stock units are available for immediate dispatch, with expedited shipping options available for urgent project requirements. For technical pre-sales support, RFQ submission, or warranty claims, contact our team at [email protected] or +86 18359268345.
