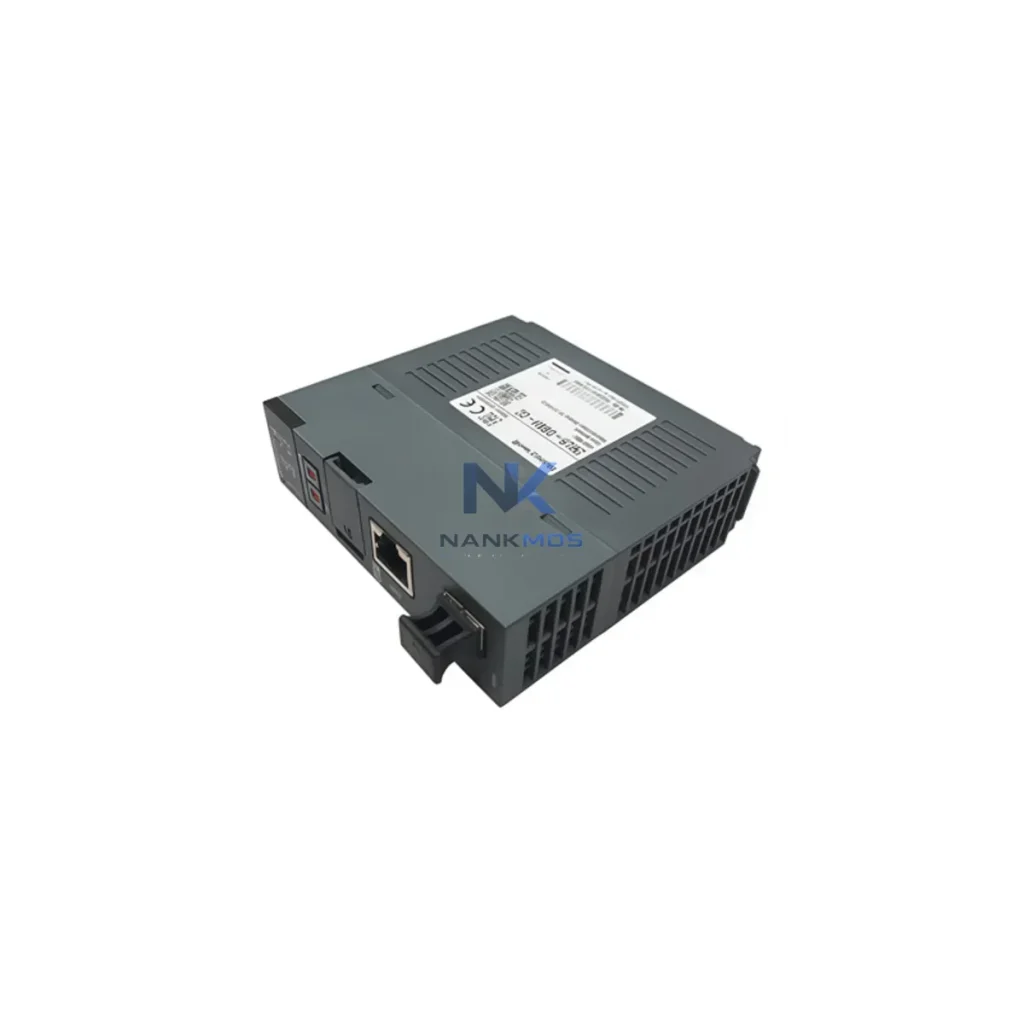

Honeywell 2MLR-DBSHS-CC Safety Controller Module

Product Details

2MLR-DBSHS-CC Product Description

The Honeywell 2MLR-DBSHS-CC is a system-matched safety module engineered for deployment within the Honeywell FSC (Fail-Safe Controller) platform — one of the most widely adopted safety-rated control architectures in process-critical industries. Designed to operate as an integral node within a layered automation hierarchy, this module delivers deterministic safety logic execution, redundant signal processing, and seamless contextual integration across the full control stack. Whether deployed in a greenfield safety instrumented system (SIS) or integrated into an existing FSC rack environment, the 2MLR-DBSHS-CC provides the structural reliability and diagnostic transparency that modern industrial safety architectures demand.

The 2MLR-DBSHS-CC does not operate in isolation — its true value is realized when viewed as a functional node within a complete, multi-layer automation architecture. In a typical FSC-based safety system, this module occupies the control layer, executing safety logic and managing I/O signal validation in coordination with adjacent system components.

At the power layer, the FSC system relies on redundant power supply modules such as the Honeywell FSC PS024 or equivalent 24 VDC rack power units to ensure uninterrupted operation. Any power interruption at this layer is immediately detected by the safety logic processor, triggering a controlled safe-state transition. The 2MLR-DBSHS-CC interfaces directly with the rack backplane, making power layer stability a prerequisite for reliable module performance.

At the I/O layer, digital and analog input/output modules — including Honeywell FSC DI modules (10006/1/1 series) and DO modules (10006/2/1 series) — feed field signals into the safety logic processor. The 2MLR-DBSHS-CC validates these signals against configured safety functions, ensuring that field-level anomalies are detected and acted upon within the required response time. Paired with signal isolators and Zener barrier assemblies, the I/O layer maintains galvanic separation between hazardous field instruments and the control rack.

At the communication layer, the FSC platform supports integration with plant-wide DCS networks via PROFIBUS DP gateway modules and Modbus RTU/TCP communication cards. The 2MLR-DBSHS-CC participates in this communication hierarchy by reporting safety status, diagnostic data, and process variable states to the supervisory control layer — typically a Honeywell Experion PKS DCS or equivalent SCADA platform. This contextual integration ensures that safety events are visible across the entire plant control network in real time.

At the HMI layer, operator workstations running Honeywell's Safety Manager SC or legacy FSC engineering tools provide configuration, monitoring, and diagnostic access to the 2MLR-DBSHS-CC. Alarm management, safety function bypass authorization, and trip history logging are all managed through this layer, enabling engineering teams to maintain full situational awareness during both normal operations and safety events.

At the redundancy layer, the FSC architecture supports hot-standby and TMR (Triple Modular Redundancy) configurations. In redundant deployments, a secondary 2MLR-DBSHS-CC module or equivalent FSC processor operates in parallel, with automatic bumpless switchover in the event of a primary module fault. This redundancy design is critical for applications where process continuity and safety function availability must be maintained simultaneously — such as in offshore platform ESD systems or refinery burner management systems (BMS).

At the protection layer, the 2MLR-DBSHS-CC works in conjunction with final element assemblies — including solenoid valve drivers, relay output modules, and motor control interlocks — to execute the physical safe-state actions defined in the safety requirements specification (SRS). The module's output integrity is continuously monitored through diagnostic routines that verify actuator response and detect open-circuit or short-circuit conditions before they can compromise safety function performance.

At the maintenance layer, the FSC platform's modular design allows the 2MLR-DBSHS-CC to be replaced or tested online without requiring a full system shutdown in supported configurations. Paired with FSC rack chassis and termination assemblies, field engineers can perform module-level diagnostics, firmware verification, and functional testing using standard FSC engineering tools — reducing mean time to repair (MTTR) and minimizing production impact during scheduled maintenance windows.

The Honeywell 2MLR-DBSHS-CC is deployed across a broad spectrum of process-critical industries where functional safety and system reliability are non-negotiable engineering requirements.

In oil and gas / petrochemical applications, this module serves as the core safety logic processor in Emergency Shutdown (ESD) systems, High Integrity Pressure Protection Systems (HIPPS), and Burner Management Systems (BMS). Its SIL 2/3 capability and TÜV certification make it directly applicable to IEC 61511-compliant safety instrumented functions (SIFs) protecting pressure vessels, fired heaters, and pipeline isolation valves.

In power generation environments — including thermal, nuclear, and combined-cycle gas turbine plants — the 2MLR-DBSHS-CC provides turbine protection logic, boiler safety interlocking, and generator protection coordination. Its deterministic scan cycle and redundant architecture align with the high-availability requirements of grid-connected generation assets.

In chemical and specialty manufacturing facilities, the module manages reactor safety interlocks, exothermic process protection, and toxic gas detection response logic. Its ability to integrate with plant DCS networks via PROFIBUS or Modbus gateways enables unified alarm management across both safety and process control domains.

In water and wastewater treatment plants, the 2MLR-DBSHS-CC supports pump protection, chlorination system interlocking, and overflow prevention logic — applications where regulatory compliance and environmental protection are primary engineering drivers.

In mining and metals processing operations, the module provides conveyor safety interlocking, crusher protection, and ventilation system safety logic — environments characterized by high mechanical stress, dusty atmospheres, and extended maintenance intervals that demand robust, long-life control hardware.

Q1: Is the 2MLR-DBSHS-CC compatible with existing FSC rack systems, and can it be integrated without replacing the entire safety controller chassis? Yes. The 2MLR-DBSHS-CC is designed as a slot-compatible module for the Honeywell FSC rack platform. It can be installed into existing FSC chassis without requiring chassis replacement, provided the rack firmware and engineering tool versions are compatible. NANKMOS recommends verifying the FSC system revision level and consulting the FSC hardware compatibility matrix prior to installation. Our technical team can assist with pre-installation compatibility assessment as part of the procurement process.

Q2: What does the 12-Month Warranty cover, and what pre-shipment testing is performed on the 2MLR-DBSHS-CC? Every 2MLR-DBSHS-CC unit supplied by NANKMOS undergoes functional verification testing prior to shipment, including power-on self-test (POST) validation, backplane communication integrity checks, and I/O channel continuity verification. The 12-Month Warranty covers manufacturing defects, component failures under normal operating conditions, and firmware integrity. Warranty claims are processed directly through NANKMOS, with replacement units dispatched to minimize system downtime. Extended warranty and spare parts stocking programs are available for long-term maintenance contracts.

Q3: How does NANKMOS support long-term inventory availability for the 2MLR-DBSHS-CC in multi-year maintenance programs? NANKMOS maintains dedicated inventory reserves for critical FSC platform components, including the 2MLR-DBSHS-CC, to support long-term maintenance, repair, and operations (MRO) programs. For customers managing aging FSC installations where OEM supply chains have become constrained, NANKMOS provides a reliable alternative sourcing channel with documented traceability, functional test records, and 12-Month Warranty coverage. Blanket purchase orders and scheduled delivery programs are available to align with planned maintenance outage windows.
