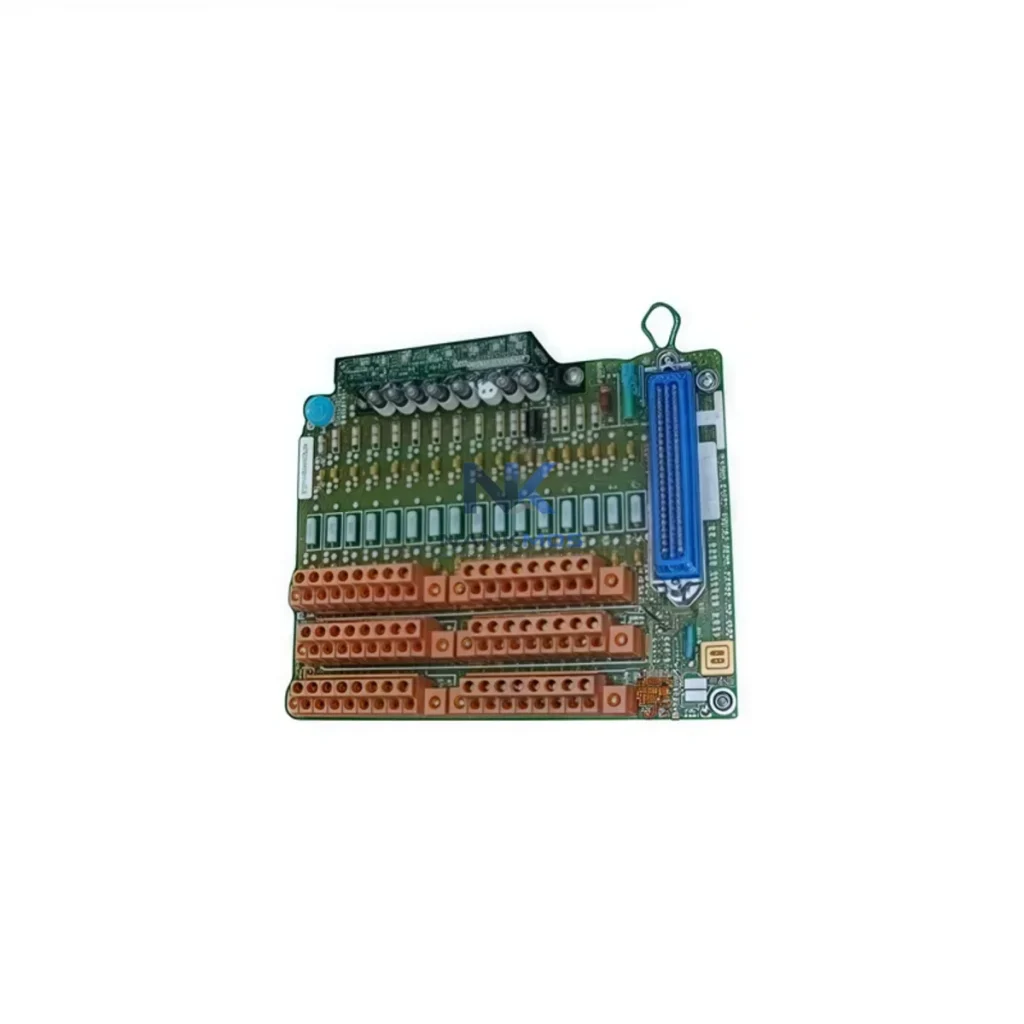

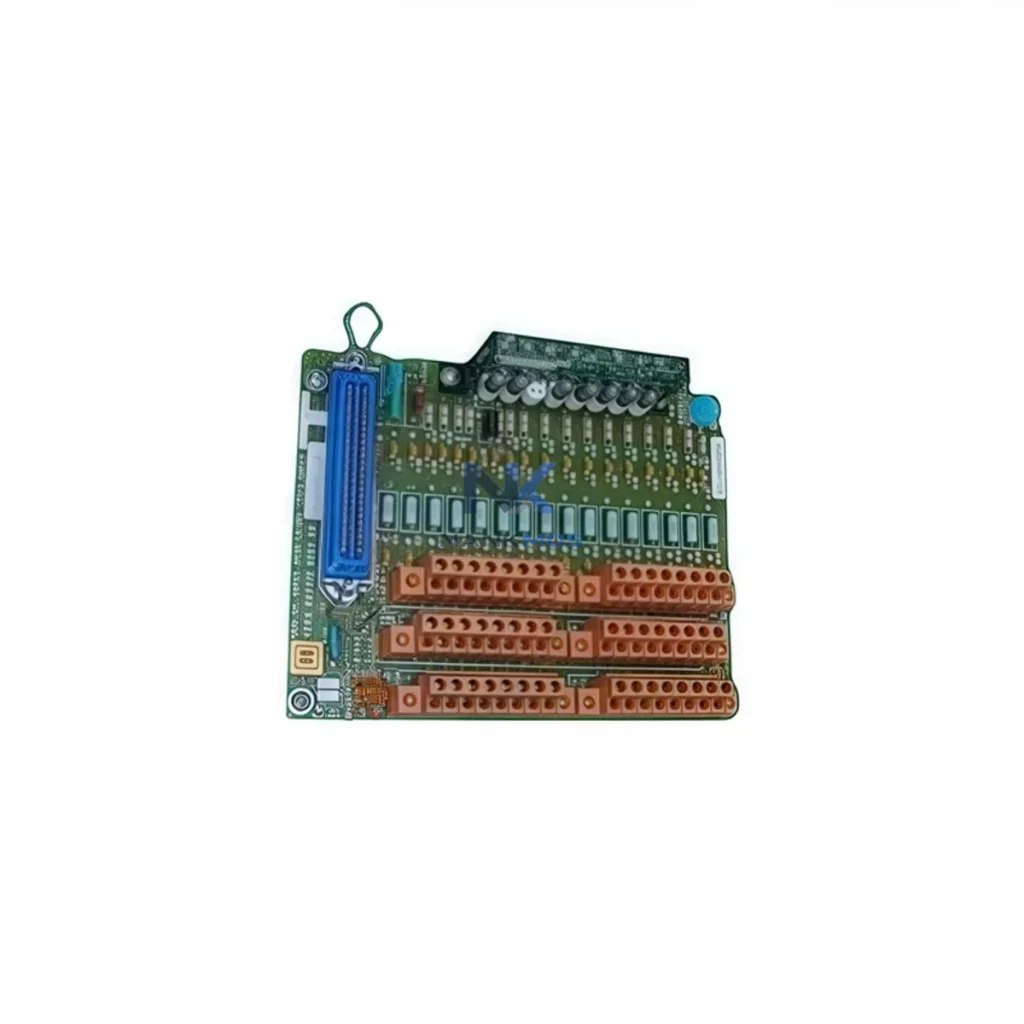

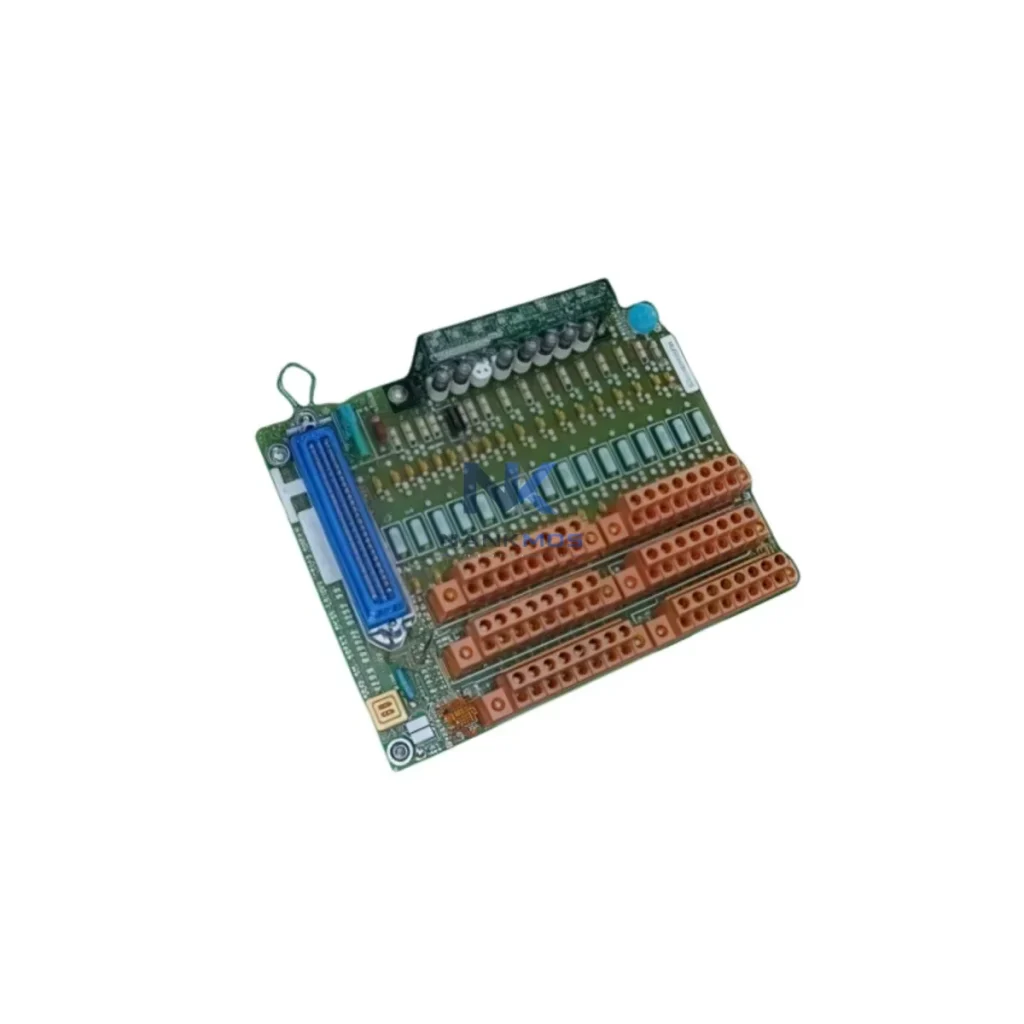

Honeywell 38001680-100 Safety I/O Module

Product Details

38001680-100 Product Description

The Honeywell 38001680-100 is not a standalone component — it is a precision-engineered node within a layered industrial automation architecture. Understanding its role requires examining how it interacts with adjacent system layers across the full control hierarchy.

At the control layer, the 38001680-100 interfaces directly with Honeywell Safety Manager SC controllers, which serve as the primary SIL 3-capable logic solvers in process safety applications. These controllers rely on validated I/O modules like the 38001680-100 to maintain deterministic signal processing and safety loop integrity. In parallel deployments, the Honeywell C300 Process Controller handles regulatory control tasks, while the Safety Manager manages emergency shutdown (ESD) and fire-and-gas (F&G) logic — both sharing the same Experion PKS supervisory environment.

At the I/O layer, the 38001680-100 works alongside other Honeywell I/O modules such as the 51304485-100 Analog Input Module and the 51309276-175 Digital Output Module, forming a cohesive field interface tier. These modules are mounted on common I/O link backplanes, enabling modular expansion without disrupting live system operation. The backplane architecture supports hot-swap capability, which is critical for maintaining uptime in continuous process environments such as petrochemical refining or LNG terminals.

At the communication layer, the module integrates with Honeywell's Fault Tolerant Ethernet (FTE) infrastructure, which provides redundant, deterministic network paths between field I/O, controllers, and the Experion server. FTE eliminates single points of network failure and supports seamless failover — a requirement in SIL-rated safety architectures. For legacy TDC 3000 installations, the Honeywell UCN (Universal Control Network) interface cards and NIM (Network Interface Module) components provide the communication bridge between older field devices and modern Experion supervisory layers.

At the power layer, the 38001680-100 is designed to operate within redundant 24 VDC power distribution schemes. Honeywell Power Distribution Panels (PDPs) and associated DC/DC converters ensure that each I/O module receives clean, regulated power even during primary supply interruptions. This redundancy is essential in safety-critical applications where power loss to an I/O module could trigger spurious trips or, worse, fail-to-danger conditions.

At the HMI layer, operators interact with the system through Honeywell Experion PKS Stations — including the Experion Operator Station (EOS) and Engineering Station (ES). These platforms provide real-time visualization of I/O status, alarm management, and diagnostic dashboards that surface module-level health data from the 38001680-100 directly to the control room. Integration with Honeywell's PHD (Process Historian Database) enables long-term trending and compliance reporting.

At the protection and redundancy layer, the 38001680-100 supports voted I/O architectures (1oo2, 2oo3) when deployed within Safety Manager redundant configurations. This voting logic ensures that a single module fault does not compromise the safety function, maintaining SIL 2 or SIL 3 integrity as required by IEC 61511. Paired with Honeywell FSC (Fail Safe Controller) legacy modules in hybrid architectures, the 38001680-100 enables phased migration strategies without full system replacement.

At the maintenance layer, the module's design supports online diagnostics through Experion's System Status Display, allowing maintenance engineers to identify degraded channels, communication faults, or power anomalies without taking the system offline. This capability significantly reduces mean time to repair (MTTR) and supports predictive maintenance programs aligned with IEC 62443 cybersecurity and functional safety standards.

The Honeywell 38001680-100 is deployed across a wide range of safety-critical and process-intensive industries where system reliability, signal integrity, and regulatory compliance are non-negotiable.

In petrochemical and refining facilities, the module serves as the I/O interface for emergency shutdown systems protecting distillation columns, reactor vessels, and high-pressure pipelines. Its SIL-rated performance ensures that safety instrumented functions (SIFs) respond within defined safe state times under all fault conditions.

In power generation and utilities, including thermal, nuclear, and combined-cycle plants, the 38001680-100 integrates with turbine protection systems and boiler management systems (BMS), where deterministic I/O response and redundant architecture are mandated by regulatory bodies.

In water and wastewater treatment plants, the module supports SCADA-integrated control architectures managing pump stations, chemical dosing systems, and filtration processes — environments where continuous operation and remote diagnostics are essential for public safety compliance.

In mining and metallurgy, the 38001680-100 is used in conveyor protection systems, crusher control panels, and smelter automation platforms, where harsh electrical environments demand robust signal isolation and high noise immunity.

In marine and offshore applications, including FPSO vessels and offshore platforms, the module's compact form factor and wide operating temperature range make it suitable for space-constrained control rooms subject to vibration, humidity, and corrosive atmospheres.

In packaging and discrete manufacturing lines, the module supports safety relay integration and machine guarding systems, enabling compliance with ISO 13849 and IEC 62061 machinery safety standards within Honeywell-based control architectures.

Q1: Is the Honeywell 38001680-100 compatible with both TDC 3000 and Experion PKS platforms simultaneously? Yes. The 38001680-100 is designed for use within Honeywell's unified control architecture, which supports coexistence of TDC 3000 legacy nodes and Experion PKS servers on the same network infrastructure. Migration projects commonly retain existing 38001680-100 modules during phased upgrades, as the module's backplane and communication interfaces are forward-compatible with Experion's I/O link architecture. This allows engineering teams to preserve validated safety loops while progressively modernizing the supervisory and control layers.

Q2: What installation and commissioning considerations apply when integrating the 38001680-100 into a redundant safety architecture? During installation, engineers must verify backplane slot assignments, I/O link addressing, and voted channel configuration within the Safety Manager engineering tool (SMP). Commissioning requires loop testing of each safety instrumented function (SIF) connected to the module, including proof-test documentation per IEC 61511 requirements. NANKMOS provides pre-shipment functional testing for all 38001680-100 units, and our technical team can supply configuration guidance and wiring diagrams to support site commissioning activities.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory supply for this module? All Honeywell 38001680-100 modules supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, NANKMOS provides rapid replacement or repair coordination to minimize system downtime. For long-term supply continuity, NANKMOS maintains dedicated inventory reserves for critical Honeywell TDC 3000 and Safety Manager components, supporting both planned maintenance cycles and emergency procurement requirements. Customers can contact our team at [email protected] or +86 18359268345 to discuss blanket order arrangements and lead time commitments.
